Handbrake of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

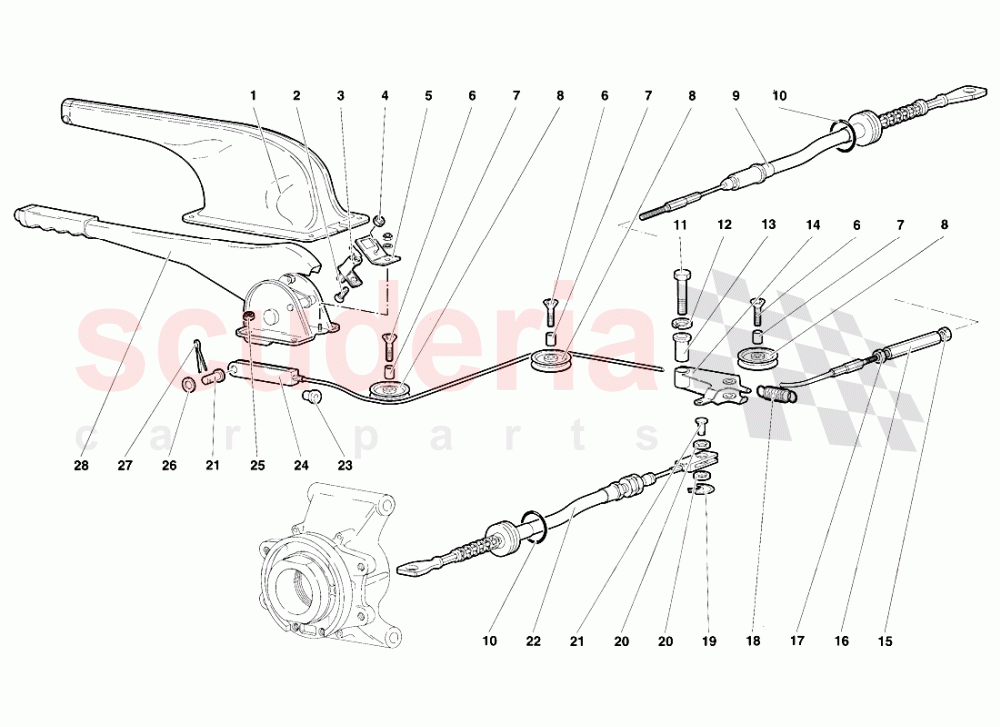

Lamborghini Diablo SV (1995-1997) - Handbrake

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9458611	COVERING	9458611 COVERING RIVESTIMENTO	-	1	Enquire
002	8700431	SCREW	8700431 SCREW VITE	$0.11 MSRP: ~~7.37~~ (98.5% off)	1
003	3336007	BUTTON	3336007 BUTTON PULSANTE	$26.86 MSRP: ~~30.10~~ (10.8% off)	1
004	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT DADO IN STOCK	$0.77 MSRP: ~~7.26~~ (89.4% off)	1
005	3335993	SUPPORT - SUPPORTO	3335993 SUPPORT - SUPPORTO O	-	1	Enquire
006	8700851	SCREW	8700851 SCREW VITE	$0.77 MSRP: ~~7.26~~ (89.4% off)	3
007	3330827	BUSHING	3330827 BUSHING BOCCOLA	-	3	Enquire
008	3332512	PULLEY	3332512 PULLEY CARRUCOLA	-	3	Enquire
009	3333588	RIGHT TIE ROD	3333588 RIGHT TIE ROD TIRANTE DX	$901.97	1
010	8602304	SEAL RING IN STOCK	8602304 SEAL RING ANELLO TENUTA IN STOCK	$9.45	2
011	8101407	SCREW M14X55	8101407 SCREW M14X55 VITE	$4.97 MSRP: ~~5.45~~ (8.8% off)	1
012	8411502	WASHER	8411502 WASHER RONDELLA	$2.38	1
013	3330828	SPACER	3330828 SPACER DISTANZIALE	-	1	Enquire
014	3333935	ROCKER	3333935 ROCKER O	-	1	Enquire
015	8200607	NUT M6	8200607 NUT M6 DADO	$11.90 MSRP: ~~13.30~~ (10.5% off)	1
016	413609206	ADJUSTING SLEEVE	413609206 ADJUSTING SLEEVE (Valid for R.H.D. version - April 1994) REGISTRO	$61.28	1
017	N01100632	NUT M6	N01100632 NUT M6 DADO	$4.21 MSRP: ~~7.33~~ (42.6% off)	1
018	3330829	SPRING	3330829 SPRING MOLLA	-	1	Enquire
019	4207085	CLIP	4207085 CLIP FERMAGLIO	$79.82	1
020	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	2
021	410609789	JOURNAL	410609789 JOURNAL PERNO	$28.78	2
022	3333589	LEFT TIE ROD	3333589 LEFT TIE ROD TIRANTE SX	$258.88	1
023	3330880	RUBBER BUSHING	3330880 RUBBER BUSHING BOCCOLA GOMMA	-	1	Enquire
024	3330816	TIE ROD	3330816 TIE ROD TIRANTE CENTRALE	$255.98	1
025	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.08	4
026	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	1
027	8820201	SPLIT PIN	8820201 SPLIT PIN COPIGLIA	$6.08 MSRP: ~~6.60~~ (7.9% off)	1
028	410711301D	HAND BRAKE LEVER	410711301D HAND BRAKE LEVER	$3,630.61	1
