Rear Brakes of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

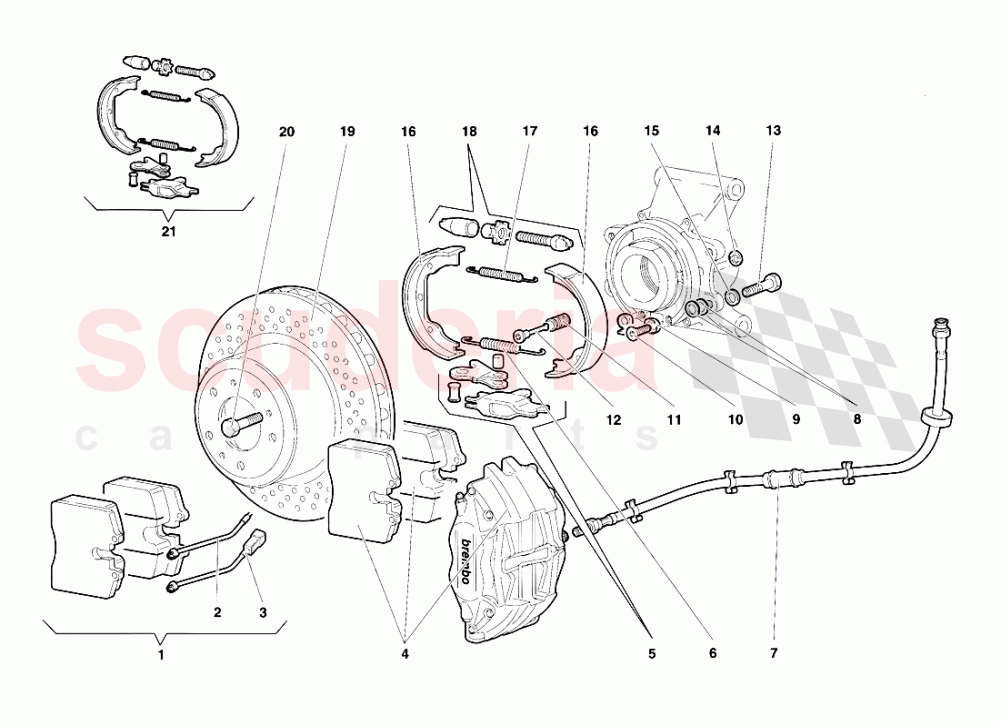

Lamborghini Diablo SV (1995-1997) - Rear Brakes

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	3236088	REAR BRAKE PADS KIT	3236088 REAR BRAKE PADS KIT	$682.19	1
001	3236089	BRAKE PADS KIT	3236089 BRAKE PADS KIT KIT PASTIGLIE FRENO GALFER	-	1	Enquire
002	3135643	ELECT CABLE	3135643 ELECT CABLE CAVO ELETTRICO	$28.61	2
003	3135644	ELECT CABLE	3135644 ELECT CABLE CAVO ELETTRICO	$326.89	2
004	3233611	LEFT BRAKE CALIPER	3233611 LEFT BRAKE CALIPER PINZA FRENI SX (GALFER)	$2,371.11	1
004	3233612	RIGHT BRAKE CALIPER	3233612 RIGHT BRAKE CALIPER PINZA FRENI DX (GALFER)	$1,881.93	1
005	3334932	IDLE LEVER	3334932 IDLE LEVER LEVERAGGIO	$126.05	1
006	3334933	SPRING	3334933 SPRING MOLLA	$37.12	1
007	3229882	PIPE IN STOCK	3229882 PIPE TUBO IN STOCK	$159.90 MSRP: ~~174.50~~ (8.4% off)	2
008	3230720	SHIM	3230720 SHIM SPESSORE Dl REGISTROO,1 MM	$13.59	1
008	3230721	SHIM	3230721 SHIM SPESSORE Dl REGISTRO 0,2 MM	$0.37	1
008	3230727	SHIM	3230727 SHIM SPESSORE Dl REGISTRO 1 MM	$3.00	1
008	3230724	SHIM	3230724 SHIM SPESSORE Dl REGISTRO 0,5 MM	$0.37	1
009	3332388	SUPPORT - SUPPORTO	3332388 SUPPORT - SUPPORTO O	$194.53	1
010	8701023	SCREW	8701023 SCREW VITE	$0.37	2
011	3332390	SPRING	3332390 SPRING MOLLA	$33.84	4
012	3332389	PIN	3332389 PIN PERNO	$87.25	4
013	3132195	SCREW	3132195 SCREW VITE	$28.55	4
014	3332391	CLIP	3332391 CLIP FERMAGLIO	$8.48	4
015	8401306	WASHER	8401306 WASHER RONDELLA	$2.12	4
016	3334931	BRAKE SHOE	3334931 BRAKE SHOE GANASCIA FRENI	$375.93	2
017	3334934	SPRING	3334934 SPRING MOLLA	$37.12	1
018	3334935	ADJ/SCREW	3334935 ADJ/SCREW VITE REGOLAZIONE	$123.17	1
019	3237350	REAR BRAKE DISC	3237350 REAR BRAKE DISC DISCO FRENO POST.	$1,306.41	2
020	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545) VITE	$2.25 MSRP: ~~7.23~~ (68.9% off)	6
021	3334400	KIT HAND BRAKE SYS.	3334400 KIT HAND BRAKE SYS. KIT FRENO A MANO PER VETTURA	$955.93	2
