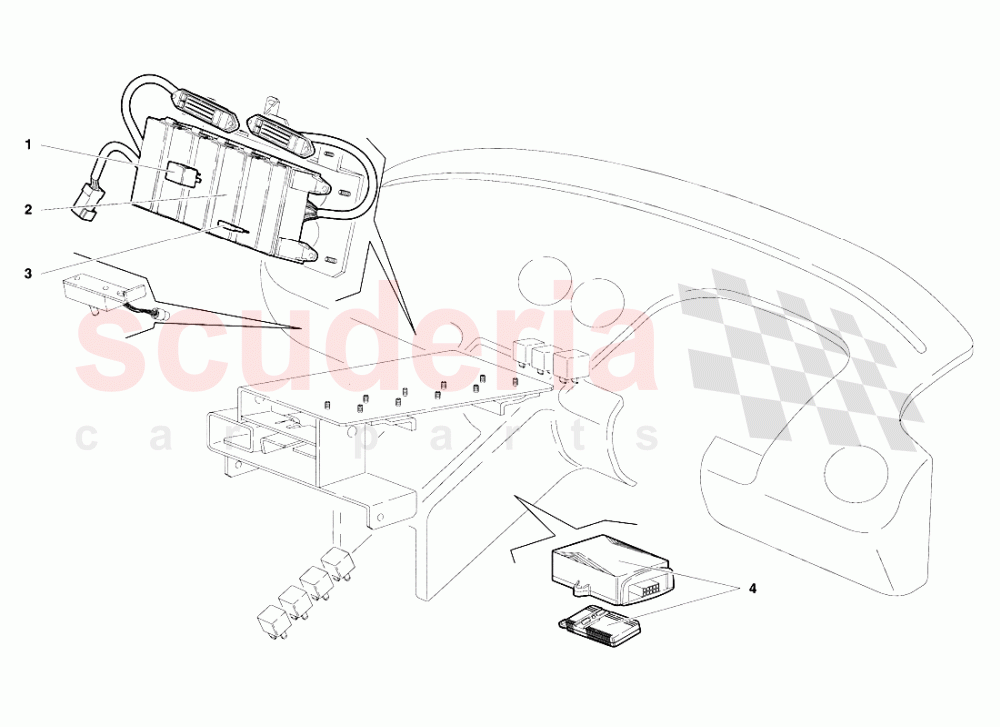

Lamborghini Diablo SE30 (1993-1995) - Electrical System (Valid for R.H.D. Version - January 1995) 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	6036296	RELAY	6036296 RELAY (Valid for R.H.D. version - January 1995) ITALAMEC 160	$19.62 MSRP: ~~22.10~~ (11.2% off)	3
001	6034961	RELAY - (Valid for R.H.D. version - April 1994) RELAY/DIODO BOSCH 87 0.332.014.112	6034961 RELAY - (Valid for R.H.D. version - April 1994) RELAY/DIODO BOSCH 87 0.332.014.112 (Valid for R.H.D. version - January 1995) 87 BOSCH 0.332.014.1 12	$42.68	2
001	6036297	RELAY	6036297 RELAY (Valid for R.H.D. version - January 1995) ITALAMEC 064	$37.17 MSRP: ~~41.90~~ (11.3% off)	5
001	6034540	DIODES ASSEMBLY	6034540 DIODES ASSEMBLY (Valid for R.H.D. version - January 1995) ITALAMEC 331. 10	$18.06	1
001	6311155	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006	6311155 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006 (Valid for R.H.D. version - January 1995) 87B BOSCH 0.332.015.006	$53.49	1
002	6135625	RELAY HOUSING	6135625 RELAY HOUSING (Valid for R.H.D. version - January 1995) SCATOLA RELAY POST.	$2,696.96	1
003	1626193	FUSE	1626193 FUSE (Valid for R.H.D. version - January 1995) FUSIBILE15AMP.	$0.56	7
003	1629259	FUSE	1629259 FUSE (Valid for R.H.D. version - January 1995) FUSIBILE30AMP.	$0.56	1
003	1626697	FUSE	1626697 FUSE (Valid for R.H.D. version - January 1995) FUSIBILE10AMP.	$0.56	6
003	1629257	FUSE	1629257 FUSE (Valid for R.H.D. version - January 1995) FUSIBILE7.5AMP.	$1.39	3
003	1626192	FUSE	1626192 FUSE (Valid for R.H.D. version - January 1995) FUSIBILE5AMP.	$0.56	7
004	5934378	REMO. LOCKING E.C.U.	5934378 REMO. LOCKING E.C.U. (Valid for R.H.D. version - January 1995) CENTRALINA CHIUSURA CENTR.	-	1	Enquire
