Electrical System of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

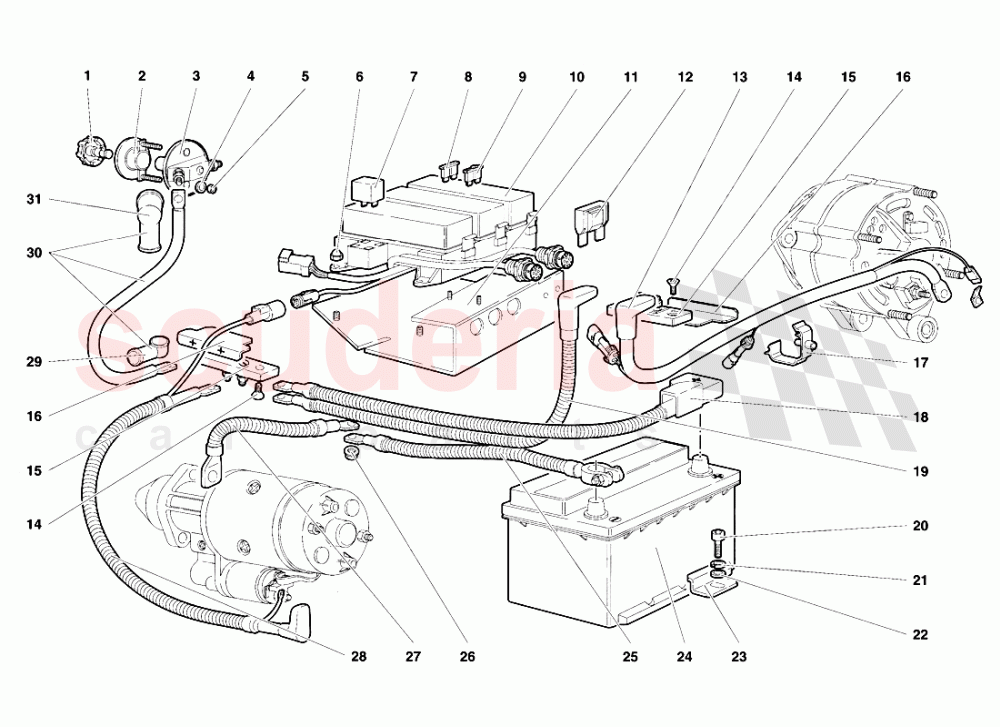

Lamborghini Diablo SE30 (1993-1995) - Electrical System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	5931167	KNOB	5931167 KNOB POMELLO	$83.83	1
002	5931299	FLANGE	5931299 FLANGE FLANGIA	$217.63 MSRP: ~~243.50~~ (10.6% off)	1
003	5931163	CONNECTING BLOCK	5931163 CONNECTING BLOCK BLOCCHETTO CONNESSIONE	$219.38	1
004	WHT001187	WASHER IN STOCK	WHT001187 WASHER RONDELLA IN STOCK	$0.76 MSRP: ~~7.26~~ (89.5% off)	2
005	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.72	2
006	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.86	3
007	6036296	RELAY	6036296 RELAY ITALAMEC 160 o 520.40	$19.74 MSRP: ~~22.10~~ (10.7% off)	6
007	6034540	DIODES ASSEMBLY	6034540 DIODES ASSEMBLY DIODI ITALAMEC 331/10	$18.17	1
007	6036297	RELAY	6036297 RELAY ITALAMEC 064	$37.40 MSRP: ~~41.90~~ (10.7% off)	2
008	1626193	FUSE	1626193 FUSE FUSIBILEDA15AMP.	$0.57	2
008	1633966	FUSE	1633966 FUSE FUSIBILEDA25AMP.	$0.57	4
008	1626192	FUSE	1626192 FUSE FUSIBILEDA5AMP.	$0.57	1
008	1626697	FUSE	1626697 FUSE FUSIBILEDA10AMP.	$0.57	4
009	6134479	DIODE D.R.L. - (Valid for SWITZERLAND version - April 1994) DIODE D.R.L.	6134479 DIODE D.R.L. - (Valid for SWITZERLAND version - April 1994) DIODE D.R.L. DIODO	$37.90	1
010	6135123	RELAYS CASE	6135123 RELAYS CASE SCATOLA RELAYS	$3,078.68	1
011	6134959	SUPPORT/PLATE	6134959 SUPPORT/PLATE PIASTRA SUPPORTO	-	1	Enquire
012	6036273	MAXIFUSE	6036273 MAXIFUSE MAXIFUSIBILE MTA 100 AMP. 06.00970	$25.30	1
012	6036272	MAXIFUSE	6036272 MAXIFUSE MAXIFUSIBILE MTA 80 AMP. 06.00960	$25.30	1
012	6036271	MAXIFUSE	6036271 MAXIFUSE MAXIFUSIBILE MTA 40 AMP. 06.00920	$10.42	1
013	6133727	ELECT CABLE	6133727 ELECT CABLE CABLAGGIO	$590.41	1
014	8700801	SCREW	8700801 SCREW VITE	$0.19	4
015	1606170	ELECTRIC CONNECT.	1606170 ELECTRIC CONNECT. CONNESSIONE ELETTRICA	$58.56	2
016	6132457	PLATE	6132457 PLATE TARGHETTA	$6.31	2
017	8832006	STRAP	8832006 STRAP FASCETTA	$2.79 MSRP: ~~2.95~~ (5.4% off)	3
018	6135926	HARNESS	6135926 HARNESS CABLAGGIO	$181.76	1
019	6135927	HARNESS	6135927 HARNESS CABLAGGIO	$134.89	1
020	8700815	SCREW IN STOCK	8700815 SCREW VITE IN STOCK	$0.19 MSRP: ~~7.36~~ (97.4% off)	1
021	8410819	WASHER	8410819 WASHER RONDELLA	$2.13 MSRP: ~~2.40~~ (11.3% off)	1
022	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 RONDELLA IN STOCK	$0.32 MSRP: ~~7.35~~ (95.6% off)	1
023	4130608	PLATE	4130608 PLATE LAMIERINO	$30.32	1
024	5935560	BATTERY	5935560 BATTERY BATTERIA	-	1	Enquire
025	6135925	HARNESS	6135925 HARNESS CABLAGGIO	$166.12	1
026	8200824	NUT	8200824 NUT DADO	$0.43 MSRP: ~~7.31~~ (94.1% off)	1
027	6130080	ELECT CABLE	6130080 ELECT CABLE CABLAGGIO	$289.69	1
028	6133726	ELECT CABLE	6133726 ELECT CABLE CABLAGGIO	$373.93	1
029	6134287	SHIELD	6134287 SHIELD PROTEZIONE	$34.23	1
030	6133728	ELECT CABLE	6133728 ELECT CABLE CABLAGGIO	$47.41	1
031	6132132	SHIELD	6132132 SHIELD PROTEZIONE	$3.59	1
