Front Suspension of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

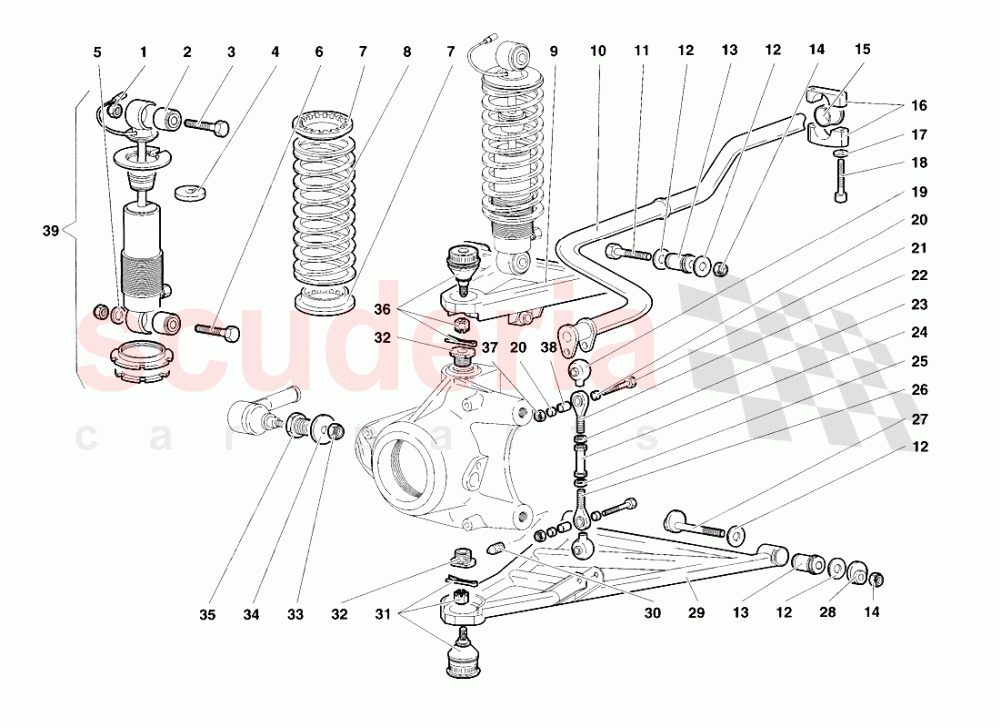

Lamborghini Diablo VT Roadster (1998-2000) - Front Suspension

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT003355	NUT M12X1,25 IN STOCK	WHT003355 NUT M12X1,25 DADO IN STOCK	$20.48	4
002	410512383	FLEXIBLE BUSHING	410512383 FLEXIBLE BUSHING	$550.46	4
003	8101269	SCREW	8101269 SCREW VITE	$4.86	2
004	5134315	SPACER	5134315 SPACER DISTANZIALE	$33.37 MSRP: ~~36.30~~ (8.1% off)	2
005	8401234	WASHER	8401234 WASHER RONDELLA	$1.56 MSRP: ~~7.11~~ (78.1% off)	12
006	5133229	SCREW	5133229 SCREW VITE	$103.02	2
007	410512385	RUBBER RING	410512385 RUBBER RING	$49.63	4
008	5133618	SPRING	5133618 SPRING MOLLA	$184.97 MSRP: ~~206.50~~ (10.4% off)	2
009	5133344	ARM	5133344 ARM BRACCIO SUPERIORE DX	$1,559.65	1
009	5133345	ARM	5133345 ARM BRACCIO SUPERIORE SX	$1,633.59	1
010	5134392	TORSION BAR	5134392 TORSION BAR BARRATORSIONE	$874.70 MSRP: ~~950.00~~ (7.9% off)	1
010	5134057	TORSION BAR	5134057 TORSION BAR (Valid for 2WD only) BARRATORSIONE	$411.43	1
011	8101269	SCREW	8101269 SCREW VITE	$4.86	4
012	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM DISTANZIALE 2,5 MM	$6.87	1
012	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM DISTANZIALE 1 MM	$4.25	1
012	5133488	SHIM	5133488 SHIM DISTANZIALE 1,5 MM	$3.11	1
012	410407295D	WASHER	410407295D WASHER DISTANZIALE 3 MM	$27.60	1
012	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM DISTANZIALE 2 MM	$6.24	1
013	8921206	RESILIENT BUSHING	8921206 RESILIENT BUSHING BOCCOLA ELASTICA	$46.73	8
014	WHT003355	NUT M12X1,25 IN STOCK	WHT003355 NUT M12X1,25 DADO IN STOCK	$20.48	8
015	5238302	BUSHING IN STOCK	5238302 BUSHING BOCCOLA IN STOCK	$134.51	2
016	5230258	RETAINER	5230258 RETAINER CAVALLOTTO	$289.24	2
017	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.68	4
018	WHT002960	SCREW IN STOCK	WHT002960 SCREW VITE IN STOCK	$8.24	4
019	5109714	BOOT	5109714 BOOT CUFFIA	$24.39	4
020	5227297	BUSHING	5227297 BUSHING BOCCOLA	$30.06	8
021	8100807	SCREW	8100807 SCREW VITE	$0.77 MSRP: ~~7.27~~ (89.4% off)	4
022	417801931A	BALL JOINT	417801931A BALL JOINT GIUNTO SFERICO	$248.40	2
023	8201035	NUT	8201035 NUT DADO	$1.23 MSRP: ~~7.13~~ (82.7% off)	2
024	5209770	TIE ROD	5209770 TIE ROD TIRANTE	$106.03 MSRP: ~~115.00~~ (7.8% off)	2
025	8201034	NUT	8201034 NUT DADO	$1.56 MSRP: ~~7.10~~ (78% off)	2
026	5227295	BALL JOINT	5227295 BALL JOINT GIUNTO SFERICO	$141.86	2
027	410407127A	BOLT	410407127A BOLT VITE CON ECCENTRICO	$2,171.87	4
028	410407127A	BOLT	410407127A BOLT ECCENTRICO	$2,171.87	4
029	5133039	ARM	5133039 ARM BRACCIO INFERIORE SX	$1,212.76	1
029	5133038	ARM	5133038 ARM BRACCIO INFERIORE DX	$1,212.76	1
030	WHT002941	SCREW M6X1X10	WHT002941 SCREW M6X1X10 VITE	$0.90 MSRP: ~~7.24~~ (87.6% off)	4
031	410407361B	COUPLING	410407361B COUPLING TESTAASNODO	$1,171.07	2
032	410407171C	BUSH	410407171C BUSH BUSSOLA	$1,373.01	4
033	8201003	NUT	8201003 NUT DADO	$3.23	2
034	WHT000919	WASHER	WHT000919 WASHER	$14.05	2
035	51001030	BUSHING	51001030 BUSHING BUSSOLA	-	2	Enquire
036	410407365	Coupling	410407365 Coupling TESTAASNODO	$246.50	2
037	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.08 MSRP: ~~7.28~~ (85.2% off)	4
038	5227298	BUSHING	5227298 BUSHING BOCCOLA	$16.37 MSRP: ~~17.80~~ (8% off)	4
039	5133241	SHOCK ABSORBER	5133241 SHOCK ABSORBER AMMORTIZZATORE (LIFTYNG SYS.)	$4,180.53	2
