Steering 3 of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

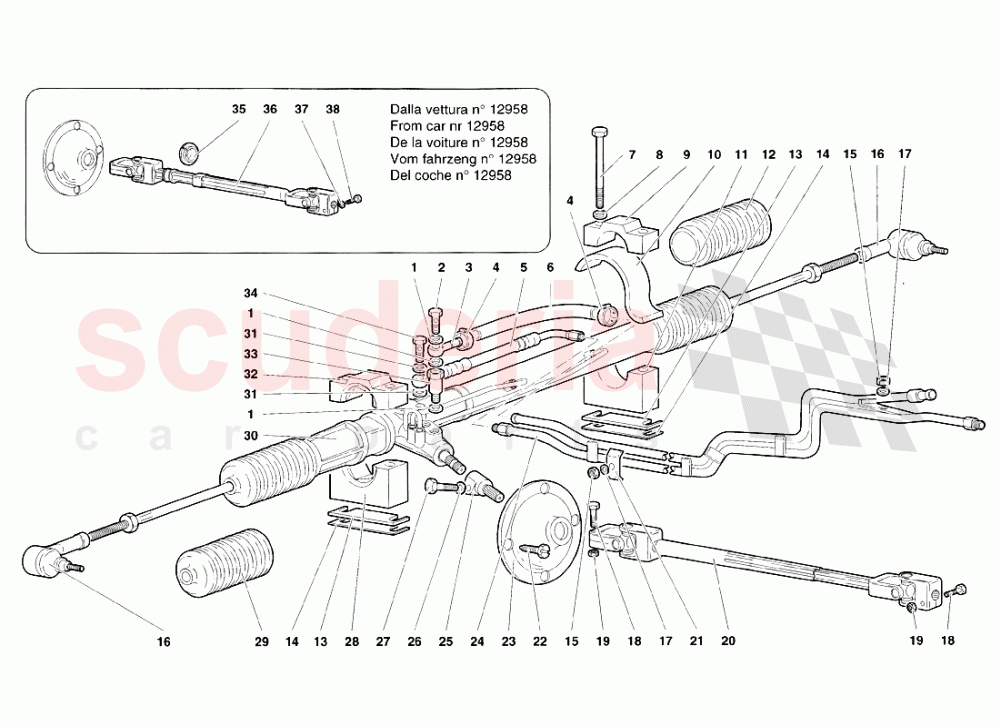

Lamborghini Diablo VT Roadster (1998-2000) - Steering 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8401621	WASHER	8401621 WASHER RONDELLA	$1.20	3
002	3101941	SCREW	3101941 SCREW VITE FORATA	$4.37	1
003	4033471	CONNECTION	4033471 CONNECTION RACCORDO	-	1	Enquire
004	8831320	STRAP	8831320 STRAP FASCETTA	$3.01 MSRP: ~~3.25~~ (7.4% off)	2
005	4033464	PIPE	4033464 PIPE TUBO	$491.46	1
006	4033459	PIPE	4033459 PIPE TUBO	$24.95 MSRP: ~~27.00~~ (7.6% off)	1
007	8101039	SCREW	8101039 SCREW VITE	$0.88	4
008	8401007	WASHER	8401007 WASHER RONDELLA	$0.08 MSRP: ~~7.38~~ (98.9% off)	4
009	4333518	U-BOLT	4333518 U-BOLT CAVALLOTTO	$224.85	1
010	4331587	FLEX PAD	4331587 FLEX PAD SPESSORE IN GOMMA	-	1	Enquire
011	4333655	SUPPORT	4333655 SUPPORT O	$356.81	1
012	4335023	BOOT	4335023 BOOT CUFFIA	$26.42	1
013	4333658	1.0 MM ADJUSTMENT SHIM	4333658 1.0 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 1 MM	$8.83 MSRP: ~~9.85~~ (10.4% off)	1
014	4333657	0.5 MM ADJUSTMENT SHIM	4333657 0.5 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 0,5 MM	$13.63 MSRP: ~~15.30~~ (10.9% off)	1
015	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.72	3
016	400419811A	Ball Joint Coupling IN STOCK	400419811A Ball Joint Coupling TESTA GIUNTO SFERICO IN STOCK	$1,293.72	2
017	WHT001187	WASHER IN STOCK	WHT001187 WASHER RONDELLA IN STOCK	$0.76 MSRP: ~~7.26~~ (89.5% off)	3
018	N01033520	SCREW M8X35 IN STOCK	N01033520 SCREW M8X35 VITE IN STOCK	$3.14 MSRP: ~~7.19~~ (56.3% off)	2
019	N0111849	NUT IN STOCK	N0111849 NUT DADO IN STOCK	$2.13 MSRP: ~~7.25~~ (70.6% off)	2
020	4329850	JOINTED SHAFT	4329850 JOINTED SHAFT ALBERO SNODATO	-	1	Enquire
021	4033480	PLATE	4033480 PLATE PIASTRINA	-	2	Enquire
022	8700673	SCREW	8700673 SCREW VITE	$10.71	4
023	410422326	GASKET	410422326 GASKET GUARNIZIONE	$253.77	1
024	4038062	PIPE	4038062 PIPE TUBO	$379.69 MSRP: ~~413.00~~ (8.1% off)	1
025	4332458	CONNECTION	4332458 CONNECTION CONNESSIONE	$326.61 MSRP: ~~354.00~~ (7.7% off)	1
026	8410820	WASHER	8410820 WASHER RONDELLA	$0.18 MSRP: ~~7.37~~ (97.6% off)	1
027	8100831	SCREW	8100831 SCREW VITE	$0.23 MSRP: ~~7.35~~ (96.9% off)	1
028	4333656	SUPPORT	4333656 SUPPORT O	$274.67	1
029	4335023	BOOT	4335023 BOOT CUFFIA	$26.42	1
030	410419063	RHD POWER STEERING	410419063 RHD POWER STEERING	$4,510.50	1
031	8401408	WASHER IN STOCK	8401408 WASHER RONDELLA IN STOCK	$0.82 MSRP: ~~7.22~~ (88.6% off)	2
032	4331582	U-BOLT	4331582 U-BOLT CAVALLOTTO	$318.43	1
033	4033458	SCREW	4033458 SCREW RACCORDO	-	1	Enquire
034	5124347	SCREW	5124347 SCREW RACCORDO	-	1	Enquire
035	43002396	BUSHING	43002396 BUSHING BOCCOLA	$102.86	1
036	43002198	JOINTED SHAFT	43002198 JOINTED SHAFT ALBERO SNODATO	$618.04	1
037	8410823	WASHER	8410823 WASHER RONDELLA	$0.28	2
038	8700843	SCREW	8700843 SCREW VITE	$4.01	2
