Alternator of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

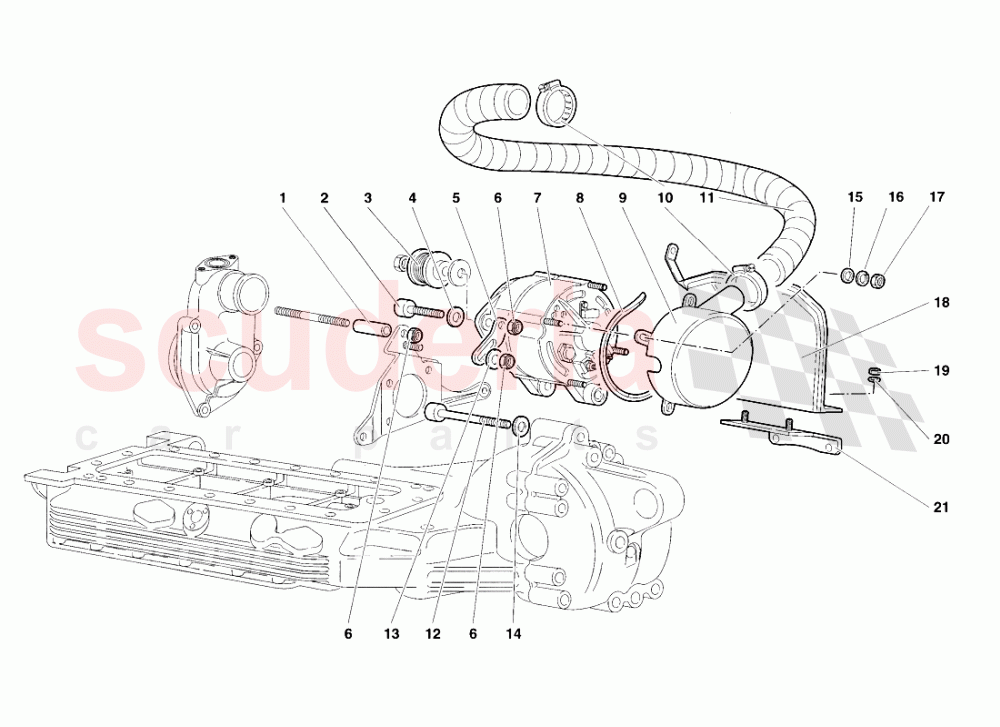

Lamborghini Diablo VT Roadster (1998-2000) - Alternator

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	4031496	SPACER	4031496 SPACER DISTANZIALE	$18.69 MSRP: ~~20.35~~ (8.2% off)	1
002	8701017	SCREW	8701017 SCREW VITE	$0.90 MSRP: ~~7.24~~ (87.6% off)	1
003	1636515	PULLEY	1636515 PULLEY PULEGGIA	$1,030.45 MSRP: ~~1,120.00~~ (8% off)	1
004	8401006	WASHER	8401006 WASHER RONDELLA	$0.57 MSRP: ~~7.29~~ (92.2% off)	1
005	16002730	BRACKET	16002730 BRACKET STAFFA	$26.67 MSRP: ~~29.00~~ (8% off)	1
006	8201008	NUT IN STOCK	8201008 NUT DADO IN STOCK	$0.75 MSRP: ~~7.24~~ (89.6% off)	3
007	1625271	ALTERNATOR - ALTERNATORE	1625271 ALTERNATOR - ALTERNATORE	$3,496.29	1
008	1625920	GASKET	1625920 GASKET GUARNIZIONE	$116.41 MSRP: ~~131.00~~ (11.1% off)	1
009	1635962	CONVEYOR	1635962 CONVEYOR CONVOGLIATORE	$375.75	1
010	N0245022	CLAMP	N0245022 CLAMP FASCETTA	$5.26	2
011	7M903667	PIPE	7M903667 PIPE TUBO	$413.23	1
012	8701022	SCREW IN STOCK	8701022 SCREW VITE IN STOCK	$1.44 MSRP: ~~7.09~~ (79.7% off)	1
013	8401006	WASHER	8401006 WASHER RONDELLA	$0.57 MSRP: ~~7.29~~ (92.2% off)	1
014	WHT000768	WASHER IN STOCK	WHT000768 WASHER IN STOCK	$1.82 MSRP: ~~7.28~~ (75% off)	1
015	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	$7.05	4
016	8410502	WASHER	8410502 WASHER RONDELLA	$0.07 MSRP: ~~7.38~~ (99.1% off)	4
017	8200501	NUT	8200501 NUT DADO	$0.06	4
018	1635960	PLATE	1635960 PLATE (Valid for U.S.A.1998) PARATIA	$721.54 MSRP: ~~812.00~~ (11.1% off)	1
018	1635960	PLATE	1635960 PLATE (Valid for CANADA 1998) PARATIA	$721.54 MSRP: ~~812.00~~ (11.1% off)	1
019	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT (Valid for CANADA 1998) DADO IN STOCK	$0.19	2
019	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT (Valid for U.S.A.1998) DADO IN STOCK	$0.19	2
020	WHT002961	WASHER IN STOCK	WHT002961 WASHER (Valid for U.S.A.1998) RONDELLA IN STOCK	$0.39	2
020	WHT002961	WASHER IN STOCK	WHT002961 WASHER (Valid for CANADA 1998) RONDELLA IN STOCK	$0.39	2
021	1635961	BRACKET	1635961 BRACKET (Valid for CANADA 1998) STAFFA	$69.15 MSRP: ~~77.80~~ (11.1% off)	1
021	1635961	BRACKET	1635961 BRACKET (Valid for U.S.A.1998) STAFFA	$69.15 MSRP: ~~77.80~~ (11.1% off)	1
