Lamborghini Diablo VT Roadster (1998-2000) - Radiators and Electro-Fans

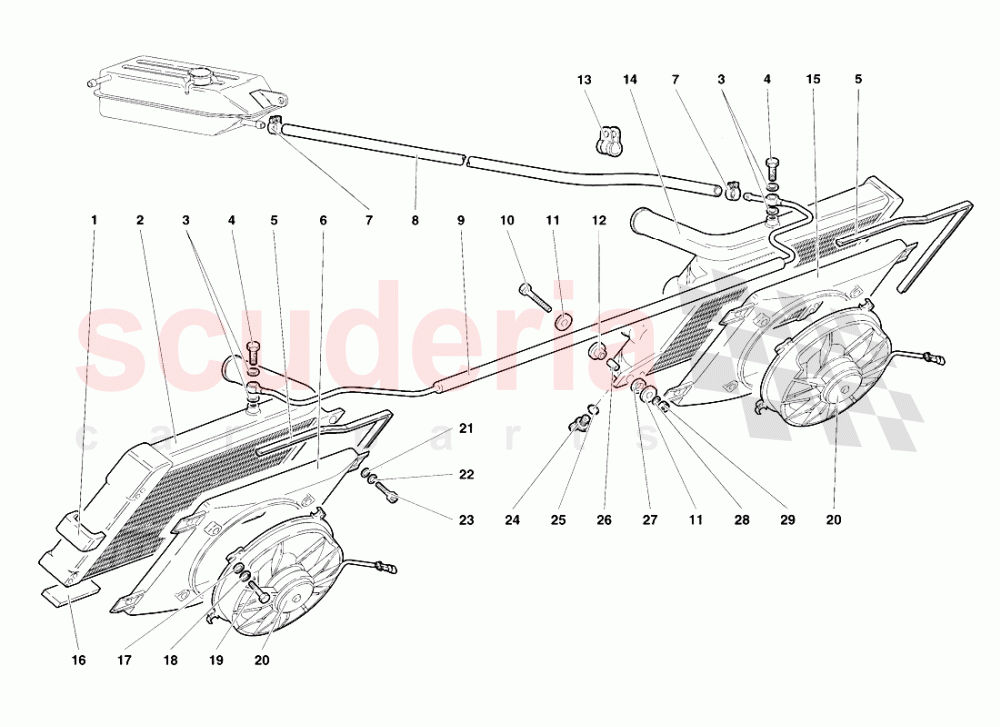

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1733004	GASKET	1733004 GASKET PROTEZIONE	$20.12 MSRP: ~~22.55~~ (10.8% off)	4
002	1737087	LEFT RADIATOR	1737087 LEFT RADIATOR RADIATORE SX	$2,913.07	1
003	8400818	WASHER	8400818 WASHER RONDELLA	-	4	Enquire
004	WHT000524	BANJO BOLT	WHT000524 BANJO BOLT	$26.10	2
005	410121539	GASKET	410121539 GASKET GUARNIZIONE	$54.35	2
006	410121333	LEFT CONVEYOR	410121333 LEFT CONVEYOR CONVOGLIATORE SX	$415.99	1
007	8830817	CLAMP	8830817 CLAMP FASCETTA	$2.04	2
008	1737090	PIPE	1737090 PIPE TUBO	$19.72	1
009	1737089	VENT PIPE	1737089 VENT PIPE TUBO Dl SFIATO	$103.91	1
010	8100824	SCREW	8100824 SCREW VITE	$1.28 MSRP: ~~7.13~~ (82% off)	4
011	WHT001942	WASHER IN STOCK	WHT001942 WASHER RONDELLA IN STOCK	$3.07	8
012	1733266	RUBBER BUSHING	1733266 RUBBER BUSHING BOCCOLA GOMMA	$6.80	4
013	8831515	CLAMP	8831515 CLAMP FASCETTA	$9.31	1
014	1737086	RIGHT RADIATOR	1737086 RIGHT RADIATOR RADIATORE DX	$2,791.99	1
015	410121334A	RH CONVEYOR	410121334A RH CONVEYOR CONVOGLIATORE DX	$1,505.22	1
016	1731451	GASKET	1731451 GASKET PROTEZIONE	$13.62 MSRP: ~~14.85~~ (8.3% off)	2
017	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	$7.06	8
018	8410502	WASHER	8410502 WASHER RONDELLA	$0.07 MSRP: ~~7.38~~ (99.1% off)	8
019	8100502	SCREW IN STOCK	8100502 SCREW VITE IN STOCK	$0.15	8
020	17017063	ELECTROFAN	17017063 ELECTROFAN ELETTROVENTILATORE	$998.77	2
021	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	8
022	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.12 MSRP: ~~7.38~~ (98.4% off)	8
023	8700614	SCREW	8700614 SCREW VITE	$0.25	8
024	410121299	PLUG	410121299 PLUG TAPPO	$217.36	2
025	8600901	SEAL	8600901 SEAL use : WHT003058	-	2	Enquire
026	400121277	DISTANCE PIECE	400121277 DISTANCE PIECE BOCCOLA	$9.75	4
027	WHT001189	PLASTIC WASHER IN STOCK	WHT001189 PLASTIC WASHER IN STOCK	$5.87	4
028	8400801	WASHER	8400801 WASHER RONDELLA	$0.64	4
029	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.08 MSRP: ~~7.28~~ (85.2% off)	4
