Engine Oil System of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

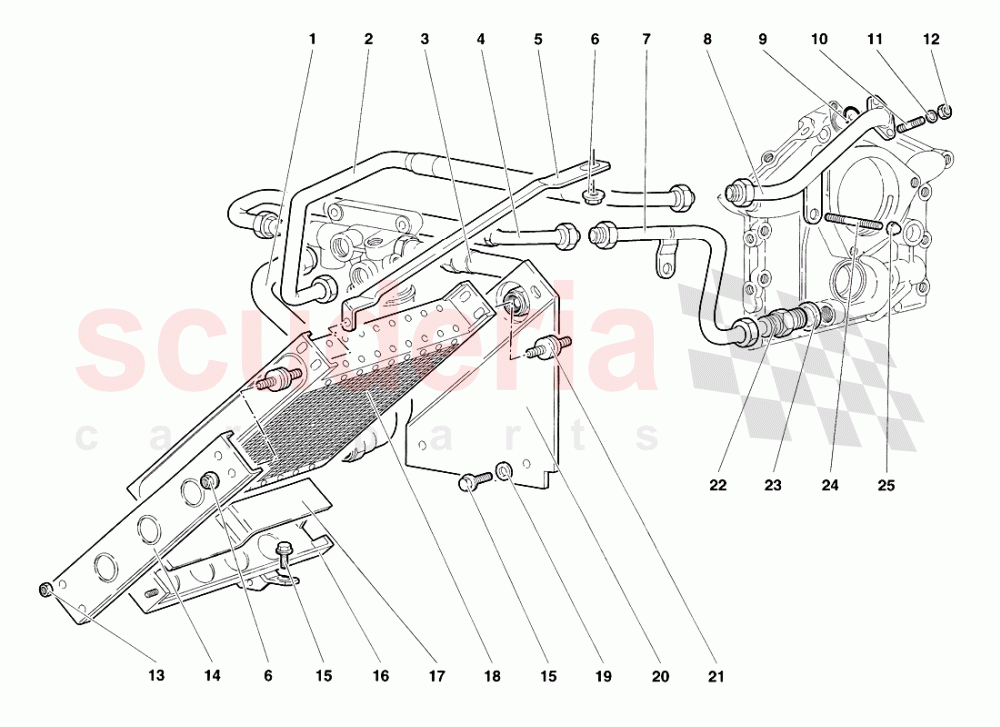

Lamborghini Diablo VT Roadster (1998-2000) - Engine Oil System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	15001970	FLEX. HOSE	15001970 FLEX. HOSE TUBO FLESSIBILE	$819.43	1
002	1535966	PIPE	1535966 PIPE TUBO	$252.89	1
003	15001970	FLEX. HOSE	15001970 FLEX. HOSE TUBO FLESSIBILE	$819.43	1
004	1535965	PIPE	1535965 PIPE TUBO	$477.58	1
005	4138028	TIE ROD	4138028 TIE ROD TIRANTE	$90.30	1
006	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.19	5
007	1537292	PIPE	1537292 PIPE TUBO	$358.70 MSRP: ~~402.00~~ (10.8% off)	1
008	1535967	PIPE	1535967 PIPE TUBO	$117.05 MSRP: ~~127.00~~ (7.8% off)	1
009	WHT003062	SEAL RING	WHT003062 SEAL RING ANELLO TENUTA	$6.19	1
010	8300828	STUD	8300828 STUD PRIGIONIERO	-	2	Enquire
011	8410820	WASHER	8410820 WASHER RONDELLA	$0.18 MSRP: ~~7.37~~ (97.6% off)	2
012	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.93	2
013	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.07	2
014	4138030	BRACKET	4138030 BRACKET STAFFA	$26.99 MSRP: ~~29.30~~ (7.9% off)	1
015	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$2.07	5
016	4138033	SUPPORT - SUPPORTO	4138033 SUPPORT - SUPPORTO O	$190.40	1
017	410813585	RUBBER WEATHER-	410813585 RUBBER WEATHER- PROFILATO GOMMA	$13.12	1
018	7M117021	OIL RADIATOR	7M117021 OIL RADIATOR RADIATORE OLIO	$4,029.38	1
019	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	2
020	4138040	SUPPORT - SUPPORTO	4138040 SUPPORT - SUPPORTO O	$63.25	1
021	8920602	FLEXIBLE SUPPORT	8920602 FLEXIBLE SUPPORT SUPPORTO ELASTICO	$13.74	2
022	400115707	CONNECTOR	400115707 CONNECTOR RACCORDO	$32.04	1
023	WHT000674	WASHER IN STOCK	WHT000674 WASHER RONDELLA IN STOCK	$2.50 MSRP: ~~7.04~~ (64.5% off)	1
024	8300905	STUD	8300905 STUD PRIGIONIERO	$17.29 MSRP: ~~19.45~~ (11.1% off)	1
025	8200816	NUT	8200816 NUT DADO	$4.78	1
