Rear Spoiler of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

Lamborghini Diablo GT (1999-2000) - Rear Spoiler

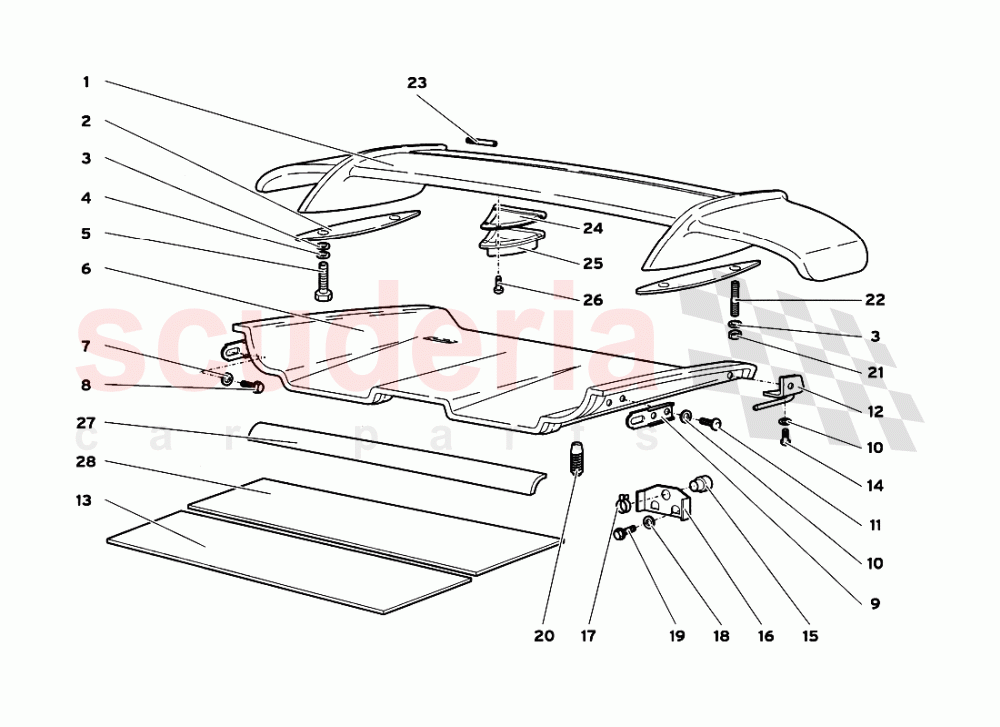

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	97006243	STABILISER	97006243 STABILISER ALETTONE	$13,424.99	1
002	97001880	GASKET	97001880 GASKET GUARNIZIONE	$195.79	2
003	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	4
004	8410601	WASHER	8410601 WASHER RONDELLA	$0.04 MSRP: ~~7.40~~ (99.5% off)	2
005	8100621	SCREW M6 X 20 UNI 5739/5S/Z IN STOCK	8100621 SCREW M6 X 20 UNI 5739/5S/Z VITE IN STOCK	$0.11 MSRP: ~~7.37~~ (98.5% off)	2
006	73004627	BONNET	73004627 BONNET COFANO POST.	$14,484.45	1
007	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	2
008	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.70	2
009	73005391	REAR LID FRONT BRACKET	73005391 REAR LID FRONT BRACKET STAFFA ANT. COFANO POST.	$242.37	2
010	WHT000909	WASHER IN STOCK	WHT000909 WASHER RONDELLA IN STOCK	$1.84 MSRP: ~~7.06~~ (73.9% off)	8
011	8740654	SCREW	8740654 SCREW VITE	-	6	Enquire
012	73006749	REAR LID LH REAR BRACKET	73006749 REAR LID LH REAR BRACKET STAFFA POST. SX. COFANO POST.	$55.47	1
012	73006748	REAR LID RH REAR BRACKET	73006748 REAR LID RH REAR BRACKET	$36.24 MSRP: ~~38.90~~ (6.8% off)	1
013	77004735	INSULATION KIT	77004735 INSULATION KIT KIT ISOLAMENTO	$231.31 MSRP: ~~257.00~~ (10% off)	1
014	870655	SCREW	870655 SCREW VITE	-	2	Enquire
015	410814940	BUSHING	410814940 BUSHING BOCCOLA	$46.82	2
018	41006778	BRACKET	41006778 BRACKET STAFFA	$41.47	2
018	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	4
019	8100618	SCREW	8100618 SCREW VITE	$0.27 MSRP: ~~7.35~~ (96.3% off)	4
019	8830131	CLAMP	8830131 CLAMP MOLLETTA	$5.58	2
020	9460214	RUBBER BUMPER IN STOCK	9460214 RUBBER BUMPER GOMMINO IN STOCK	$8.16	2
021	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.09	2
022	8300663	STUD	8300663 STUD PRIGIONIERO	$23.49 MSRP: ~~26.10~~ (10% off)	2
023	9490017	PIN	9490017 PIN PERNO	$47.88	4
024	97006622	GASKET	97006622 GASKET GUARNIZIONE	-	1	Enquire
025	97006248	CAMERA BRACKET	97006248 CAMERA BRACKET SUPPORTO TELECAMERA	$869.30	1
026	8740510	SCREW	8740510 SCREW VITE	$1.93 MSRP: ~~2.10~~ (8.1% off)	4
027	9429111	CHANNEL	9429111 CHANNEL PROFILATO	$28.09 MSRP: ~~30.15~~ (6.8% off)	1
028	7700554	INSULATION KIT	7700554 INSULATION KIT KIT ISOLAMENTO	-	1	Enquire
