LUGGAGE BOOT TRIMS ROW of Lamborghini Lamborghini Aventador LP750 SV Roadster

View All

Lamborghini Aventador LP750 SV Roadster - LUGGAGE BOOT TRIMS ROW

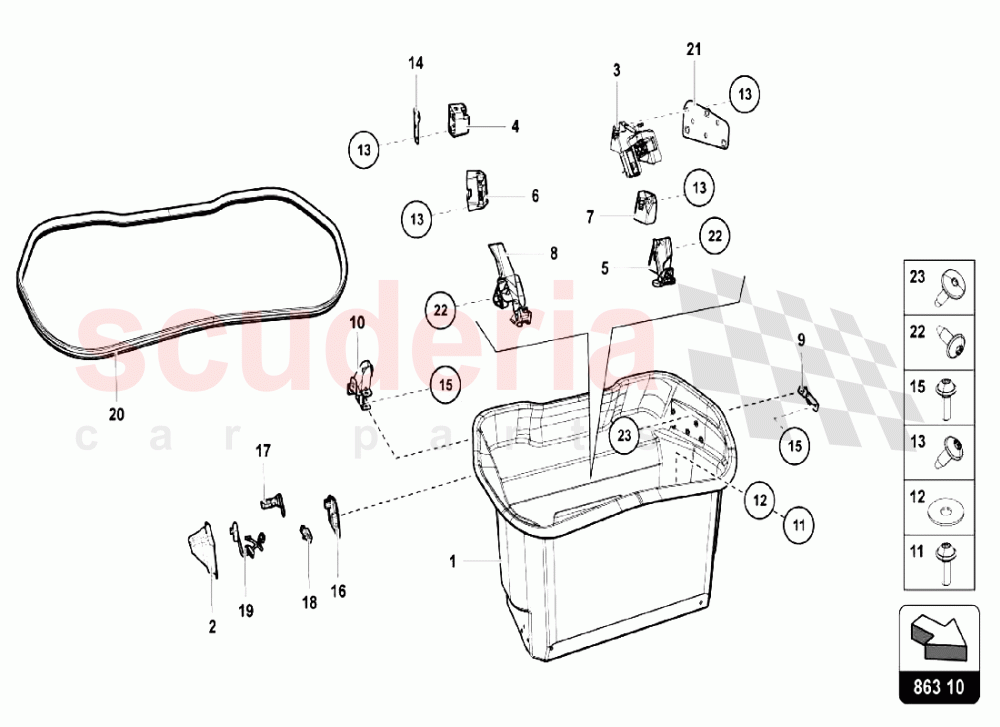

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	475863362Q	LUGGAGE COMPARTMENT ASSEMBLY	475863362Q LUGGAGE COMPARTMENT ASSEMBLY	$2,003.38	1
002	475863399	COVER	475863399 COVER	$45.22	1
003	475863117G	CLAMPING BRACKET	475863117G CLAMPING BRACKET	$356.51	1
004	475863118D	CLAMPING BRACKET	475863118D CLAMPING BRACKET	$68.79	1
005	475863259J	CLAMPING BRACKET	475863259J CLAMPING BRACKET	$136.06	1
006	475863144D	CLAMPING BRACKET	475863144D CLAMPING BRACKET	$82.01	1
007	475863638D	CLAMPING BRACKET	475863638D CLAMPING BRACKET	$201.55	1
008	475863259K	CLAMPING BRACKET	475863259K CLAMPING BRACKET	$189.60	1
009	475858283	LH BRACKET	475858283 LH BRACKET	$125.22	1
010	475857341B	CARRIER	475857341B CARRIER	$119.44	1
011	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$4.11	4
012	N0116945	WASHER IN STOCK	N0116945 WASHER IN STOCK	$0.77	4
013	N90917201	SCREW IN STOCK	N90917201 SCREW IN STOCK	$1.77 MSRP: ~~7.27~~ (75.7% off)	15
014	475857342B	CARRIER	475857342B CARRIER	$76.71	1
015	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	$1.70	5
016	400863440	TRIM FOR SOCKET	400863440 TRIM FOR SOCKET	$41.27	1
017	4E0919299	COVER WITH SOCKET	4E0919299 COVER WITH SOCKET	$42.58	1
018	4B0947415	Light	4B0947415 Light	$2.20	1
019	470971146	WIRING HARNESS FOR LUGGAGE COMPARTMENT LIGHT	470971146 WIRING HARNESS FOR LUGGAGE COMPARTMENT LIGHT	$57.87	1
020	470823727	SEAL	470823727 SEAL	$851.59	1
021	475857195B	CARRIER	475857195B CARRIER	$35.27	1
022	N91078901	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91078901 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$2.52 MSRP: ~~7.25~~ (65.2% off)	9
023	N10483102	HEX SOCKET HEAD BOLT (COMBI) IN STOCK	N10483102 HEX SOCKET HEAD BOLT (COMBI) IN STOCK	$1.89 MSRP: ~~7.14~~ (73.5% off)	2
