Rear Frame Elements 1

Lamborghini Aventador LP750 SV Roadster

Find Your Part

Lamborghini Aventador LP750 SV Roadster - REAR FRAME ELEMENTS 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

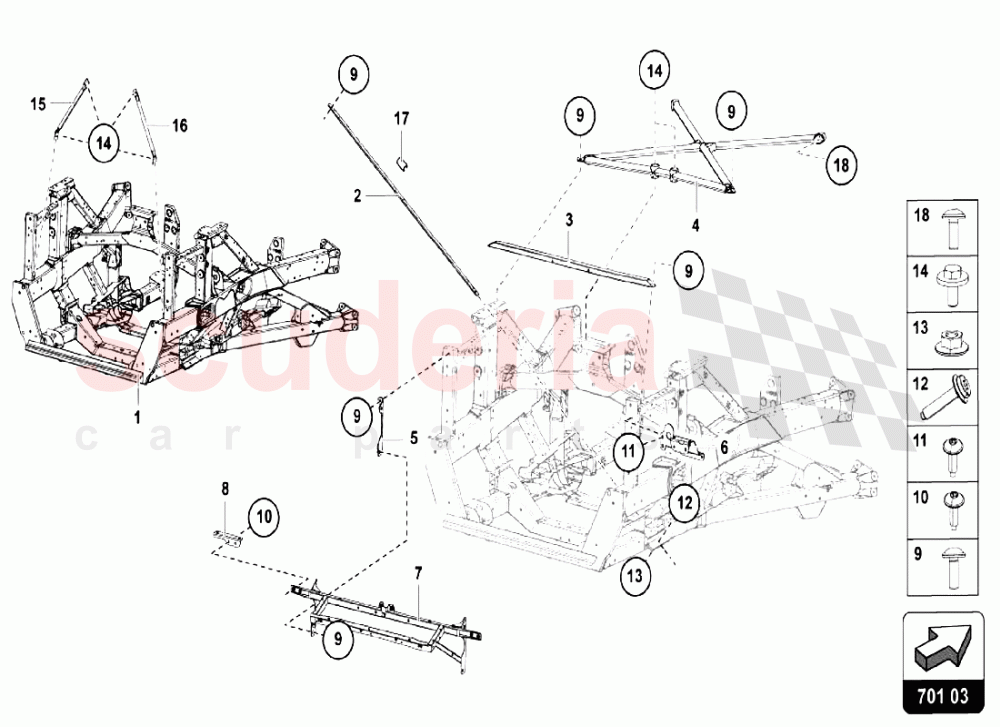

REAR FRAME ELEMENTS 1 of Lamborghini Lamborghini Aventador LP750 SV Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 470813031B
REAR END ASSEMBLY (CONTACT YOUR AREA MANAGER) 		$23,420.10 1
002 470813249B
CROSS MEMBER 		$324.60 2
003 470814519D
CROSS MEMBER
IN STOCK 		$188.78 (28.5% off) 1
004 470814587E
X FRAME (CONTACT YOUR AREA MANAGER) 		$2,653.46 1
004 470814587D
X FRAME (CARBON-CONTACT YOUR AREA MANAGER) 		$12,899.25 1
005 470814658B
ARM 		$54.31 1
005 470814657B
ARM 		$54.31 1
006 470814942B
Bracket (rear) 		$104.38 1
008 470814185B
Arm (left Rear) 		$39.97 1
008 470814186B
Arm (right Rear) 		$39.97 1
009 N0195306
BOLT, HEX. HD. WITH SHOULDER, SELF-LOCKING
IN STOCK 		$3.26 (54.4% off) 14
010 N90900401
HEX SOCKET OVAL HEAD COLLARED M6 X 20
IN STOCK 		$2.19 4
011 N90900401
HEX SOCKET OVAL HEAD COLLARED M6 X 20
IN STOCK 		$2.19 2
012 WHT001237
HEX SOCKET HEAD COLLARED BOLT
IN STOCK 		$1.37 (80.9% off) 2
013 N90798805
HEXAGON COLLAR NUT
IN STOCK 		$2.07 (71.6% off) 2
014 N90863802
HEXAGON HEAD BOLT (COMBI)
IN STOCK 		$2.64 (63.4% off) 6
015 470813465B
SIDE REINFORCEMENT 		$52.26 1
016 470813466B
SIDE REINFORCEMENT 		$52.26 1
017 N10761201
TOOTHED LOCK WASHER 		$6.14 2
