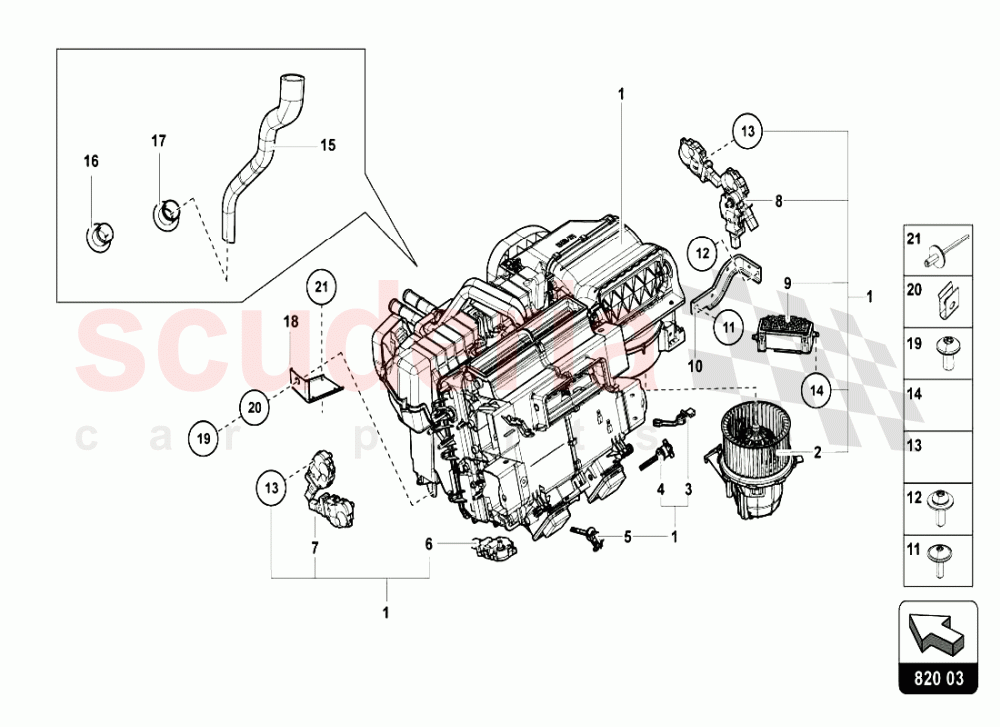

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	471820005	AIR CONDITIONING	471820005 AIR CONDITIONING	$3,374.88	1
001	472820005	Air Conditioning ( Rhd)	472820005 Air Conditioning ( Rhd)	$22,085.65	1
010	471857258	BRACKET	471857258 BRACKET	$30.56	1
011	N90808203	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	N90808203 HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$0.60 MSRP: ~~7.30~~ (91.8% off)	1
012	N10738101	HEX SOCKET HEAD BOLT (COMBI) IN STOCK	N10738101 HEX SOCKET HEAD BOLT (COMBI) IN STOCK	$1.29	2
015	471260114A	WATER DRAINAGE HOSE	471260114A WATER DRAINAGE HOSE	$47.56	1
016	470817065	BUNGS	470817065 BUNGS	$10.43	1
017	470817064A	BUNGS	470817064A BUNGS	$10.43	1
018	470804315	BRACKET	470804315 BRACKET	$24.22	1
019	N10586401	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10586401 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$0.89	1
020	N90356203	SPEED NUT IN STOCK	N90356203 SPEED NUT IN STOCK	$1.15	1
021	N91123101	BELT RIVET IN STOCK	N91123101 BELT RIVET IN STOCK	$0.71 MSRP: ~~7.28~~ (90.2% off)	2
