AIR CONDITIONING SYSTEM 3 of Lamborghini Lamborghini Aventador LP720 Coupe

View All

Lamborghini Aventador LP720 Coupe - AIR CONDITIONING SYSTEM 3

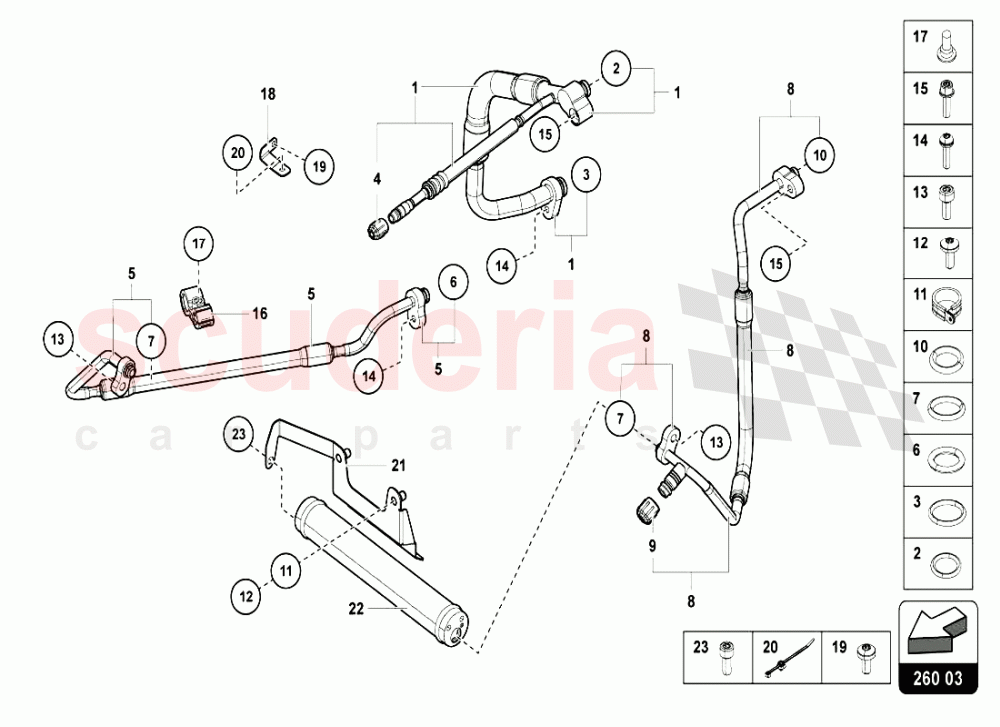

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470260741B	FLANGED PIPE	470260741B FLANGED PIPE	$574.47	1
002	4E0260749B	SEAL RING	4E0260749B SEAL RING	$6.24 MSRP: ~~7.06~~ (11.6% off)	1
003	8E0260749C	SEAL RING	8E0260749C SEAL RING	$5.31 MSRP: ~~7.09~~ (25.1% off)	1
004	3C0820231	PROTECTIVE CAP	3C0820231 PROTECTIVE CAP	$17.77	1
005	470260711B	FLANGED PIPE	470260711B FLANGED PIPE	$219.21	1
006	4E0260749A	O-RING 11 X 2.5 IN STOCK	4E0260749A O-RING 11 X 2.5 IN STOCK	$6.45 MSRP: ~~7.06~~ (8.6% off)	1
007	8E0260749	O-ring (10,8x1,82) IN STOCK	8E0260749 O-ring (10,8x1,82) IN STOCK	$5.88 MSRP: ~~7.24~~ (18.8% off)	2
008	470260704B	FLANGED PIPE	470260704B FLANGED PIPE	$524.07	1
009	3C0820581	PROTECTIVE CAP	3C0820581 PROTECTIVE CAP	$17.77	1
010	3D0260749C	O-RING 9.5 X 2.5 IN STOCK	3D0260749C O-RING 9.5 X 2.5 IN STOCK	$6.25 MSRP: ~~7.10~~ (12% off)	1
011	N91123701	CLAMP	N91123701 CLAMP	$4.60	2
012	N91096701	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91096701 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.53	2
013	N91084201	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) IN STOCK	N91084201 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) IN STOCK	$3.52 MSRP: ~~7.21~~ (51.2% off)	2
014	N10347204	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N10347204 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	$2.15 MSRP: ~~7.26~~ (70.4% off)	2
015	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD IN STOCK	N10414402 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD IN STOCK	$3.23 MSRP: ~~7.07~~ (54.3% off)	2
016	8E0260759AP	BRACKET FOR REFRIGERANT HOSE	8E0260759AP BRACKET FOR REFRIGERANT HOSE	$4.60	1
017	8D0201441C	PANEL NUT	8D0201441C PANEL NUT	$2.91 MSRP: ~~2.95~~ (1.4% off)	1
018	470260759	BRACKET FOR CONNECTOR HOUSING	470260759 BRACKET FOR CONNECTOR HOUSING	$21.24	1
019	N10335206	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10335206 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.53	1
020	N90666101	CABLE TIES	N90666101 CABLE TIES	$1.02 MSRP: ~~7.32~~ (86.1% off)	1
021	470260419C	BRACKET	470260419C BRACKET	$512.74	1
022	6X0820191A	DRIER IN STOCK	6X0820191A DRIER IN STOCK	$180.25	1
023	N90972501	HEXAGON SOCKET HEAD BOLT	N90972501 HEXAGON SOCKET HEAD BOLT	$2.66 MSRP: ~~7.21~~ (63.1% off)	1
