OIL SUMP of Lamborghini Lamborghini Aventador LP700 Roadster

View All

Lamborghini Aventador LP700 Roadster - OIL SUMP

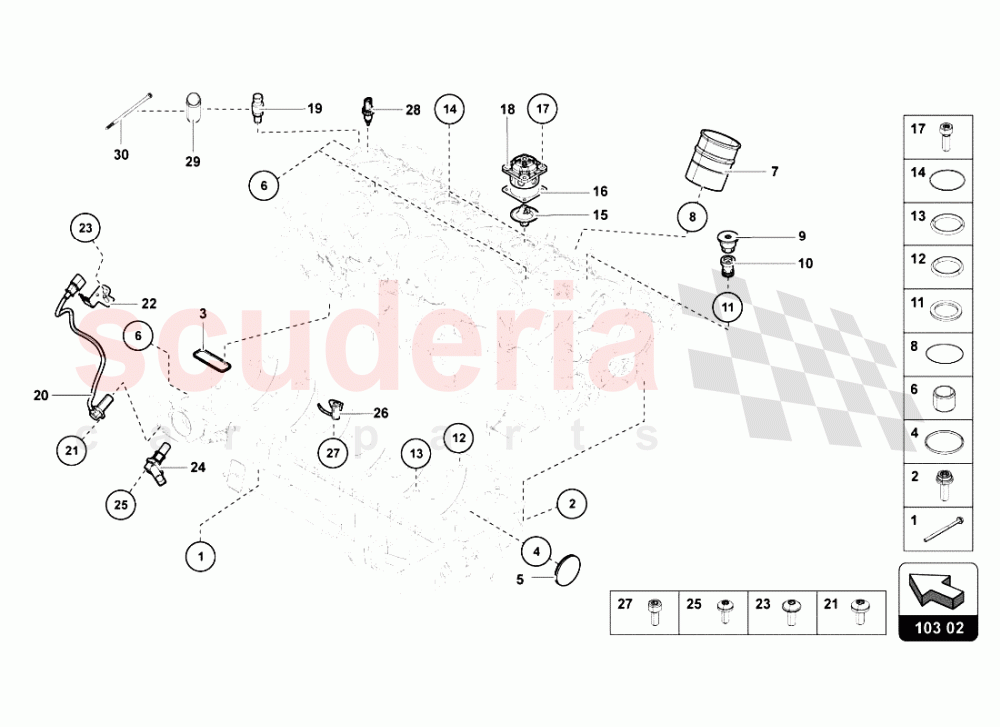

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N10709401	HEXAGON HEAD BOLT (COMBI)	N10709401 HEXAGON HEAD BOLT (COMBI)	$7.03	1
002	N10689302	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10689302 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$3.40 MSRP: ~~7.17~~ (52.6% off)	24
003	7M103121C	SEAL	7M103121C SEAL	$15.74	1
004	N91084501	O-RING IN STOCK	N91084501 O-RING IN STOCK	$7.06	1
005	7M103627	BUNGS	7M103627 BUNGS	$39.40	1
006	22103139B	DOWEL SLEEVE IN STOCK	22103139B DOWEL SLEEVE IN STOCK	$7.28	6
009	7M103937A	BUNGS	7M103937A BUNGS	$253.29	1
010	7M115540	OIL SPRAY JET	7M115540 OIL SPRAY JET	$240.77	1
011	WHT000406	SEAL RING	WHT000406 SEAL RING	$3.31	1
012	N91014801	O-RING	N91014801 O-RING	$1.44 MSRP: ~~7.14~~ (79.8% off)	14
013	WHT012530	O-RING 12.42X1.78-N IN STOCK	WHT012530 O-RING 12.42X1.78-N IN STOCK	$1.28	14
014	N90443601	O-RING	N90443601 O-RING	$8.33	2
015	50121113B	COOLANT REGULATOR IN STOCK	50121113B COOLANT REGULATOR IN STOCK	$66.07	2
016	7M103649	SEAL OIL SUMP IN STOCK	7M103649 SEAL OIL SUMP IN STOCK	$49.10	2
017	N91084801	HEXAGON SOCKET HEAD BOLT IN STOCK	N91084801 HEXAGON SOCKET HEAD BOLT IN STOCK	$1.57 MSRP: ~~7.29~~ (78.5% off)	8
018	7M121121E	COVER FOR THERMOSTAT	7M121121E COVER FOR THERMOSTAT	$722.24	2
019	7L919561B	Pressure Sensor IN STOCK	7L919561B Pressure Sensor IN STOCK	$840.57	1
020	6H906433C	CRANKSHAFT POSITION SENSOR	6H906433C CRANKSHAFT POSITION SENSOR	$85.65	1
021	N91096702	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91096702 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.52 MSRP: ~~7.29~~ (79.1% off)	1
024	79907601	IMPULSE SENDER	79907601 IMPULSE SENDER	$164.31	1
025	N91096702	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91096702 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.52 MSRP: ~~7.29~~ (79.1% off)	1
026	7M103158E	AIR VENT IN STOCK	7M103158E AIR VENT IN STOCK	$1,373.01	7
027	N10456103	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10456103 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$12.06	1
028	59919523F	TEMPERATURE SENSOR IN STOCK	59919523F TEMPERATURE SENSOR IN STOCK	$60.03	2
029	470971729	HEAT DEFLECTOR HOSE	470971729 HEAT DEFLECTOR HOSE	$40.56	1
030	N10562301	CABLE TIES	N10562301 CABLE TIES	$1.25 MSRP: ~~7.18~~ (82.6% off)	1
