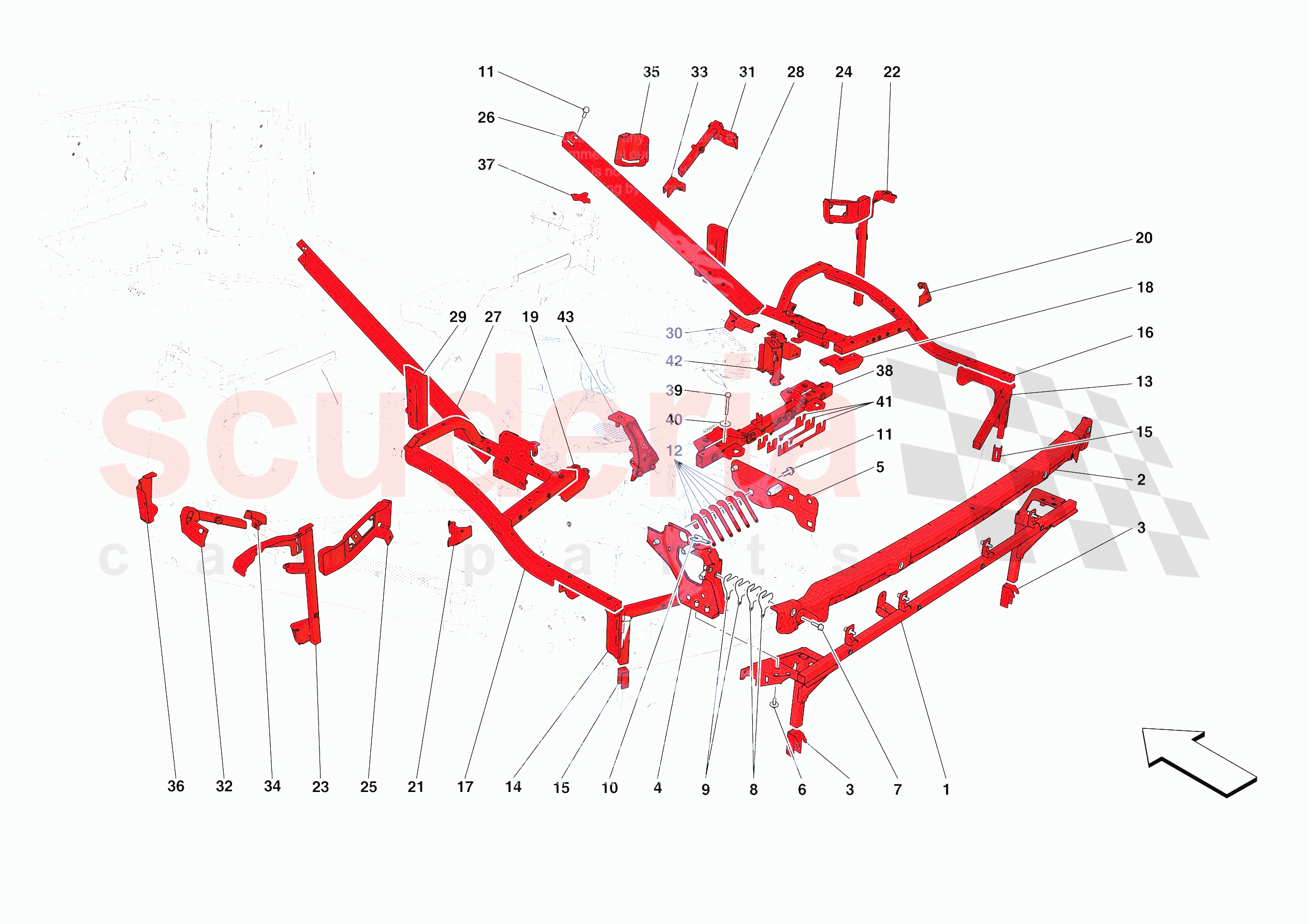

Ferrari SF90 XX Stradale USA - REAR SUBFRAME

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985868160	COMPL. CENTRE REAR TRELLIS	$643.56	To Order
	985868160	COMPL. CENTRE REAR TRELLIS	$643.56	To Order

Photo	Part No	Description	Price (each)	Stock
	985886117	COMPL. PYLON BRACKET CONNECTOR CROSS PIECE	$731.89	To Order
	985886117	COMPL. PYLON BRACKET CONNECTOR CROSS PIECE	$731.89	To Order

Photo	Part No	Description	Price (each)	Stock
	830363	VERTICLE TRELLIS BRACKET	$10.71	To Order
	830363	VERTICLE TRELLIS BRACKET	$10.71	To Order

Photo	Part No	Description	Price (each)	Stock
	876403	COMPL. LH BASE MOUNTING BRACKET	$103.45	To Order
	876616	COMPL. RH BASE MOUNTING BRACKET	$103.45	To Order
	876403	COMPL. LH BASE MOUNTING BRACKET	$103.45	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	902823	COMPL. LH PYLON MOUNTING BRACKET	$63.08	To Order
	902841	COMPL. RH PYLON MOUNTING BRACKET	$63.08	To Order
	902823	COMPL. LH PYLON MOUNTING BRACKET	$63.08	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW M6 X 20	$0.65	IN STOCK
	16286121	SCREW M6 X 20	$0.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW M6 X 20	$0.65	IN STOCK
	16286121	SCREW M6 X 20	$0.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	905706	ADJUSTMENT SHIM	$10.07	To Order
	905706	ADJUSTMENT SHIM	$10.07	To Order

Photo	Part No	Description	Price (each)	Stock
	905667	ADJUSTMENT SHIM	$10.07	To Order
	905667	ADJUSTMENT SHIM	$10.07	To Order

Photo	Part No	Description	Price (each)	Stock
	900885	ADJUSTMENT SHIM	$6.42	To Order
	900885	ADJUSTMENT SHIM	$6.42	To Order

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	$1.17	IN STOCK
	16287524	SCREW	$1.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	946823	ADJUSTMENT SHIM	$5.39	To Order
	946823	ADJUSTMENT SHIM	$5.39	To Order

Photo	Part No	Description	Price (each)	Stock
	985877493	COMPL. RH REAR TRELLIS	$252.36	To Order
	985877493	COMPL. RH REAR TRELLIS	$252.36	To Order

Photo	Part No	Description	Price (each)	Stock
	985877492	COMPL. LH REAR TRELLIS	$252.36	To Order
	985877492	COMPL. LH REAR TRELLIS	$252.36	To Order

Photo	Part No	Description	Price (each)	Stock
	830381	EXTERNAL VERTICLE TRELLIS BRACKET	$10.07	To Order
	830381	EXTERNAL VERTICLE TRELLIS BRACKET	$10.07	To Order

Photo	Part No	Description	Price (each)	Stock
	985877477	RH REAR FLANK TRELLIS	$832.84	To Order
	985877477	RH REAR FLANK TRELLIS	$832.84	To Order

Photo	Part No	Description	Price (each)	Stock
	985877476	LH REAR FLANK TRELLIS	$832.84	To Order
	985877476	LH REAR FLANK TRELLIS	$832.84	To Order

Photo	Part No	Description	Price (each)	Stock
	830370	UPPER BRACKET FOR REAR RH NODE	$10.71	To Order
	830370	UPPER BRACKET FOR REAR RH NODE	$10.71	To Order

Photo	Part No	Description	Price (each)	Stock
	877549	UPPER BRACKET FOR REAR LH NODE	$18.92	To Order
	877549	UPPER BRACKET FOR REAR LH NODE	$18.92	To Order

Photo	Part No	Description	Price (each)	Stock
	925914	COMPL. RH BRACKET	$61.82	To Order
	925914	COMPL. RH BRACKET	$61.82	To Order

Photo	Part No	Description	Price (each)	Stock
	925913	COMPL. LH BRACKET	$61.82	To Order
	925913	COMPL. LH BRACKET	$61.82	To Order

Photo	Part No	Description	Price (each)	Stock
	985877497	COMPL. RH AIR FILTER MOUNT	$391.18	To Order
	985877497	COMPL. RH AIR FILTER MOUNT	$391.18	To Order

Photo	Part No	Description	Price (each)	Stock
	985877494	COMPL. LH AIR FILTER MOUNT	$391.18	To Order
	985877494	COMPL. LH AIR FILTER MOUNT	$391.18	To Order

Photo	Part No	Description	Price (each)	Stock
	985830424	RH WHEELHOUSE BRACKET	$126.17	To Order
	985830424	RH WHEELHOUSE BRACKET	$126.17	To Order

Photo	Part No	Description	Price (each)	Stock
	985830415	LH WHEELHOUSE BRACKET	$126.17	To Order
	985830415	LH WHEELHOUSE BRACKET	$126.17	To Order

Photo	Part No	Description	Price (each)	Stock
	985830341	COMPL. RH BOX ELEMENT REINFORCEMENT TUBE	$252.36	To Order
	985830341	COMPL. RH BOX ELEMENT REINFORCEMENT TUBE	$252.36	To Order

Photo	Part No	Description	Price (each)	Stock
	985925466	COMPL. LH BOX ELEMENT REINFORCEMENT TUBE	$252.36	To Order
	985925466	COMPL. LH BOX ELEMENT REINFORCEMENT TUBE	$252.36	To Order

Photo	Part No	Description	Price (each)	Stock
	985830380	FASTENER BRACKET FOR RH FRONT FLANK REINFORCEMENT	$126.17	To Order
	985830380	FASTENER BRACKET FOR RH FRONT FLANK REINFORCEMENT	$126.17	To Order

Photo	Part No	Description	Price (each)	Stock
	985865666	FASTENER BRACKET FOR LH FRONT FLANK REINFORCEMENT	$126.17	To Order
	985865666	FASTENER BRACKET FOR LH FRONT FLANK REINFORCEMENT	$126.17	To Order

Photo	Part No	Description	Price (each)	Stock
	803290	RH FRONT CORNER BRACKET	$61.82	To Order
	865531	LH FRONT CORNER BRACKET	$66.87	To Order
	803290	RH FRONT CORNER BRACKET	$61.82	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	985877489	COMPL. RH INTERCOOLER MOUNTING TUBE	$264.98	To Order
	985877489	COMPL. RH INTERCOOLER MOUNTING TUBE	$264.98	To Order

Photo	Part No	Description	Price (each)	Stock
	985877488	COMPL. LH INTERCOOLER MOUNTING TUBE	$264.98	To Order
	985877488	COMPL. LH INTERCOOLER MOUNTING TUBE	$264.98	To Order

Photo	Part No	Description	Price (each)	Stock
	877491	COMPL. RH ADJUSTER CUP	$17.65	To Order
	877491	COMPL. RH ADJUSTER CUP	$17.65	To Order

Photo	Part No	Description	Price (each)	Stock
	877490	COMPL. LH ADJUSTER CUP	$17.65	To Order
	877490	COMPL. LH ADJUSTER CUP	$17.65	To Order

Photo	Part No	Description	Price (each)	Stock
	830360	RH FLANK ADJUSTMENT BRACKET	$32.80	To Order
	830360	RH FLANK ADJUSTMENT BRACKET	$32.80	To Order

Photo	Part No	Description	Price (each)	Stock
	830359	LH FLANK ADJUSTMENT BRACKET	$32.80	To Order
	830359	LH FLANK ADJUSTMENT BRACKET	$32.80	To Order

Photo	Part No	Description	Price (each)	Stock
	910807	RH COMPARTMENT BLANKING PLATE	$14.59	To Order
	910805	LH COMPARTMENT BLANKING PLATE	$14.59	To Order
	910807	RH COMPARTMENT BLANKING PLATE	$14.59	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	985877500	COMPL. ENGINE COMPARTMENT LID LOCK MOUNT	$719.27	To Order
	985877500	COMPL. ENGINE COMPARTMENT LID LOCK MOUNT	$719.27	To Order

Photo	Part No	Description	Price (each)	Stock
	14304824	SCREW	$0.26	To Order
	14304824	SCREW	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	12640624	WASHER 6MM	$0.14	IN STOCK
	12640624	WASHER 6MM	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	830401	LOCK BRACKET THICKNESS	$9.57	To Order
	830401	LOCK BRACKET THICKNESS	$9.57	To Order

Photo	Part No	Description	Price (each)	Stock
	909590	COMPL. STRUT MOUNTING BRACKET	$149.14	To Order
	909590	COMPL. STRUT MOUNTING BRACKET	$149.14	To Order

Photo	Part No	Description	Price (each)	Stock
	877504	COMPL. MOUNTING BRACKET FOR LH REAR COVER	$36.58	To Order
	877504	COMPL. MOUNTING BRACKET FOR LH REAR COVER	$36.58	To Order
