Ferrari SF90 XX Stradale USA - STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
741156 FIREWALL ASSEMBLY $15,007.34 To Order
Photo Part No Description Price (each) Stock
985864948 COMPL. RH B PILLAR INTERFACE PANEL $526.87 To Order
Photo Part No Description Price (each) Stock
985864929 COMPL. LH B PILLAR INTERFACE PANEL $476.68 To Order
Photo Part No Description Price (each) Stock
985864926 LOWER REAR FIREWALL $1,635.83 To Order
Photo Part No Description Price (each) Stock
968262 SCREW $17.56 To Order
Photo Part No Description Price (each) Stock
985829476 RH CENTRE SIDEWALL $14,343.73 To Order
Photo Part No Description Price (each) Stock
985829477 LH CENTRE SIDEWALL $14,343.73 To Order
Photo Part No Description Price (each) Stock
985925987 COMPL. RH B-PILLAR TRUSS $614.69 To Order
Photo Part No Description Price (each) Stock
985864735 COMPL. LH B-PILLAR TRUSS $602.13 To Order
Photo Part No Description Price (each) Stock
813655 LH CORNER BRACKET FASTENING TO CHASSIS $32.60 To Order
Photo Part No Description Price (each) Stock
813654 RH CORNER BRACKET FASTENING TO CHASSIS $32.60 To Order
Photo Part No Description Price (each) Stock
330777 RIVET $3.84 To Order
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 $5.26 IN STOCK
Photo Part No Description Price (each) Stock
985569 SCREW $5.19 To Order
Photo Part No Description Price (each) Stock
985568 SCREW $6.19 To Order
Photo Part No Description Price (each) Stock
252821 COMPL. GROUND $36.37 To Order
Photo Part No Description Price (each) Stock
865404 COMPL. RH TANK HEAT SHIELD BRACKET $50.17 To Order
Photo Part No Description Price (each) Stock
865401 COMPL. LH TANK HEAT SHIELD BRACKET $50.17 To Order
Photo Part No Description Price (each) Stock
204430 RIVET $1.26 To Order
Photo Part No Description Price (each) Stock
985788492 CENTRE TUNNEL $3,542.64 To Order
Photo Part No Description Price (each) Stock
985918789 RH FLOOR PANEL $3,335.65 To Order
Photo Part No Description Price (each) Stock
985918786 LH FLOOR PANEL $3,335.65 To Order
Photo Part No Description Price (each) Stock
985878852 RH TORQUE BOX REINFORCEMENT EXTRUSION $1,241.91 To Order
985895610 RH TORQUE BOX REINFORCEMENT EXTRUSION $777.76 To Order
Photo Part No Description Price (each) Stock
985873788 LH TORQUE BOX REINFORCEMENT EXTRUSION $702.49 To Order
985891075 LH TORQUE BOX REINFORCEMENT EXTRUSION $878.12 To Order
Photo Part No Description Price (each) Stock
985849008 COMPL. FRONT RH FLOOR ENDPIECE $413.96 To Order
985893584 COMPL. FRONT RH FLOOR ENDPIECE $388.88 To Order
Photo Part No Description Price (each) Stock
985864721 COMPL. FRONT LH FLOOR ENDPIECE $351.24 To Order
985893582 COMPL. FRONT LH FLOOR ENDPIECE $263.42 To Order
Photo Part No Description Price (each) Stock
985866360 COMPL. ACCELERATOR PEDAL BRACKET $313.60 To Order
985940425 COMPL. ACCELERATOR PEDAL BRACKET $301.06 To Order
Photo Part No Description Price (each) Stock
985771121 RH REAR OUTER SEAT REINFORCEMENT $451.60 To Order
Photo Part No Description Price (each) Stock
985771120 LH REAR OUTER SEAT REINFORCEMENT $451.60 To Order
Photo Part No Description Price (each) Stock
985864733 RH FRONT OUTER SEAT REINFORCEMENT $426.50 To Order
Photo Part No Description Price (each) Stock
985864732 LH FRONT OUTER SEAT REINFORCEMENT $426.50 To Order
Photo Part No Description Price (each) Stock
985873225 COMPL. REAR CROSS MEMBER $5,103.21 To Order
Photo Part No Description Price (each) Stock
14639791 RIVET $1.16 To Order
View All

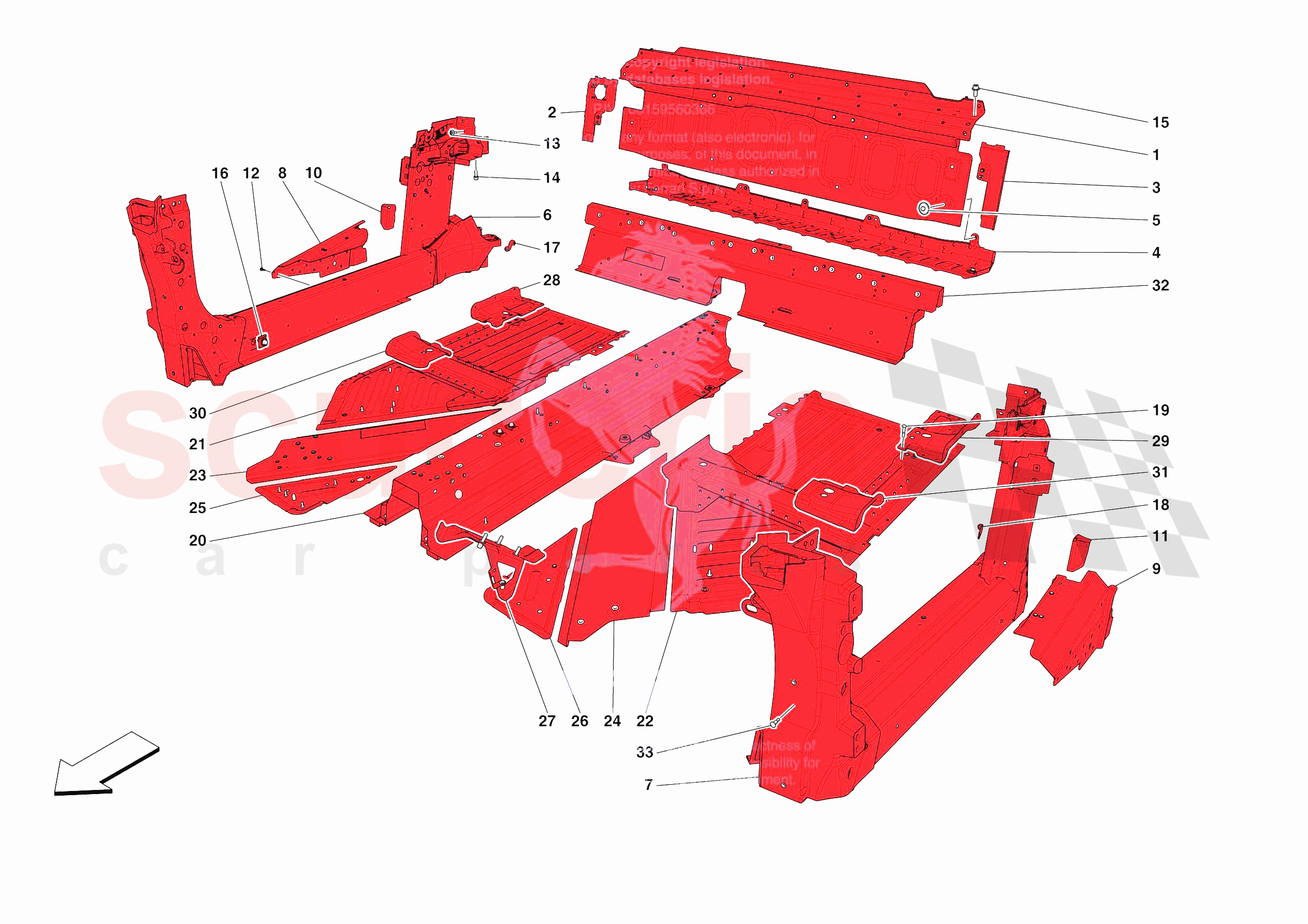

STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE of Ferrari Ferrari SF90 XX Stradale USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 741156
FIREWALL ASSEMBLY
Carbon 		$15,007.34 1
0002 985864948
COMPL. RH B PILLAR INTERFACE PANEL 		$526.87 1
0003 985864929
COMPL. LH B PILLAR INTERFACE PANEL 		$476.68 1
0004 985864926
LOWER REAR FIREWALL
Request ASM authorisation 		$1,635.83 1
0005 968262
SCREW
M5 X 14 		$17.56 7
0006 985829476
RH CENTRE SIDEWALL
Request ASM authorisation 		$14,343.73 1
0007 985829477
LH CENTRE SIDEWALL
Request ASM authorisation 		$14,343.73 1
0008 985925987
COMPL. RH B-PILLAR TRUSS 		$614.69 1
0009 985864735
COMPL. LH B-PILLAR TRUSS 		$602.13 1
0010 813655
LH CORNER BRACKET FASTENING TO CHASSIS 		$32.60 1
0011 813654
RH CORNER BRACKET FASTENING TO CHASSIS 		$32.60 1
0012 330777
RIVET 		$3.84 8
0013 880041
Allen Head Bolt M6 X 26
IN STOCK 		$5.26 2
0014 985569
SCREW 		$5.19 4
0015 985568
SCREW 		$6.19 6
0016 252821
COMPL. GROUND 		$36.37 1
0017 865404
COMPL. RH TANK HEAT SHIELD BRACKET 		$50.17 1
0018 865401
COMPL. LH TANK HEAT SHIELD BRACKET 		$50.17 1
0019 204430
RIVET 		$1.26 -
0020 985788492
CENTRE TUNNEL
Request ASM authorisation 		$3,542.64 1
0021 985918789
RH FLOOR PANEL
Request ASM authorisation 		$3,335.65 1
0022 985918786
LH FLOOR PANEL
Request ASM authorisation 		$3,335.65 1
0023 985878852
RH TORQUE BOX REINFORCEMENT EXTRUSION
Request ASM authorisation 		$1,241.91 1
0023 985895610
RH TORQUE BOX REINFORCEMENT EXTRUSION
Request ASM authorisation 		$777.76 1
0024 985873788
LH TORQUE BOX REINFORCEMENT EXTRUSION
Request ASM authorisation 		$702.49 1
0024 985891075
LH TORQUE BOX REINFORCEMENT EXTRUSION
Request ASM authorisation 		$878.12 1
0025 985849008
COMPL. FRONT RH FLOOR ENDPIECE 		$413.96 1
0025 985893584
COMPL. FRONT RH FLOOR ENDPIECE 		$388.88 1
0026 985864721
COMPL. FRONT LH FLOOR ENDPIECE 		$351.24 1
0026 985893582
COMPL. FRONT LH FLOOR ENDPIECE 		$263.42 1
0027 985866360
COMPL. ACCELERATOR PEDAL BRACKET 		$313.60 1
0027 985940425
COMPL. ACCELERATOR PEDAL BRACKET 		$301.06 1
0028 985771121
RH REAR OUTER SEAT REINFORCEMENT 		$451.60 1
0029 985771120
LH REAR OUTER SEAT REINFORCEMENT 		$451.60 1
0030 985864733
RH FRONT OUTER SEAT REINFORCEMENT 		$426.50 1
0031 985864732
LH FRONT OUTER SEAT REINFORCEMENT 		$426.50 1
0032 985873225
COMPL. REAR CROSS MEMBER
Request ASM authorisation 		$5,103.21 1
0033 14639791
RIVET 		$1.16 13
