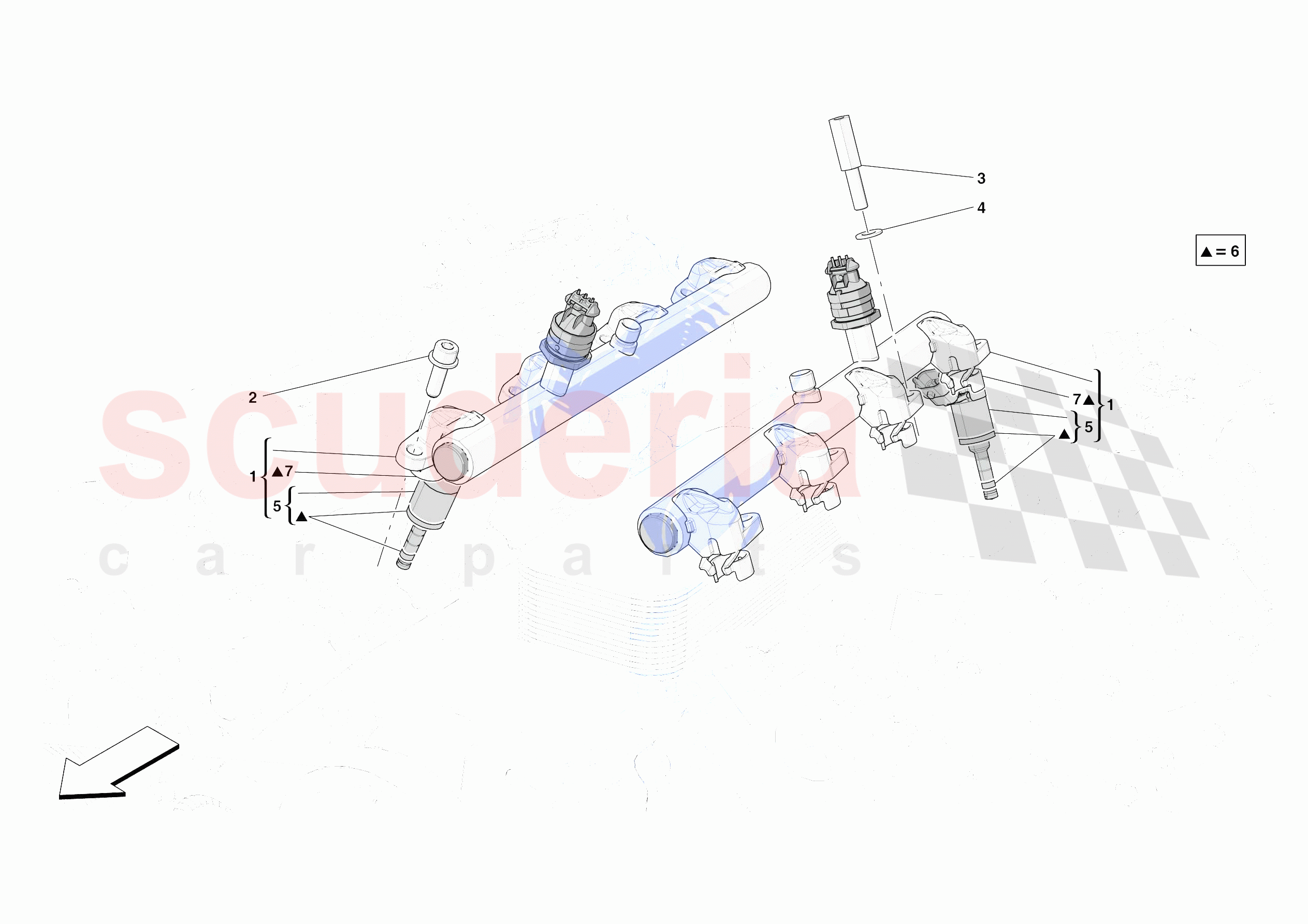

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	334920	FUEL PIPE COMPL. WITH INJECTORS	Enquire	To Order
	882826	FUEL PIPE COMPL. WITH INJECTORS	$1,824.11	To Order

Photo	Part No	Description	Price (each)	Stock
	84317700	SCREW 8 X 30	$21.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	294005	STUD BOLT	$14.60	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	334907	ELECTRO-INJECTOR	$99.96	To Order

Photo	Part No	Description	Price (each)	Stock
	70004988	SEAL KIT	$47.95	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	334920	FUEL PIPE COMPL. WITH INJECTORS	334920 FUEL PIPE COMPL. WITH INJECTORS Also order ref. 3 in tab. 23 fuel pipe; No longer supplied - Replaced by 882826	-	2	Enquire
0001	882826	FUEL PIPE COMPL. WITH INJECTORS	882826 FUEL PIPE COMPL. WITH INJECTORS Also order ref. 3 in tab. 23 fuel pipe	$1,824.11	2
0002	84317700	SCREW 8 X 30 IN STOCK	84317700 SCREW 8 X 30 M8 X 25 IN STOCK	$21.74	6
0003	294005	STUD BOLT	294005 STUD BOLT	$14.60	2
0004	11193874	WASHER IN STOCK	11193874 WASHER IN STOCK	$0.06	2
0005	334907	ELECTRO-INJECTOR	334907 ELECTRO-INJECTOR	$99.96	8
0006	70004988	SEAL KIT	70004988 SEAL KIT Applicable for 1 injectors - Also included in Short block gasket series	$47.95	8
