Name: TIMING SYSTEM DRIVE
Rating: 4.7 (1 reviews)

TIMING SYSTEM DRIVE of Ferrari Ferrari Roma Spider Europe

View All

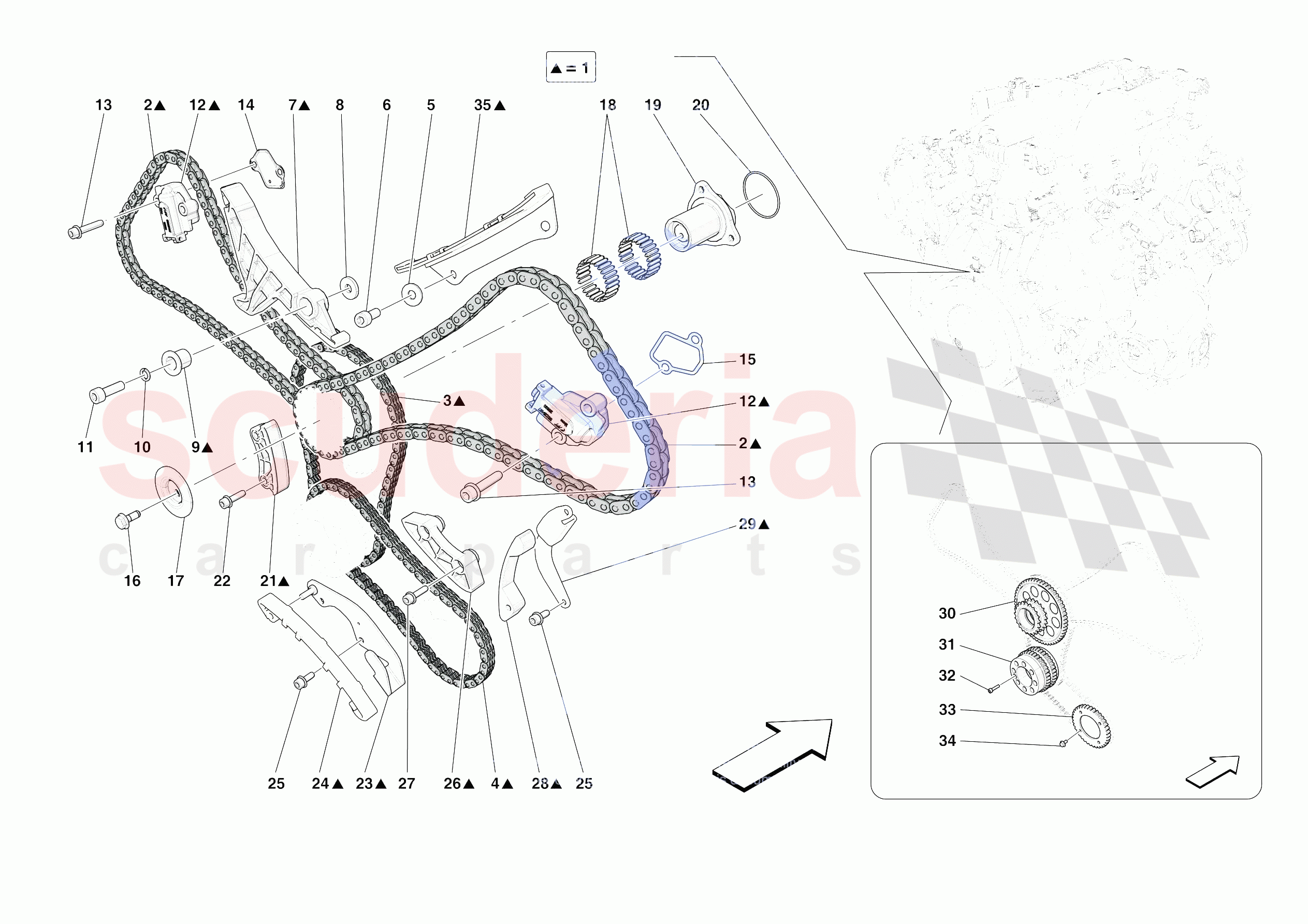

Ferrari Roma Spider Europe - TIMING SYSTEM DRIVE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	881734	COMPL. VALVE TIMING SYSTEM	$1,233.54	To Order

Photo	Part No	Description	Price (each)	Stock
	317852	CHAIN	$213.97	To Order

Photo	Part No	Description	Price (each)	Stock
	271880	CHAIN	$130.73	To Order

Photo	Part No	Description	Price (each)	Stock
	271871	CHAIN	$251.73	To Order

Photo	Part No	Description	Price (each)	Stock
	163759	WASHER	$13.37	To Order

Photo	Part No	Description	Price (each)	Stock
	14302821	SCREW	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	318677	SHOE	$95.65	To Order

Photo	Part No	Description	Price (each)	Stock
	288341	WASHER	$2.60	To Order

Photo	Part No	Description	Price (each)	Stock
	175303	BUSH	$32.71	To Order

Photo	Part No	Description	Price (each)	Stock
	284900	WASHER	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	14306421	SCREW	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	807535	HYDRAULIC CHAIN TENSIONER	$148.76	To Order

Photo	Part No	Description	Price (each)	Stock
	282398	SCREW	$0.46	To Order

Photo	Part No	Description	Price (each)	Stock
	306440	GASKET	$1.93	To Order

Photo	Part No	Description	Price (each)	Stock
	322518	GASKET	$7.04	To Order

Photo	Part No	Description	Price (each)	Stock
	284898	SCREW	$2.85	To Order

Photo	Part No	Description	Price (each)	Stock
	304699	SHOULDER	$33.97	To Order

Photo	Part No	Description	Price (each)	Stock
	267808	ROLLER BEARING CAGE	$13.07	To Order

Photo	Part No	Description	Price (each)	Stock
	322199	TIMING SYSTEM IDLER GEAR MOUNT	$201.38	To Order

Photo	Part No	Description	Price (each)	Stock
	154191	GASKET	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	306094	FIXED SHOE	$65.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282396	SCREW	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	276463	COMPL. MOUNT	$36.49	To Order

Photo	Part No	Description	Price (each)	Stock
	272014	SHOE	$62.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	276462	SHOE	$95.65	To Order

Photo	Part No	Description	Price (each)	Stock
	282397	SCREW	$0.46	To Order

Photo	Part No	Description	Price (each)	Stock
	257626	SHOE	$88.09	To Order

Photo	Part No	Description	Price (each)	Stock
	271856	MOBILE SHOE MOUNT	$62.92	To Order

Photo	Part No	Description	Price (each)	Stock
	287000	DRIVE GEAR	$478.30	To Order

Photo	Part No	Description	Price (each)	Stock
	286222	CRANKSHAFT GEAR	$365.01	To Order

Photo	Part No	Description	Price (each)	Stock
	245914	SCREW	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	286225	PUMP DRIVE GEAR	$201.38	To Order

Photo	Part No	Description	Price (each)	Stock
	284899	SCREW	$3.52	To Order

Photo	Part No	Description	Price (each)	Stock
	307544	SHOE	$69.22	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	881734	COMPL. VALVE TIMING SYSTEM	881734 COMPL. VALVE TIMING SYSTEM	$1,233.54	1
0002	317852	CHAIN	317852 CHAIN	$213.97	2
0003	271880	CHAIN	271880 CHAIN	$130.73	1
0004	271871	CHAIN	271871 CHAIN	$251.73	1
0005	163759	WASHER	163759 WASHER	$13.37	4
0006	14302821	SCREW	14302821 SCREW M8 X 18	$0.18	4
0007	318677	SHOE	318677 SHOE	$95.65	2
0008	288341	WASHER	288341 WASHER	$2.60	2
0009	175303	BUSH	175303 BUSH	$32.71	2
0010	284900	WASHER	284900 WASHER	$0.15	2
0011	14306421	SCREW	14306421 SCREW M8 X 20	$0.29	2
0012	807535	HYDRAULIC CHAIN TENSIONER	807535 HYDRAULIC CHAIN TENSIONER	$148.76	2
0013	282398	SCREW	282398 SCREW M6 X 30	$0.46	4
0014	306440	GASKET	306440 GASKET Also included in engine gasket set	$1.93	1
0015	322518	GASKET	322518 GASKET Also included in engine gasket set	$7.04	1
0016	284898	SCREW	284898 SCREW M6 X 16	$2.85	4
0017	304699	SHOULDER	304699 SHOULDER	$33.97	1
0018	267808	ROLLER BEARING CAGE	267808 ROLLER BEARING CAGE	$13.07	2
0019	322199	TIMING SYSTEM IDLER GEAR MOUNT	322199 TIMING SYSTEM IDLER GEAR MOUNT	$201.38	1
0020	154191	GASKET IN STOCK	154191 GASKET Also included in engine gasket set IN STOCK	$1.31 MSRP: ~~2.52~~ (48% off)	1
0021	306094	FIXED SHOE IN STOCK	306094 FIXED SHOE IN STOCK	$65.02	1
0022	282396	SCREW	282396 SCREW M6 X 22	$0.53	2
0023	276463	COMPL. MOUNT	276463 COMPL. MOUNT	$36.49	1
0024	272014	SHOE IN STOCK	272014 SHOE IN STOCK	$62.92	1
0025	282393	SCREW	282393 SCREW M6 X 16	$0.67	4
0026	276462	SHOE	276462 SHOE	$95.65	1
0027	282397	SCREW	282397 SCREW M6 X 25	$0.46	2
0028	257626	SHOE	257626 SHOE	$88.09	1
0029	271856	MOBILE SHOE MOUNT	271856 MOBILE SHOE MOUNT	$62.92	1
0030	287000	DRIVE GEAR	287000 DRIVE GEAR	$478.30	1
0031	286222	CRANKSHAFT GEAR	286222 CRANKSHAFT GEAR	$365.01	1
0032	245914	SCREW	245914 SCREW M5 X 20	$0.35	1
0033	286225	PUMP DRIVE GEAR	286225 PUMP DRIVE GEAR	$201.38	1
0034	284899	SCREW	284899 SCREW M5 X 10	$3.52	4
0035	307544	SHOE	307544 SHOE	$69.22	2

Timing System Drive

Ferrari Roma Spider Europe
