Timing System Drive

Ferrari Monza SPA1 Europe

Find Your Part

Ferrari Monza SPA1 Europe - TIMING SYSTEM DRIVE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
921010 VALVE TIMING AND PUMP DRIVE SYSTEM $1,258.29 To Order
921010 VALVE TIMING AND PUMP DRIVE SYSTEM $1,258.29 To Order
Photo Part No Description Price (each) Stock
254263 CHAIN $111.34 To Order
Photo Part No Description Price (each) Stock
312629 CHAIN $457.56 To Order
Photo Part No Description Price (each) Stock
198034 FIXED SHOE $69.79 To Order
Photo Part No Description Price (each) Stock
239566 COMPL. UPPER FIXED SHOE $44.47 To Order
Photo Part No Description Price (each) Stock
260614 MOBILE SHOE $406.71 To Order
Photo Part No Description Price (each) Stock
330790 HYDRAULIC CHAIN TENSIONER $94.04 To Order
840915 HYDRAULIC CHAIN TENSIONER $254.18 To Order
Photo Part No Description Price (each) Stock
257626 SHOE $88.95 To Order
Photo Part No Description Price (each) Stock
265180 MOUNTING $68.62 To Order
Photo Part No Description Price (each) Stock
175303 BUSH $33.03 To Order
Photo Part No Description Price (each) Stock
309750 FIXED SHOE $69.90 To Order
Photo Part No Description Price (each) Stock
272014 SHOE $63.53 IN STOCK
Photo Part No Description Price (each) Stock
265712 MOUNTING $330.46 To Order
Photo Part No Description Price (each) Stock
271880 CHAIN $132.00 To Order
Photo Part No Description Price (each) Stock
277283 FIXED SHOE $330.46 To Order
Photo Part No Description Price (each) Stock
163759 WASHER $13.50 To Order
Photo Part No Description Price (each) Stock
14306224 SCREW $0.20 IN STOCK
Photo Part No Description Price (each) Stock
282395 SCREW $0.60 To Order
Photo Part No Description Price (each) Stock
317023 GASKET $9.40 To Order
Photo Part No Description Price (each) Stock
268314 BUSH $46.21 To Order
Photo Part No Description Price (each) Stock
181336 SCREW $3.17 IN STOCK
Photo Part No Description Price (each) Stock
282393 SCREW $0.67 To Order
Photo Part No Description Price (each) Stock
175306 SHOULDER $4.06 To Order
Photo Part No Description Price (each) Stock
16100824 NUT $0.14 To Order
Photo Part No Description Price (each) Stock
12649624 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
288731 PUMP DRIVE GEAR $177.93 To Order
Photo Part No Description Price (each) Stock
186668 SCREW $14.64 To Order
Photo Part No Description Price (each) Stock
299589 DRIVE GEAR $432.13 To Order
Photo Part No Description Price (each) Stock
187742 ROLLER BEARING CAGE $11.25 To Order
Photo Part No Description Price (each) Stock
194262 SHOULDER $39.44 To Order
Photo Part No Description Price (each) Stock
16043124 SCREW $0.17 IN STOCK
Photo Part No Description Price (each) Stock
289896 MOUNTING $190.63 To Order
Photo Part No Description Price (each) Stock
181336 SCREW $3.17 IN STOCK
Photo Part No Description Price (each) Stock
154191 GASKET $1.32 IN STOCK
Photo Part No Description Price (each) Stock
301217 EXTERNAL CRANKSHAFT GEAR $190.63 To Order
Photo Part No Description Price (each) Stock
299590 INNER CRANKSHAFT GEAR $266.89 To Order
Photo Part No Description Price (each) Stock
252512 BUSH $90.22 To Order
Photo Part No Description Price (each) Stock
317022 GASKET $3.17 To Order
Photo Part No Description Price (each) Stock
183929 BUSH $6.70 To Order
View All

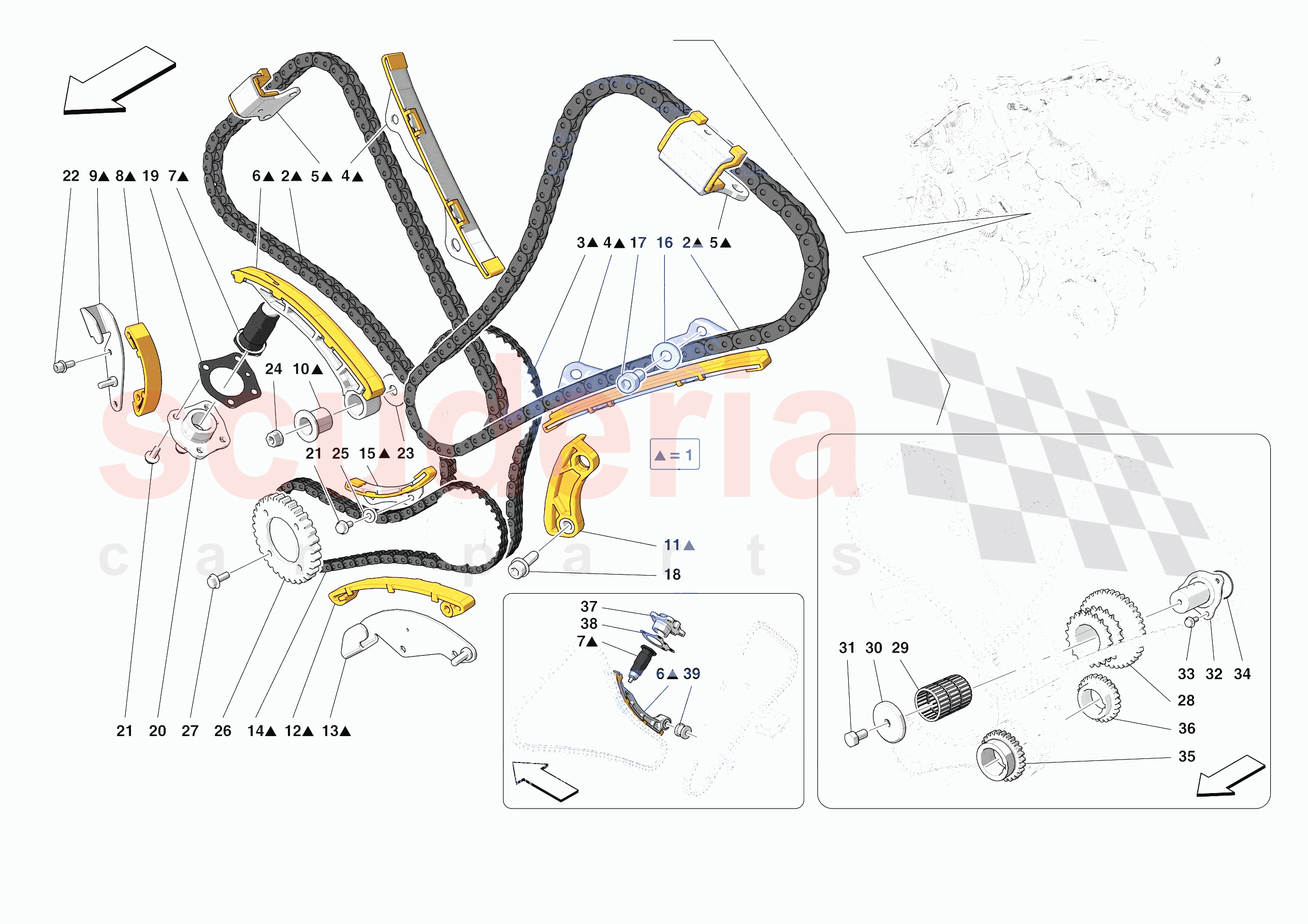

TIMING SYSTEM DRIVE of Ferrari Ferrari Monza SPA1 Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 921010
VALVE TIMING AND PUMP DRIVE SYSTEM
Also order RH tensioner 768613 ref.7 to complete timing kit 		$1,258.29 1
0001 921010
VALVE TIMING AND PUMP DRIVE SYSTEM 		$1,258.29 1
0002 254263
CHAIN 		$111.34 2
0003 312629
CHAIN 		$457.56 1
0004 198034
FIXED SHOE 		$69.79 2
0005 239566
COMPL. UPPER FIXED SHOE 		$44.47 2
0006 260614
MOBILE SHOE 		$406.71 2
0007 330790
HYDRAULIC CHAIN TENSIONER
LH engine side 		$94.04 1
0007 840915
HYDRAULIC CHAIN TENSIONER 		$254.18 1
0008 257626
SHOE 		$88.95 1
0009 265180
MOUNTING 		$68.62 1
0010 175303
BUSH 		$33.03 2
0011 309750
FIXED SHOE 		$69.90 1
0012 272014
SHOE
IN STOCK 		$63.53 1
0013 265712
MOUNTING 		$330.46 1
0014 271880
CHAIN 		$132.00 1
0015 277283
FIXED SHOE 		$330.46 1
0016 163759
WASHER 		$13.50 3
0017 14306224
SCREW
M8 X 16
IN STOCK 		$0.20 (50% off) 3
0018 282395
SCREW
M6 X 20 		$0.60 2
0019 317023
GASKET 		$9.40 1
0020 268314
BUSH 		$46.21 1
0021 181336
SCREW
M6 X 16
IN STOCK 		$3.17 (33.3% off) 5
0022 282393
SCREW
M6 X 14 		$0.67 4
0023 175306
SHOULDER 		$4.06 1
0024 16100824
NUT 		$0.14 (26.3% off) 2
0025 12649624
WASHER 		- 2 Enquire
0026 288731
PUMP DRIVE GEAR 		$177.93 1
0027 186668
SCREW
M5 X 12 		$14.64 4
0028 299589
DRIVE GEAR 		$432.13 1
0029 187742
ROLLER BEARING CAGE 		$11.25 3
0030 194262
SHOULDER 		$39.44 1
0031 16043124
SCREW
M8 X 14
IN STOCK 		$0.17 1
0032 289896
MOUNTING 		$190.63 1
0033 181336
SCREW
M6 X 16
IN STOCK 		$3.17 (33.3% off) 5
0034 154191
GASKET
Also included in engine gasket set
IN STOCK 		$1.32 (47.6% off) 1
0035 301217
EXTERNAL CRANKSHAFT GEAR
Z. 26- -External 		$190.63 1
0036 299590
INNER CRANKSHAFT GEAR
Z. 26- -Internal 		$266.89 1
0037 252512
BUSH 		$90.22 1
0038 317022
GASKET
Also included in engine gasket set 		$3.17 1
0039 183929
BUSH 		$6.70 1
