Crankcase

Ferrari Monza SPA1 Europe

Find Your Part

Ferrari Monza SPA1 Europe - CRANKCASE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
824484 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY $8,287.14 To Order
805484 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY $11,065.18 To Order
55002687 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY $8,083.14 To Order
Photo Part No Description Price (each) Stock
266366 CYLINDER SLEEVE $269.57 IN STOCK
Photo Part No Description Price (each) Stock
186251 O-RING $2.41 IN STOCK
Photo Part No Description Price (each) Stock
802590 STUD BOLT CRANKCASE $12.97 IN STOCK
Photo Part No Description Price (each) Stock
208451 INSPECTION HATCH COVER $32.60 To Order
Photo Part No Description Price (each) Stock
317312 GASKET $3.24 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
295132 PUMP DRIVE JOINT $388.88 To Order
Photo Part No Description Price (each) Stock
128799 BEARING $90.30 To Order
Photo Part No Description Price (each) Stock
11068376 SEEGER RING $0.41 IN STOCK
Photo Part No Description Price (each) Stock
11061576 SEEGER RING $1.51 To Order
Photo Part No Description Price (each) Stock
154691 GASKET $1.51 IN STOCK
Photo Part No Description Price (each) Stock
242269 REAR MAIN OIL SEAL $45.99 To Order
Photo Part No Description Price (each) Stock
176388 O-RING $2.18 IN STOCK
Photo Part No Description Price (each) Stock
13546934 STUD BOLT $1.66 IN STOCK
Photo Part No Description Price (each) Stock
13546834 STUD BOLT $1.42 To Order
Photo Part No Description Price (each) Stock
100052 CENTERING DOWEL $2.21 To Order
Photo Part No Description Price (each) Stock
13547234 STUD BOLT $13.37 IN STOCK
Photo Part No Description Price (each) Stock
13546834 STUD BOLT $1.42 To Order
Photo Part No Description Price (each) Stock
282753 THREADED PLUG $5.69 To Order
Photo Part No Description Price (each) Stock
219283 STUD BOLT $16.29 To Order
Photo Part No Description Price (each) Stock
127635 THREADED PLUG $2.84 To Order
Photo Part No Description Price (each) Stock
185360 CENTERING DOWEL $2.77 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.30 IN STOCK
Photo Part No Description Price (each) Stock
104280 MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 $5.36 To Order
Photo Part No Description Price (each) Stock
223577 THREADED INSERT M22 X 1.5 X 9MM $5.10 IN STOCK
Photo Part No Description Price (each) Stock
10261860 GASKET $0.42 IN STOCK
Photo Part No Description Price (each) Stock
13543824 STUD BOLT $3.22 IN STOCK
Photo Part No Description Price (each) Stock
282393 SCREW $0.67 To Order
Photo Part No Description Price (each) Stock
13543124 STUD BOLT $5.93 IN STOCK
Photo Part No Description Price (each) Stock
137192 O-RING $0.33 IN STOCK
Photo Part No Description Price (each) Stock
294944 COMPL. CHAIN COOLING NOZZLE $91.56 To Order
Photo Part No Description Price (each) Stock
175611 CENTERING DOWEL $1.66 To Order
Photo Part No Description Price (each) Stock
231624 SCREW $0.41 IN STOCK
Photo Part No Description Price (each) Stock
300580 COMPL. VALVE HOLDER $263.42 To Order
Photo Part No Description Price (each) Stock
134704 O-RING $0.14 IN STOCK
Photo Part No Description Price (each) Stock
164877 O-RING $0.27 To Order
Photo Part No Description Price (each) Stock
319988 COMPL. PISTON COOLING JET $25.07 To Order
Photo Part No Description Price (each) Stock
315493 SCREW $1.00 To Order
Photo Part No Description Price (each) Stock
13026924 SCREW $0.29 To Order
View All

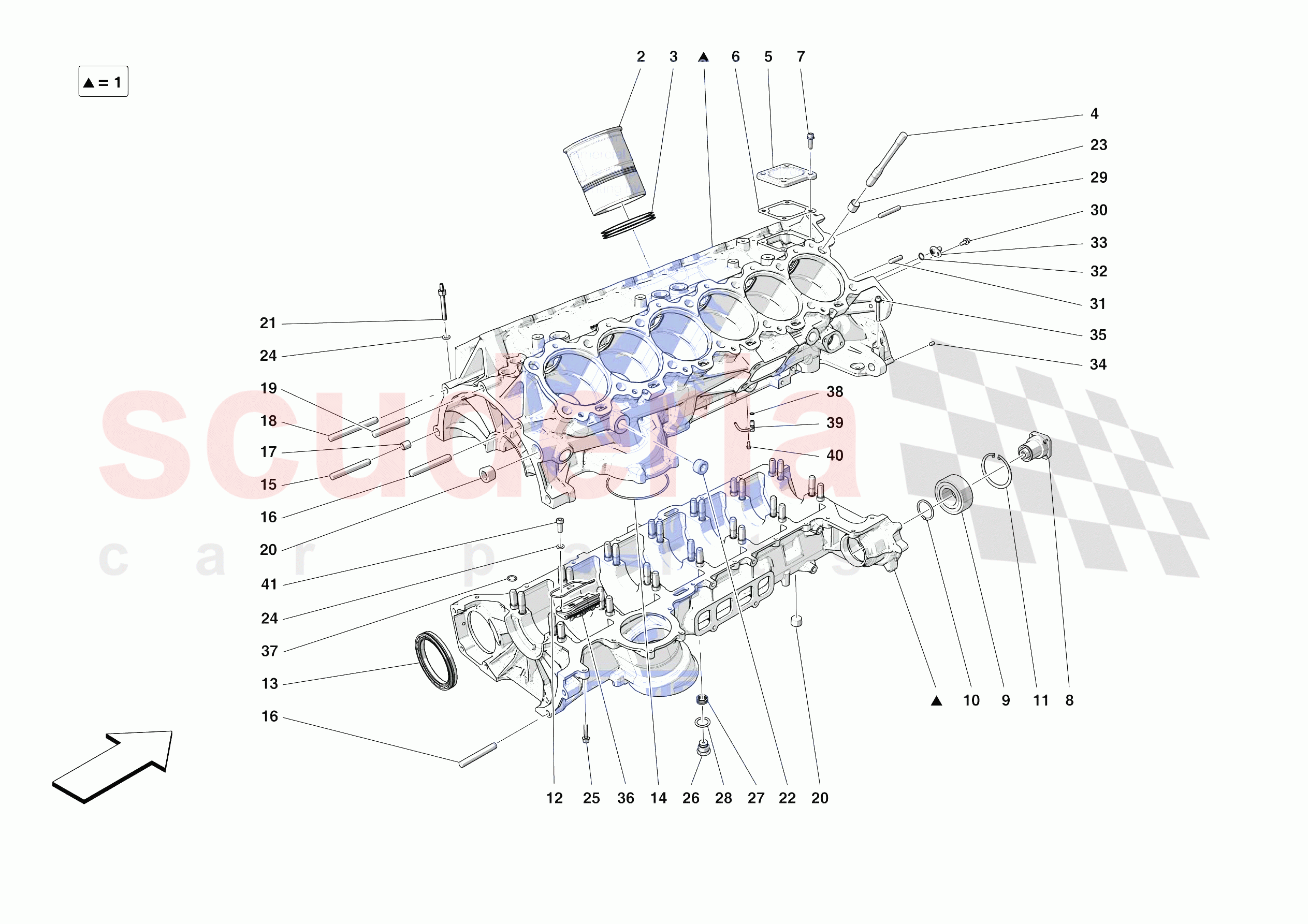

CRANKCASE of Ferrari Ferrari Monza SPA1 Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 824484
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
Applies until depletion; Applicable up to engine No. 512183 		$8,287.14 1
0001 805484
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
Applies until depletion - Applicable after depletion of 824484; Applicable from engine No. 512184 		$11,065.18 1
0001 55002687
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
Applicable after depletion of 805484; Applicable from engine No. 512184 		$8,083.14 1
0002 266366
CYLINDER SLEEVE
D. 94
IN STOCK 		$269.57 (42.2% off) 12
0003 186251
O-RING
Also included in engine gasket set
IN STOCK 		$2.41 (24.7% off) 36
0004 802590
STUD BOLT CRANKCASE
IN STOCK 		$12.97 28
0005 208451
INSPECTION HATCH COVER 		$32.60 1
0006 317312
GASKET
Also included in engine gasket set
IN STOCK 		$3.24 1
0007 231619
SCREW
M6 X 20
IN STOCK 		$0.29 4
0008 295132
PUMP DRIVE JOINT 		$388.88 1
0009 128799
BEARING 		$90.30 1
0010 11068376
SEEGER RING
IN STOCK 		$0.41 (37.9% off) 1
0011 11061576
SEEGER RING 		$1.51 (1.3% off) 1
0012 154691
GASKET
Also included in engine gasket set
IN STOCK 		$1.51 (37.1% off) 6
0013 242269
REAR MAIN OIL SEAL
Also included in engine gasket set 		$45.99 1
0014 176388
O-RING
IN STOCK 		$2.18 (44.8% off) 1
0015 13546934
STUD BOLT
Shank length 50 mm
IN STOCK 		$1.66 2
0016 13546834
STUD BOLT
Shank length 45 mm 		$1.42 3
0017 100052
CENTERING DOWEL 		$2.21 2
0018 13547234
STUD BOLT
M10 X 1.25 X 20
IN STOCK 		$13.37 1
0019 13546834
STUD BOLT
Shank length 40 mm 		$1.42 1
0020 282753
THREADED PLUG 		$5.69 8
0021 219283
STUD BOLT 		$16.29 1
0022 127635
THREADED PLUG
M18 X 11 X 1.5 		$2.84 (31.9% off) 5
0023 185360
CENTERING DOWEL
IN STOCK 		$2.77 4
0024 11197774
WASHER
IN STOCK 		$0.06 (80% off) 13
0025 231620
SCREW
M6 X 25
IN STOCK 		$0.30 (14.3% off) 17
0026 104280
MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 		$5.36 (22.3% off) 1
0027 223577
THREADED INSERT M22 X 1.5 X 9MM
IN STOCK 		$5.10 1
0028 10261860
GASKET
Also included in engine gasket set
IN STOCK 		$0.42 (58% off) 1
0029 13543824
STUD BOLT
M8 X 16
IN STOCK 		$3.22 1
0030 282393
SCREW
M6 X 16 		$0.67 1
0031 13543124
STUD BOLT
M8 X 16
IN STOCK 		$5.93 1
0032 137192
O-RING
IN STOCK 		$0.33 (34% off) 1
0033 294944
COMPL. CHAIN COOLING NOZZLE 		$91.56 1
0034 175611
CENTERING DOWEL 		$1.66 2
0035 231624
SCREW
M6 X 45
IN STOCK 		$0.41 1
0036 300580
COMPL. VALVE HOLDER 		$263.42 6
0037 134704
O-RING
Also included in engine gasket set
IN STOCK 		$0.14 (86% off) 28
0038 164877
O-RING
Also included in engine gasket set 		$0.27 12
0039 319988
COMPL. PISTON COOLING JET 		$25.07 12
0040 315493
SCREW
M4 X 10 		$1.00 12
0041 13026924
SCREW
M6 X 14 		$0.29 12
