Power Steering Pump And Reservoir

Ferrari LaFerrari

Find Your Part

Ferrari LaFerrari - POWER STEERING PUMP AND RESERVOIR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
309203 POWER STEERING PUMP $12,106.98 To Order
Photo Part No Description Price (each) Stock
288801 FRONT POWER STEERING PUMP BRACKET $50.32 To Order
Photo Part No Description Price (each) Stock
295350 REAR POWER STEERING PUMP BRACKET $49.06 To Order
Photo Part No Description Price (each) Stock
284347 POWER STEERING PUMP DAMPER MOUNT $18.86 To Order
Photo Part No Description Price (each) Stock
292342 COMPL. POWER STEERING FLUID RESERVOIR $74.22 To Order
Photo Part No Description Price (each) Stock
122126 RUBBER PIPE $9.94 To Order
Photo Part No Description Price (each) Stock
303012 PIPE FROM RESERVOIR TO POWER STEERING PUMP $108.20 To Order
Photo Part No Description Price (each) Stock
303013 PIPE FROM COIL TO POWER STEERING FLUID RESERVOIR $47.80 To Order
Photo Part No Description Price (each) Stock
262108 SCREW COLLAR $1.52 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.38 To Order
Photo Part No Description Price (each) Stock
303091 PIPE FROM PUMP TO FIREWALL $616.58 To Order
Photo Part No Description Price (each) Stock
250318 SNAP CLIP $0.21 IN STOCK
Photo Part No Description Price (each) Stock
150695 CLIP $0.49 IN STOCK
Photo Part No Description Price (each) Stock
303014 PIPE FROM FIREWALL TO COIL $276.82 To Order
Photo Part No Description Price (each) Stock
81649400 CLIP $10.55 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
16297924 SCREW $1.34 To Order
Photo Part No Description Price (each) Stock
14496524 WASHER D.8.4 X 17 X 1.6 $0.11 IN STOCK
Photo Part No Description Price (each) Stock
303090 FOAM $3.61 To Order
Photo Part No Description Price (each) Stock
302574 ERGAL SCREW $4.87 To Order
Photo Part No Description Price (each) Stock
82329900 CLIP $0.83 IN STOCK
Photo Part No Description Price (each) Stock
11566224 SCREW $0.33 IN STOCK
11566224 SCREW $0.33 IN STOCK
Photo Part No Description Price (each) Stock
303591 SEEGER RING $20.12 To Order
Photo Part No Description Price (each) Stock
303594 SEAL RING $13.82 To Order
Photo Part No Description Price (each) Stock
11065976 SEEGER RING $0.20 To Order
View All

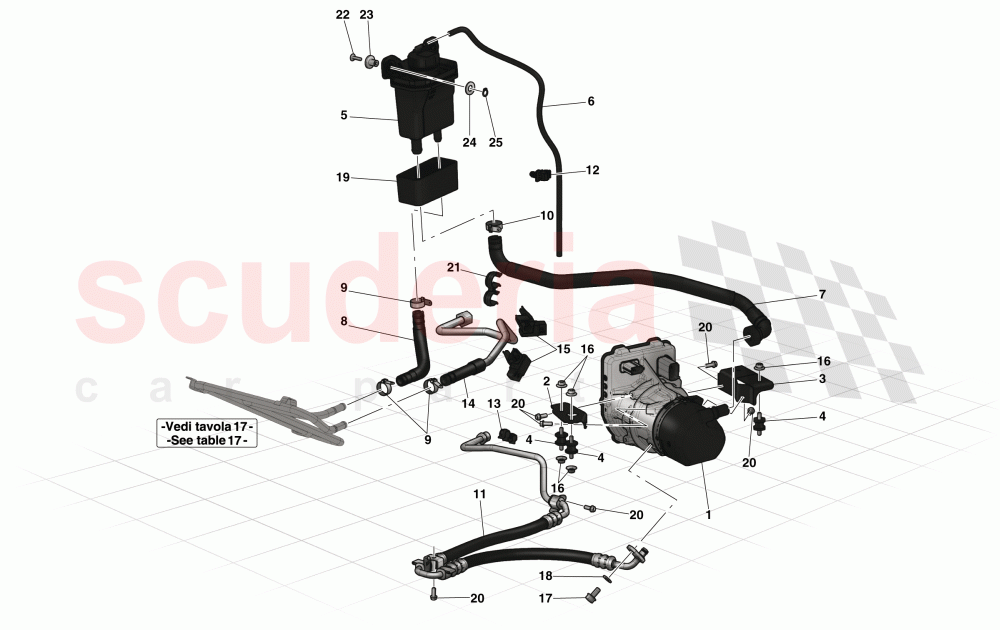

POWER STEERING PUMP AND RESERVOIR of Ferrari Ferrari LaFerrari Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 309203
POWER STEERING PUMP 		$12,106.98 1
2 288801
FRONT POWER STEERING PUMP BRACKET 		$50.32 1
3 295350
REAR POWER STEERING PUMP BRACKET 		$49.06 1
4 284347
POWER STEERING PUMP DAMPER MOUNT 		$18.86 4
5 292342
COMPL. POWER STEERING FLUID RESERVOIR 		$74.22 (35.6% off) 1
6 122126
RUBBER PIPE 		$9.94 1
7 303012
PIPE FROM RESERVOIR TO POWER STEERING PUMP 		$108.20 1
8 303013
PIPE FROM COIL TO POWER STEERING FLUID RESERVOIR 		$47.80 1
9 262108
SCREW COLLAR 		$1.52 3
10 262111
JUBILEE CLAMP 		$1.38 1
11 303091
PIPE FROM PUMP TO FIREWALL 		$616.58 1
12 250318
SNAP CLIP
IN STOCK 		$0.21 1
13 150695
CLIP
IN STOCK 		$0.49 1
14 303014
PIPE FROM FIREWALL TO COIL 		$276.82 1
15 81649400
CLIP 		$10.55 2
16 14059290
FLANGED NUT M6
IN STOCK 		$1.31 6
17 16297924
SCREW 		$1.34 1
18 14496524
WASHER D.8.4 X 17 X 1.6
IN STOCK 		$0.11 (92.7% off) 1
19 303090
FOAM 		$3.61 1
20 302574
ERGAL SCREW
M6 X 15 		$4.87 6
21 82329900
CLIP
IN STOCK 		$0.83 1
22 11566224
SCREW
M5 X 14
IN STOCK 		$0.33 2
22 11566224
SCREW
M5 X 18; No longer supplied; Replaced by 169814
IN STOCK 		$0.33 2
23 303591
SEEGER RING 		$20.12 2
24 303594
SEAL RING 		$13.82 2
25 11065976
SEEGER RING 		$0.20 2
