Ferrari LaFerrari - PEDAL BOARD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
307879 PEDAL BOARD MOUNTING $3,946.20 To Order
Photo Part No Description Price (each) Stock
298474 PEDAL BOARD LOCK SYSTEM $4,131.83 To Order
Photo Part No Description Price (each) Stock
291389 COMPL. GUIDE $773.51 To Order
Photo Part No Description Price (each) Stock
206739 CLAMP $7.91 To Order
Photo Part No Description Price (each) Stock
283409 PEDAL COVER $128.91 To Order
Photo Part No Description Price (each) Stock
283408 COMPL. ACCELERATOR PEDAL $399.63 To Order
Photo Part No Description Price (each) Stock
301052 ACCELERATOR MOUNTING BRACKET $219.14 To Order
Photo Part No Description Price (each) Stock
287590 COMPL. BRAKE PEDAL $6,440.78 To Order
Photo Part No Description Price (each) Stock
303730 BRAKE PEDAL SHANK $1,312.38 To Order
Photo Part No Description Price (each) Stock
289404 BRAKE PEDAL COVER $567.23 To Order
Photo Part No Description Price (each) Stock
187017 BRAKE PEDAL COVER SPACER $20.63 To Order
Photo Part No Description Price (each) Stock
245178 BRAKE SERVO LINKAGE YOKE $72.18 To Order
Photo Part No Description Price (each) Stock
245179 CAGE $17.19 To Order
Photo Part No Description Price (each) Stock
245180 PIN $76.04 To Order
Photo Part No Description Price (each) Stock
11064176 SAFETY CLIP $2.50 To Order
Photo Part No Description Price (each) Stock
245181 RUBBER WASHER $6.88 To Order
Photo Part No Description Price (each) Stock
279682 LINEAR BRAKE PEDAL SENSOR $519.78 To Order
Photo Part No Description Price (each) Stock
288494 BRAKE PEDAL PIVOT PIN $244.93 To Order
Photo Part No Description Price (each) Stock
284392 BUSH $219.14 To Order
Photo Part No Description Price (each) Stock
298681 AIR SPRING $72.18 To Order
Photo Part No Description Price (each) Stock
288452 LH FOOTREST BRACKET $502.76 To Order
Photo Part No Description Price (each) Stock
301076 SPECIAL STUD BOLT $53.44 To Order
Photo Part No Description Price (each) Stock
16160976 SNAP RING $0.08 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
14359224 SCREW $0.25 To Order
Photo Part No Description Price (each) Stock
15210624 SCREW $2.10 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 ARRIVING SOON
80874100 SCREW $1.05 IN STOCK
Photo Part No Description Price (each) Stock
14303924 SCREW $0.35 To Order
Photo Part No Description Price (each) Stock
11569124 SCREW $1.37 To Order
Photo Part No Description Price (each) Stock
12648224 WASHER $0.25 To Order
Photo Part No Description Price (each) Stock
14040614 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
14059311 FLANGED NUT M8 X 1.25 $0.25 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 ARRIVING SOON
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
14058421 NUT $1.23 IN STOCK
Photo Part No Description Price (each) Stock
12639724 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
14497704 WASHER $0.59 IN STOCK
Photo Part No Description Price (each) Stock
14499421 WASHER $0.20 IN STOCK
Photo Part No Description Price (each) Stock
13579221 WASHER $0.52 IN STOCK
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12646624 WASHER $0.22 IN STOCK
Photo Part No Description Price (each) Stock
12648224 WASHER $0.25 To Order
View All

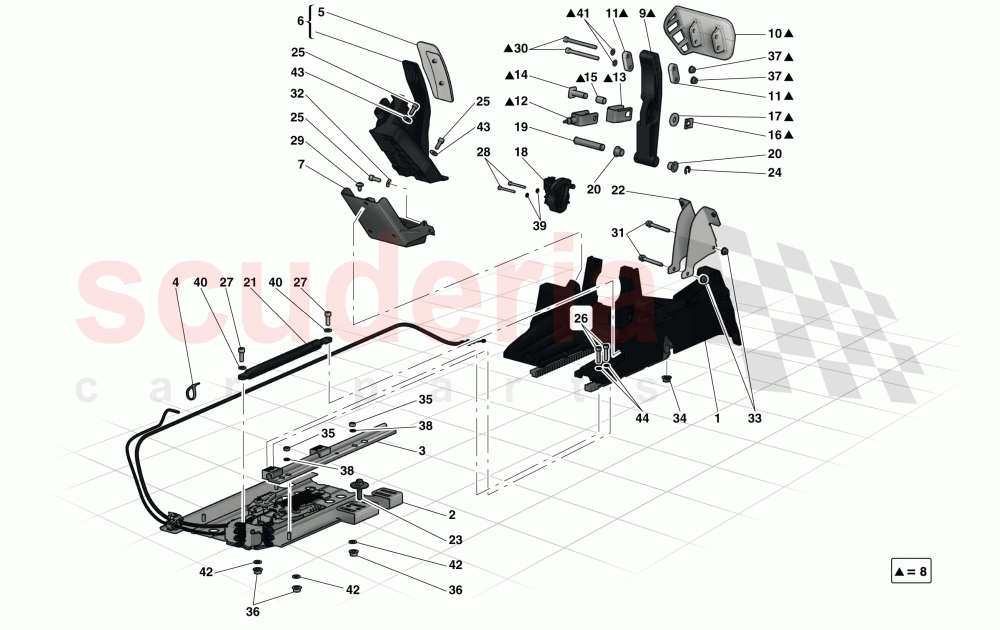

PEDAL BOARD of Ferrari Ferrari LaFerrari Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 307879
PEDAL BOARD MOUNTING 		$3,946.20 1
2 298474
PEDAL BOARD LOCK SYSTEM 		$4,131.83 1
3 291389
COMPL. GUIDE 		$773.51 2
4 206739
CLAMP 		$7.91 6
5 283409
PEDAL COVER 		$128.91 1
6 283408
COMPL. ACCELERATOR PEDAL 		$399.63 1
7 301052
ACCELERATOR MOUNTING BRACKET 		$219.14 1
8 287590
COMPL. BRAKE PEDAL 		$6,440.78 1
9 303730
BRAKE PEDAL SHANK 		$1,312.38 1
10 289404
BRAKE PEDAL COVER 		$567.23 1
11 187017
BRAKE PEDAL COVER SPACER 		$20.63 2
12 245178
BRAKE SERVO LINKAGE YOKE 		$72.18 1
13 245179
CAGE 		$17.19 1
14 245180
PIN 		$76.04 1
15 260639
BUSH 		$12.90 1
16 11064176
SAFETY CLIP 		$2.50 1
17 245181
RUBBER WASHER 		$6.88 1
18 279682
LINEAR BRAKE PEDAL SENSOR 		$519.78 1
19 288494
BRAKE PEDAL PIVOT PIN 		$244.93 1
20 284392
BUSH 		$219.14 2
21 298681
AIR SPRING 		$72.18 1
22 288452
LH FOOTREST BRACKET 		$502.76 1
23 301076
SPECIAL STUD BOLT 		$53.44 2
24 16160976
SNAP RING
IN STOCK 		$0.08 (77.1% off) 1
25 231619
SCREW
IN STOCK 		$0.29 5
26 231620
SCREW
IN STOCK 		$0.31 (11.4% off) 8
27 14359224
SCREW 		$0.25 2
28 15210624
SCREW 		$2.10 2
29 11566224
SCREW
M5 X 16
ARRIVING SOON 		$0.34 1
29 80874100
SCREW
M6 X 12; No longer supplied; Replaced by 256323
IN STOCK 		$1.05 (16% off) 1
30 14303924
SCREW 		$0.35 2
31 11569124
SCREW 		$1.37 2
32 12648224
WASHER 		$0.25 2
33 14040614
NUT
IN STOCK 		$0.14 2
34 14059311
FLANGED NUT M8 X 1.25
IN STOCK 		$0.25 (50% off) 1
35 14059290
FLANGED NUT M6
ARRIVING SOON 		$1.33 4
36 14040711
NUT
IN STOCK 		$0.35 4
37 14058421
NUT
IN STOCK 		$1.23 2
38 12639724
WASHER
IN STOCK 		$0.05 (90% off) 4
39 14497704
WASHER
IN STOCK 		$0.59 2
40 14499421
WASHER
IN STOCK 		$0.20 2
41 13579221
WASHER
IN STOCK 		$0.52 2
42 12638524
WASHER D8.15-15 X 1.5
IN STOCK 		$0.06 (76% off) 4
43 12646624
WASHER
IN STOCK 		$0.22 (24.1% off) 3
44 12648224
WASHER 		$0.25 8
