Luggage Compartment Mats

Ferrari LaFerrari

Find Your Part

Ferrari LaFerrari - LUGGAGE COMPARTMENT MATS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
86469400 LUGGAGE TRAY $40,572.80 To Order
86478000 LUGGAGE TRAY $30,226.99 To Order
85860800 LUGGAGE TRAY $46,962.39 To Order
Photo Part No Description Price (each) Stock
86470300 COMPL. LUGGAGE TRAY COVER $6,807.52 To Order
85940000 COMPL. LUGGAGE TRAY COVER $6,791.14 To Order
Photo Part No Description Price (each) Stock
86469500 TRAY COVER HINGE $2,451.41 To Order
85600400 RH TRAY COVER HINGE $327.52 To Order
Photo Part No Description Price (each) Stock
86469500 TRAY COVER HINGE $2,451.41 To Order
85600500 LH TRAY COVER HINGE $327.52 To Order
Photo Part No Description Price (each) Stock
62797600 Allen Bolt Countersunk M6 x 20 $0.96 IN STOCK
Photo Part No Description Price (each) Stock
85683500 REAR SEAL $119.65 To Order
Photo Part No Description Price (each) Stock
14508087 PLUG $2.43 To Order
Photo Part No Description Price (each) Stock
85949400 RH HINGE INSERT Enquire To Order
Photo Part No Description Price (each) Stock
85949500 LH HINGE INSERT Enquire To Order
Photo Part No Description Price (each) Stock
86469700 TRAY LID COVER RETAINER SPRING $631.66 To Order
85861200 TRAY LID COVER RETAINER SPRING $214.14 To Order
Photo Part No Description Price (each) Stock
915271 SCREW M6 X 15 $1.12 To Order
Photo Part No Description Price (each) Stock
85736400 CHASSIS COVER $973.21 To Order
Photo Part No Description Price (each) Stock
14306474 SCREW $0.36 To Order
Photo Part No Description Price (each) Stock
915271 SCREW M6 X 15 $1.12 To Order
Photo Part No Description Price (each) Stock
65925000 SCREW $1.52 To Order
85800500 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
13550225 WASHER $0.53 To Order
Photo Part No Description Price (each) Stock
85882500 WASHER $0.14 To Order
Photo Part No Description Price (each) Stock
11625524 SCREW $0.68 IN STOCK
85077900 SCREW $0.17 To Order
Photo Part No Description Price (each) Stock
16281827 SCREW $0.21 To Order
Photo Part No Description Price (each) Stock
85739500 WASHER $3.02 To Order
Photo Part No Description Price (each) Stock
86263200 TOOLKIT BAG STRAP $604.64 To Order
Photo Part No Description Price (each) Stock
14642797 RIVET $0.47 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
View All

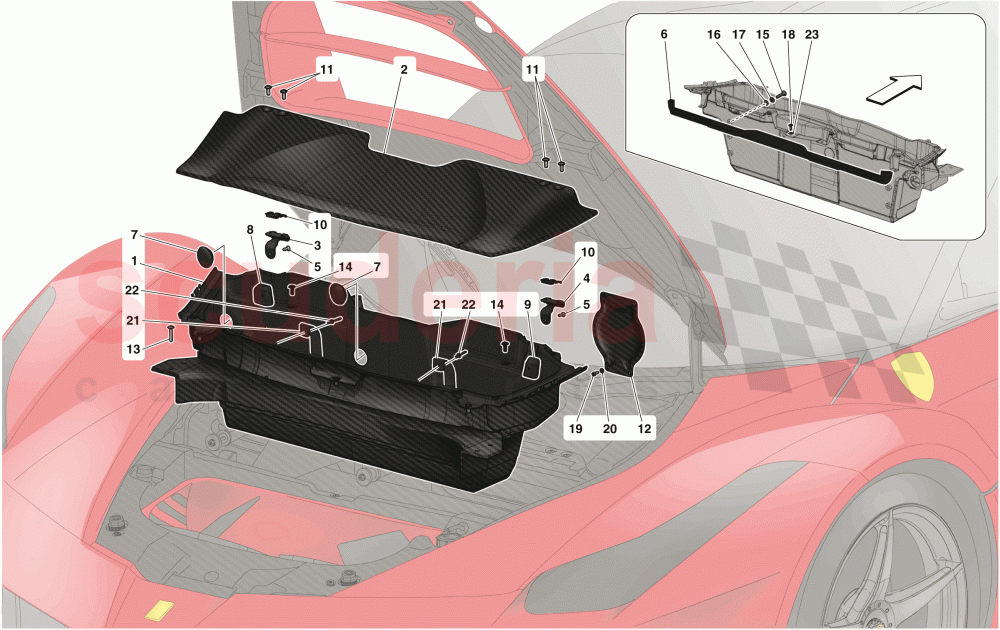

LUGGAGE COMPARTMENT MATS of Ferrari Ferrari LaFerrari Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 86469400
LUGGAGE TRAY
Applicable for J 		$40,572.80 1
1 86478000
LUGGAGE TRAY
Not for J; Applicable from Ass. No. 121616 		$30,226.99 1
1 85860800
LUGGAGE TRAY
Not for J; Applicable up to Ass. No. 121615 		$46,962.39 1
2 86470300
COMPL. LUGGAGE TRAY COVER
Applicable for J 		$6,807.52 1
2 85940000
COMPL. LUGGAGE TRAY COVER
Not for J 		$6,791.14 1
3 86469500
TRAY COVER HINGE
Applicable for J 		$2,451.41 1
3 85600400
RH TRAY COVER HINGE
Not for J 		$327.52 1
4 86469500
TRAY COVER HINGE
Applicable for J 		$2,451.41 1
4 85600500
LH TRAY COVER HINGE
Not for J 		$327.52 1
5 62797600
Allen Bolt Countersunk M6 x 20
IN STOCK 		$0.96 (33.8% off) 2
6 85683500
REAR SEAL 		$119.65 1
7 14508087
PLUG 		$2.43 2
8 85949400
RH HINGE INSERT
Included with tub, ref. 1; No longer supplied 		- 1 Enquire
9 85949500
LH HINGE INSERT
Included with tub, ref. 1; No longer supplied 		- 1 Enquire
10 86469700
TRAY LID COVER RETAINER SPRING
Applicable for J 		$631.66 2
10 85861200
TRAY LID COVER RETAINER SPRING
Not for J 		$214.14 2
11 915271
SCREW M6 X 15 		$1.12 4
12 85736400
CHASSIS COVER 		$973.21 1
13 14306474
SCREW
M8 X 25 		$0.36 4
14 915271
SCREW M6 X 15 		$1.12 4
15 65925000
SCREW 		$1.52 6
15 85800500
SCREW
No longer supplied; Replaced by 86141400 		- 6 Enquire
16 12643724
WASHER
IN STOCK 		$0.06 (88% off) 6
16 13550225
WASHER
No longer supplied; Replaced by 12643778 		$0.53 14
17 85882500
WASHER
No longer supplied 		$0.14 14
18 11625524
SCREW
IN STOCK 		$0.68 4
18 85077900
SCREW
No longer supplied; Replaced by 86141300 		$0.17 4
19 16281827
SCREW 		$0.21 4
20 85739500
WASHER 		$3.02 4
21 86263200
TOOLKIT BAG STRAP 		$604.64 2
22 14642797
RIVET
No longer supplied 		$0.47 4
23 12643724
WASHER
IN STOCK 		$0.06 (88% off) 4
