Ferrari LaFerrari - AC SYSTEM

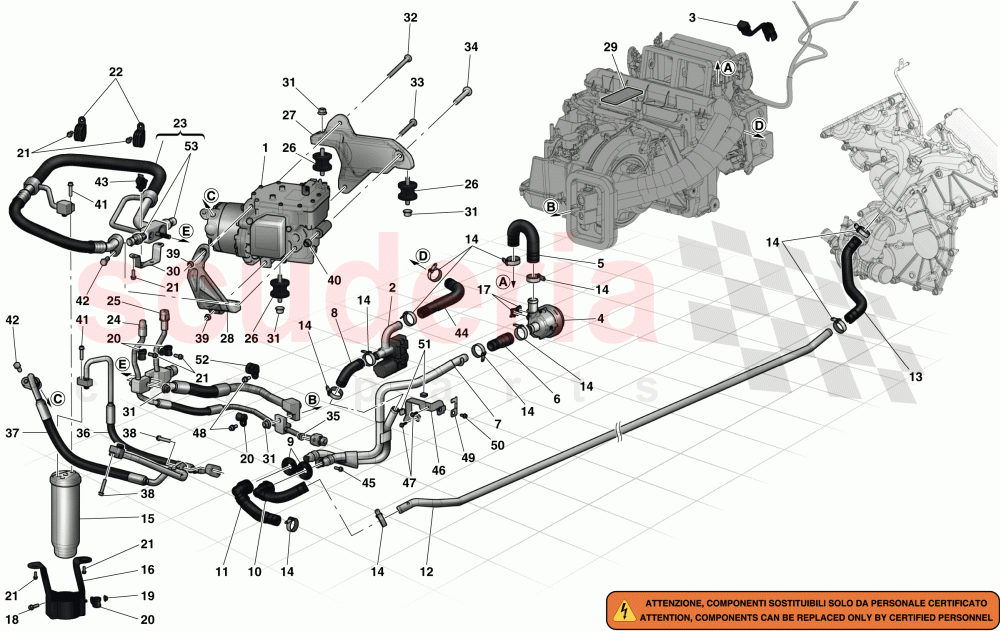

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	304675	AIR CONDITIONING COMPRESSOR	$5,345.69	To Order

Photo	Part No	Description	Price (each)	Stock
	67635900	RH TGK VALVE	$212.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	236847	TEMPERATURE SENSOR	$80.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	291349	WATER RECIRCULATION PUMP	$3,229.17	To Order

Photo	Part No	Description	Price (each)	Stock
	302805	U-PIPE FROM PUMP TO AC UNIT	$253.98	To Order

Photo	Part No	Description	Price (each)	Stock
	291332	IDLE PUMP INLET CONNECTOR PIPE	$165.09	To Order

Photo	Part No	Description	Price (each)	Stock
	302813	WATER PIPE FROM TGK TO IDLE PUMP	$558.77	To Order

Photo	Part No	Description	Price (each)	Stock
	240729	HOSE	$165.09	To Order

Photo	Part No	Description	Price (each)	Stock
	81895900	AC WATER PIPE SEAL	$8.87	To Order

Photo	Part No	Description	Price (each)	Stock
	284811	CONNECTOR ELBOW FROM HEATER TO RADIATOR PIPE	$990.58	To Order

Photo	Part No	Description	Price (each)	Stock
	284781	UNDERBODY WATER PIPE FOR AC HEATING	$177.78	To Order

Photo	Part No	Description	Price (each)	Stock
	291671	FLEXIBLE HOSE FROM THERMOSTAT TO UNDERBODY	$228.59	To Order

Photo	Part No	Description	Price (each)	Stock
	67085100	DEHYDRATING FILTER	$50.37	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	294924	DEHYDRATOR FILTER BRACKET	$85.08	To Order

Photo	Part No	Description	Price (each)	Stock
	82268600	CLIP	$1.78	To Order

Photo	Part No	Description	Price (each)	Stock
	302655	SCREW	$12.68	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	302394	BRACKET WITH SHEATH	$41.89	To Order

Photo	Part No	Description	Price (each)	Stock
	302574	ERGAL SCREW	$4.92	To Order

Photo	Part No	Description	Price (each)	Stock
	307048	BRACKET WITH SHEATH	$48.24	To Order

Photo	Part No	Description	Price (each)	Stock
	301137	COMPL. GAS PIPE	$1,449.05	To Order

Photo	Part No	Description	Price (each)	Stock
	304904	GAS DELIVERY PIPE	$596.88	To Order

Photo	Part No	Description	Price (each)	Stock
	303479	GAS RETURN PIPE	$596.88	To Order

Photo	Part No	Description	Price (each)	Stock
	303692	PLUG	$34.28	To Order

Photo	Part No	Description	Price (each)	Stock
	298659	MOUNTING SHELL WITH 3 HOLES	$520.68	To Order

Photo	Part No	Description	Price (each)	Stock
	298660	MOUNTING SHELL WITH 2 HOLES	$533.38	To Order

Photo	Part No	Description	Price (each)	Stock
	295279	BUSH	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	296642	BRACKET FASTENING PIPES TO FRONT STRUT	$72.37	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	298624	TITANIUM SCREW	$106.66	To Order

Photo	Part No	Description	Price (each)	Stock
	298626	TITANIUM SCREW	$76.18	To Order

Photo	Part No	Description	Price (each)	Stock
	298627	TITANIUM SCREW	$101.59	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	304040	GAS DELIVERY PIPE FROM CONDENSER TO DEHYDRATOR FILTER	$393.69	To Order

Photo	Part No	Description	Price (each)	Stock
	304039	GAS RETURN PIPE FROM CONDENSER TO COMPRESSOR	$584.18	To Order

Photo	Part No	Description	Price (each)	Stock
	302657	ERGAL SCREW	$7.87	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	133216	NUT	$8.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	302656	ERGAL SCREW	$9.31	To Order

Photo	Part No	Description	Price (each)	Stock
	16043634	SCREW	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	250318	SNAP CLIP	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	294818	TGK VALVE FASTENER BRACKET	$72.37	To Order

Photo	Part No	Description	Price (each)	Stock
	62771900	SCREW	$0.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	162606	CLIP	$1.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	302659	ERGAL SCREW	$13.78	To Order

Photo	Part No	Description	Price (each)	Stock
	82329200	ANTI-VIBRATION RUBBER BLOCK	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	303122	BRACKET WITH SHEATH	$43.16	To Order

Photo	Part No	Description	Price (each)	Stock
	86249300	LOW PRESSURE TRANSDUCER	$393.69	To Order
	80552400	PRESSURE TRANSDUCER	$77.86	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	304675	AIR CONDITIONING COMPRESSOR	304675 AIR CONDITIONING COMPRESSOR	$5,345.69	1
2	67635900	RH TGK VALVE IN STOCK	67635900 RH TGK VALVE IN STOCK	$212.26 MSRP: ~~286.88~~ (26% off)	1
3	236847	TEMPERATURE SENSOR IN STOCK	236847 TEMPERATURE SENSOR IN STOCK	$80.45 MSRP: ~~99.57~~ (19.2% off)	1
4	291349	WATER RECIRCULATION PUMP	291349 WATER RECIRCULATION PUMP	$3,229.17	1
5	302805	U-PIPE FROM PUMP TO AC UNIT	302805 U-PIPE FROM PUMP TO AC UNIT	$253.98	1
6	291332	IDLE PUMP INLET CONNECTOR PIPE	291332 IDLE PUMP INLET CONNECTOR PIPE	$165.09	1
7	302813	WATER PIPE FROM TGK TO IDLE PUMP	302813 WATER PIPE FROM TGK TO IDLE PUMP	$558.77	1
8	240729	HOSE	240729 HOSE	$165.09	1
9	81895900	AC WATER PIPE SEAL	81895900 AC WATER PIPE SEAL	$8.87	2
11	284811	CONNECTOR ELBOW FROM HEATER TO RADIATOR PIPE	284811 CONNECTOR ELBOW FROM HEATER TO RADIATOR PIPE	$990.58	1
12	284781	UNDERBODY WATER PIPE FOR AC HEATING	284781 UNDERBODY WATER PIPE FOR AC HEATING	$177.78	1
13	291671	FLEXIBLE HOSE FROM THERMOSTAT TO UNDERBODY	291671 FLEXIBLE HOSE FROM THERMOSTAT TO UNDERBODY	$228.59	1
15	67085100	DEHYDRATING FILTER ARRIVING SOON	67085100 DEHYDRATING FILTER ARRIVING SOON	$50.37 MSRP: ~~71.89~~ (29.9% off)	1
16	294924	DEHYDRATOR FILTER BRACKET	294924 DEHYDRATOR FILTER BRACKET	$85.08	1
17	82268600	CLIP	82268600 CLIP	$1.78	2
18	302655	SCREW	302655 SCREW M6 X 20	$12.68	1
19	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	1
20	302394	BRACKET WITH SHEATH	302394 BRACKET WITH SHEATH	$41.89	4
21	302574	ERGAL SCREW	302574 ERGAL SCREW M6 X 15	$4.92	8
22	307048	BRACKET WITH SHEATH	307048 BRACKET WITH SHEATH	$48.24	2
23	301137	COMPL. GAS PIPE	301137 COMPL. GAS PIPE	$1,449.05	1
24	304904	GAS DELIVERY PIPE	304904 GAS DELIVERY PIPE	$596.88	1
25	303479	GAS RETURN PIPE	303479 GAS RETURN PIPE	$596.88	1
26	303692	PLUG	303692 PLUG	$34.28	3
27	298659	MOUNTING SHELL WITH 3 HOLES	298659 MOUNTING SHELL WITH 3 HOLES	$520.68	1
28	298660	MOUNTING SHELL WITH 2 HOLES	298660 MOUNTING SHELL WITH 2 HOLES	$533.38	1
29	295279	BUSH	295279 BUSH	$1.01	1
30	296642	BRACKET FASTENING PIPES TO FRONT STRUT	296642 BRACKET FASTENING PIPES TO FRONT STRUT	$72.37	1
31	14040711	NUT IN STOCK	14040711 NUT IN STOCK	$0.35	5
32	298624	TITANIUM SCREW	298624 TITANIUM SCREW M8 X 120	$106.66	1
33	298626	TITANIUM SCREW	298626 TITANIUM SCREW M8 X 80	$76.18	1
34	298627	TITANIUM SCREW	298627 TITANIUM SCREW M10 X 75	$101.59	1
35	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	1
36	304040	GAS DELIVERY PIPE FROM CONDENSER TO DEHYDRATOR FILTER	304040 GAS DELIVERY PIPE FROM CONDENSER TO DEHYDRATOR FILTER	$393.69	1
37	304039	GAS RETURN PIPE FROM CONDENSER TO COMPRESSOR	304039 GAS RETURN PIPE FROM CONDENSER TO COMPRESSOR	$584.18	1
38	302657	ERGAL SCREW	302657 ERGAL SCREW M6 X 30	$7.87	2
39	14040711	NUT IN STOCK	14040711 NUT IN STOCK	$0.35	2
40	133216	NUT IN STOCK	133216 NUT IN STOCK	$8.06 MSRP: ~~10.42~~ (22.6% off)	1
41	302656	ERGAL SCREW	302656 ERGAL SCREW M6 X 25	$9.31	2
42	16043634	SCREW IN STOCK	16043634 SCREW M8 X 25 IN STOCK	$0.21	2
43	250318	SNAP CLIP IN STOCK	250318 SNAP CLIP IN STOCK	$0.21	1
44	302812	HOSE	302812 HOSE	$241.28	1
45	11566224	SCREW IN STOCK	11566224 SCREW M5 X 15 IN STOCK	$0.34	1
46	294818	TGK VALVE FASTENER BRACKET	294818 TGK VALVE FASTENER BRACKET	$72.37	1
47	62771900	SCREW IN STOCK	62771900 SCREW IN STOCK	$0.23	2
48	248334	SCREW IN STOCK	248334 SCREW IN STOCK	$0.58	2
49	162606	CLIP IN STOCK	162606 CLIP IN STOCK	$1.18 MSRP: ~~1.47~~ (19.7% off)	1
50	302659	ERGAL SCREW	302659 ERGAL SCREW M5 X 10	$13.78	1
51	82329200	ANTI-VIBRATION RUBBER BLOCK	82329200 ANTI-VIBRATION RUBBER BLOCK	$1.10	2
52	303122	BRACKET WITH SHEATH	303122 BRACKET WITH SHEATH	$43.16	1
53	86249300	LOW PRESSURE TRANSDUCER	86249300 LOW PRESSURE TRANSDUCER	$393.69	1
53	80552400	PRESSURE TRANSDUCER	80552400 PRESSURE TRANSDUCER	$77.86 MSRP: ~~116.32~~ (33.1% off)	1
