Ferrari GTC4Lusso T - CRANKCASE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
339315 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY $4,337.44 To Order
Photo Part No Description Price (each) Stock
339626 COMPL. RH BUSHING $493.49 To Order
339627 COMPL. LH BUSHING $493.49 To Order
Photo Part No Description Price (each) Stock
341612 COMPL. LH BRACKET $120.19 To Order
341611 COMPL. RH BRACKET $120.19 To Order
Photo Part No Description Price (each) Stock
15971324 SCREW $1.43 IN STOCK
Photo Part No Description Price (each) Stock
127497 SPRING WASHER M10 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.66 IN STOCK
Photo Part No Description Price (each) Stock
255271 NUT $1.22 IN STOCK
Photo Part No Description Price (each) Stock
312024 ENGINE MOUNTING BUSH HEAT SHIELD $68.32 To Order
Photo Part No Description Price (each) Stock
255138 BLOW-BY VALVE ASSEMBLY $103.74 To Order
Photo Part No Description Price (each) Stock
14303123 SCREW $0.06 IN STOCK
Photo Part No Description Price (each) Stock
270464 STUD BOLT $27.82 To Order
Photo Part No Description Price (each) Stock
337069 RH ENGINE STRUT $316.34 To Order
342108 LH ENGINE STRUT $329.00 To Order
Photo Part No Description Price (each) Stock
290127 SCREW $20.24 To Order
Photo Part No Description Price (each) Stock
271564 STUD BOLT $26.55 To Order
Photo Part No Description Price (each) Stock
185360 CENTERING DOWEL $2.79 IN STOCK
Photo Part No Description Price (each) Stock
247049 BEARING $46.54 IN STOCK
Photo Part No Description Price (each) Stock
11060276 SEEGER RING $0.41 IN STOCK
Photo Part No Description Price (each) Stock
288133 DRIVE JOINT $137.47 To Order
Photo Part No Description Price (each) Stock
11066876 SEEGER RING $0.06 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
282753 THREADED PLUG $5.74 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
282755 THREADED PLUG $1.86 To Order
Photo Part No Description Price (each) Stock
278119 STUD BOLT $20.24 To Order
Photo Part No Description Price (each) Stock
278120 STUD BOLT $22.75 To Order
Photo Part No Description Price (each) Stock
298858 PISTON COOLING NOZZLE ASSEMBLY $37.95 To Order
Photo Part No Description Price (each) Stock
315493 SCREW $1.01 To Order
Photo Part No Description Price (each) Stock
298859 PISTON COOLING NOZZLE ASSEMBLY $26.55 To Order
Photo Part No Description Price (each) Stock
315493 SCREW $1.01 To Order
Photo Part No Description Price (each) Stock
271598 GASKET CRANKCASE $35.28 IN STOCK
Photo Part No Description Price (each) Stock
271810 CYLINDER SLEEVE $271.93 To Order
Photo Part No Description Price (each) Stock
294153 GASKET $2.95 To Order
Photo Part No Description Price (each) Stock
291078 THREADED PLUG $2.27 To Order
Photo Part No Description Price (each) Stock
307477 THREADED PLUG $3.31 IN STOCK
Photo Part No Description Price (each) Stock
10263460 COPPER GASKET D.28-22.3 X 1.5 $0.35 IN STOCK
Photo Part No Description Price (each) Stock
339298 GASKET $50.60 To Order
Photo Part No Description Price (each) Stock
339289 GASKET $48.07 To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.01 To Order
Photo Part No Description Price (each) Stock
311001 CENTERING DOWEL $2.70 To Order
Photo Part No Description Price (each) Stock
294614 CHECK VALVE $34.15 To Order
Photo Part No Description Price (each) Stock
337624 REAR TIMING COVER $1,705.78 To Order
Photo Part No Description Price (each) Stock
242269 REAR MAIN OIL SEAL $46.39 To Order
Photo Part No Description Price (each) Stock
13546834 STUD BOLT $1.43 To Order
Photo Part No Description Price (each) Stock
100052 CENTERING DOWEL $2.23 To Order
Photo Part No Description Price (each) Stock
231624 SCREW $0.41 IN STOCK
285494 SCREW $0.93 To Order
Photo Part No Description Price (each) Stock
231629 SCREW $0.61 IN STOCK
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
331565 GASKET $227.76 To Order
Photo Part No Description Price (each) Stock
323886 WASHER WITH RUBBER LINING $10.97 To Order
Photo Part No Description Price (each) Stock
231625 SCREW $0.56 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
178348 WASHER D.10.2-20 X 2 $0.73 IN STOCK
Photo Part No Description Price (each) Stock
133988 HEX NUT M10 X 1.25 X 8 $0.20 IN STOCK
Photo Part No Description Price (each) Stock
312059 CENTERING DOWEL $1.10 To Order
Photo Part No Description Price (each) Stock
270465 STUD BOLT $21.50 To Order
Photo Part No Description Price (each) Stock
270466 STUD BOLT $24.02 To Order
Photo Part No Description Price (each) Stock
743032 OIL PRESSURE SOLENOID VALVE $189.80 To Order
Photo Part No Description Price (each) Stock
328660 OIL PRESSURE SENSOR $49.41 IN STOCK
Photo Part No Description Price (each) Stock
922805 ANGULAR SPEED SENSOR $105.22 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
291662 SOLENOID VALVE HEAT SHIELD $189.80 To Order
Photo Part No Description Price (each) Stock
133988 HEX NUT M10 X 1.25 X 8 $0.20 IN STOCK
Photo Part No Description Price (each) Stock
178348 WASHER D.10.2-20 X 2 $0.73 IN STOCK
View All

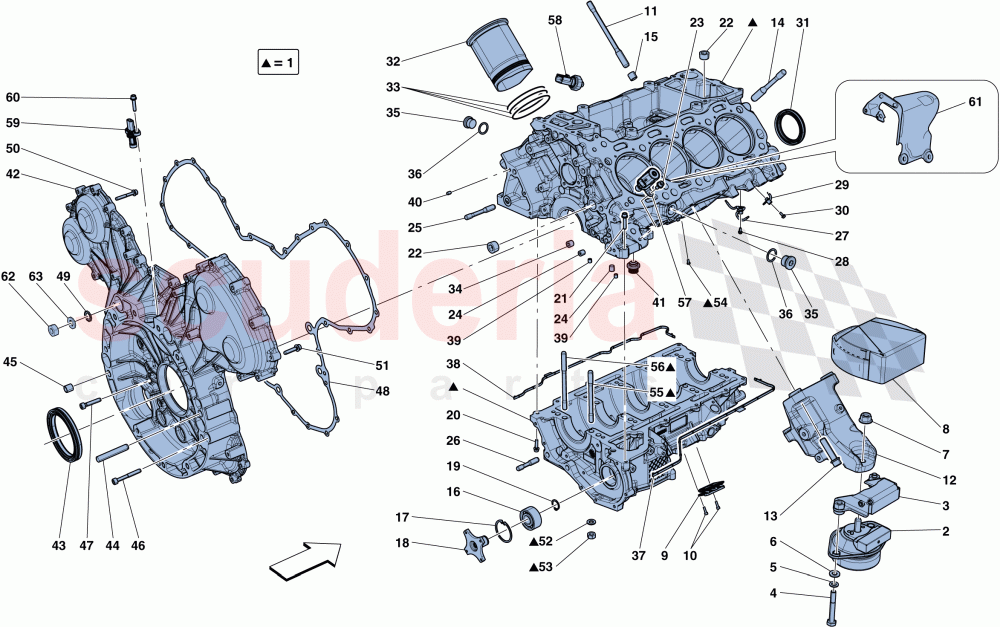

CRANKCASE of Ferrari Ferrari GTC4Lusso T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 339315
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY 		$4,337.44 1
2 339626
COMPL. RH BUSHING 		$493.49 1
2 339627
COMPL. LH BUSHING 		$493.49 1
3 341612
COMPL. LH BRACKET 		$120.19 1
3 341611
COMPL. RH BRACKET 		$120.19 1
4 15971324
SCREW
IN STOCK 		$1.43 6
5 127497
SPRING WASHER M10
IN STOCK 		$0.06 (92% off) 6
6 126648
WASHER D.10.5-21 X 2
IN STOCK 		$1.66 (5.1% off) 6
7 255271
NUT
IN STOCK 		$1.22 (15.9% off) 2
8 312024
ENGINE MOUNTING BUSH HEAT SHIELD 		$68.32 2
9 255138
BLOW-BY VALVE ASSEMBLY 		$103.74 4
10 14303123
SCREW
IN STOCK 		$0.06 8
11 270464
STUD BOLT 		$27.82 18
12 337069
RH ENGINE STRUT 		$316.34 1
12 342108
LH ENGINE STRUT 		$329.00 1
13 290127
SCREW 		$20.24 8
14 271564
STUD BOLT 		$26.55 2
15 185360
CENTERING DOWEL
IN STOCK 		$2.79 4
16 247049
BEARING
IN STOCK 		$46.54 1
17 11060276
SEEGER RING
IN STOCK 		$0.41 (76.6% off) 1
18 288133
DRIVE JOINT 		$137.47 1
19 11066876
SEEGER RING 		$0.06 (82.9% off) 1
20 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 13
21 231620
SCREW
M6 X 30
IN STOCK 		$0.31 (11.4% off) 1
22 282753
THREADED PLUG 		$5.74 2
23 248334
SCREW
M6 X 12
IN STOCK 		$0.58 1
24 282755
THREADED PLUG 		$1.86 2
25 278119
STUD BOLT 		$20.24 6
26 278120
STUD BOLT 		$22.75 2
27 298858
PISTON COOLING NOZZLE ASSEMBLY 		$37.95 4
28 315493
SCREW 		$1.01 4
29 298859
PISTON COOLING NOZZLE ASSEMBLY 		$26.55 8
30 315493
SCREW 		$1.01 8
31 271598
GASKET CRANKCASE
Also comes with engine gasket set
IN STOCK 		$35.28 1
32 271810
CYLINDER SLEEVE 		$271.93 8
33 294153
GASKET
Also comes with engine gasket set 		$2.95 24
34 291078
THREADED PLUG
M12 X 11 		$2.27 2
35 307477
THREADED PLUG
IN STOCK 		$3.31 2
36 10263460
COPPER GASKET D.28-22.3 X 1.5
Also comes with engine gasket set
IN STOCK 		$0.35 (65% off) 2
37 339298
GASKET
Also comes with engine gasket set; Also comes with engine gasket set; Contact fgt-sathelpdesk@ferrari.com for relative installation instructions 		$50.60 1
38 339289
GASKET
Also comes with engine gasket set; Also comes with engine gasket set; Contact fgt-sathelpdesk@ferrari.com for relative installation instructions 		$48.07 1
39 102725
CENTERING DOWEL 		$1.01 (55.1% off) 2
40 311001
CENTERING DOWEL 		$2.70 2
41 294614
CHECK VALVE 		$34.15 1
42 337624
REAR TIMING COVER 		$1,705.78 1
43 242269
REAR MAIN OIL SEAL
Also comes with engine gasket set 		$46.39 1
44 13546834
STUD BOLT 		$1.43 10
45 100052
CENTERING DOWEL 		$2.23 2
46 231624
SCREW
M6 X 45
IN STOCK 		$0.41 7
46 285494
SCREW
M8 X 50 		$0.93 4
47 231629
SCREW
M8 X 30
IN STOCK 		$0.61 (35.8% off) 4
47 231620
SCREW
M6 X 30
IN STOCK 		$0.31 (11.4% off) 15
48 331565
GASKET
Also comes with engine gasket set 		$227.76 1
49 323886
WASHER WITH RUBBER LINING
Also comes with engine gasket set 		$10.97 2
50 231625
SCREW
M6 X 40
IN STOCK 		$0.56 1
51 231620
SCREW
M6 X 30
IN STOCK 		$0.31 (11.4% off) 1
52 178348
WASHER D.10.2-20 X 2
IN STOCK 		$0.73 20
53 133988
HEX NUT M10 X 1.25 X 8
IN STOCK 		$0.20 (42.9% off) 20
54 312059
CENTERING DOWEL 		$1.10 1
55 270465
STUD BOLT 		$21.50 10
56 270466
STUD BOLT 		$24.02 10
57 743032
OIL PRESSURE SOLENOID VALVE 		$189.80 1
58 328660
OIL PRESSURE SENSOR
IN STOCK 		$49.41 1
59 922805
ANGULAR SPEED SENSOR 		$105.22 1
60 231619
SCREW
M6 X 20
IN STOCK 		$0.29 1
61 291662
SOLENOID VALVE HEAT SHIELD 		$189.80 1
62 133988
HEX NUT M10 X 1.25 X 8
IN STOCK 		$0.20 (42.9% off) 8
63 178348
WASHER D.10.2-20 X 2
IN STOCK 		$0.73 8
