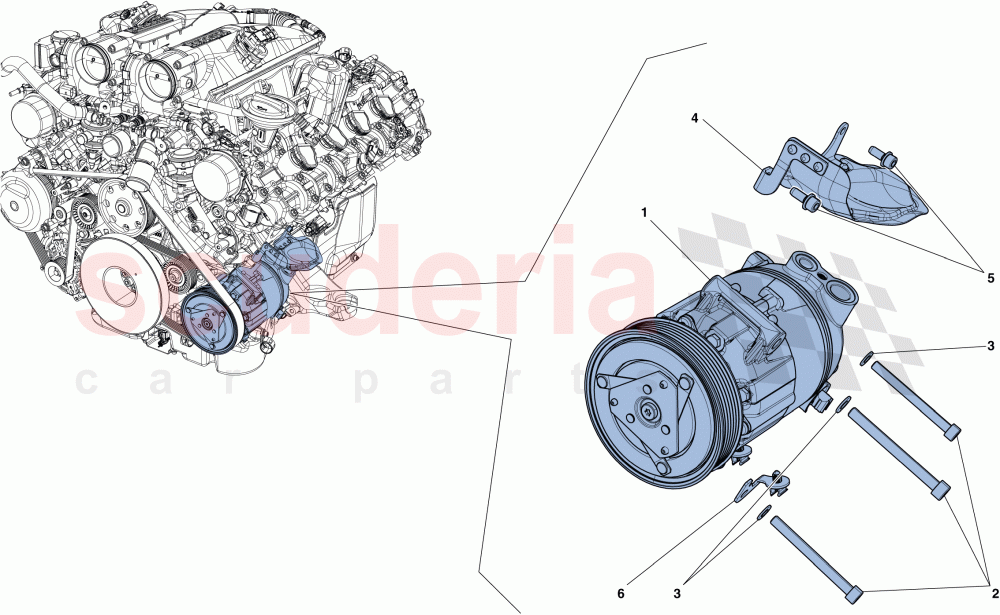

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	802715	AC SYSTEM COMPRESSOR	$998.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14307224	SCREW	$0.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	298606	COMPRESSOR HEAT SHIELD	$94.78	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	299159	BRACKET COMPL. WITH CLIP	$17.68	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	802715	AC SYSTEM COMPRESSOR IN STOCK	802715 AC SYSTEM COMPRESSOR IN STOCK	$998.38	1
2	14307224	SCREW IN STOCK	14307224 SCREW IN STOCK	$0.62	3
3	11193874	WASHER IN STOCK	11193874 WASHER IN STOCK	$0.06	3
4	298606	COMPRESSOR HEAT SHIELD	298606 COMPRESSOR HEAT SHIELD	$94.78	1
5	248334	SCREW IN STOCK	248334 SCREW IN STOCK	$0.58	2
6	299159	BRACKET COMPL. WITH CLIP	299159 BRACKET COMPL. WITH CLIP	$17.68	1
