Front Seat - Trim And Accessories

Ferrari GTC4Lusso T

Find Your Part

Ferrari GTC4Lusso T - FRONT SEAT - TRIM AND ACCESSORIES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
89393100 BACKREST UPHOLSTERY $6,321.50 To Order
89393000 BACKREST UPHOLSTERY $6,587.32 To Order
89392900 BACKREST UPHOLSTERY $3,799.98 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
89395200 RH CUSHION UPHOLSTERY Enquire To Order
89394900 RH CUSHION UPHOLSTERY Enquire To Order
89394800 RH CUSHION UPHOLSTERY Enquire To Order
...and 21 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
89396200 RH BACKREST BACKING SHELL Enquire To Order
89395800 RH BACKREST BACKING SHELL $3,173.41 To Order
89396000 RH BACKREST BACKING SHELL Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
87510600 AIR VENT $39.22 To Order
Photo Part No Description Price (each) Stock
89396800 LH BUTTON PANEL $177.20 To Order
89396900 RH BUTTON PANEL $177.20 To Order
89397000 LH BUTTON MOUNTING PANEL $177.20 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
80180000 SCREW $6.75 To Order
Photo Part No Description Price (each) Stock
84197300 OUTER LATERAL LH SEAT BASE COVER PANEL $949.35 To Order
84197200 OUTER LATERAL RH SEAT BASE COVER PANEL $949.35 To Order
Photo Part No Description Price (each) Stock
89397400 SEAT CUSHION ADJUSTMENT BUTTON $115.18 To Order
Photo Part No Description Price (each) Stock
89397600 HEATER BUTTONS $64.54 To Order
89397700 HEATER-BLOWER BUTTONS $64.54 To Order
Photo Part No Description Price (each) Stock
89397500 BACKREST ADJUSTMENT BUTTON $115.18 To Order
Photo Part No Description Price (each) Stock
89397300 LH LUMBAR SUPPORT ADJUSTMENT JOYSTICK $392.39 To Order
89397200 RH LUMBAR SUPPORT ADJUSTMENT JOYSTICK $392.39 To Order
Photo Part No Description Price (each) Stock
980145094 LH CUSHION/BACKREST ADJUSTMENT JOYSTICK $556.91 IN STOCK
980145093 RH CUSHION/BACKREST ADJUSTMENT JOYSTICK $632.90 To Order
Photo Part No Description Price (each) Stock
980145101 LH CUSHION JOYSTICK HOUSING $32.90 To Order
980145099 RH CUSHION JOYSTICK HOUSING $32.90 To Order
Photo Part No Description Price (each) Stock
980145098 LH BACKREST JOYSTICK HOUSING $32.90 To Order
980145097 RH BACKREST JOYSTICK HOUSING $32.90 To Order
Photo Part No Description Price (each) Stock
89398700 AIR DUCT $39.22 To Order
Photo Part No Description Price (each) Stock
89396500 IPAD HOLDER $3,927.75 To Order
Photo Part No Description Price (each) Stock
89396600 IPAD HOLDER COVER $126.56 To Order
Photo Part No Description Price (each) Stock
89396400 SPRING $0.35 To Order
Photo Part No Description Price (each) Stock
89398900 RH RELEASE LEVER SURROUND $101.25 To Order
89398200 LH RELEASE LEVER SURROUND $101.25 To Order
Photo Part No Description Price (each) Stock
89398500 LH RELEASE SYSTEM $367.07 To Order
89398400 RH RELEASE SYSTEM $367.07 To Order
Photo Part No Description Price (each) Stock
89397800 RH RELEASE CABLE $354.41 To Order
89397900 LH RELEASE CABLE $354.41 To Order
View All

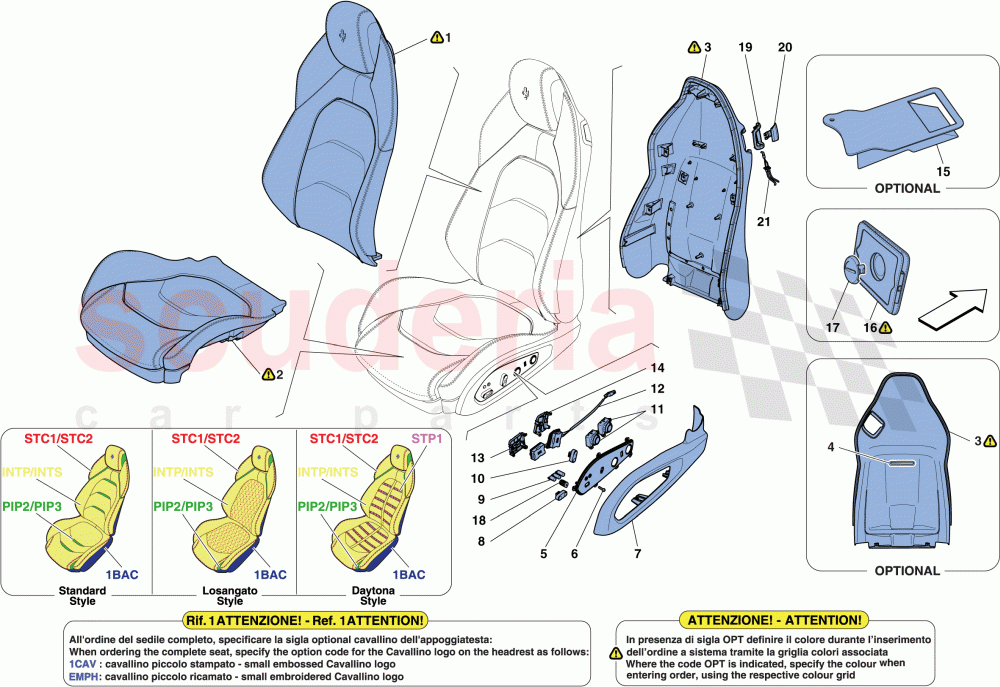

FRONT SEAT - TRIM AND ACCESSORIES of Ferrari Ferrari GTC4Lusso T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 89393100
BACKREST UPHOLSTERY
Diamond style pattern; Ventilated; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2 		$6,321.50 2
1 89393000
BACKREST UPHOLSTERY
Daytona; Ventilated; INTP; STP1; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2 		$6,587.32 2
1 89392900
BACKREST UPHOLSTERY
Standard; Ventilated; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2 		$3,799.98 2
1 89392700
BACKREST UPHOLSTERY
Daytona; INTP; STP1; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2 		$5,703.78 2
1 89392800
BACKREST UPHOLSTERY
Diamond style pattern; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2 		$4,306.32 2
1 89392600
BACKREST UPHOLSTERY
Standard; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2 		$4,429.10 2
2 89395200
RH CUSHION UPHOLSTERY
Diamond style pattern; Ventilated; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Applicable for GD 		- 1 Enquire
2 89394900
RH CUSHION UPHOLSTERY
Diamond style pattern; Ventilated; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Not for GD 		- 1 Enquire
2 89394800
RH CUSHION UPHOLSTERY
Daytona; Ventilated; INTP; STP1; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Not for GD 		- 1 Enquire
2 89395100
RH CUSHION UPHOLSTERY
Daytona; Ventilated; INTP; STP1; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Applicable for GD 		- 1 Enquire
2 89394700
RH CUSHION UPHOLSTERY
Standard; Ventilated; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Not for GD 		$4,051.88 1
2 89395000
RH CUSHION UPHOLSTERY
Standard; Ventilated; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Applicable for GD 		$6,324.04 1
2 89395500
LH CUSHION UPHOLSTERY
Diamond style pattern; Ventilated; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Applicable for GD 		- 1 Enquire
2 89395400
LH CUSHION UPHOLSTERY
Daytona; Ventilated; INTP; STP1; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Applicable for GD 		- 1 Enquire
2 89394600
LH CUSHION UPHOLSTERY
Diamond style pattern; Ventilated; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Not for GD 		$5,691.12 1
2 89394500
LH CUSHION UPHOLSTERY
Daytona; Ventilated; INTP; STP1; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Not for GD 		- 1 Enquire
2 89394400
LH CUSHION UPHOLSTERY
Standard; Ventilated; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Not for GD 		$4,051.88 1
2 89395300
LH CUSHION UPHOLSTERY
Standard; Ventilated; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Applicable for GD 		$6,324.04 1
2 89394000
RH CUSHION UPHOLSTERY
Diamond style pattern; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Applicable for GD 		- 1 Enquire
2 89393900
RH CUSHION UPHOLSTERY
Daytona; INTP; STP1; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Applicable for GD 		- 1 Enquire
2 89393700
RH CUSHION UPHOLSTERY
Diamond style pattern; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Not for GD 		$4,306.32 1
2 89393600
RH CUSHION UPHOLSTERY
Daytona; INTP; STP1; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Not for GD 		$5,687.32 1
2 89393500
RH CUSHION UPHOLSTERY
Standard; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Not for GD 		$4,303.78 1
2 89393800
RH CUSHION UPHOLSTERY
Standard; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Applicable for GD 		$6,277.20 1
2 89394300
LH CUSHION UPHOLSTERY
Diamond style pattern; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Applicable for GD 		- 1 Enquire
2 89394200
LH CUSHION UPHOLSTERY
Daytona; INTP; STP1; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Applicable for GD 		- 1 Enquire
2 89393400
LH CUSHION UPHOLSTERY
Diamond style pattern; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Not for GD 		$4,306.32 1
2 89393300
LH CUSHION UPHOLSTERY
Daytona; INTP; STP1; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Not for GD 		$5,687.32 1
2 89393200
LH CUSHION UPHOLSTERY
Standard; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Not for GD 		$3,799.98 1
2 89394100
LH CUSHION UPHOLSTERY
Standard; INTP; PIP2; PIP3; INTS; INTS for interior in semi-aniline leather; STC1; STC2; Applicable for GD 		$6,277.20 1
3 89396200
RH BACKREST BACKING SHELL
Ventilated; iPad rear entertainment; 1BAC for seat back panel colour selection 		- 1 Enquire
3 89395800
RH BACKREST BACKING SHELL
Ventilated; 1BAC for seat back panel colour selection 		$3,173.41 1
3 89396000
RH BACKREST BACKING SHELL
iPad rear entertainment; 1BAC for seat back panel colour selection 		- 1 Enquire
3 89395600
RH BACKREST BACKING SHELL
1BAC for seat back panel colour selection 		$5,646.82 1
3 89396100
LH BACKREST BACKING SHELL
iPad rear entertainment; 1BAC for seat back panel colour selection 		- 1 Enquire
3 89396300
LH BACKREST BACKING SHELL
Ventilated; iPad rear entertainment; 1BAC for seat back panel colour selection 		- 1 Enquire
3 89395700
LH BACKREST BACKING SHELL
1BAC for seat back panel colour selection 		$2,793.65 1
3 89395900
LH BACKREST BACKING SHELL
Ventilated; 1BAC for seat back panel colour selection 		$3,173.41 1
4 87510600
AIR VENT
Ventilated; Plastic in same colour as seat leather 		$39.22 2
5 89396800
LH BUTTON PANEL
Standard 		$177.20 1
5 89396900
RH BUTTON PANEL
Standard 		$177.20 1
5 89397000
LH BUTTON MOUNTING PANEL
Ventilated 		$177.20 1
5 89397100
RH BUTTON MOUNTING PANEL
Ventilated 		$177.20 1
6 80180000
SCREW 		$6.75 12
7 84197300
OUTER LATERAL LH SEAT BASE COVER PANEL
Leather 		$949.35 1
7 84197200
OUTER LATERAL RH SEAT BASE COVER PANEL
Leather 		$949.35 1
8 89397400
SEAT CUSHION ADJUSTMENT BUTTON 		$115.18 2
9 89397600
HEATER BUTTONS
Standard 		$64.54 2
9 89397700
HEATER-BLOWER BUTTONS
Ventilated 		$64.54 2
10 89397500
BACKREST ADJUSTMENT BUTTON 		$115.18 2
11 89397300
LH LUMBAR SUPPORT ADJUSTMENT JOYSTICK 		$392.39 2
11 89397200
RH LUMBAR SUPPORT ADJUSTMENT JOYSTICK 		$392.39 2
12 980145094
LH CUSHION/BACKREST ADJUSTMENT JOYSTICK
IN STOCK 		$556.91 2
12 980145093
RH CUSHION/BACKREST ADJUSTMENT JOYSTICK 		$632.90 2
13 980145101
LH CUSHION JOYSTICK HOUSING 		$32.90 2
13 980145099
RH CUSHION JOYSTICK HOUSING 		$32.90 2
14 980145098
LH BACKREST JOYSTICK HOUSING 		$32.90 2
14 980145097
RH BACKREST JOYSTICK HOUSING 		$32.90 2
15 89398700
AIR DUCT
Ventilated 		$39.22 2
16 89396500
IPAD HOLDER
1BAC for seat back panel colour selection; iPad rear entertainment 		$3,927.75 2
17 89396600
IPAD HOLDER COVER
iPad rear entertainment 		$126.56 2
18 89396400
SPRING 		$0.35 6
19 89398900
RH RELEASE LEVER SURROUND 		$101.25 1
19 89398200
LH RELEASE LEVER SURROUND 		$101.25 1
20 89398500
LH RELEASE SYSTEM 		$367.07 1
20 89398400
RH RELEASE SYSTEM 		$367.07 1
21 89397800
RH RELEASE CABLE 		$354.41 1
21 89397900
LH RELEASE CABLE 		$354.41 1
