Ferrari GTC4Lusso T - AC SYSTEM - WATER AND FREON

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
67635900 RH TGK VALVE $211.31 IN STOCK
Photo Part No Description Price (each) Stock
67444900 LH TGK VALVE $226.40 IN STOCK
Photo Part No Description Price (each) Stock
14059211 NUT $0.06 IN STOCK
Photo Part No Description Price (each) Stock
323955 TGK VALVE MOUNTING BRACKET $126.41 To Order
Photo Part No Description Price (each) Stock
327841 COMPL. PIPE FROM HEATER TO UPPER TGK VALVE $88.48 To Order
Photo Part No Description Price (each) Stock
327842 COMPL. PIPE FROM HEATER TO LOWER TGK VALVE $89.74 To Order
Photo Part No Description Price (each) Stock
334538 HOSE FROM TGK TO UNION $21.48 To Order
Photo Part No Description Price (each) Stock
334536 COMPL. RIGID TGK VALVE OUTLET PIPE $518.35 To Order
Photo Part No Description Price (each) Stock
323377 RADIATOR SIDE COOLING SYSTEM FILLER PIPE $42.97 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
336650 COMPL. IHX GAS PIPE $847.05 To Order
Photo Part No Description Price (each) Stock
336652 PIPE FROM CONDENSER DISCONNECTOR TO IHX $442.48 To Order
Photo Part No Description Price (each) Stock
343361 GAS PIPE FROM IHX TO COMPRESSOR $619.49 To Order
Photo Part No Description Price (each) Stock
329415 COMPL. PIPE FROM HEATER TO RECIRCULATION PUMP $379.27 To Order
Photo Part No Description Price (each) Stock
299052 PIPE FROM COMPRESSOR DISCONNECTOR UNION TO CONDENSER $97.34 To Order
Photo Part No Description Price (each) Stock
323192 PIPE FROM CONDENSER TO DISCONNECTOR UNION $391.92 To Order
Photo Part No Description Price (each) Stock
328775 RECIRCULATION PUMP MOUNTING BRACKET $32.86 To Order
Photo Part No Description Price (each) Stock
328779 HOSE UNION $66.99 To Order
Photo Part No Description Price (each) Stock
282393 SCREW $0.67 To Order
Photo Part No Description Price (each) Stock
267177 CLIP $0.93 IN STOCK
Photo Part No Description Price (each) Stock
294693 CLIP $3.54 To Order
Photo Part No Description Price (each) Stock
67933600 TGK VALVE FASTENER ROD $1.68 To Order
Photo Part No Description Price (each) Stock
748925 RUBBER CABLE GROMMET $2.39 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.10 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.52 To Order
Photo Part No Description Price (each) Stock
252473 CLIP $1.52 To Order
Photo Part No Description Price (each) Stock
291283 CLIP $0.50 IN STOCK
Photo Part No Description Price (each) Stock
81970900 AC WATER PIPE SEAL $9.47 To Order
Photo Part No Description Price (each) Stock
81895900 AC WATER PIPE SEAL $8.83 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
231625 SCREW $0.56 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.30 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.52 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.10 To Order
Photo Part No Description Price (each) Stock
298580 CLIP $3.20 To Order
Photo Part No Description Price (each) Stock
16044024 SCREW $0.35 IN STOCK
Photo Part No Description Price (each) Stock
14066017 NUT $2.44 To Order
Photo Part No Description Price (each) Stock
14040614 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
291349 WATER RECIRCULATION PUMP $3,214.67 To Order
Photo Part No Description Price (each) Stock
82268600 CLIP $1.77 To Order
Photo Part No Description Price (each) Stock
334536 COMPL. RIGID TGK VALVE OUTLET PIPE $518.35 To Order
Photo Part No Description Price (each) Stock
342729 AC PIPE BRACKET ON CROSS BRACE $9.85 To Order
Photo Part No Description Price (each) Stock
915271 SCREW M6 X 15 $1.13 To Order
Photo Part No Description Price (each) Stock
185208 RUBBER HOSE $4.51 To Order
View All

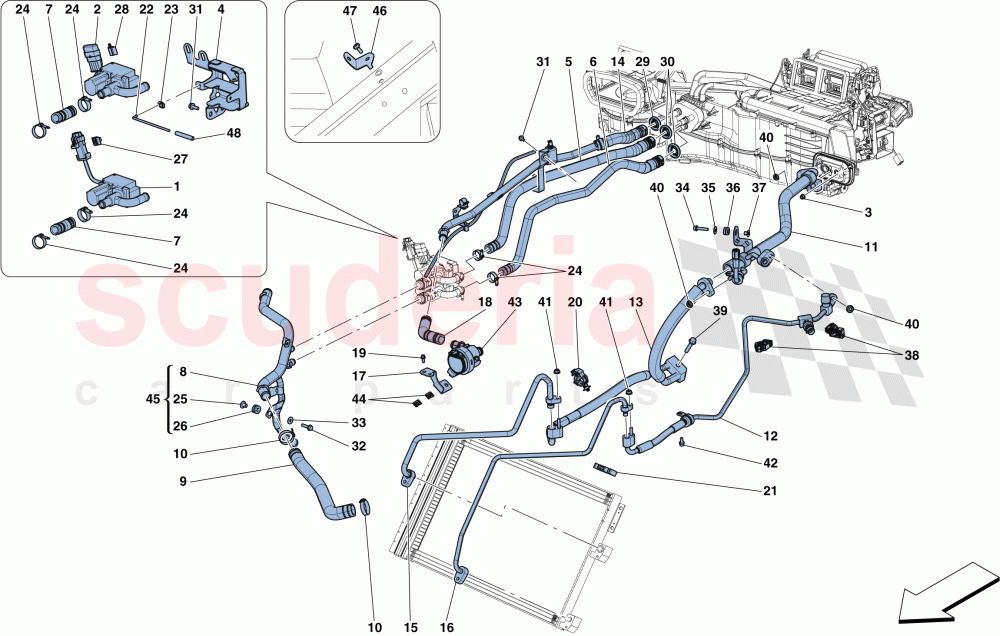

AC SYSTEM - WATER AND FREON of Ferrari Ferrari GTC4Lusso T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 67635900
RH TGK VALVE
IN STOCK 		$211.31 (26.3% off) 1
2 67444900
LH TGK VALVE
IN STOCK 		$226.40 (21.4% off) 1
3 14059211
NUT
IN STOCK 		$0.06 2
4 323955
TGK VALVE MOUNTING BRACKET 		$126.41 1
5 327841
COMPL. PIPE FROM HEATER TO UPPER TGK VALVE 		$88.48 1
6 327842
COMPL. PIPE FROM HEATER TO LOWER TGK VALVE 		$89.74 1
7 334538
HOSE FROM TGK TO UNION 		$21.48 2
8 334536
COMPL. RIGID TGK VALVE OUTLET PIPE
No longer supplied; Replaced by 334536 		$518.35 1
9 323377
RADIATOR SIDE COOLING SYSTEM FILLER PIPE 		$42.97 1
10 262111
SCREW CLAMP 		$1.39 2
11 336650
COMPL. IHX GAS PIPE 		$847.05 1
12 336652
PIPE FROM CONDENSER DISCONNECTOR TO IHX 		$442.48 1
13 343361
GAS PIPE FROM IHX TO COMPRESSOR 		$619.49 1
14 329415
COMPL. PIPE FROM HEATER TO RECIRCULATION PUMP 		$379.27 1
15 299052
PIPE FROM COMPRESSOR DISCONNECTOR UNION TO CONDENSER 		$97.34 1
16 323192
PIPE FROM CONDENSER TO DISCONNECTOR UNION 		$391.92 1
17 328775
RECIRCULATION PUMP MOUNTING BRACKET 		$32.86 1
18 328779
HOSE UNION 		$66.99 1
19 282393
SCREW
M6 X 16 		$0.67 2
20 267177
CLIP
IN STOCK 		$0.93 1
21 294693
CLIP 		$3.54 1
22 67933600
TGK VALVE FASTENER ROD 		$1.68 1
23 748925
RUBBER CABLE GROMMET 		$2.39 1
24 262111
SCREW CLAMP 		$1.39 6
25 149707
SPACER
No longer supplied 		$1.10 (37.1% off) 2
26 812273
CABLE GROMMET
No longer supplied 		$1.52 2
27 252473
CLIP 		$1.52 1
28 291283
CLIP
IN STOCK 		$0.50 1
29 81970900
AC WATER PIPE SEAL 		$9.47 1
30 81895900
AC WATER PIPE SEAL 		$8.83 2
31 86574700
SCREW
M6 X 16 		$0.61 4
32 231625
SCREW
M6 X 25
IN STOCK 		$0.56 2
33 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
34 231620
SCREW
M6 X 30
IN STOCK 		$0.30 (14.3% off) 1
35 12643724
WASHER
IN STOCK 		$0.06 (88% off) 1
36 812273
CABLE GROMMET 		$1.52 1
37 149707
SPACER 		$1.10 (37.1% off) 1
38 298580
CLIP 		$3.20 2
39 16044024
SCREW
M8 X 40
IN STOCK 		$0.35 (59.8% off) 1
40 14066017
NUT 		$2.44 3
41 14040614
NUT
IN STOCK 		$0.14 2
42 248334
SCREW
M6 X 14
IN STOCK 		$0.58 2
43 291349
WATER RECIRCULATION PUMP 		$3,214.67 1
44 82268600
CLIP 		$1.77 2
45 334536
COMPL. RIGID TGK VALVE OUTLET PIPE 		$518.35 1
46 342729
AC PIPE BRACKET ON CROSS BRACE 		$9.85 1
47 915271
SCREW M6 X 15
M6 X 15 		$1.13 1
48 185208
RUBBER HOSE 		$4.51 1
