Cooling System Pipes

Ferrari F8 Spider Europe

Find Your Part

Ferrari F8 Spider Europe - COOLING SYSTEM PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
320023 UNDERBODY WATER DELIVERY PIPE $203.04 To Order
321957 UNDERBODY WATER DELIVERY PIPE $287.88 To Order
Photo Part No Description Price (each) Stock
313345 UNDERBODY WATER RETURN PIPE $215.75 To Order
Photo Part No Description Price (each) Stock
806784 WATER DELIVERY HOSE TO RADIATOR $164.98 To Order
Photo Part No Description Price (each) Stock
806789 WATER RETURN HOSE FROM RADIATOR $137.87 To Order
Photo Part No Description Price (each) Stock
320024 REAR DELIVERY SLEEVE $64.71 To Order
Photo Part No Description Price (each) Stock
306915 REAR RETURN SLEEVE $71.06 To Order
Photo Part No Description Price (each) Stock
306910 REAR DELIVERY PIPE $45.67 To Order
Photo Part No Description Price (each) Stock
809051 REAR RETURN PIPE $78.67 To Order
Photo Part No Description Price (each) Stock
306908 DELIVERY SLEEVE FROM PUMP $57.09 To Order
Photo Part No Description Price (each) Stock
307916 RETURN HOSE TO PUMP $62.17 To Order
Photo Part No Description Price (each) Stock
262114 HOSE CLAMP $1.06 IN STOCK
Photo Part No Description Price (each) Stock
262383 COLLAR $2.71 IN STOCK
Photo Part No Description Price (each) Stock
182301 BRACKET WITH SHEATH $17.98 To Order
Photo Part No Description Price (each) Stock
83182500 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
198273 CLIP $1.53 To Order
Photo Part No Description Price (each) Stock
15627411 RIVET Enquire To Order
Photo Part No Description Price (each) Stock
263068 UPPER BRACKET FOR RETAINER BLOCK $17.75 To Order
Photo Part No Description Price (each) Stock
322053 PIPE UPPER RETAINER BLOCK $21.57 To Order
Photo Part No Description Price (each) Stock
310745 PIPE LOWER RETAINER BLOCK $20.30 To Order
Photo Part No Description Price (each) Stock
263070 BUSH $5.95 To Order
Photo Part No Description Price (each) Stock
263069 LOWER BRACKET FOR RETAINER BLOCK $14.39 To Order
Photo Part No Description Price (each) Stock
13833614 SCREW $1.18 To Order
Photo Part No Description Price (each) Stock
14302424 SCREW $0.43 IN STOCK
Photo Part No Description Price (each) Stock
14497704 WASHER $0.58 IN STOCK
Photo Part No Description Price (each) Stock
310747 PIPE UPPER RETAINER BLOCK $20.30 To Order
Photo Part No Description Price (each) Stock
263136 UPPER BRACKET FOR RETAINER BLOCK $13.94 To Order
Photo Part No Description Price (each) Stock
263137 LOWER BRACKET FOR RETAINER BLOCK $15.21 To Order
Photo Part No Description Price (each) Stock
13836414 SCREW $2.13 To Order
Photo Part No Description Price (each) Stock
931307433 RADIATOR CONNECTOR HOSE UNION $143.93 To Order
Photo Part No Description Price (each) Stock
292206 PIPE RETAINER CLIP $0.81 To Order
Photo Part No Description Price (each) Stock
305447 RADIATOR SELF-BLEEDING PIPE $53.29 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
10441490 BRACKET WITH SHEATH $0.52 IN STOCK
Photo Part No Description Price (each) Stock
804329 VENT PIPE FROM RADIATOR TO DISCONNECTER UNION $34.25 To Order
Photo Part No Description Price (each) Stock
10441490 BRACKET WITH SHEATH $0.52 IN STOCK
Photo Part No Description Price (each) Stock
13125470 COLLAR $0.58 IN STOCK
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 IN STOCK
View All

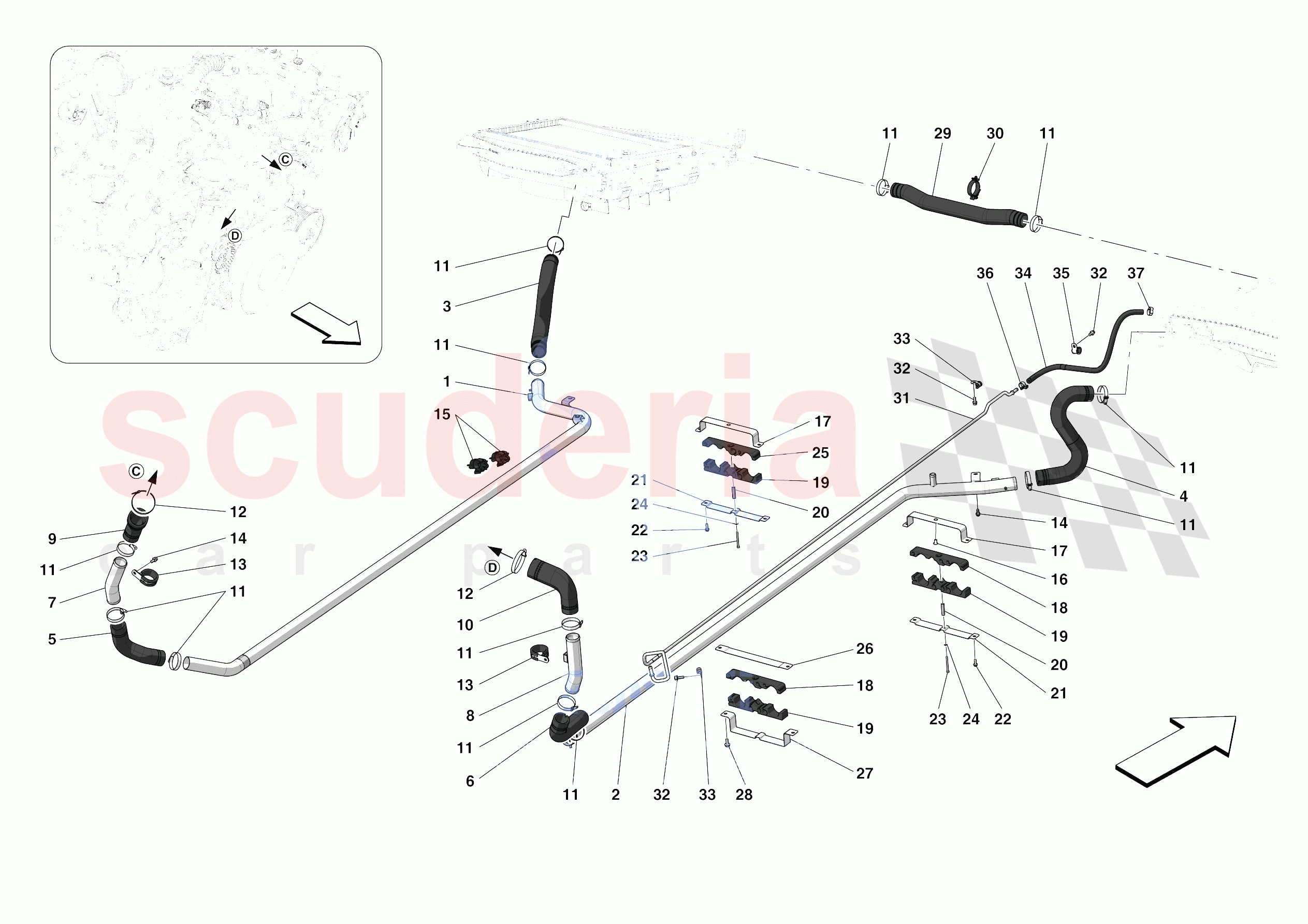

COOLING SYSTEM PIPES of Ferrari Ferrari F8 Spider Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 320023
UNDERBODY WATER DELIVERY PIPE 		$203.04 1
0001 321957
UNDERBODY WATER DELIVERY PIPE 		$287.88 1
0002 313345
UNDERBODY WATER RETURN PIPE 		$215.75 1
0003 806784
WATER DELIVERY HOSE TO RADIATOR 		$164.98 1
0004 806789
WATER RETURN HOSE FROM RADIATOR 		$137.87 1
0005 320024
REAR DELIVERY SLEEVE 		$64.71 1
0006 306915
REAR RETURN SLEEVE 		$71.06 1
0007 306910
REAR DELIVERY PIPE 		$45.67 1
0008 809051
REAR RETURN PIPE 		$78.67 1
0009 306908
DELIVERY SLEEVE FROM PUMP 		$57.09 1
0010 307916
RETURN HOSE TO PUMP 		$62.17 1
0011 262114
HOSE CLAMP
IN STOCK 		$1.06 12
0012 262383
COLLAR
IN STOCK 		$2.71 2
0013 182301
BRACKET WITH SHEATH 		$17.98 2
0014 83182500
SCREW
M6 X 18 		- 3 Enquire
0015 198273
CLIP 		$1.53 3
0016 15627411
RIVET 		- 1 Enquire
0017 263068
UPPER BRACKET FOR RETAINER BLOCK 		$17.75 3
0018 322053
PIPE UPPER RETAINER BLOCK 		$21.57 3
0019 310745
PIPE LOWER RETAINER BLOCK 		$20.30 4
0020 263070
BUSH 		$5.95 3
0021 263069
LOWER BRACKET FOR RETAINER BLOCK 		$14.39 3
0022 13833614
SCREW
M5 X 16 		$1.18 6
0023 14302424
SCREW
M4 X 45
IN STOCK 		$0.43 3
0024 14497704
WASHER
IN STOCK 		$0.58 3
0025 310747
PIPE UPPER RETAINER BLOCK 		$20.30 1
0026 263136
UPPER BRACKET FOR RETAINER BLOCK 		$13.94 1
0027 263137
LOWER BRACKET FOR RETAINER BLOCK 		$15.21 1
0028 13836414
SCREW
M6 X 16 		$2.13 2
0029 931307433
RADIATOR CONNECTOR HOSE UNION 		$143.93 1
0030 292206
PIPE RETAINER CLIP 		$0.81 1
0031 305447
RADIATOR SELF-BLEEDING PIPE 		$53.29 1
0032 231619
SCREW
M6 X 18
IN STOCK 		$0.29 4
0033 10441490
BRACKET WITH SHEATH
D. 14
IN STOCK 		$0.52 2
0034 804329
VENT PIPE FROM RADIATOR TO DISCONNECTER UNION 		$34.25 1
0035 10441490
BRACKET WITH SHEATH
D. 14
IN STOCK 		$0.52 2
0036 13125470
COLLAR
IN STOCK 		$0.58 1
0037 13432070
HOSE COLLAR
D. 15.7
IN STOCK 		$0.49 (54.2% off) 1
