Ferrari F12 TDF - VEHICLE LIFT SYSTEM

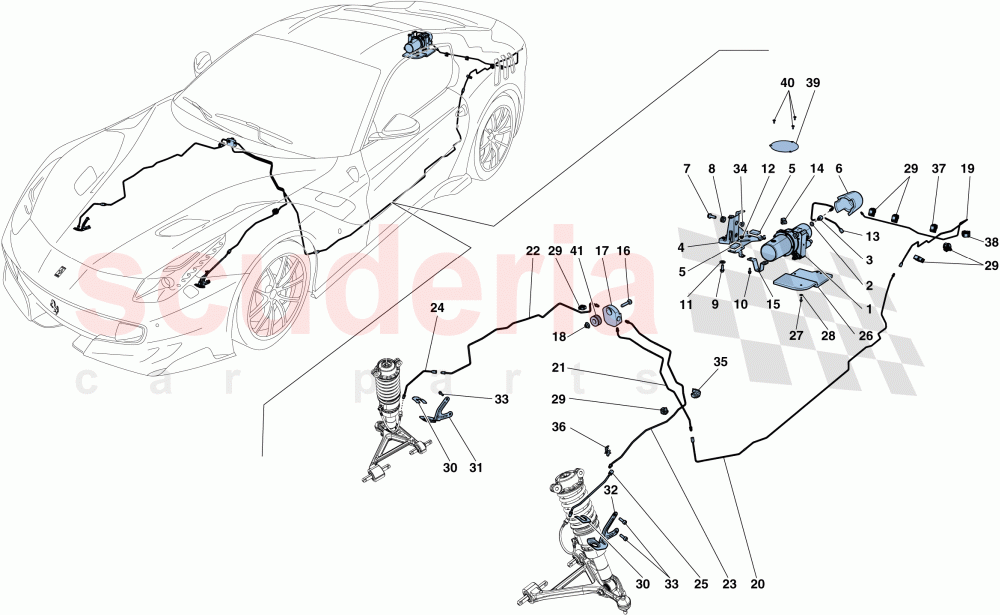

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	284736	ELECTRIC PUMP	$3,603.07	To Order

Photo	Part No	Description	Price (each)	Stock
	256502	GASKET	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	254931	ADAPTER SOCKET	$7.54	To Order

Photo	Part No	Description	Price (each)	Stock
	285289	PUMP MOUNTING BRACKET	$104.54	To Order

Photo	Part No	Description	Price (each)	Stock
	264740	BUSH	$0.87	To Order

Photo	Part No	Description	Price (each)	Stock
	285319	INSULATION	$142.87	To Order

Photo	Part No	Description	Price (each)	Stock
	304224	SCREW	$12.59	To Order

Photo	Part No	Description	Price (each)	Stock
	255047	CABLE GROMMET	$3.28	To Order

Photo	Part No	Description	Price (each)	Stock
	210246	SCREW	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13578305	WASHER	$0.09	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	285265	PIPE FROM PUMP	$59.19	To Order

Photo	Part No	Description	Price (each)	Stock
	256962	CLIP	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	285314	BRACKET	$22.65	To Order

Photo	Part No	Description	Price (each)	Stock
	319661	SCREW	$2.19	To Order

Photo	Part No	Description	Price (each)	Stock
	319349	LIFT SYSTEM DISTRIBUTOR BLOCK	$70.54	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	319660	LIFT SYSTEM PIPE, REAR SECTION	$151.15	To Order

Photo	Part No	Description	Price (each)	Stock
	289483	UNDERBODY LIFT SYSTEM PIPE	$100.77	To Order

Photo	Part No	Description	Price (each)	Stock
	324559	PIPE FROM FRONT SECTION TO BLOCK	$117.15	To Order
	318609	PIPE FROM FRONT SECTION TO BLOCK	$102.04	To Order

Photo	Part No	Description	Price (each)	Stock
	324561	PIPE FROM BLOCK TO RH FRONT WHEEL SECTION	$188.95	To Order
	318611	PIPE FROM BLOCK TO RH FRONT WHEEL SECTION	$133.85	To Order

Photo	Part No	Description	Price (each)	Stock
	324560	PIPE FROM BLOCK TO LH FRONT WHEEL SECTION	$133.85	To Order
	318610	PIPE FROM BLOCK TO LH FRONT WHEEL SECTION	$109.59	To Order

Photo	Part No	Description	Price (each)	Stock
	275450	PIPE FROM RH FRONT SECTION TO FLEXIBLE HOSE	$60.45	To Order

Photo	Part No	Description	Price (each)	Stock
	289025	PIPE FROM LH FRONT SECTION TO FLEXIBLE HOSE	$56.67	To Order

Photo	Part No	Description	Price (each)	Stock
	292748	HEAT SHIELD	$251.94	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234284	CLIP	$0.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	$2.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	271902	FRONT RH BRACKET	$32.74	To Order

Photo	Part No	Description	Price (each)	Stock
	271901	FRONT LH BRACKET	$32.74	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	255048	GROMMET SHIM	$2.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	234285	CLIP	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	291408	CLIP	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	294205	CLIP	$4.88	To Order

Photo	Part No	Description	Price (each)	Stock
	294206	CLIP	$4.88	To Order

Photo	Part No	Description	Price (each)	Stock
	272640	COMPL. LIFT SYSTEM INSPECTION COVER	$42.81	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	267300	DAMPED MOUNT	$11.08	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	284736	ELECTRIC PUMP	284736 ELECTRIC PUMP	$3,603.07	1
2	256502	GASKET	256502 GASKET	$0.67	1
3	254931	ADAPTER SOCKET	254931 ADAPTER SOCKET	$7.54	1
4	285289	PUMP MOUNTING BRACKET	285289 PUMP MOUNTING BRACKET	$104.54	1
5	264740	BUSH	264740 BUSH 40 x 24 mm	$0.87	2
6	285319	INSULATION	285319 INSULATION	$142.87	1
7	304224	SCREW	304224 SCREW	$12.59	2
8	255047	CABLE GROMMET	255047 CABLE GROMMET	$3.28	2
9	210246	SCREW IN STOCK	210246 SCREW M8 X 25 IN STOCK	$1.43	2
10	231619	SCREW IN STOCK	231619 SCREW M6 X 18 IN STOCK	$0.29	2
11	13578305	WASHER	13578305 WASHER	$0.09	2
12	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	2
13	285265	PIPE FROM PUMP	285265 PIPE FROM PUMP	$59.19	1
14	256962	CLIP	256962 CLIP D. 4.7 X 1	$0.59	1
15	285314	BRACKET	285314 BRACKET	$22.65	1
16	319661	SCREW	319661 SCREW M6 X 30	$2.19	1
17	319349	LIFT SYSTEM DISTRIBUTOR BLOCK	319349 LIFT SYSTEM DISTRIBUTOR BLOCK	$70.54	1
18	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	1
19	319660	LIFT SYSTEM PIPE, REAR SECTION	319660 LIFT SYSTEM PIPE, REAR SECTION	$151.15	1
20	289483	UNDERBODY LIFT SYSTEM PIPE	289483 UNDERBODY LIFT SYSTEM PIPE	$100.77	1
21	324559	PIPE FROM FRONT SECTION TO BLOCK	324559 PIPE FROM FRONT SECTION TO BLOCK Applicable for GD	$117.15	1
21	318609	PIPE FROM FRONT SECTION TO BLOCK	318609 PIPE FROM FRONT SECTION TO BLOCK Not for GD	$102.04	1
22	324561	PIPE FROM BLOCK TO RH FRONT WHEEL SECTION	324561 PIPE FROM BLOCK TO RH FRONT WHEEL SECTION Applicable for GD	$188.95	1
22	318611	PIPE FROM BLOCK TO RH FRONT WHEEL SECTION	318611 PIPE FROM BLOCK TO RH FRONT WHEEL SECTION Not for GD	$133.85	1
23	324560	PIPE FROM BLOCK TO LH FRONT WHEEL SECTION	324560 PIPE FROM BLOCK TO LH FRONT WHEEL SECTION Applicable for GD	$133.85	1
23	318610	PIPE FROM BLOCK TO LH FRONT WHEEL SECTION	318610 PIPE FROM BLOCK TO LH FRONT WHEEL SECTION Not for GD	$109.59	1
24	275450	PIPE FROM RH FRONT SECTION TO FLEXIBLE HOSE	275450 PIPE FROM RH FRONT SECTION TO FLEXIBLE HOSE	$60.45	1
25	289025	PIPE FROM LH FRONT SECTION TO FLEXIBLE HOSE	289025 PIPE FROM LH FRONT SECTION TO FLEXIBLE HOSE	$56.67	1
26	292748	HEAT SHIELD	292748 HEAT SHIELD	$251.94	1
27	11566224	SCREW IN STOCK	11566224 SCREW M5 X 16 IN STOCK	$0.33	3
28	860172	WASHER	860172 WASHER	-	3	Enquire
29	234284	CLIP IN STOCK	234284 CLIP 1 compartment IN STOCK	$0.55	6
30	116374	CLIP IN STOCK	116374 CLIP IN STOCK	$2.17 MSRP: ~~3.50~~ (38% off)	2
31	271902	FRONT RH BRACKET	271902 FRONT RH BRACKET	$32.74	1
32	271901	FRONT LH BRACKET	271901 FRONT LH BRACKET	$32.74	1
33	11566224	SCREW IN STOCK	11566224 SCREW M5 X 16 IN STOCK	$0.33	4
34	255048	GROMMET SHIM IN STOCK	255048 GROMMET SHIM IN STOCK	$2.43	2
35	234285	CLIP IN STOCK	234285 CLIP 2 compartments IN STOCK	$0.61	1
36	291408	CLIP	291408 CLIP Not for GD	$0.15	1
37	294205	CLIP	294205 CLIP 1 compartment	$4.88	1
38	294206	CLIP	294206 CLIP 2 compartments	$4.88	1
39	272640	COMPL. LIFT SYSTEM INSPECTION COVER	272640 COMPL. LIFT SYSTEM INSPECTION COVER	$42.81	1
40	11566224	SCREW IN STOCK	11566224 SCREW IN STOCK	$0.33	3
41	267300	DAMPED MOUNT IN STOCK	267300 DAMPED MOUNT IN STOCK	$11.08	1
