Ferrari F12 TDF - GEARBOX OIL LUBRICATION AND COOLING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
318265 GEARBOX SINGLE OIL HEAT EXCHANGER MOUNT $108.36 To Order
Photo Part No Description Price (each) Stock
14307534 SCREW $2.50 IN STOCK
Photo Part No Description Price (each) Stock
12648321 WASHER $0.69 To Order
Photo Part No Description Price (each) Stock
268359 BRACKET $18.05 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.59 IN STOCK
Photo Part No Description Price (each) Stock
14058421 NUT $1.24 IN STOCK
Photo Part No Description Price (each) Stock
13604015 SPACER $0.74 To Order
Photo Part No Description Price (each) Stock
264810 SHIM $5.02 To Order
Photo Part No Description Price (each) Stock
262813 ATF FLUID RETURN PIPE $438.61 To Order
Photo Part No Description Price (each) Stock
254644 O-RING $0.36 IN STOCK
Photo Part No Description Price (each) Stock
262827 FORK $19.33 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
261824 FORK $29.66 To Order
Photo Part No Description Price (each) Stock
248471 SCREW $0.94 To Order
Photo Part No Description Price (each) Stock
253463 FORK WITH CAPTIVE SCREW $51.59 To Order
Photo Part No Description Price (each) Stock
84317700 SCREW 8 X 30 $22.21 IN STOCK
Photo Part No Description Price (each) Stock
274638 BRACKET $59.33 To Order
Photo Part No Description Price (each) Stock
265771 BRACKET $1.98 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 IN STOCK
Photo Part No Description Price (each) Stock
61712500 BRACKET WITH SHEATH $1.54 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 IN STOCK
Photo Part No Description Price (each) Stock
290918 REAR WATER DELIVERY PIPE $670.83 To Order
Photo Part No Description Price (each) Stock
290974 CENTRAL WATER DELIVERY PIPE $774.04 To Order
Photo Part No Description Price (each) Stock
290919 REAR WATER RETURN PIPE $490.22 To Order
Photo Part No Description Price (each) Stock
282347 CENTRAL WATER RETURN PIPE $245.10 To Order
Photo Part No Description Price (each) Stock
14498801 WASHER $0.11 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.42 IN STOCK
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.92 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 IN STOCK
Photo Part No Description Price (each) Stock
248454 BRACKET WITH SHEATH $6.89 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
266783 BRACKET $14.96 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
320234 FRONT WATER DELIVERY HOSE $387.01 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
291103 FRONT WATER RETURN HOSE $232.20 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.92 IN STOCK
Photo Part No Description Price (each) Stock
86574700 SCREW $0.62 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
272486 BRACKET $34.81 To Order
Photo Part No Description Price (each) Stock
285513 BRACKET FASTENING WATER PIPES TO UNDERBODY $12.63 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.92 IN STOCK
Photo Part No Description Price (each) Stock
291946 BRACKET $21.92 To Order
Photo Part No Description Price (each) Stock
248454 BRACKET WITH SHEATH $6.89 To Order
Photo Part No Description Price (each) Stock
13027224 SCREW $3.44 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
12640604 WASHER $0.12 IN STOCK
Photo Part No Description Price (each) Stock
291247 BRACKET FASTENING WATER PIPES TO UNDERBODY $39.97 To Order
Photo Part No Description Price (each) Stock
14084111 NUT $0.05 IN STOCK
View All

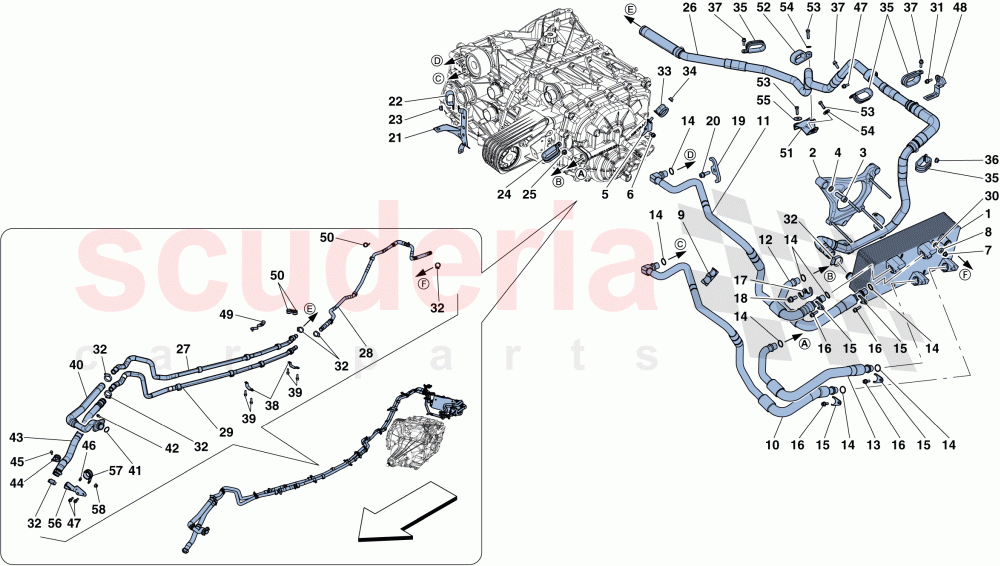

GEARBOX OIL LUBRICATION AND COOLING SYSTEM of Ferrari Ferrari F12 TDF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 318265
GEARBOX SINGLE OIL HEAT EXCHANGER MOUNT 		$108.36 1
3 14307534
SCREW
M10 X 1.25 X 30
IN STOCK 		$2.50 3
4 12648321
WASHER 		$0.69 3
5 268359
BRACKET 		$18.05 1
6 248334
SCREW
M6 X 12
IN STOCK 		$0.59 1
7 14058421
NUT
IN STOCK 		$1.24 4
8 13604015
SPACER 		$0.74 (6.3% off) 4
9 264810
SHIM 		$5.02 1
11 262813
ATF FLUID RETURN PIPE 		$438.61 1
14 254644
O-RING
IN STOCK 		$0.36 (28% off) 8
15 262827
FORK 		$19.33 4
16 231619
SCREW
M6 X 18
IN STOCK 		$0.29 4
17 261824
FORK 		$29.66 1
18 248471
SCREW
M8 X 20 		$0.94 1
19 253463
FORK WITH CAPTIVE SCREW 		$51.59 1
20 84317700
SCREW 8 X 30
M8 X 25
IN STOCK 		$22.21 1
21 274638
BRACKET 		$59.33 1
22 265771
BRACKET 		$1.98 1
23 14059290
FLANGED NUT M6
IN STOCK 		$1.33 1
24 61712500
BRACKET WITH SHEATH
IN STOCK 		$1.54 1
25 14059290
FLANGED NUT M6
IN STOCK 		$1.33 1
26 290918
REAR WATER DELIVERY PIPE 		$670.83 1
27 290974
CENTRAL WATER DELIVERY PIPE 		$774.04 1
28 290919
REAR WATER RETURN PIPE 		$490.22 1
29 282347
CENTRAL WATER RETURN PIPE 		$245.10 1
30 14498801
WASHER
IN STOCK 		$0.11 (45% off) 4
31 231619
SCREW
M6 X 18
IN STOCK 		$0.29 1
32 262111
JUBILEE CLAMP
IN STOCK 		$1.42 7
33 291225
P clip Bracket With Sheath
IN STOCK 		$4.92 1
34 14059290
FLANGED NUT M6
IN STOCK 		$1.33 1
35 248454
BRACKET WITH SHEATH 		$6.89 4
36 14059290
FLANGED NUT M6
IN STOCK 		$1.33 1
37 231619
SCREW
M6 X 18
IN STOCK 		$0.29 3
38 266783
BRACKET 		$14.96 2
39 231619
SCREW
M6 X 18
IN STOCK 		$0.29 4
40 320234
FRONT WATER DELIVERY HOSE 		$387.01 1
41 250888
GASKET 		$0.65 1
42 231619
SCREW
M6 X 22
IN STOCK 		$0.29 2
43 291103
FRONT WATER RETURN HOSE 		$232.20 1
44 291225
P clip Bracket With Sheath
IN STOCK 		$4.92 1
45 86574700
SCREW
M6 X 16 		$0.62 1
46 12644424
WASHER
IN STOCK 		$0.06 (85% off) 1
47 231619
SCREW
M6 X 18
IN STOCK 		$0.29 3
48 272486
BRACKET 		$34.81 1
49 285513
BRACKET FASTENING WATER PIPES TO UNDERBODY 		$12.63 1
50 291225
P clip Bracket With Sheath
IN STOCK 		$4.92 2
51 291946
BRACKET 		$21.92 1
52 248454
BRACKET WITH SHEATH 		$6.89 1
53 13027224
SCREW 		$3.44 3
54 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 2
55 12640604
WASHER
IN STOCK 		$0.12 1
56 291247
BRACKET FASTENING WATER PIPES TO UNDERBODY 		$39.97 1
57 10448790
BRACKET WITH SHEATH 		$4.12 1
58 14084111
NUT
IN STOCK 		$0.05 1
