SECONDARY AIR SYSTEM of Ferrari Ferrari F12 TDF

View All

Ferrari F12 TDF - SECONDARY AIR SYSTEM

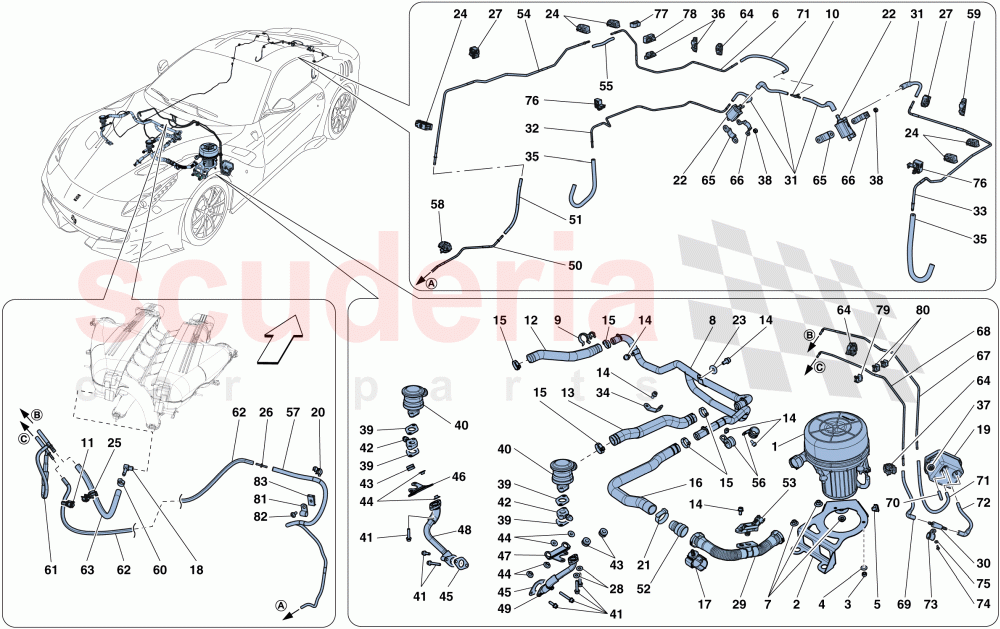

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	247795	SECONDARY AIR SYSTEM PUMP	$743.00	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	272314	PUMP MOUNTING BRACKET	$79.46	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11194674	WASHER	$0.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	291283	CLIP	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	293314	RIGID PIPE	$61.79	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	289538	ALUMINIUM PIPE	$315.35	To Order

Photo	Part No	Description	Price (each)	Stock
	225165	CLIP	$0.33	To Order

Photo	Part No	Description	Price (each)	Stock
	257691	3-WAY CONNECTOR	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	319429	CLIP	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	279862	RH CONNECTOR PIPE	$100.91	To Order

Photo	Part No	Description	Price (each)	Stock
	274855	LH CONNECTOR PIPE	$108.47	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13128970	COLLAR	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	279692	ENGINE SIDE SECONDARY AIR SYSTEM HOSE CONNECTOR	$643.34	To Order

Photo	Part No	Description	Price (each)	Stock
	82051100	CLIP	$0.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	319271	CONNECTOR	$55.48	To Order

Photo	Part No	Description	Price (each)	Stock
	198339	VACUUM ACCUMULATOR TANK	$48.18	To Order

Photo	Part No	Description	Price (each)	Stock
	225165	CLIP	$0.33	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	SCREW CLAMP	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	178309	SOLENOID VALVE	$100.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	294206	CLIP	$4.88	To Order
	280281	CLIP	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	305301	CLIP	$0.46	To Order

Photo	Part No	Description	Price (each)	Stock
	199696	BRAIDED CONNECTOR	$10.83	To Order

Photo	Part No	Description	Price (each)	Stock
	234284	CLIP	$0.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	288959	SECONDARY AIR SYSTEM PIPE WITH SENSOR CARRIER	$180.71	To Order

Photo	Part No	Description	Price (each)	Stock
	295349	VACUUM RETAINER VALVE	$44.13	To Order

Photo	Part No	Description	Price (each)	Stock
	294268	RUBBER PIPE	$18.91	To Order

Photo	Part No	Description	Price (each)	Stock
	281020	RIGID PIPE BETWEEN RH BYPASS FLEXIBLE HOSES	$55.48	To Order

Photo	Part No	Description	Price (each)	Stock
	269073	RIGID PIPE BETWEEN LH BYPASS FLEXIBLE HOSES	$52.97	To Order

Photo	Part No	Description	Price (each)	Stock
	289882	PIPE MOUNTING BRACKET	$8.70	To Order

Photo	Part No	Description	Price (each)	Stock
	339752	RUBBER PIPE	$25.21	To Order

Photo	Part No	Description	Price (each)	Stock
	190409	CLIP	$6.04	To Order
	294207	CLIP	$4.88	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	186781	GASKET	$4.93	To Order

Photo	Part No	Description	Price (each)	Stock
	284235	SECONDARY AIR SYSTEM VALVE	$239.66	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.30	IN STOCK
	231625	SCREW	$0.56	IN STOCK
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	286011	SPACER ASSEMBLY	$42.89	To Order
	264020	SPACER ASSEMBLY	$64.32	To Order

Photo	Part No	Description	Price (each)	Stock
	177576	CABLE GROMMET	$2.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	819489	FLANGED BUSHING	$13.86	To Order

Photo	Part No	Description	Price (each)	Stock
	202980	GASKET	$2.91	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	258254	RH VALVE FASTENER BRACKET	$11.97	To Order

Photo	Part No	Description	Price (each)	Stock
	258252	LH VALVE FASTENER BRACKET	$11.97	To Order

Photo	Part No	Description	Price (each)	Stock
	256598	PIPE FROM AIR VALVE TO RH HEAD	$302.74	To Order

Photo	Part No	Description	Price (each)	Stock
	256596	PIPE FROM AIR VALVE TO LH HEAD	$290.12	To Order

Photo	Part No	Description	Price (each)	Stock
	284631	EMISSIONS CONTROL PIPE	$71.88	To Order

Photo	Part No	Description	Price (each)	Stock
	264088	RUBBER PIPE	$8.81	To Order

Photo	Part No	Description	Price (each)	Stock
	267093	COUPLING	$25.21	To Order

Photo	Part No	Description	Price (each)	Stock
	282849	PRESSURE SENSOR	$33.89	To Order

Photo	Part No	Description	Price (each)	Stock
	284629	RIGID PIPE	$73.14	To Order

Photo	Part No	Description	Price (each)	Stock
	199691	RUBBER PIPE	$5.04	To Order

Photo	Part No	Description	Price (each)	Stock
	10450690	BRACKET WITH SHEATH	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	289048	RUBBER PIPE	$68.11	To Order

Photo	Part No	Description	Price (each)	Stock
	284622	CLIP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	190409	CLIP	$6.04	To Order
	294207	CLIP	$4.88	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.49	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	327787	COMPL. VACUUM PIPING	$264.89	To Order

Photo	Part No	Description	Price (each)	Stock
	319519	RUBBER PIPE	$37.83	To Order

Photo	Part No	Description	Price (each)	Stock
	319507	RUBBER PIPE	$31.52	To Order

Photo	Part No	Description	Price (each)	Stock
	234285	CLIP	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	329823	SOLENOID VALVE MOUNTING BRACKET	$32.78	To Order
	294259	SOLENOID VALVE MOUNTING BRACKET	$18.91	To Order

Photo	Part No	Description	Price (each)	Stock
	294260	SOLENOID VALVE MOUNTING BRACKET	$23.95	To Order
	329824	SOLENOID VALVE MOUNTING BRACKET	$26.47	To Order

Photo	Part No	Description	Price (each)	Stock
	295778	RUBBER PIPE	$34.05	To Order
	274272	TANK ACTUATOR RIGID PIPE ON FIREWALL	$42.87	To Order

Photo	Part No	Description	Price (each)	Stock
	295777	RUBBER PIPE	$30.26	To Order
	274271	TANK VACUUM RIGID PIPE ON FIREWALL	$42.87	To Order

Photo	Part No	Description	Price (each)	Stock
	294265	RUBBER PIPE	$16.38	To Order

Photo	Part No	Description	Price (each)	Stock
	225098	PLUG	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	169456	R.H. PIPE VALVE TUBE	$4.41	To Order

Photo	Part No	Description	Price (each)	Stock
	294265	RUBBER PIPE	$16.38	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15516204	SCREW	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER D.5-14 X 2.5	$0.21	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	294205	CLIP	$4.88	To Order

Photo	Part No	Description	Price (each)	Stock
	294206	CLIP	$4.88	To Order

Photo	Part No	Description	Price (each)	Stock
	294207	CLIP	$4.88	To Order

Photo	Part No	Description	Price (each)	Stock
	140130	CLIP	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	141546	CLIP	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	10418501	BRACKET	$2.86	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	$0.96	IN STOCK
