LUBRICATION SYSTEM: TANK of Ferrari Ferrari F12 TDF

View All

Ferrari F12 TDF - LUBRICATION SYSTEM: TANK

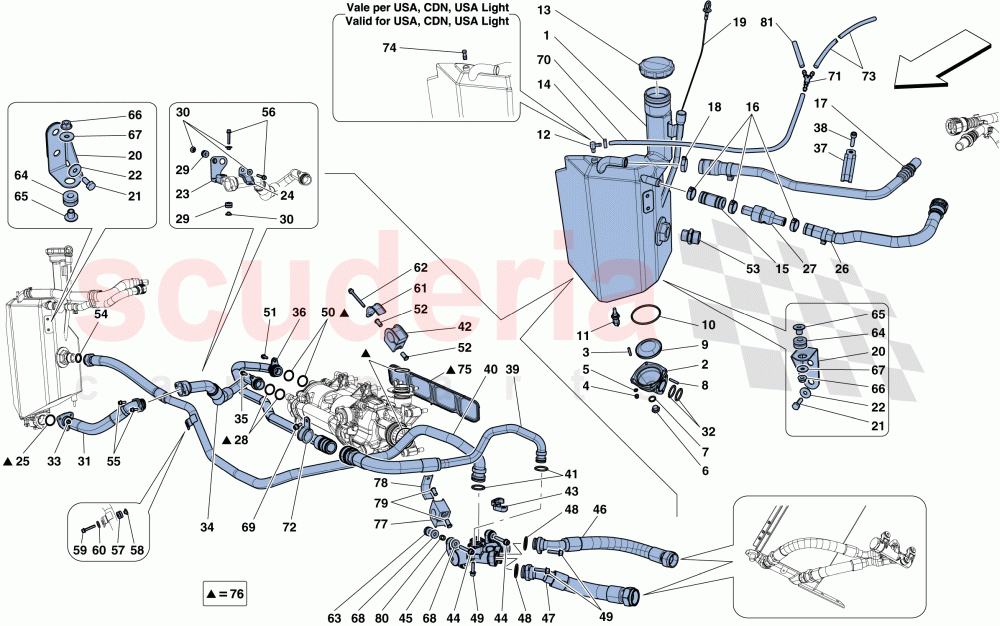

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	313729	ENGINE OIL TANK	$3,172.93	To Order

Photo	Part No	Description	Price (each)	Stock
	210914	OIL TANK PICKUP	$531.55	To Order

Photo	Part No	Description	Price (each)	Stock
	11500524	STUD BOLT	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	293107	THREADED PLUG	$77.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10261460	COPPER WASHER 16 X 24 X 1.5	$0.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13541124	STUD BOLT	$20.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	100332	OIL PICKUP FILTER	$17.87	To Order

Photo	Part No	Description	Price (each)	Stock
	125521	O-RING	$10.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	$28.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	290538	THREADED CONNECTOR	$64.53	To Order

Photo	Part No	Description	Price (each)	Stock
	180320	COPMLETE TANK PLUG	$635.08	To Order

Photo	Part No	Description	Price (each)	Stock
	241986	COLLAR FOR HOSE UNION	$0.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	257673	RUBBER PIPE	$108.82	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	284102	COMPL. VAPOUR ASPIRATOR PIPE	$1,384.58	To Order
	323561	OIL VAPOUR PIPE FROM RESERVOIR TO DISCONNECTOR UNION	$110.09	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	327148	COMPL. OIL DIPSTICK	$164.52	To Order

Photo	Part No	Description	Price (each)	Stock
	269835	FASTENER BRACKET	$30.36	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	$0.14	IN STOCK
	897538	SCREW	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	326791	PIPE MOUNTING BRACKET	$70.87	To Order

Photo	Part No	Description	Price (each)	Stock
	326821	PIPE MOUNTING BRACKET	$32.89	To Order

Photo	Part No	Description	Price (each)	Stock
	284101	VAPOUR PIPE FROM VALVE TO HEADS	$126.55	To Order
	323560	VAPOUR PIPE FROM DISCONNECTOR UNION TO PCV	$89.84	To Order

Photo	Part No	Description	Price (each)	Stock
	294255	CHECK VALVE	$291.58	To Order

Photo	Part No	Description	Price (each)	Stock
	104212	O-RING	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	240607	GROMMET	$5.24	To Order

Photo	Part No	Description	Price (each)	Stock
	819489	FLANGED BUSHING	$13.90	To Order

Photo	Part No	Description	Price (each)	Stock
	104212	O-RING	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	318530	OIL PIPE FROM DISCONNECTER UNION TO PUMP	$1,012.48	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	311558	ENGINE OIL RETURN PIPE FROM ENGINE TO DISCONNECTER UNION	$455.61	To Order

Photo	Part No	Description	Price (each)	Stock
	284099	BRACKET WITH SHEATH	$13.05	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	311647	ENGINE OIL RETURN PIPE FROM DISCONNECTER UNION TO THERMOSTAT VALVE	$987.18	To Order

Photo	Part No	Description	Price (each)	Stock
	311743	ENGINE OIL RETURN PIPE FROM VALVE TO RESERVOIR	$658.11	To Order

Photo	Part No	Description	Price (each)	Stock
	122791	O-RING	$2.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	315530	RETAINER BLOCK	$45.54	To Order

Photo	Part No	Description	Price (each)	Stock
	311723	ENGINE OIL PIPE RETAINER FORK	$96.17	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	316675	COMPL. OIL THERMOSTAT	$949.20	To Order

Photo	Part No	Description	Price (each)	Stock
	317220	OIL DELIVERY PIPE FROM VALVE TO RADIATOR	$417.64	To Order

Photo	Part No	Description	Price (each)	Stock
	315531	OIL RETURN PIPE FROM RADIATOR TO VALVE	$404.99	To Order

Photo	Part No	Description	Price (each)	Stock
	122791	O-RING	$2.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	121903	O-RING	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	304075	BUSH	$5.48	To Order

Photo	Part No	Description	Price (each)	Stock
	138149	THREADED CONNECTOR	$55.89	To Order

Photo	Part No	Description	Price (each)	Stock
	898271	GASKET	$33.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231622	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	315540	RETAINER BLOCK FASTENER PLATE	$26.56	To Order

Photo	Part No	Description	Price (each)	Stock
	255495	SCREW	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	267300	DAMPED MOUNT	$11.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	294896	RUBBER SPACER	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	293755	RUBBER PIPE	$64.53	To Order

Photo	Part No	Description	Price (each)	Stock
	258855	3-WAY CONNECTOR	$40.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	322190	BRACKET	$37.96	To Order

Photo	Part No	Description	Price (each)	Stock
	118901	RUBBER PIPE	$5.72	To Order

Photo	Part No	Description	Price (each)	Stock
	14326101	THREADED PLUG	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	275528	PUMP SEAL FILTER	$30.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	794125	OIL PUMP GASKET KIT	$58.20	To Order
	308330	OIL PUMP GASKET KIT	$34.40	To Order

Photo	Part No	Description	Price (each)	Stock
	315529	RETAINER BLOCK	$45.54	To Order

Photo	Part No	Description	Price (each)	Stock
	315539	RETAINER BLOCK FASTENER PLATE	$25.29	To Order

Photo	Part No	Description	Price (each)	Stock
	315649	FLANGED BUSHING	$3.88	To Order

Photo	Part No	Description	Price (each)	Stock
	295197	SPACER	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	170530	RUBBER PIPE	$5.05	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	313729	ENGINE OIL TANK	313729 ENGINE OIL TANK	$3,172.93	1
2	210914	OIL TANK PICKUP	210914 OIL TANK PICKUP	$531.55 MSRP: ~~1,064.35~~ (50.1% off)	1
3	11500524	STUD BOLT	11500524 STUD BOLT	$0.34 MSRP: ~~1.00~~ (66% off)	4
4	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	4
5	11197774	WASHER IN STOCK	11197774 WASHER D. 6.40-12 X 0.5 IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	4
6	293107	THREADED PLUG IN STOCK	293107 THREADED PLUG IN STOCK	$77.60	1
7	10261460	COPPER WASHER 16 X 24 X 1.5 IN STOCK	10261460 COPPER WASHER 16 X 24 X 1.5 IN STOCK	$0.32 MSRP: ~~1.00~~ (68% off)	1
8	13541124	STUD BOLT IN STOCK	13541124 STUD BOLT IN STOCK	$20.25	3
9	100332	OIL PICKUP FILTER	100332 OIL PICKUP FILTER	$17.87	1
10	125521	O-RING IN STOCK	125521 O-RING IN STOCK	$10.55	1
11	180137	TEMPERATURE SENSOR IN STOCK	180137 TEMPERATURE SENSOR IN STOCK	$28.47 MSRP: ~~32.99~~ (13.7% off)	1
12	290538	THREADED CONNECTOR	290538 THREADED CONNECTOR Not for USA, CDN, USA LIGHT	$64.53	1
13	180320	COPMLETE TANK PLUG	180320 COPMLETE TANK PLUG	$635.08 MSRP: ~~822.01~~ (22.7% off)	1
14	241986	COLLAR FOR HOSE UNION IN STOCK	241986 COLLAR FOR HOSE UNION Not for USA, CDN, USA LIGHT IN STOCK	$0.96	2
15	257673	RUBBER PIPE	257673 RUBBER PIPE	$108.82	1
16	262111	JUBILEE CLAMP IN STOCK	262111 JUBILEE CLAMP IN STOCK	$1.39	3
17	284102	COMPL. VAPOUR ASPIRATOR PIPE	284102 COMPL. VAPOUR ASPIRATOR PIPE Applicable for USA, CDN, USA LIGHT	$1,384.58	1
17	323561	OIL VAPOUR PIPE FROM RESERVOIR TO DISCONNECTOR UNION	323561 OIL VAPOUR PIPE FROM RESERVOIR TO DISCONNECTOR UNION Not for USA, CDN, USA LIGHT	$110.09	1
18	262111	JUBILEE CLAMP IN STOCK	262111 JUBILEE CLAMP IN STOCK	$1.39	1
19	327148	COMPL. OIL DIPSTICK	327148 COMPL. OIL DIPSTICK	$164.52	1
20	269835	FASTENER BRACKET	269835 FASTENER BRACKET	$30.36	2
21	10902424	SCREW IN STOCK	10902424 SCREW M6 X 20 IN STOCK	$0.14 MSRP: ~~0.70~~ (80% off)	2
21	897538	SCREW	897538 SCREW M6 X 14	$1.53	2
22	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	4
23	326791	PIPE MOUNTING BRACKET	326791 PIPE MOUNTING BRACKET	$70.87	1
24	326821	PIPE MOUNTING BRACKET	326821 PIPE MOUNTING BRACKET	$32.89	1
25	862084	GASKET	862084 GASKET Also comes with engine gasket set	$4.91	1
26	284101	VAPOUR PIPE FROM VALVE TO HEADS	284101 VAPOUR PIPE FROM VALVE TO HEADS Applicable for USA, CDN, USA LIGHT	$126.55	1
26	323560	VAPOUR PIPE FROM DISCONNECTOR UNION TO PCV	323560 VAPOUR PIPE FROM DISCONNECTOR UNION TO PCV Not for USA, CDN, USA LIGHT	$89.84	1
27	294255	CHECK VALVE	294255 CHECK VALVE	$291.58	1
28	104212	O-RING IN STOCK	104212 O-RING IN STOCK	$0.66 MSRP: ~~1.00~~ (34% off)	2
29	240607	GROMMET	240607 GROMMET	$5.24	2
30	819489	FLANGED BUSHING	819489 FLANGED BUSHING	$13.90	4
32	104212	O-RING IN STOCK	104212 O-RING IN STOCK	$0.66 MSRP: ~~1.00~~ (34% off)	2
33	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	3
34	318530	OIL PIPE FROM DISCONNECTER UNION TO PUMP	318530 OIL PIPE FROM DISCONNECTER UNION TO PUMP	$1,012.48	1
35	231619	SCREW IN STOCK	231619 SCREW M6 X 22 IN STOCK	$0.29	1
36	311558	ENGINE OIL RETURN PIPE FROM ENGINE TO DISCONNECTER UNION	311558 ENGINE OIL RETURN PIPE FROM ENGINE TO DISCONNECTER UNION	$455.61	1
37	284099	BRACKET WITH SHEATH	284099 BRACKET WITH SHEATH	$13.05	1
38	248334	SCREW IN STOCK	248334 SCREW M6 X 12 IN STOCK	$0.58	1
39	311647	ENGINE OIL RETURN PIPE FROM DISCONNECTER UNION TO THERMOSTAT VALVE	311647 ENGINE OIL RETURN PIPE FROM DISCONNECTER UNION TO THERMOSTAT VALVE	$987.18	1
40	311743	ENGINE OIL RETURN PIPE FROM VALVE TO RESERVOIR	311743 ENGINE OIL RETURN PIPE FROM VALVE TO RESERVOIR	$658.11	1
41	122791	O-RING IN STOCK	122791 O-RING IN STOCK	$2.12 MSRP: ~~2.17~~ (2.3% off)	2
42	315530	RETAINER BLOCK	315530 RETAINER BLOCK	$45.54	1
43	311723	ENGINE OIL PIPE RETAINER FORK	311723 ENGINE OIL PIPE RETAINER FORK	$96.17	1
44	231625	SCREW IN STOCK	231625 SCREW M6 X 50; Applicable for mounting 267300 IN STOCK	$0.56	3
45	316675	COMPL. OIL THERMOSTAT	316675 COMPL. OIL THERMOSTAT	$949.20	1
46	317220	OIL DELIVERY PIPE FROM VALVE TO RADIATOR	317220 OIL DELIVERY PIPE FROM VALVE TO RADIATOR	$417.64	1
47	315531	OIL RETURN PIPE FROM RADIATOR TO VALVE	315531 OIL RETURN PIPE FROM RADIATOR TO VALVE	$404.99	1
48	122791	O-RING IN STOCK	122791 O-RING IN STOCK	$2.12 MSRP: ~~2.17~~ (2.3% off)	2
49	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	4
50	121903	O-RING IN STOCK	121903 O-RING IN STOCK	$0.70 MSRP: ~~1.95~~ (64.1% off)	2
51	231619	SCREW IN STOCK	231619 SCREW M6 X 22 IN STOCK	$0.29	1
52	304075	BUSH	304075 BUSH	$5.48	2
53	138149	THREADED CONNECTOR	138149 THREADED CONNECTOR	$55.89 MSRP: ~~70.30~~ (20.5% off)	1
54	898271	GASKET IN STOCK	898271 GASKET IN STOCK	$33.99	1
55	248334	SCREW IN STOCK	248334 SCREW M6 X 16 IN STOCK	$0.58	1
56	231622	SCREW IN STOCK	231622 SCREW M6 X 35 IN STOCK	$0.34 MSRP: ~~0.50~~ (32% off)	2
57	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.53	1
58	149707	SPACER	149707 SPACER	$1.10 MSRP: ~~1.75~~ (37.1% off)	1
59	231625	SCREW IN STOCK	231625 SCREW M6 X 25 IN STOCK	$0.56	1
60	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	1
61	315540	RETAINER BLOCK FASTENER PLATE	315540 RETAINER BLOCK FASTENER PLATE	$26.56	1
62	255495	SCREW	255495 SCREW M6 X 65	$0.81	2
63	267300	DAMPED MOUNT IN STOCK	267300 DAMPED MOUNT IN STOCK	$11.13	1
64	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.53	2
65	149707	SPACER	149707 SPACER	$1.10 MSRP: ~~1.75~~ (37.1% off)	2
66	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	3
67	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	3
68	294896	RUBBER SPACER	294896 RUBBER SPACER	$1.60	6
69	248334	SCREW IN STOCK	248334 SCREW M6 X 14 IN STOCK	$0.58	1
70	293755	RUBBER PIPE	293755 RUBBER PIPE D. 6 X 9 X 825; Not for USA, CDN, USA LIGHT	$64.53	1
71	258855	3-WAY CONNECTOR IN STOCK	258855 3-WAY CONNECTOR Not for USA, CDN, USA LIGHT IN STOCK	$40.11	1
72	322190	BRACKET	322190 BRACKET	$37.96	1
73	118901	RUBBER PIPE	118901 RUBBER PIPE Not for USA, CDN, USA LIGHT	$5.72	1
74	14326101	THREADED PLUG	14326101 THREADED PLUG Applicable for USA, CDN, USA LIGHT	$1.10 MSRP: ~~1.65~~ (33.3% off)	1
75	275528	PUMP SEAL FILTER IN STOCK	275528 PUMP SEAL FILTER IN STOCK	$30.36	1
76	794125	OIL PUMP GASKET KIT	794125 OIL PUMP GASKET KIT Applicable from engine No. 320663	$58.20	1
76	308330	OIL PUMP GASKET KIT	308330 OIL PUMP GASKET KIT Applicable up to engine No. 320662	$34.40	1
77	315529	RETAINER BLOCK	315529 RETAINER BLOCK	$45.54	1
78	315539	RETAINER BLOCK FASTENER PLATE	315539 RETAINER BLOCK FASTENER PLATE	$25.29	1
79	315649	FLANGED BUSHING	315649 FLANGED BUSHING	$3.88	2
80	295197	SPACER	295197 SPACER	$3.13	3
81	170530	RUBBER PIPE	170530 RUBBER PIPE Not for USA, CDN, USA LIGHT	$5.05	1
