Insulation

Ferrari F12 TDF

Find Your Part

Ferrari F12 TDF - INSULATION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
89351800 DRIVER SIDE UNDER-FOOTREST HEAT SHIELD $20.19 To Order
83918000 DRIVER SIDE UNDER-FOOTREST HEAT SHIELD $18.93 To Order
Photo Part No Description Price (each) Stock
83918200 PASSENGER SIDE UNDER-FOOTREST HEAT SHIELD $60.59 To Order
Photo Part No Description Price (each) Stock
84957100 LH UNDERDASHBOARD INSULATION $66.91 To Order
Photo Part No Description Price (each) Stock
84957200 RH UNDERDASHBOARD INSULATION $66.91 To Order
84494200 LH UNDERDASHBOARD INSULATION $58.06 To Order
Photo Part No Description Price (each) Stock
82971300 COMPL. HVAC UNIT SHIM $68.17 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.32 To Order
Photo Part No Description Price (each) Stock
88332000 RH MANIFOLD HEAT SHIELD $744.99 To Order
87928600 RH MANIFOLD HEAT SHIELD $656.59 To Order
Photo Part No Description Price (each) Stock
87805100 LH MANIFOLD HEAT SHIELD $719.72 To Order
87236500 LH MANIFOLD HEAT SHIELD $618.72 To Order
Photo Part No Description Price (each) Stock
296823 BUTTON $0.12 To Order
Photo Part No Description Price (each) Stock
85676300 COMPL. TUNNEL HEAT SHIELD $770.23 To Order
Photo Part No Description Price (each) Stock
85078600 RH CATALYTIC CONVERTER HEAT SHIELD $1,111.17 To Order
85678300 RH CATALYTIC CONVERTER HEAT SHIELD $391.43 To Order
Photo Part No Description Price (each) Stock
85078700 LH CATALYTIC CONVERTER HEAT SHIELD $1,111.17 To Order
85678400 LH CATALYTIC CONVERTER HEAT SHIELD $391.43 To Order
Photo Part No Description Price (each) Stock
85058500 SERVICES TUB HEAT SHIELD $114.89 To Order
Photo Part No Description Price (each) Stock
83918100 DRIVER SIDE TUNNEL HEAT SHIELD $60.59 To Order
Photo Part No Description Price (each) Stock
295058 ANGULAR SHIELD $22.70 To Order
Photo Part No Description Price (each) Stock
85277400 HEAT SHIELD UNDER CENTRE TUNNEL UNIT $146.22 To Order
Photo Part No Description Price (each) Stock
85105900 LOWER RH MANIFOLD HEAT SHIELD $37.87 To Order
Photo Part No Description Price (each) Stock
85027400 RH SILENCER HEAT SHIELD $164.14 To Order
Photo Part No Description Price (each) Stock
85027500 LH SILENCER HEAT SHIELD $164.14 To Order
Photo Part No Description Price (each) Stock
85052800 RH SERVICES TUB HEAT SHIELD $366.17 To Order
Photo Part No Description Price (each) Stock
87661100 LH SERVICES TUB HEAT SHIELD $164.14 To Order
Photo Part No Description Price (each) Stock
87378800 ECU COVER HEAT SHIELD $10.86 To Order
Photo Part No Description Price (each) Stock
87379000 REAR CENTRE CONSOLE TUB HEAT SHIELD $26.50 To Order
Photo Part No Description Price (each) Stock
84791900 HEAT SHIELD UNDER PASSENGER SIDE FOOTREST $25.23 To Order
Photo Part No Description Price (each) Stock
84792000 HEAT SHIELD UNDER BRAKE PEDAL $61.86 To Order
Photo Part No Description Price (each) Stock
87343300 RH TUNNEL HEAT SHIELD $39.12 To Order
Photo Part No Description Price (each) Stock
87343200 LH TUNNEL HEAT SHIELD $39.12 To Order
Photo Part No Description Price (each) Stock
87812200 UPPER FIREWALL INSULATION $555.57 To Order
87742200 UPPER FIREWALL INSULATION $138.88 To Order
View All

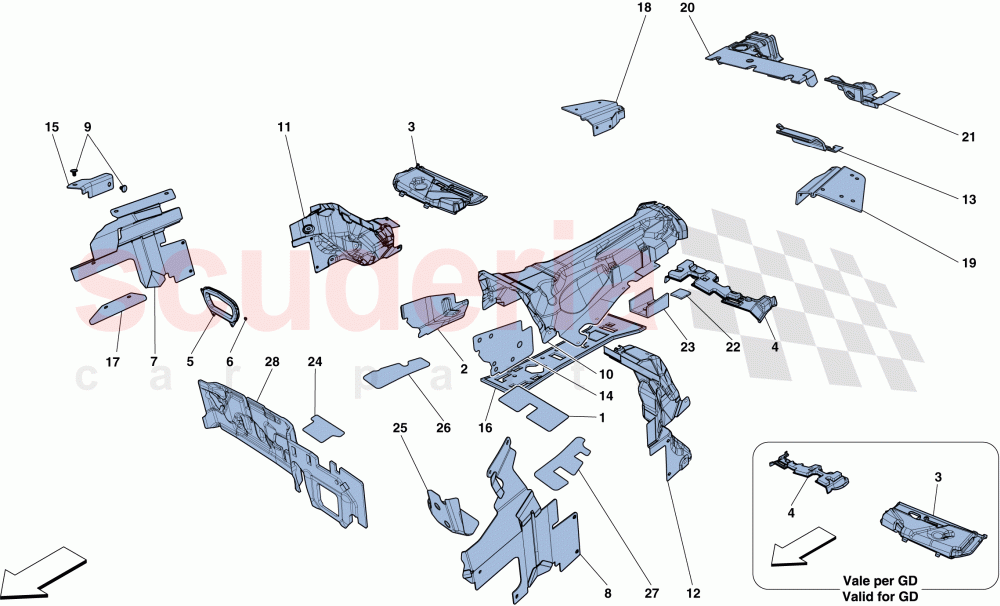

INSULATION of Ferrari Ferrari F12 TDF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 89351800
DRIVER SIDE UNDER-FOOTREST HEAT SHIELD
Applicable for GD 		$20.19 1
1 83918000
DRIVER SIDE UNDER-FOOTREST HEAT SHIELD
Not for GD 		$18.93 1
2 83918200
PASSENGER SIDE UNDER-FOOTREST HEAT SHIELD 		$60.59 1
3 84957100
LH UNDERDASHBOARD INSULATION
Applicable for GD 		$66.91 1
4 84957200
RH UNDERDASHBOARD INSULATION
Applicable for GD 		$66.91 1
4 84494200
LH UNDERDASHBOARD INSULATION
Not for GD 		$58.06 1
5 82971300
COMPL. HVAC UNIT SHIM 		$68.17 1
6 13046011
NUT 		$0.32 4
7 88332000
RH MANIFOLD HEAT SHIELD
Applicable for GD 		$744.99 1
7 87928600
RH MANIFOLD HEAT SHIELD
Not for GD 		$656.59 1
8 87805100
LH MANIFOLD HEAT SHIELD
Applicable for GD 		$719.72 1
8 87236500
LH MANIFOLD HEAT SHIELD
Not for GD 		$618.72 1
9 296823
BUTTON
Not for GD 		$0.12 2
10 85676300
COMPL. TUNNEL HEAT SHIELD 		$770.23 1
11 85078600
RH CATALYTIC CONVERTER HEAT SHIELD
Applicable for GD 		$1,111.17 1
11 85678300
RH CATALYTIC CONVERTER HEAT SHIELD
Not for GD 		$391.43 1
12 85078700
LH CATALYTIC CONVERTER HEAT SHIELD
Applicable for GD 		$1,111.17 1
12 85678400
LH CATALYTIC CONVERTER HEAT SHIELD
Not for GD 		$391.43 1
13 85058500
SERVICES TUB HEAT SHIELD 		$114.89 1
14 83918100
DRIVER SIDE TUNNEL HEAT SHIELD 		$60.59 1
15 295058
ANGULAR SHIELD
Not for GD 		$22.70 1
16 85277400
HEAT SHIELD UNDER CENTRE TUNNEL UNIT 		$146.22 1
17 85105900
LOWER RH MANIFOLD HEAT SHIELD 		$37.87 1
18 85027400
RH SILENCER HEAT SHIELD 		$164.14 1
19 85027500
LH SILENCER HEAT SHIELD 		$164.14 1
20 85052800
RH SERVICES TUB HEAT SHIELD 		$366.17 1
21 87661100
LH SERVICES TUB HEAT SHIELD 		$164.14 1
22 87378800
ECU COVER HEAT SHIELD 		$10.86 1
23 87379000
REAR CENTRE CONSOLE TUB HEAT SHIELD 		$26.50 1
24 84791900
HEAT SHIELD UNDER PASSENGER SIDE FOOTREST
Not for GD 		$25.23 1
25 84792000
HEAT SHIELD UNDER BRAKE PEDAL
Not for GD 		$61.86 1
26 87343300
RH TUNNEL HEAT SHIELD
Not for GD 		$39.12 1
27 87343200
LH TUNNEL HEAT SHIELD
Not for GD 		$39.12 1
28 87812200
UPPER FIREWALL INSULATION
Applicable for GD 		$555.57 1
28 87742200
UPPER FIREWALL INSULATION
Not for GD 		$138.88 1
