Ferrari F12 TDF - AC SYSTEM - WATER AND FREON

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
67635900 RH TGK VALVE $210.42 IN STOCK
Photo Part No Description Price (each) Stock
67444900 LH TGK VALVE $225.45 IN STOCK
Photo Part No Description Price (each) Stock
84066200 TGK VALVE MOUNTING BRACKET $93.15 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
291283 CLIP $0.50 IN STOCK
Photo Part No Description Price (each) Stock
252473 CLIP $1.52 To Order
Photo Part No Description Price (each) Stock
67933600 TGK VALVE FASTENER ROD $1.67 To Order
Photo Part No Description Price (each) Stock
748925 RUBBER CABLE GROMMET $2.38 To Order
Photo Part No Description Price (each) Stock
270905 PIPE FROM HEATER TO UPPER TGK VALVE $122.10 To Order
Photo Part No Description Price (each) Stock
270906 PIPE FROM HEATER TO LOWER TGK VALVE $125.88 To Order
Photo Part No Description Price (each) Stock
289620 CONNECTOR PIPE $36.50 To Order
Photo Part No Description Price (each) Stock
289040 PIPE FROM TGK TO ENGINE $188.83 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.38 IN STOCK
Photo Part No Description Price (each) Stock
270904 PIPE FROM PUMP TO AC UNIT $163.66 To Order
Photo Part No Description Price (each) Stock
271752 METAL PIPE TO PUMP $755.38 To Order
Photo Part No Description Price (each) Stock
267538 CONNECTOR PIPE $55.37 IN STOCK
Photo Part No Description Price (each) Stock
65460300 COMPLETE WATER PUMP $415.45 To Order
Photo Part No Description Price (each) Stock
107002 BRACKET WITH SHEATH $23.50 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
12620477 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
269331 BRACKET CLIP $5.77 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.52 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.09 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.30 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
260083 HOSE $39.01 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.38 IN STOCK
Photo Part No Description Price (each) Stock
268075 BRACKET ON PUMP MOUNTING FRAME $28.54 To Order
Photo Part No Description Price (each) Stock
289041 CONNECTOR PIPE $47.83 IN STOCK
Photo Part No Description Price (each) Stock
276753 PIPE FROM CONDENSER TO DISCONNECTOR UNION $188.83 To Order
Photo Part No Description Price (each) Stock
84362400 PIPE FROM COMPRESSOR TO DISCONNECTOR UNION $314.73 To Order
Photo Part No Description Price (each) Stock
276752 PIPE FROM DISCONNECTOR UNION TO CONDENSER $201.42 To Order
Photo Part No Description Price (each) Stock
83997200 FREON RETURN PIPE TO COMPRESSOR $402.87 To Order
Photo Part No Description Price (each) Stock
85616800 GAS PIPE $579.12 To Order
Photo Part No Description Price (each) Stock
10441390 BRACKET WITH SHEATH $0.53 IN STOCK
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.53 IN STOCK
Photo Part No Description Price (each) Stock
11568124 SCREW $0.80 IN STOCK
Photo Part No Description Price (each) Stock
85027800 BRACKET $285.58 To Order
Photo Part No Description Price (each) Stock
259508 CLIP $0.53 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
270938 TGK PIPE MOUNTING BRACKET $22.64 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.38 IN STOCK
Photo Part No Description Price (each) Stock
84513200 DELIVERY AND RETURN PIPE $931.64 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.30 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.80 IN STOCK
Photo Part No Description Price (each) Stock
178772 SPACER STUD $9.94 To Order
Photo Part No Description Price (each) Stock
14059211 NUT $0.06 IN STOCK
Photo Part No Description Price (each) Stock
84536000 HVAC SIDE DUCT DRAIN HOSE CONNECTOR $13.83 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.38 IN STOCK
Photo Part No Description Price (each) Stock
236847 TEMPERATURE SENSOR $79.76 ARRIVING SOON
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.38 IN STOCK
Photo Part No Description Price (each) Stock
67085400 O-RING AIR CONDITIONING $16.14 IN STOCK
View All

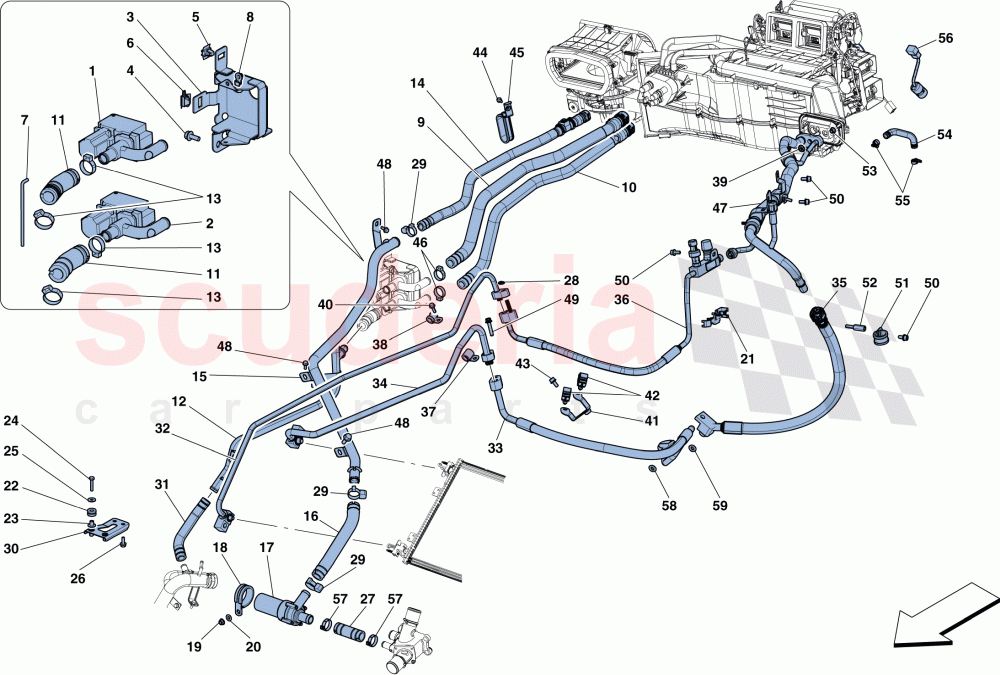

AC SYSTEM - WATER AND FREON of Ferrari Ferrari F12 TDF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 67635900
RH TGK VALVE
IN STOCK 		$210.42 (26.7% off) 1
2 67444900
LH TGK VALVE
IN STOCK 		$225.45 (21.7% off) 1
3 84066200
TGK VALVE MOUNTING BRACKET 		$93.15 1
4 86574700
SCREW
M6 X 16 		$0.61 3
5 291283
CLIP
IN STOCK 		$0.50 1
6 252473
CLIP 		$1.52 1
7 67933600
TGK VALVE FASTENER ROD 		$1.67 1
8 748925
RUBBER CABLE GROMMET 		$2.38 1
9 270905
PIPE FROM HEATER TO UPPER TGK VALVE 		$122.10 1
10 270906
PIPE FROM HEATER TO LOWER TGK VALVE 		$125.88 1
11 289620
CONNECTOR PIPE 		$36.50 2
12 289040
PIPE FROM TGK TO ENGINE 		$188.83 1
13 262111
JUBILEE CLAMP
IN STOCK 		$1.38 4
14 270904
PIPE FROM PUMP TO AC UNIT 		$163.66 1
15 271752
METAL PIPE TO PUMP 		$755.38 1
16 267538
CONNECTOR PIPE
IN STOCK 		$55.37 1
17 65460300
COMPLETE WATER PUMP 		$415.45 1
18 107002
BRACKET WITH SHEATH
IN STOCK 		$23.50 (33.6% off) 1
19 14059290
FLANGED NUT M6
IN STOCK 		$1.31 1
20 12620477
WASHER
IN STOCK 		$0.06 1
21 269331
BRACKET CLIP 		$5.77 1
22 812273
CABLE GROMMET 		$1.52 2
23 149707
SPACER 		$1.09 (37.7% off) 2
24 231620
SCREW
M6 X 30
IN STOCK 		$0.30 (14.3% off) 2
25 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
26 86574700
SCREW
M6 X 16 		$0.61 2
27 260083
HOSE 		$39.01 1
29 262111
JUBILEE CLAMP
IN STOCK 		$1.38 3
30 268075
BRACKET ON PUMP MOUNTING FRAME 		$28.54 1
31 289041
CONNECTOR PIPE
IN STOCK 		$47.83 1
32 276753
PIPE FROM CONDENSER TO DISCONNECTOR UNION 		$188.83 1
33 84362400
PIPE FROM COMPRESSOR TO DISCONNECTOR UNION 		$314.73 1
34 276752
PIPE FROM DISCONNECTOR UNION TO CONDENSER 		$201.42 1
35 83997200
FREON RETURN PIPE TO COMPRESSOR 		$402.87 1
36 85616800
GAS PIPE 		$579.12 1
37 10441390
BRACKET WITH SHEATH
D. 12
IN STOCK 		$0.53 1
38 10441290
BRACKET WITH SHEATH
D. 10
IN STOCK 		$0.53 (68.5% off) 1
40 11568124
SCREW
M5 X 16
IN STOCK 		$0.80 1
41 85027800
BRACKET 		$285.58 1
42 259508
CLIP
IN STOCK 		$0.53 2
43 248334
SCREW
M6 X 14
IN STOCK 		$0.58 1
44 86574700
SCREW
M6 X 16 		$0.61 1
45 270938
TGK PIPE MOUNTING BRACKET 		$22.64 1
46 262111
JUBILEE CLAMP
IN STOCK 		$1.38 2
47 84513200
DELIVERY AND RETURN PIPE 		$931.64 1
48 86574700
SCREW
M6 X 16 		$0.61 3
49 231620
SCREW
M6 X 30
IN STOCK 		$0.30 (14.3% off) 1
50 248334
SCREW
M6 X 14
IN STOCK 		$0.58 1
51 291225
P clip Bracket With Sheath
IN STOCK 		$4.80 1
52 178772
SPACER STUD 		$9.94 1
53 14059211
NUT
IN STOCK 		$0.06 2
54 84536000
HVAC SIDE DUCT DRAIN HOSE CONNECTOR 		$13.83 1
55 262111
JUBILEE CLAMP
IN STOCK 		$1.38 2
56 236847
TEMPERATURE SENSOR
ARRIVING SOON 		$79.76 (19.9% off) 1
57 262111
JUBILEE CLAMP
IN STOCK 		$1.38 2
58 67085400
O-RING AIR CONDITIONING
IN STOCK 		$16.14 (21.3% off) 1
