SECONDARY AIR SYSTEM of Ferrari Ferrari F12 Berlinetta

View All

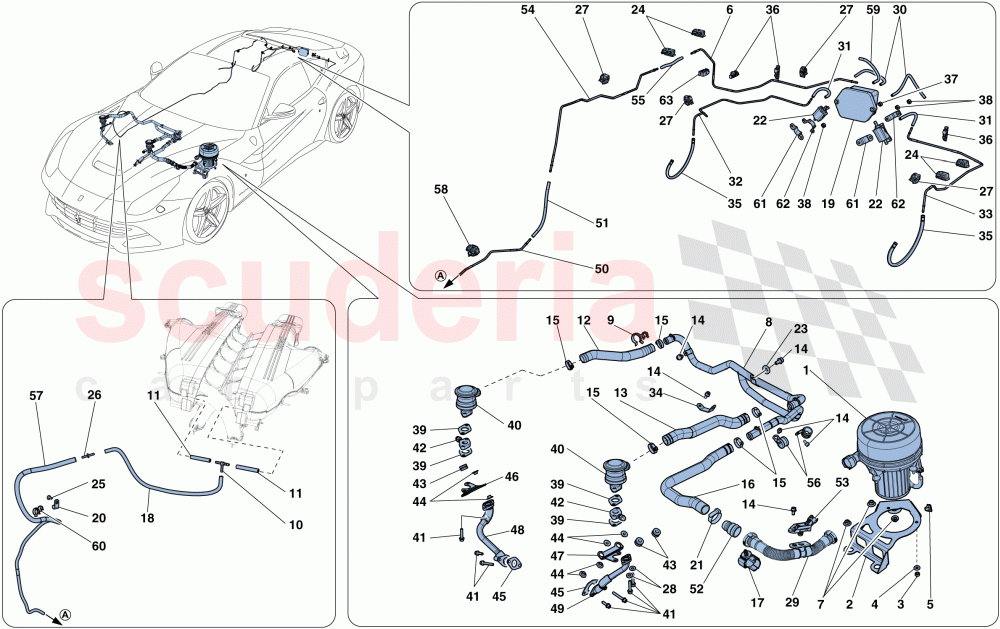

Ferrari F12 Berlinetta - SECONDARY AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

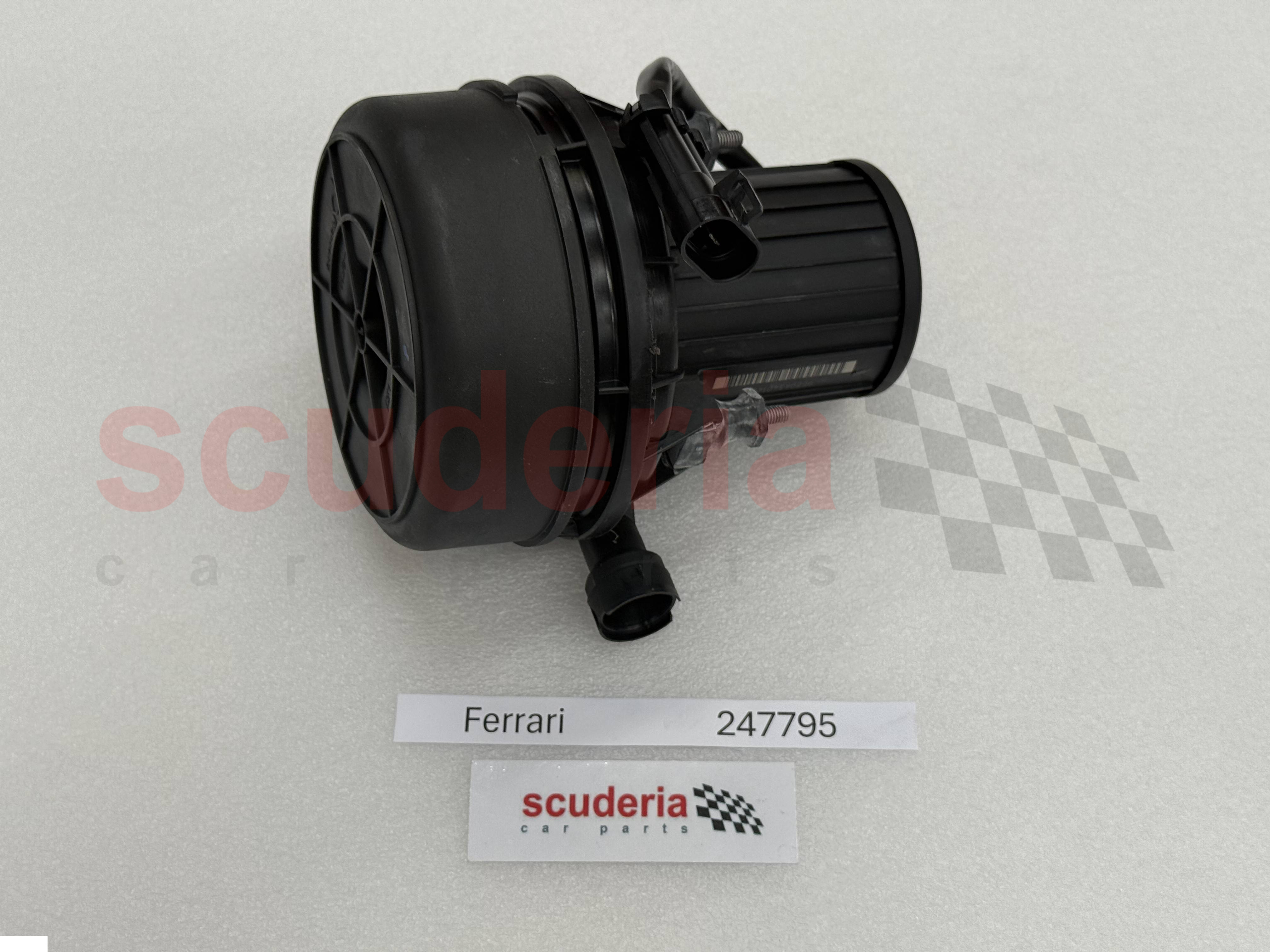

	247795	SECONDARY AIR SYSTEM PUMP	$759.31	To Order

Photo	Part No	Description	Price (each)	Stock
	272314	PUMP MOUNTING BRACKET	$81.21	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.33	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	11194674	WASHER	$0.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	291283	CLIP	$0.51	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	293314	RIGID PIPE	$63.16	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.33	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	289538	ALUMINIUM PIPE	$322.28	To Order

Photo	Part No	Description	Price (each)	Stock
	225165	CLIP	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	257691	3-WAY CONNECTOR	$1.37	To Order

Photo	Part No	Description	Price (each)	Stock
	169695	RUBBER PIPE	$5.14	To Order

Photo	Part No	Description	Price (each)	Stock
	279862	RH CONNECTOR PIPE	$103.11	To Order

Photo	Part No	Description	Price (each)	Stock
	274855	LH CONNECTOR PIPE	$110.86	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13128970	COLLAR	$1.47	To Order

Photo	Part No	Description	Price (each)	Stock
	279692	ENGINE SIDE SECONDARY AIR SYSTEM HOSE CONNECTOR	$657.46	To Order

Photo	Part No	Description	Price (each)	Stock
	82051100	CLIP	$0.86	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	124346	RUBBER PIPE	$6.82	To Order

Photo	Part No	Description	Price (each)	Stock
	198339	VACUUM ACCUMULATOR TANK	$48.86	To Order

Photo	Part No	Description	Price (each)	Stock
	10418501	BRACKET	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	178309	SOLENOID VALVE	$102.56	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	280281	CLIP	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	199696	BRAIDED CONNECTOR	$10.98	To Order

Photo	Part No	Description	Price (each)	Stock
	234285	CLIP	$0.62	IN STOCK
	234284	CLIP	$0.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	288959	SECONDARY AIR SYSTEM PIPE WITH SENSOR CARRIER	$183.26	To Order

Photo	Part No	Description	Price (each)	Stock
	168248	RUBBER PIPE	$34.79	To Order

Photo	Part No	Description	Price (each)	Stock
	294268	RUBBER PIPE	$19.31	To Order

Photo	Part No	Description	Price (each)	Stock
	281020	RIGID PIPE BETWEEN RH BYPASS FLEXIBLE HOSES	$56.71	To Order

Photo	Part No	Description	Price (each)	Stock
	269073	RIGID PIPE BETWEEN LH BYPASS FLEXIBLE HOSES	$54.13	To Order

Photo	Part No	Description	Price (each)	Stock
	289882	PIPE MOUNTING BRACKET	$8.89	To Order

Photo	Part No	Description	Price (each)	Stock
	339752	RUBBER PIPE	$25.76	To Order

Photo	Part No	Description	Price (each)	Stock
	190409	CLIP	$6.17	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.33	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.33	ARRIVING SOON
	11566227	SCREW	$1.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	186781	GASKET	$5.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	284235	SECONDARY AIR SYSTEM VALVE	$244.93	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK
	231619	SCREW	$0.29	IN STOCK
	231625	SCREW	$0.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	286011	SPACER ASSEMBLY	$43.83	To Order
	264020	SPACER ASSEMBLY	$65.73	To Order

Photo	Part No	Description	Price (each)	Stock
	177576	CABLE GROMMET	$2.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	819489	FLANGED BUSHING	$14.16	To Order

Photo	Part No	Description	Price (each)	Stock
	202980	GASKET	$2.98	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	258254	RH VALVE FASTENER BRACKET	$12.23	To Order

Photo	Part No	Description	Price (each)	Stock
	258252	LH VALVE FASTENER BRACKET	$12.23	To Order

Photo	Part No	Description	Price (each)	Stock
	256598	PIPE FROM AIR VALVE TO RH HEAD	$305.44	To Order

Photo	Part No	Description	Price (each)	Stock
	256596	PIPE FROM AIR VALVE TO LH HEAD	$296.49	To Order

Photo	Part No	Description	Price (each)	Stock
	284631	EMISSIONS CONTROL PIPE	$73.46	To Order

Photo	Part No	Description	Price (each)	Stock
	264088	RUBBER PIPE	$9.01	To Order

Photo	Part No	Description	Price (each)	Stock
	267093	COUPLING	$25.76	To Order

Photo	Part No	Description	Price (each)	Stock
	282849	PRESSURE SENSOR	$34.63	To Order

Photo	Part No	Description	Price (each)	Stock
	284629	RIGID PIPE	$74.76	To Order

Photo	Part No	Description	Price (each)	Stock
	168248	RUBBER PIPE	$34.79	To Order

Photo	Part No	Description	Price (each)	Stock
	10450690	BRACKET WITH SHEATH	$0.66	To Order

Photo	Part No	Description	Price (each)	Stock
	284622	CLIP	$1.64	To Order

Photo	Part No	Description	Price (each)	Stock
	255096	RUBBER PIPE	$9.78	To Order

Photo	Part No	Description	Price (each)	Stock
	150738	CLIP	$0.54	To Order

Photo	Part No	Description	Price (each)	Stock
	294259	SOLENOID VALVE MOUNTING BRACKET	$19.31	To Order

Photo	Part No	Description	Price (each)	Stock
	294260	SOLENOID VALVE MOUNTING BRACKET	$24.48	To Order

Photo	Part No	Description	Price (each)	Stock
	294206	CLIP	$4.98	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	247795	SECONDARY AIR SYSTEM PUMP	247795 SECONDARY AIR SYSTEM PUMP Applicable up to Ass. No. 108752	$759.31 MSRP: ~~1,054.04~~ (28% off)	1
2	272314	PUMP MOUNTING BRACKET	272314 PUMP MOUNTING BRACKET Applicable up to Ass. No. 108752	$81.21	1
3	14059290	FLANGED NUT M6 ARRIVING SOON	14059290 FLANGED NUT M6 Applicable up to Ass. No. 108752 ARRIVING SOON	$1.33	3
4	11194674	WASHER IN STOCK	11194674 WASHER Applicable up to Ass. No. 108752 IN STOCK	$0.43	3
5	291283	CLIP IN STOCK	291283 CLIP Applicable up to Ass. No. 108752 IN STOCK	$0.51	1
6	293314	RIGID PIPE	293314 RIGID PIPE Applicable up to Ass. No. 108752	$63.16	1
7	14059290	FLANGED NUT M6 ARRIVING SOON	14059290 FLANGED NUT M6 Applicable up to Ass. No. 108752 ARRIVING SOON	$1.33	3
8	289538	ALUMINIUM PIPE	289538 ALUMINIUM PIPE Applicable up to Ass. No. 108752	$322.28	1
9	225165	CLIP	225165 CLIP Applicable up to Ass. No. 108752	$0.34	1
10	257691	3-WAY CONNECTOR	257691 3-WAY CONNECTOR Applicable up to Ass. No. 108752	$1.37	1
11	169695	RUBBER PIPE	169695 RUBBER PIPE D. 3.5-8 X 55; Applicable up to Ass. No. 108752	$5.14	2
12	279862	RH CONNECTOR PIPE	279862 RH CONNECTOR PIPE Applicable up to Ass. No. 108752	$103.11	1
13	274855	LH CONNECTOR PIPE	274855 LH CONNECTOR PIPE Applicable up to Ass. No. 108752	$110.86	1
14	248334	SCREW IN STOCK	248334 SCREW M6 X 12; Applicable up to Ass. No. 108752 IN STOCK	$0.59	6
15	13128970	COLLAR	13128970 COLLAR Applicable up to Ass. No. 108752	$1.47	5
16	279692	ENGINE SIDE SECONDARY AIR SYSTEM HOSE CONNECTOR	279692 ENGINE SIDE SECONDARY AIR SYSTEM HOSE CONNECTOR Applicable up to Ass. No. 108752	$657.46	1
17	82051100	CLIP IN STOCK	82051100 CLIP Applicable up to Ass. No. 108752 IN STOCK	$0.86	1
18	124346	RUBBER PIPE	124346 RUBBER PIPE D. 3.5-8 X 380; Applicable up to Ass. No. 108752	$6.82	1
19	198339	VACUUM ACCUMULATOR TANK	198339 VACUUM ACCUMULATOR TANK Applicable up to Ass. No. 108752	$48.86	1
20	10418501	BRACKET	10418501 BRACKET Applicable up to Ass. No. 108752; No longer supplied	$2.92 MSRP: ~~5.89~~ (50.4% off)	1
22	178309	SOLENOID VALVE ARRIVING SOON	178309 SOLENOID VALVE Applicable up to Ass. No. 108752 ARRIVING SOON	$102.56 MSRP: ~~138.94~~ (26.2% off)	2
23	12643724	WASHER IN STOCK	12643724 WASHER Applicable up to Ass. No. 108752 IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	1
24	280281	CLIP	280281 CLIP 2 compartments; Applicable up to Ass. No. 108752	$1.30	4
25	11566224	SCREW ARRIVING SOON	11566224 SCREW M5 X 12; Applicable up to Ass. No. 108752; No longer supplied ARRIVING SOON	$0.34	1
26	199696	BRAIDED CONNECTOR	199696 BRAIDED CONNECTOR Applicable up to Ass. No. 108752	$10.98	1
27	234285	CLIP IN STOCK	234285 CLIP 2 compartments; Applicable up to Ass. No. 108752 IN STOCK	$0.62	1
27	234284	CLIP IN STOCK	234284 CLIP 1 compartment; Applicable up to Ass. No. 108752 IN STOCK	$0.57	4
28	11197774	WASHER IN STOCK	11197774 WASHER D. 6.40-12 X 0.5; Applicable up to Ass. No. 108752 IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	4
29	288959	SECONDARY AIR SYSTEM PIPE WITH SENSOR CARRIER	288959 SECONDARY AIR SYSTEM PIPE WITH SENSOR CARRIER Applicable up to Ass. No. 108752	$183.26	1
30	168248	RUBBER PIPE	168248 RUBBER PIPE From reservoir to valves; Applicable up to Ass. No. 108752	$34.79	2
31	294268	RUBBER PIPE	294268 RUBBER PIPE From valves to rigid pipes; Applicable up to Ass. No. 108752	$19.31	2
32	281020	RIGID PIPE BETWEEN RH BYPASS FLEXIBLE HOSES	281020 RIGID PIPE BETWEEN RH BYPASS FLEXIBLE HOSES Applicable up to Ass. No. 108752	$56.71	1
33	269073	RIGID PIPE BETWEEN LH BYPASS FLEXIBLE HOSES	269073 RIGID PIPE BETWEEN LH BYPASS FLEXIBLE HOSES Applicable up to Ass. No. 108752	$54.13	1
34	289882	PIPE MOUNTING BRACKET	289882 PIPE MOUNTING BRACKET Applicable up to Ass. No. 108752	$8.89	1
35	339752	RUBBER PIPE	339752 RUBBER PIPE D. 3.5-8 X 250; Applicable up to Ass. No. 108752	$25.76	2
36	190409	CLIP	190409 CLIP Applicable up to Ass. No. 108752	$6.17	3
37	14059290	FLANGED NUT M6 ARRIVING SOON	14059290 FLANGED NUT M6 Applicable up to Ass. No. 108752 ARRIVING SOON	$1.33	2
38	14059290	FLANGED NUT M6 ARRIVING SOON	14059290 FLANGED NUT M6 M5; Applicable up to Ass. No. 108752 ARRIVING SOON	$1.33	4
38	11566227	SCREW IN STOCK	11566227 SCREW M5 X 14; Applicable up to Ass. No. 108752; No longer supplied; Replaced by 14059111 IN STOCK	$1.16	4
39	186781	GASKET IN STOCK	186781 GASKET Applicable up to Ass. No. 108752 IN STOCK	$5.04 MSRP: ~~6.35~~ (20.6% off)	4
40	284235	SECONDARY AIR SYSTEM VALVE	284235 SECONDARY AIR SYSTEM VALVE Applicable up to Ass. No. 108752	$244.93	2
41	231620	SCREW IN STOCK	231620 SCREW Applicable up to Ass. No. 108752 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	4
41	231619	SCREW IN STOCK	231619 SCREW M6 X 20; Applicable up to Ass. No. 108752 IN STOCK	$0.29	2
41	231625	SCREW IN STOCK	231625 SCREW M6 X 40; Applicable up to Ass. No. 108752 IN STOCK	$0.57	2
42	286011	SPACER ASSEMBLY	286011 SPACER ASSEMBLY LH side; Applicable up to Ass. No. 108752	$43.83	1
42	264020	SPACER ASSEMBLY	264020 SPACER ASSEMBLY RH side; Applicable up to Ass. No. 108752	$65.73	1
43	177576	CABLE GROMMET IN STOCK	177576 CABLE GROMMET Applicable up to Ass. No. 108752 IN STOCK	$2.22	4
44	819489	FLANGED BUSHING	819489 FLANGED BUSHING Applicable up to Ass. No. 108752	$14.16	8
45	202980	GASKET IN STOCK	202980 GASKET Applicable up to Ass. No. 108752 IN STOCK	$2.98 MSRP: ~~3.74~~ (20.3% off)	2
46	258254	RH VALVE FASTENER BRACKET	258254 RH VALVE FASTENER BRACKET Applicable up to Ass. No. 108752	$12.23	1
47	258252	LH VALVE FASTENER BRACKET	258252 LH VALVE FASTENER BRACKET Applicable up to Ass. No. 108752	$12.23	1
48	256598	PIPE FROM AIR VALVE TO RH HEAD	256598 PIPE FROM AIR VALVE TO RH HEAD Applicable up to Ass. No. 108752	$305.44	1
49	256596	PIPE FROM AIR VALVE TO LH HEAD	256596 PIPE FROM AIR VALVE TO LH HEAD Applicable up to Ass. No. 108752	$296.49	1
50	284631	EMISSIONS CONTROL PIPE	284631 EMISSIONS CONTROL PIPE Applicable up to Ass. No. 108752	$73.46	1
51	264088	RUBBER PIPE	264088 RUBBER PIPE D. 3.5-8 X 185; Applicable up to Ass. No. 108752	$9.01	1
52	267093	COUPLING	267093 COUPLING Applicable up to Ass. No. 108752	$25.76	1
53	282849	PRESSURE SENSOR	282849 PRESSURE SENSOR Applicable up to Ass. No. 108752	$34.63	1
54	284629	RIGID PIPE	284629 RIGID PIPE Applicable up to Ass. No. 108752	$74.76	1
55	168248	RUBBER PIPE	168248 RUBBER PIPE Applicable up to Ass. No. 108752	$34.79	1
56	10450690	BRACKET WITH SHEATH	10450690 BRACKET WITH SHEATH Applicable up to Ass. No. 108752	$0.66 MSRP: ~~1.70~~ (61.2% off)	2
58	284622	CLIP	284622 CLIP 3 compartments; Applicable up to Ass. No. 108752	$1.64	2
59	255096	RUBBER PIPE	255096 RUBBER PIPE D. 3.5 X 140; Applicable up to Ass. No. 108752	$9.78	1
60	150738	CLIP	150738 CLIP Applicable up to Ass. No. 108752	$0.54	1
61	294259	SOLENOID VALVE MOUNTING BRACKET	294259 SOLENOID VALVE MOUNTING BRACKET Applicable up to Ass. No. 108752	$19.31	2
62	294260	SOLENOID VALVE MOUNTING BRACKET	294260 SOLENOID VALVE MOUNTING BRACKET Applicable up to Ass. No. 108752	$24.48	2
63	294206	CLIP	294206 CLIP 2 compartments; Applicable up to Ass. No. 108752	$4.98	2
