LUBRICATION SYSTEM: TANK of Ferrari Ferrari F12 Berlinetta

View All

Ferrari F12 Berlinetta - LUBRICATION SYSTEM: TANK

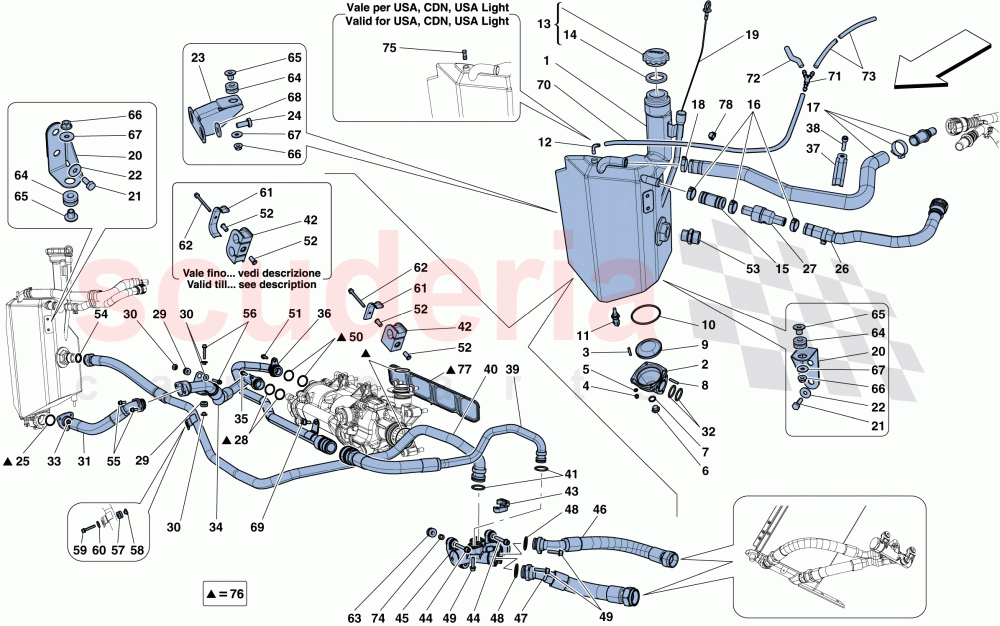

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	301436	ENGINE OIL TANK	$3,176.21	To Order
	279990	ENGINE OIL TANK	$3,806.38	To Order

Photo	Part No	Description	Price (each)	Stock
	210914	OIL TANK PICKUP	$532.52	To Order

Photo	Part No	Description	Price (each)	Stock
	11500524	STUD BOLT	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	293107	THREADED PLUG	$77.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10261460	COPPER WASHER 16 X 24 X 1.5	$0.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13541124	STUD BOLT	$20.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	100332	OIL PICKUP FILTER	$17.91	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	125521	O-RING	$10.57	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	$28.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	291502	CONNECTOR	$64.65	To Order
	290538	THREADED CONNECTOR	$64.65	To Order

Photo	Part No	Description	Price (each)	Stock
	180320	COPMLETE TANK PLUG	$636.24	To Order

Photo	Part No	Description	Price (each)	Stock
	180585	Oil Tank Cap Gasket	$89.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	257673	RUBBER PIPE	$109.02	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	SCREW CLAMP	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	279930	COMPL. VAPOUR ASPIRATOR PIPE	$950.95	To Order
	284102	COMPL. VAPOUR ASPIRATOR PIPE	$1,387.12	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	SCREW CLAMP	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	299675	DIPSTICK	$329.66	To Order
	299675	DIPSTICK	$329.66	To Order

Photo	Part No	Description	Price (each)	Stock
	269835	FASTENER BRACKET	$30.41	To Order

Photo	Part No	Description	Price (each)	Stock
	897538	SCREW	$1.53	To Order
	10902424	SCREW	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	290317	MOUNTING	$43.09	To Order

Photo	Part No	Description	Price (each)	Stock
	248471	SCREW	$0.93	To Order

Photo	Part No	Description	Price (each)	Stock
	284101	VAPOUR PIPE FROM VALVE TO HEADS	$126.78	To Order
	279933	VAPOUR PIPE FROM VALVE TO HEADS	$83.67	To Order

Photo	Part No	Description	Price (each)	Stock
	294255	CHECK VALVE	$292.12	To Order

Photo	Part No	Description	Price (each)	Stock
	104212	O-RING	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	240607	GROMMET	$5.24	To Order

Photo	Part No	Description	Price (each)	Stock
	819489	FLANGED BUSHING	$13.93	To Order

Photo	Part No	Description	Price (each)	Stock
	291099	OIL PIPE FROM PUMP TO RESERVOIR SIDE PICKUP	$494.48	To Order

Photo	Part No	Description	Price (each)	Stock
	104212	O-RING	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	293259	OIL PIPE FROM PUMP TO ENGINE PICKUP	$760.76	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	298265	OIL RETURN PIPE FROM ENGINE TO SECTION	$304.29	To Order

Photo	Part No	Description	Price (each)	Stock
	284099	BRACKET WITH SHEATH	$13.07	To Order
	279957	BRACKET WITH SHEATH	$20.28	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	289510	OIL RETURN PIPE FROM SECTION TO VALVE	$1,379.52	To Order

Photo	Part No	Description	Price (each)	Stock
	289509	OIL RETURN PIPE FROM VALVE TO RESERVOIR	$443.76	To Order

Photo	Part No	Description	Price (each)	Stock
	122791	O-RING	$2.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	289394	RUBBER PILLORY BLOCK	$950.95	To Order
	295108	RUBBER PILLORY BLOCK	$23.67	To Order

Photo	Part No	Description	Price (each)	Stock
	258945	PIPE RETAINER FORK	$24.07	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	288451	OIL DELIVERY PIPE	$380.36	To Order

Photo	Part No	Description	Price (each)	Stock
	287815	OIL RETURN PIPE	$355.01	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	122791	O-RING	$2.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	121903	O-RING	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	138150	CONNECTOR	$54.48	To Order

Photo	Part No	Description	Price (each)	Stock
	907923	DOWTY WASHER	$36.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231622	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	295109	PLATE	$6.76	To Order
	289849	PLATE	$12.66	To Order

Photo	Part No	Description	Price (each)	Stock
	255495	SCREW	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	267300	DAMPED MOUNT	$11.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	258855	3-WAY CONNECTOR	$40.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	169695	RUBBER PIPE	$5.06	To Order

Photo	Part No	Description	Price (each)	Stock
	118901	RUBBER PIPE	$5.73	To Order

Photo	Part No	Description	Price (each)	Stock
	295197	SPACER	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	14326101	THREADED PLUG	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	308330	OIL PUMP GASKET KIT	$34.47	To Order

Photo	Part No	Description	Price (each)	Stock
	275528	PUMP SEAL FILTER	$30.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248061	CLIP 10 X 3.8 BLACK	$1.93	IN STOCK

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	301436	ENGINE OIL TANK	301436 ENGINE OIL TANK Applicable from Ass. No. 112029	$3,176.21	1
1	279990	ENGINE OIL TANK	279990 ENGINE OIL TANK Applicable up to Ass. No. 112028	$3,806.38	1
2	210914	OIL TANK PICKUP	210914 OIL TANK PICKUP	$532.52 MSRP: ~~1,064.35~~ (50% off)	1
3	11500524	STUD BOLT	11500524 STUD BOLT	$0.34 MSRP: ~~1.00~~ (66% off)	4
4	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	4
5	11197774	WASHER IN STOCK	11197774 WASHER D. 6.40-12 X 0.5 IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	4
6	293107	THREADED PLUG IN STOCK	293107 THREADED PLUG IN STOCK	$77.74	1
7	10261460	COPPER WASHER 16 X 24 X 1.5 IN STOCK	10261460 COPPER WASHER 16 X 24 X 1.5 IN STOCK	$0.32 MSRP: ~~1.00~~ (68% off)	1
8	13541124	STUD BOLT IN STOCK	13541124 STUD BOLT IN STOCK	$20.29	3
9	100332	OIL PICKUP FILTER ARRIVING SOON	100332 OIL PICKUP FILTER ARRIVING SOON	$17.91	1
10	125521	O-RING	125521 O-RING	$10.57	1
11	180137	TEMPERATURE SENSOR IN STOCK	180137 TEMPERATURE SENSOR IN STOCK	$28.52 MSRP: ~~32.99~~ (13.5% off)	1
12	291502	CONNECTOR	291502 CONNECTOR Not for USA, CDN, USA LIGHT; No longer supplied; Replaced by 290538	$64.65	1
12	290538	THREADED CONNECTOR	290538 THREADED CONNECTOR Not for USA, CDN, USA LIGHT	$64.65	1
13	180320	COPMLETE TANK PLUG	180320 COPMLETE TANK PLUG	$636.24 MSRP: ~~822.01~~ (22.6% off)	1
14	180585	Oil Tank Cap Gasket IN STOCK	180585 Oil Tank Cap Gasket IN STOCK	$89.30 MSRP: ~~113.57~~ (21.4% off)	1
15	257673	RUBBER PIPE	257673 RUBBER PIPE	$109.02	1
16	262111	SCREW CLAMP	262111 SCREW CLAMP	$1.39	3
17	279930	COMPL. VAPOUR ASPIRATOR PIPE	279930 COMPL. VAPOUR ASPIRATOR PIPE Not for USA, CDN, USA LIGHT	$950.95	1
17	284102	COMPL. VAPOUR ASPIRATOR PIPE	284102 COMPL. VAPOUR ASPIRATOR PIPE Applicable for USA, CDN, USA LIGHT	$1,387.12	1
18	262111	SCREW CLAMP	262111 SCREW CLAMP	$1.39	1
19	299675	DIPSTICK	299675 DIPSTICK Applicable up to Ass. No. 112028	$329.66	1
19	299675	DIPSTICK	299675 DIPSTICK Applicable from Ass. No. 112029	$329.66	1
20	269835	FASTENER BRACKET	269835 FASTENER BRACKET	$30.41	2
21	897538	SCREW	897538 SCREW M6 X 14	$1.53	2
21	10902424	SCREW IN STOCK	10902424 SCREW M6 X 20 IN STOCK	$0.14 MSRP: ~~0.70~~ (80% off)	2
22	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	4
23	290317	MOUNTING	290317 MOUNTING Applicable up to Ass. No. 110676	$43.09	1
24	248471	SCREW	248471 SCREW M8 X 20; Applicable up to Ass. No. 110676	$0.93	2
25	862084	GASKET	862084 GASKET	$4.92	1
26	284101	VAPOUR PIPE FROM VALVE TO HEADS	284101 VAPOUR PIPE FROM VALVE TO HEADS Applicable for USA, CDN, USA LIGHT	$126.78	1
26	279933	VAPOUR PIPE FROM VALVE TO HEADS	279933 VAPOUR PIPE FROM VALVE TO HEADS Not for USA, CDN, USA LIGHT	$83.67	1
27	294255	CHECK VALVE	294255 CHECK VALVE	$292.12	1
28	104212	O-RING IN STOCK	104212 O-RING IN STOCK	$0.66 MSRP: ~~1.00~~ (34% off)	2
29	240607	GROMMET	240607 GROMMET	$5.24	2
30	819489	FLANGED BUSHING	819489 FLANGED BUSHING	$13.93	4
31	291099	OIL PIPE FROM PUMP TO RESERVOIR SIDE PICKUP	291099 OIL PIPE FROM PUMP TO RESERVOIR SIDE PICKUP	$494.48 MSRP: ~~712.55~~ (30.6% off)	1
32	104212	O-RING IN STOCK	104212 O-RING IN STOCK	$0.66 MSRP: ~~1.00~~ (34% off)	2
33	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	3
34	293259	OIL PIPE FROM PUMP TO ENGINE PICKUP	293259 OIL PIPE FROM PUMP TO ENGINE PICKUP	$760.76	1
35	231619	SCREW IN STOCK	231619 SCREW M6 X 22 IN STOCK	$0.29	1
36	298265	OIL RETURN PIPE FROM ENGINE TO SECTION	298265 OIL RETURN PIPE FROM ENGINE TO SECTION	$304.29 MSRP: ~~422.08~~ (27.9% off)	1
37	284099	BRACKET WITH SHEATH	284099 BRACKET WITH SHEATH Applicable for USA, CDN, USA LIGHT	$13.07	1
37	279957	BRACKET WITH SHEATH	279957 BRACKET WITH SHEATH Not for USA, CDN, USA LIGHT	$20.28	1
38	248334	SCREW IN STOCK	248334 SCREW M6 X 12 IN STOCK	$0.58	1
39	289510	OIL RETURN PIPE FROM SECTION TO VALVE	289510 OIL RETURN PIPE FROM SECTION TO VALVE	$1,379.52	1
40	289509	OIL RETURN PIPE FROM VALVE TO RESERVOIR	289509 OIL RETURN PIPE FROM VALVE TO RESERVOIR	$443.76 MSRP: ~~643.97~~ (31.1% off)	1
41	122791	O-RING IN STOCK	122791 O-RING IN STOCK	$2.13 MSRP: ~~2.17~~ (1.8% off)	2
42	289394	RUBBER PILLORY BLOCK	289394 RUBBER PILLORY BLOCK Applicable up to Ass. No. 109534	$950.95	1
42	295108	RUBBER PILLORY BLOCK	295108 RUBBER PILLORY BLOCK Applicable from Ass. No. 109535	$23.67	2
43	258945	PIPE RETAINER FORK	258945 PIPE RETAINER FORK	$24.07	1
44	231625	SCREW IN STOCK	231625 SCREW M6 X 50; Applicable for mounting 267300 IN STOCK	$0.57	3
46	288451	OIL DELIVERY PIPE	288451 OIL DELIVERY PIPE	$380.36 MSRP: ~~533.38~~ (28.7% off)	1
47	287815	OIL RETURN PIPE IN STOCK	287815 OIL RETURN PIPE IN STOCK	$355.01 MSRP: ~~504.93~~ (29.7% off)	1
48	122791	O-RING IN STOCK	122791 O-RING IN STOCK	$2.13 MSRP: ~~2.17~~ (1.8% off)	2
49	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	4
50	121903	O-RING IN STOCK	121903 O-RING IN STOCK	$0.70 MSRP: ~~1.95~~ (64.1% off)	2
51	231619	SCREW IN STOCK	231619 SCREW M6 X 22 IN STOCK	$0.29	1
53	138150	CONNECTOR	138150 CONNECTOR	$54.48	1
54	907923	DOWTY WASHER IN STOCK	907923 DOWTY WASHER IN STOCK	$36.15	1
55	248334	SCREW IN STOCK	248334 SCREW M6 X 16 IN STOCK	$0.58	1
56	231622	SCREW IN STOCK	231622 SCREW M6 X 35 IN STOCK	$0.34 MSRP: ~~0.50~~ (32% off)	2
57	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.53	1
58	149707	SPACER	149707 SPACER	$1.10 MSRP: ~~1.75~~ (37.1% off)	1
59	231625	SCREW IN STOCK	231625 SCREW M6 X 25 IN STOCK	$0.57	1
60	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	1
61	295109	PLATE	295109 PLATE Applicable from Ass. No. 109535	$6.76	2
61	289849	PLATE	289849 PLATE Applicable up to Ass. No. 109534	$12.66	1
62	255495	SCREW	255495 SCREW M6 X 65	$0.81	2
63	267300	DAMPED MOUNT IN STOCK	267300 DAMPED MOUNT IN STOCK	$11.15	1
64	812273	CABLE GROMMET	812273 CABLE GROMMET Q.ty 2 from Ass.ly No. 110677	$1.53	3
65	149707	SPACER	149707 SPACER Q.ty 2 from Ass.ly No. 110677	$1.10 MSRP: ~~1.75~~ (37.1% off)	3
66	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	3
67	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	3
68	12647021	WASHER IN STOCK	12647021 WASHER Applicable up to Ass. No. 110676 IN STOCK	$0.31	2
69	248334	SCREW IN STOCK	248334 SCREW M6 X 14 IN STOCK	$0.58	1
71	258855	3-WAY CONNECTOR IN STOCK	258855 3-WAY CONNECTOR Not for USA, CDN, USA LIGHT IN STOCK	$40.18	1
72	169695	RUBBER PIPE	169695 RUBBER PIPE D. 3.5-8 X 55; Not for USA, CDN, USA LIGHT	$5.06	1
73	118901	RUBBER PIPE	118901 RUBBER PIPE Not for USA, CDN, USA LIGHT	$5.73	1
74	295197	SPACER	295197 SPACER	$3.13	3
75	14326101	THREADED PLUG	14326101 THREADED PLUG Applicable for USA, CDN, USA LIGHT	$1.10 MSRP: ~~1.65~~ (33.3% off)	1
76	308330	OIL PUMP GASKET KIT	308330 OIL PUMP GASKET KIT	$34.47	1
77	275528	PUMP SEAL FILTER IN STOCK	275528 PUMP SEAL FILTER IN STOCK	$30.41	1
78	248061	CLIP 10 X 3.8 BLACK IN STOCK	248061 CLIP 10 X 3.8 BLACK IN STOCK	$1.93	1
