Name: EXHAUST SYSTEM
Rating: 5.0 (1 reviews)

View All

Ferrari Enzo - EXHAUST SYSTEM

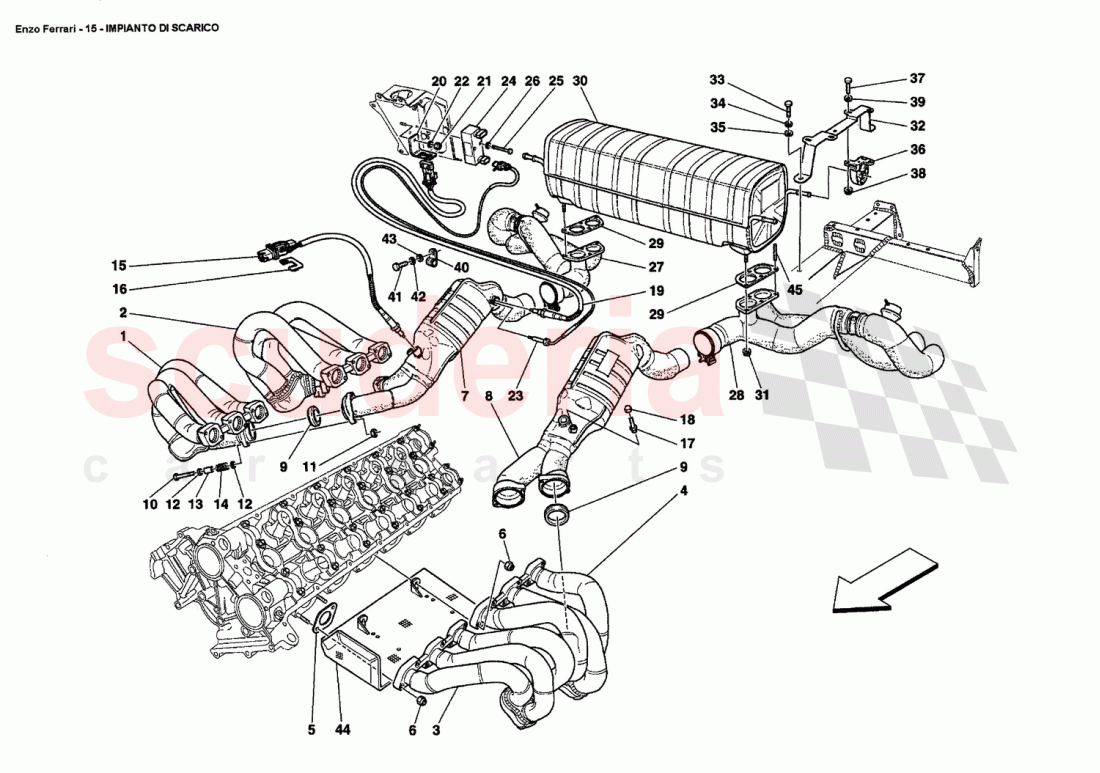

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	192662	R.H. FRONT EXHAUST MANIFOLD	$4,484.12	To Order

Photo	Part No	Description	Price (each)	Stock
	192663	R.H. REAR EXHAUST MANIFOLD	$4,484.12	To Order

Photo	Part No	Description	Price (each)	Stock
	192664	L.H. FRONT EXHAUST MANIFOLD	$4,484.12	To Order

Photo	Part No	Description	Price (each)	Stock
	192665	L.H. REAR EXHAUST MANIFOLD	$4,426.01	To Order

Photo	Part No	Description	Price (each)	Stock
	177006	GASKET	$127.34	To Order

Photo	Part No	Description	Price (each)	Stock

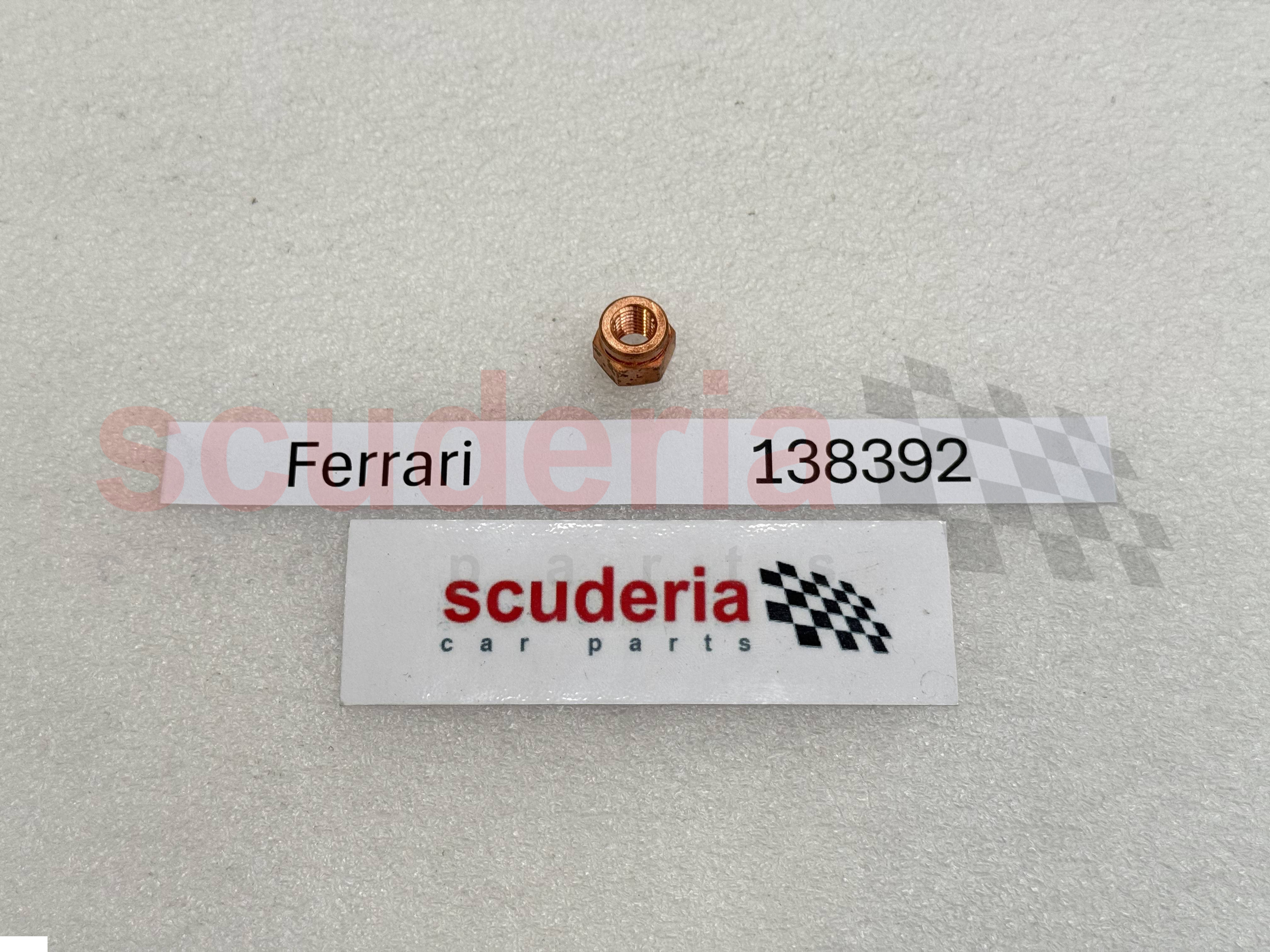

	138392	Exhaust Brass Locknut M8 x 1.25	$1.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	191669	R.H. CATALYST	$18,148.80	To Order

Photo	Part No	Description	Price (each)	Stock
	191670	L.H. CATALYST	$18,148.80	To Order

Photo	Part No	Description	Price (each)	Stock
	159914	EXHAUST RING GASKET D.60.5-71	$19.72	To Order

Photo	Part No	Description	Price (each)	Stock

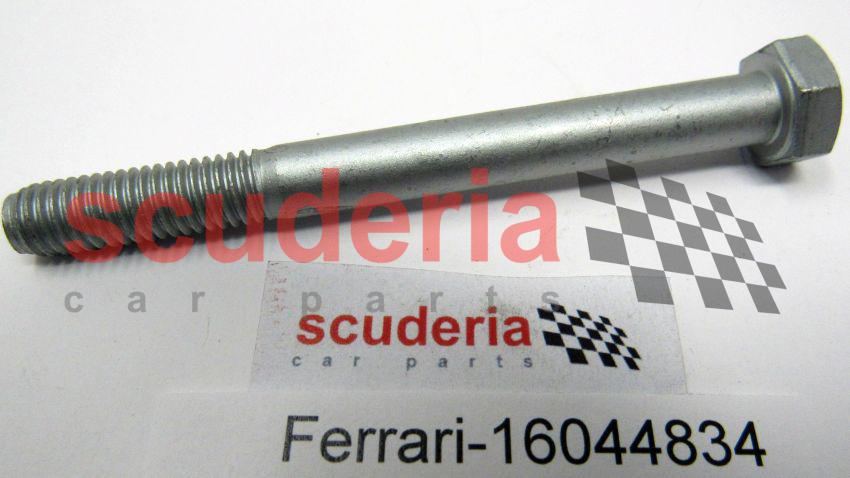

	16044834	BOLT M8 X 80	$0.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	114748	Nut	$13.93	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	263276	WASHER	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	114749	Spacer D8. 10 x 23	$3.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	111743	EXHAUST BRACKET SPRING	$38.37	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	182837	Front Lambda Sensor	$428.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	175856	CONNECTOR FASTENER BRACKET	$2.10	To Order

Photo	Part No	Description	Price (each)	Stock
	144240	THREADED CONNECTOR	$45.24	To Order

Photo	Part No	Description	Price (each)	Stock

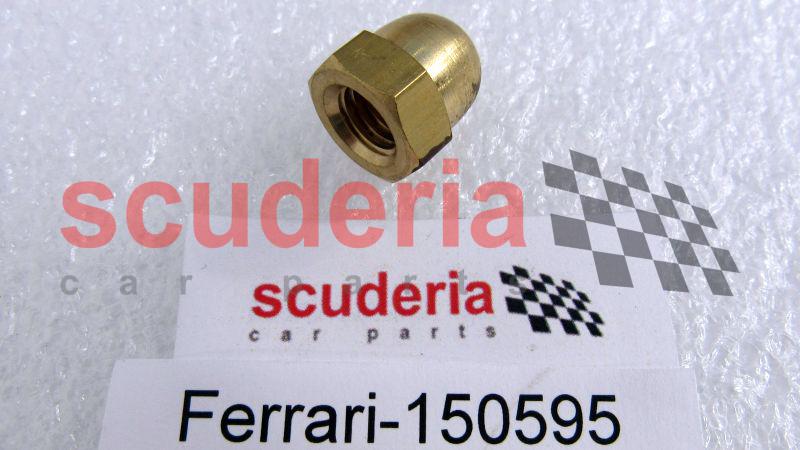

	150595	CAP NUT	$0.84	To Order

Photo	Part No	Description	Price (each)	Stock
	180915	Rear Lambda Sensor	$198.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	185408	BRACKET	$16.41	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER D.6.4 X 11.95 X 1.6	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock

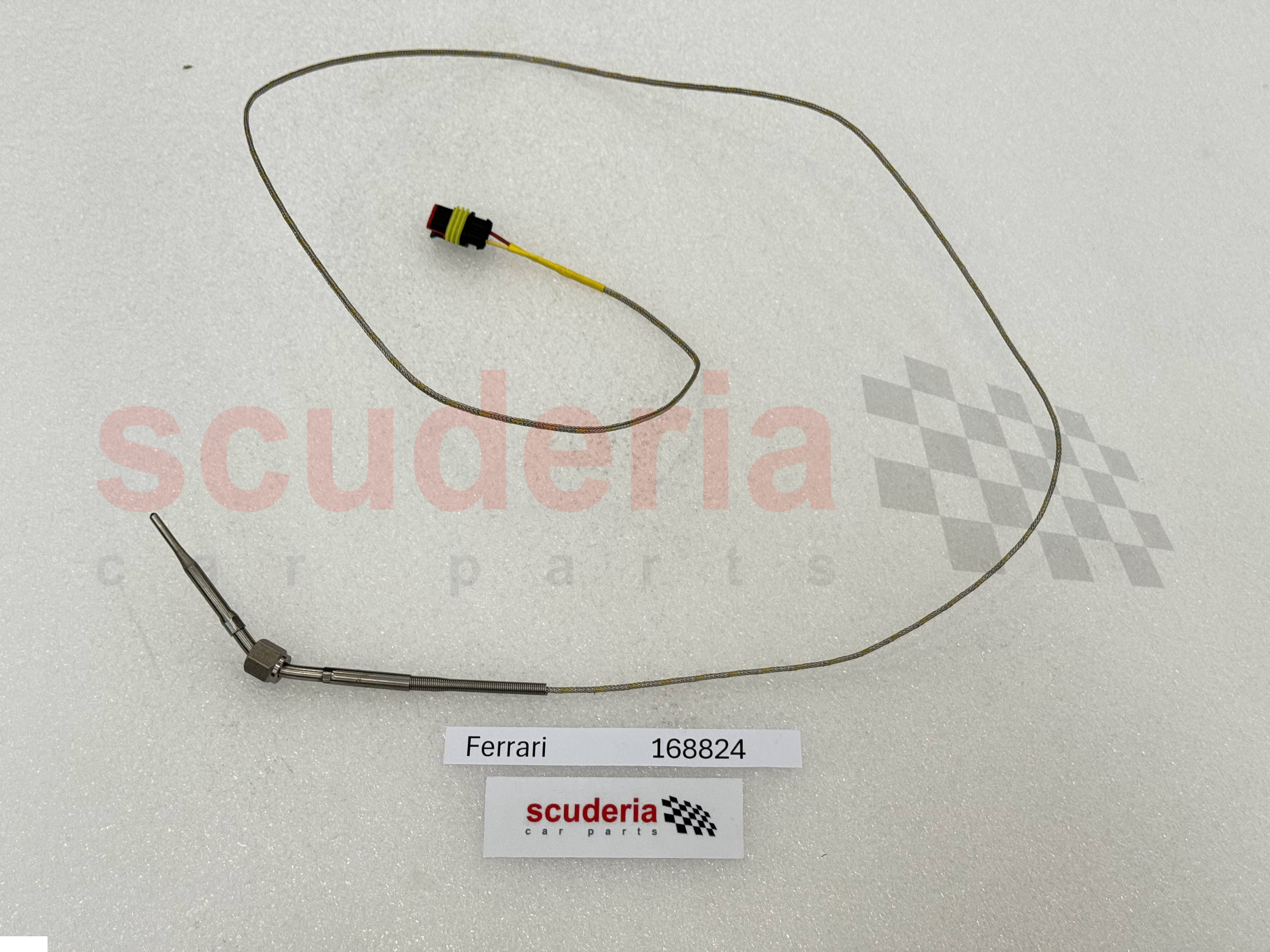

	168824	THERMOCOUPLE	$167.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	179278	CATALYTIC CONVERTER TEMPERATURE CONTROL ECU	$535.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15210824	SCREW	$0.20	To Order

Photo	Part No	Description	Price (each)	Stock
	10519224	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	191672	R.H. EXHAUST TERMINAL	$1,836.17	To Order

Photo	Part No	Description	Price (each)	Stock
	191673	L.H. EXHAUST TERMINAL	$2,053.36	To Order

Photo	Part No	Description	Price (each)	Stock
	177612	Exhaust Gasket	$92.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	191671	COMPLETE EXHAUST SILENCER	$11,714.99	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	FLANGED NUT M8 X 1.25	$0.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	187817	BRACKET	$466.97	To Order

Photo	Part No	Description	Price (each)	Stock
	14305587	SCREW	$0.27	To Order

Photo	Part No	Description	Price (each)	Stock
	11197777	WAVY WASHER D6.4-12 x 1.2	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12644477	WASHER	$0.30	To Order

Photo	Part No	Description	Price (each)	Stock
	199731	VIBRATION DAMPER MOUNTING	$64.79	To Order

Photo	Part No	Description	Price (each)	Stock
	14306587	Screw	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock

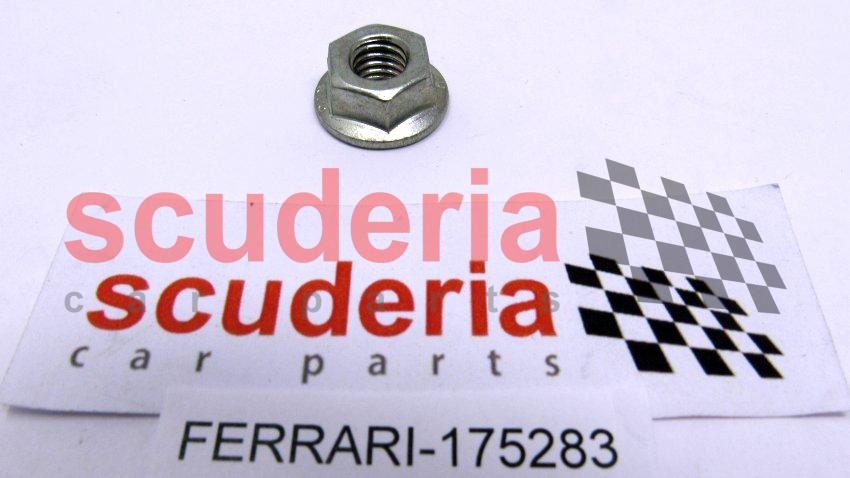

	175283	Nut	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12646678	WASHER	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW M6 X 16	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER D.6.4 X 11.95 X 1.6	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	195488	L.H. HEAT PROTECTION SHIELD	$437.44	To Order

Photo	Part No	Description	Price (each)	Stock

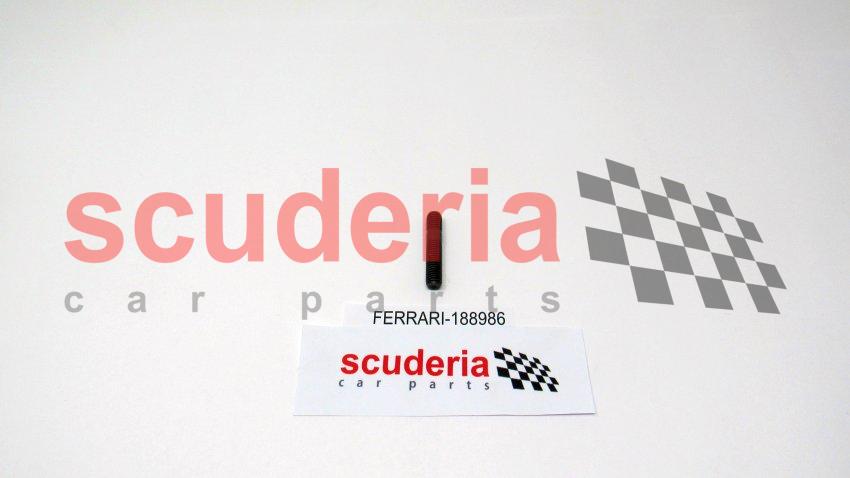

	188986	Stud	$49.70	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	195487	R.H. HEAT PROTECTION SHIELD	195487 R.H. HEAT PROTECTION SHIELD	$558.12	1
1	192662	R.H. FRONT EXHAUST MANIFOLD	192662 R.H. FRONT EXHAUST MANIFOLD MANIFOLD	$4,484.12	1
2	192663	R.H. REAR EXHAUST MANIFOLD	192663 R.H. REAR EXHAUST MANIFOLD	$4,484.12	1
3	192664	L.H. FRONT EXHAUST MANIFOLD	192664 L.H. FRONT EXHAUST MANIFOLD MANIFOLD	$4,484.12	1
4	192665	L.H. REAR EXHAUST MANIFOLD	192665 L.H. REAR EXHAUST MANIFOLD	$4,426.01	1
5	177006	GASKET	177006 GASKET	$127.34	12
6	138392	Exhaust Brass Locknut M8 x 1.25 IN STOCK	138392 Exhaust Brass Locknut M8 x 1.25 IN STOCK	$1.14 MSRP: ~~1.85~~ (38.4% off)	24
7	191669	R.H. CATALYST	191669 R.H. CATALYST	$18,148.80 MSRP: ~~22,711.36~~ (20.1% off)	1
8	191670	L.H. CATALYST	191670 L.H. CATALYST	$18,148.80 MSRP: ~~22,711.36~~ (20.1% off)	1
9	159914	EXHAUST RING GASKET D.60.5-71	159914 EXHAUST RING GASKET D.60.5-71	$19.72 MSRP: ~~32.78~~ (39.8% off)	4
10	16044834	BOLT M8 X 80 IN STOCK	16044834 BOLT M8 X 80 IN STOCK	$0.55 MSRP: ~~1.10~~ (50% off)	8
11	114748	Nut IN STOCK	114748 Nut IN STOCK	$13.93	8
12	263276	WASHER IN STOCK	263276 WASHER IN STOCK	$0.14	16
13	114749	Spacer D8. 10 x 23 IN STOCK	114749 Spacer D8. 10 x 23 IN STOCK	$3.31 MSRP: ~~4.85~~ (31.8% off)	8
14	111743	EXHAUST BRACKET SPRING IN STOCK	111743 EXHAUST BRACKET SPRING IN STOCK	$38.37	8
15	182837	Front Lambda Sensor IN STOCK	182837 Front Lambda Sensor IN STOCK	$428.23 MSRP: ~~484.52~~ (11.6% off)	2
16	175856	CONNECTOR FASTENER BRACKET	175856 CONNECTOR FASTENER BRACKET	$2.10	2
17	144240	THREADED CONNECTOR	144240 THREADED CONNECTOR	$45.24 MSRP: ~~85.50~~ (47.1% off)	2
18	150595	CAP NUT	150595 CAP NUT	$0.84 MSRP: ~~1.50~~ (44% off)	2
19	180915	Rear Lambda Sensor IN STOCK	180915 Rear Lambda Sensor IN STOCK	$198.43	2
20	185408	BRACKET	185408 BRACKET	$16.41	2
21	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	1
22	10519424	WASHER D.6.4 X 11.95 X 1.6 IN STOCK	10519424 WASHER D.6.4 X 11.95 X 1.6 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	1
23	168824	THERMOCOUPLE IN STOCK	168824 THERMOCOUPLE IN STOCK	$167.11 MSRP: ~~316.09~~ (47.1% off)	2
24	179278	CATALYTIC CONVERTER TEMPERATURE CONTROL ECU IN STOCK	179278 CATALYTIC CONVERTER TEMPERATURE CONTROL ECU CONTROL STATION IN STOCK	$535.28 MSRP: ~~610.34~~ (12.3% off)	2
25	15210824	SCREW	15210824 SCREW	$0.20	4
26	10519224	WASHER IN STOCK	10519224 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	4
27	191672	R.H. EXHAUST TERMINAL	191672 R.H. EXHAUST TERMINAL	$1,836.17	1
28	191673	L.H. EXHAUST TERMINAL	191673 L.H. EXHAUST TERMINAL	$2,053.36	1
29	177612	Exhaust Gasket IN STOCK	177612 Exhaust Gasket IN STOCK	$92.11	2
30	191671	COMPLETE EXHAUST SILENCER	191671 COMPLETE EXHAUST SILENCER	$11,714.99	1
31	14059311	FLANGED NUT M8 X 1.25 IN STOCK	14059311 FLANGED NUT M8 X 1.25 IN STOCK	$0.24 MSRP: ~~0.50~~ (52% off)	8
32	187817	BRACKET	187817 BRACKET	$466.97	2
33	14305587	SCREW	14305587 SCREW	$0.27	6
34	11197777	WAVY WASHER D6.4-12 x 1.2 IN STOCK	11197777 WAVY WASHER D6.4-12 x 1.2 IN STOCK	$0.14	6
35	12644477	WASHER	12644477 WASHER	$0.30	6
36	199731	VIBRATION DAMPER MOUNTING	199731 VIBRATION DAMPER MOUNTING	$64.79	4
37	14306587	Screw	14306587 Screw	$0.61	8
38	175283	Nut IN STOCK	175283 Nut IN STOCK	$0.66	8
39	12646678	WASHER	12646678 WASHER	$0.67	8
40	10441290	BRACKET WITH SHEATH IN STOCK	10441290 BRACKET WITH SHEATH IN STOCK	$0.53 MSRP: ~~1.68~~ (68.5% off)	6
41	10902224	SCREW M6 X 16 IN STOCK	10902224 SCREW M6 X 16 IN STOCK	$0.06 MSRP: ~~0.45~~ (86.7% off)	6
42	10519424	WASHER D.6.4 X 11.95 X 1.6 IN STOCK	10519424 WASHER D.6.4 X 11.95 X 1.6 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	6
43	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	6
44	195488	L.H. HEAT PROTECTION SHIELD	195488 L.H. HEAT PROTECTION SHIELD	$437.44	1
45	188986	Stud IN STOCK	188986 Stud IN STOCK	$49.70 MSRP: ~~52.05~~ (4.5% off)	8

Exhaust System

Ferrari Enzo

Ferrari Enzo - EXHAUST SYSTEM
