Name: STEERING BOX PIPES
Rating: 5.0 (1 reviews)

STEERING BOX PIPES of Ferrari Ferrari Daytona SP3 USA

View All

Ferrari Daytona SP3 USA - STEERING BOX PIPES

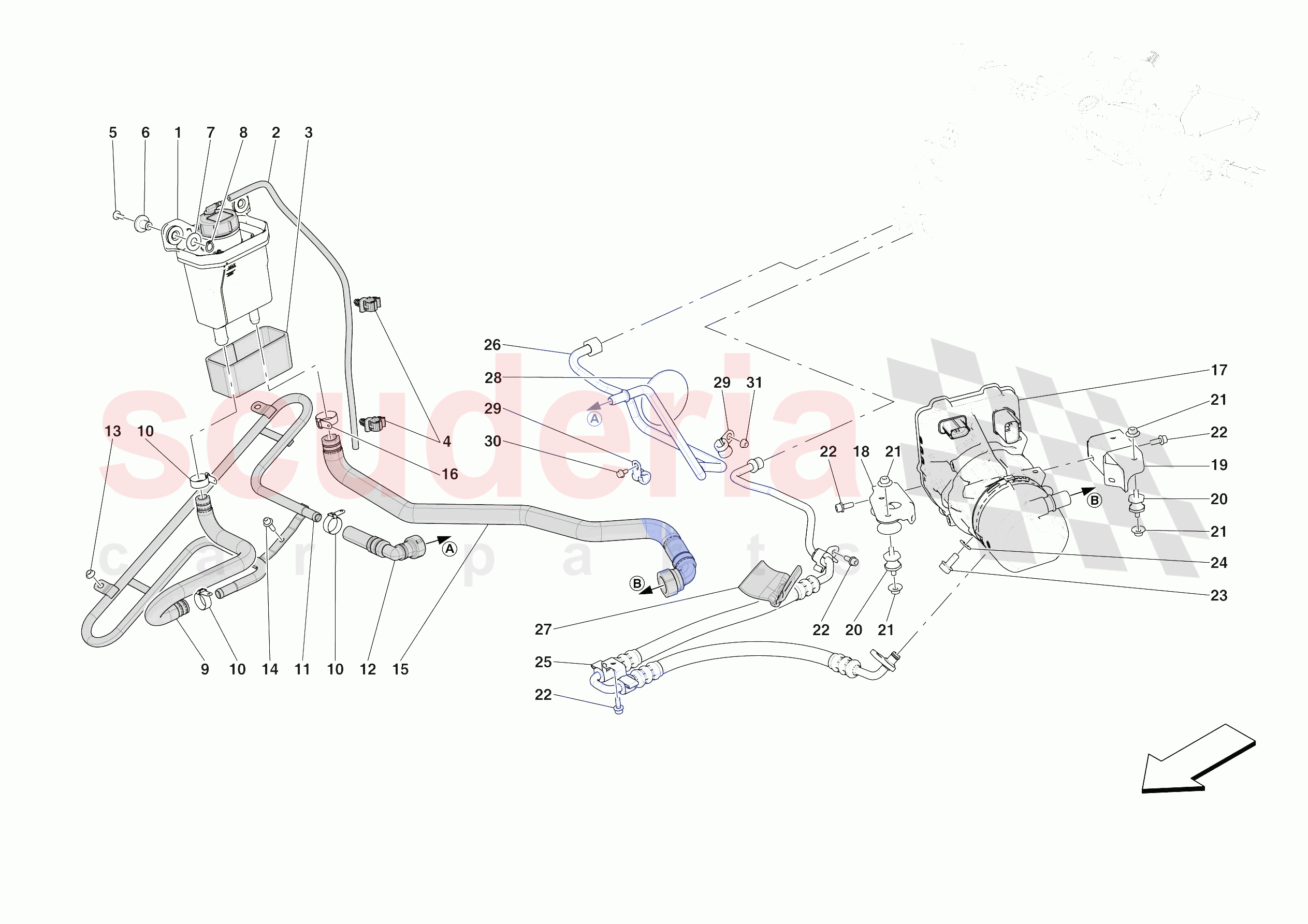

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	292342	COMPL. POWER STEERING FLUID RESERVOIR	$74.19	To Order

Photo	Part No	Description	Price (each)	Stock
	122126	RUBBER PIPE	$9.94	To Order

Photo	Part No	Description	Price (each)	Stock
	303090	FOAM	$3.61	To Order

Photo	Part No	Description	Price (each)	Stock
	250318	SNAP CLIP	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	303591	SEEGER RING	$20.11	To Order

Photo	Part No	Description	Price (each)	Stock
	303594	SEAL RING	$13.82	To Order

Photo	Part No	Description	Price (each)	Stock
	11065976	SEEGER RING	$0.20	To Order

Photo	Part No	Description	Price (each)	Stock
	871102	PIPE FROM COIL TO POWER STEERING FLUID RESERVOIR	$94.32	To Order

Photo	Part No	Description	Price (each)	Stock
	262108	SCREW COLLAR	$1.52	To Order

Photo	Part No	Description	Price (each)	Stock
	325634	POWER STEERING FLUID COOLING COIL	$389.91	To Order

Photo	Part No	Description	Price (each)	Stock
	330953	RUBBER PIPE FROM COIL QUICK CONNECTOR	$75.45	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	871103	PIPE FROM RESERVOIR TO POWER STEERING PUMP	$141.14	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	SCREW CLAMP	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	893739	EPHS STEERING PUMP	$11,113.89	To Order

Photo	Part No	Description	Price (each)	Stock
	288801	FRONT POWER STEERING PUMP BRACKET	$50.30	To Order

Photo	Part No	Description	Price (each)	Stock
	945386	REAR POWER STEERING PUMP BRACKET	$86.76	To Order

Photo	Part No	Description	Price (each)	Stock
	284347	POWER STEERING PUMP DAMPER MOUNT	$18.85	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16297924	SCREW	$1.33	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER D.8.4 X 17 X 1.6	$0.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	871101	PIPE FROM PUMP TO FIREWALL DISCONNECTOR	$641.46	To Order

Photo	Part No	Description	Price (each)	Stock
	871100	PIPE FROM FIREWALL DISCONNECTOR TO COIL	$352.17	To Order

Photo	Part No	Description	Price (each)	Stock
	159147	RUBBER SHIM	$0.77	To Order

Photo	Part No	Description	Price (each)	Stock
	953350	CIRCULAR PLUG	$3.14	To Order

Photo	Part No	Description	Price (each)	Stock
	10450290	BRACKET WITH SHEATH	$3.69	To Order

Photo	Part No	Description	Price (each)	Stock
	16284934	FLANGED SCREW	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	204777	CLIP	$0.68	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	292342	COMPL. POWER STEERING FLUID RESERVOIR	292342 COMPL. POWER STEERING FLUID RESERVOIR	$74.19 MSRP: ~~115.29~~ (35.6% off)	1
0002	122126	RUBBER PIPE	122126 RUBBER PIPE	$9.94	1
0003	303090	FOAM	303090 FOAM	$3.61	1
0004	250318	SNAP CLIP IN STOCK	250318 SNAP CLIP IN STOCK	$0.21	2
0005	11566224	SCREW IN STOCK	11566224 SCREW M5 X 14 IN STOCK	$0.33	2
0006	303591	SEEGER RING	303591 SEEGER RING	$20.11	2
0007	303594	SEAL RING	303594 SEAL RING	$13.82	2
0008	11065976	SEEGER RING	11065976 SEEGER RING D. 10	$0.20	2
0009	871102	PIPE FROM COIL TO POWER STEERING FLUID RESERVOIR	871102 PIPE FROM COIL TO POWER STEERING FLUID RESERVOIR	$94.32	1
0010	262108	SCREW COLLAR	262108 SCREW COLLAR	$1.52	3
0011	325634	POWER STEERING FLUID COOLING COIL	325634 POWER STEERING FLUID COOLING COIL	$389.91	1
0012	330953	RUBBER PIPE FROM COIL QUICK CONNECTOR	330953 RUBBER PIPE FROM COIL QUICK CONNECTOR	$75.45	1
0013	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.30	2
0014	11566224	SCREW IN STOCK	11566224 SCREW M5 X 16 IN STOCK	$0.33	1
0015	871103	PIPE FROM RESERVOIR TO POWER STEERING PUMP	871103 PIPE FROM RESERVOIR TO POWER STEERING PUMP	$141.14	1
0016	262111	SCREW CLAMP	262111 SCREW CLAMP D.17 - 25	$1.38	1
0017	893739	EPHS STEERING PUMP	893739 EPHS STEERING PUMP	$11,113.89	1
0018	288801	FRONT POWER STEERING PUMP BRACKET	288801 FRONT POWER STEERING PUMP BRACKET	$50.30	1
0019	945386	REAR POWER STEERING PUMP BRACKET	945386 REAR POWER STEERING PUMP BRACKET	$86.76	1
0020	284347	POWER STEERING PUMP DAMPER MOUNT	284347 POWER STEERING PUMP DAMPER MOUNT	$18.85	4
0021	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.30	6
0022	248334	SCREW IN STOCK	248334 SCREW M6 X 16 IN STOCK	$0.58	6
0023	16297924	SCREW	16297924 SCREW	$1.33	1
0024	14496524	WASHER D.8.4 X 17 X 1.6 IN STOCK	14496524 WASHER D.8.4 X 17 X 1.6 IN STOCK	$0.11 MSRP: ~~1.50~~ (92.7% off)	1
0025	871101	PIPE FROM PUMP TO FIREWALL DISCONNECTOR	871101 PIPE FROM PUMP TO FIREWALL DISCONNECTOR	$641.46	1
0026	871100	PIPE FROM FIREWALL DISCONNECTOR TO COIL	871100 PIPE FROM FIREWALL DISCONNECTOR TO COIL	$352.17	1
0027	159147	RUBBER SHIM	159147 RUBBER SHIM 100 X 50 X 4 mm	$0.77	1
0028	953350	CIRCULAR PLUG	953350 CIRCULAR PLUG	$3.14	1
0029	10450290	BRACKET WITH SHEATH	10450290 BRACKET WITH SHEATH	$3.69	2
0030	16284934	FLANGED SCREW IN STOCK	16284934 FLANGED SCREW M5 X 10 IN STOCK	$0.70	1
0031	204777	CLIP	204777 CLIP 1 compartment-	$0.68	1

Steering Box Pipes

Ferrari Daytona SP3 USA
