Oil Pipes And Engine Oil Level Sensor

Ferrari Daytona SP3 USA

Find Your Part

Ferrari Daytona SP3 USA - OIL PIPES AND ENGINE OIL LEVEL SENSOR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
316675 COMPL. OIL THERMOSTAT $946.37 To Order
Photo Part No Description Price (each) Stock
311723 ENGINE OIL PIPE RETAINER FORK $95.88 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.30 IN STOCK
Photo Part No Description Price (each) Stock
231625 SCREW $0.56 IN STOCK
Photo Part No Description Price (each) Stock
858498 OIL DELIVERY Y-PIPE $1,366.56 To Order
Photo Part No Description Price (each) Stock
858497 OIL RETURN Y-PIPE $1,429.66 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
122791 O-RING $2.12 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
858538 OIL PIPE FROM THERMOSTAT TO TANK $757.09 To Order
Photo Part No Description Price (each) Stock
858534 OIL PIPE FROM PUMP TO THERMOSTAT $820.18 To Order
Photo Part No Description Price (each) Stock
283147 RETAINER FORK $52.99 To Order
Photo Part No Description Price (each) Stock
121903 O-RING $0.70 IN STOCK
Photo Part No Description Price (each) Stock
104212 O-RING $0.65 IN STOCK
Photo Part No Description Price (each) Stock
315530 RETAINER BLOCK $45.41 To Order
Photo Part No Description Price (each) Stock
315540 RETAINER BLOCK FASTENER PLATE $26.48 To Order
Photo Part No Description Price (each) Stock
304075 BUSH $5.46 To Order
Photo Part No Description Price (each) Stock
255495 SCREW $0.81 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.81 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
315529 RETAINER BLOCK $45.41 To Order
Photo Part No Description Price (each) Stock
315539 RETAINER BLOCK FASTENER PLATE $25.22 To Order
Photo Part No Description Price (each) Stock
315649 FLANGED BUSHING $3.87 To Order
Photo Part No Description Price (each) Stock
858479 OIL PIPE FROM RANK TO PUMP $1,022.07 To Order
Photo Part No Description Price (each) Stock
101044 O-RING $1.51 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
763987 COMPL. HEAT EXCHANGER WATER DELIVERY PIPE $365.92 To Order
Photo Part No Description Price (each) Stock
903856 COMPL. HEAT EXCHANGER WATER RETURN PIPE $391.16 To Order
Photo Part No Description Price (each) Stock
772665 COMPL. RIGID PIPE $252.35 To Order
Photo Part No Description Price (each) Stock
306692 CLIP SET $0.50 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.38 To Order
Photo Part No Description Price (each) Stock
250888 GASKET $0.64 To Order
Photo Part No Description Price (each) Stock
826348 COMPL. HEAT EXCHANGER WATER PIPE BRACKET $30.27 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.38 To Order
Photo Part No Description Price (each) Stock
341672 SPACER $4.79 To Order
Photo Part No Description Price (each) Stock
267300 DAMPED MOUNT $11.09 IN STOCK
View All

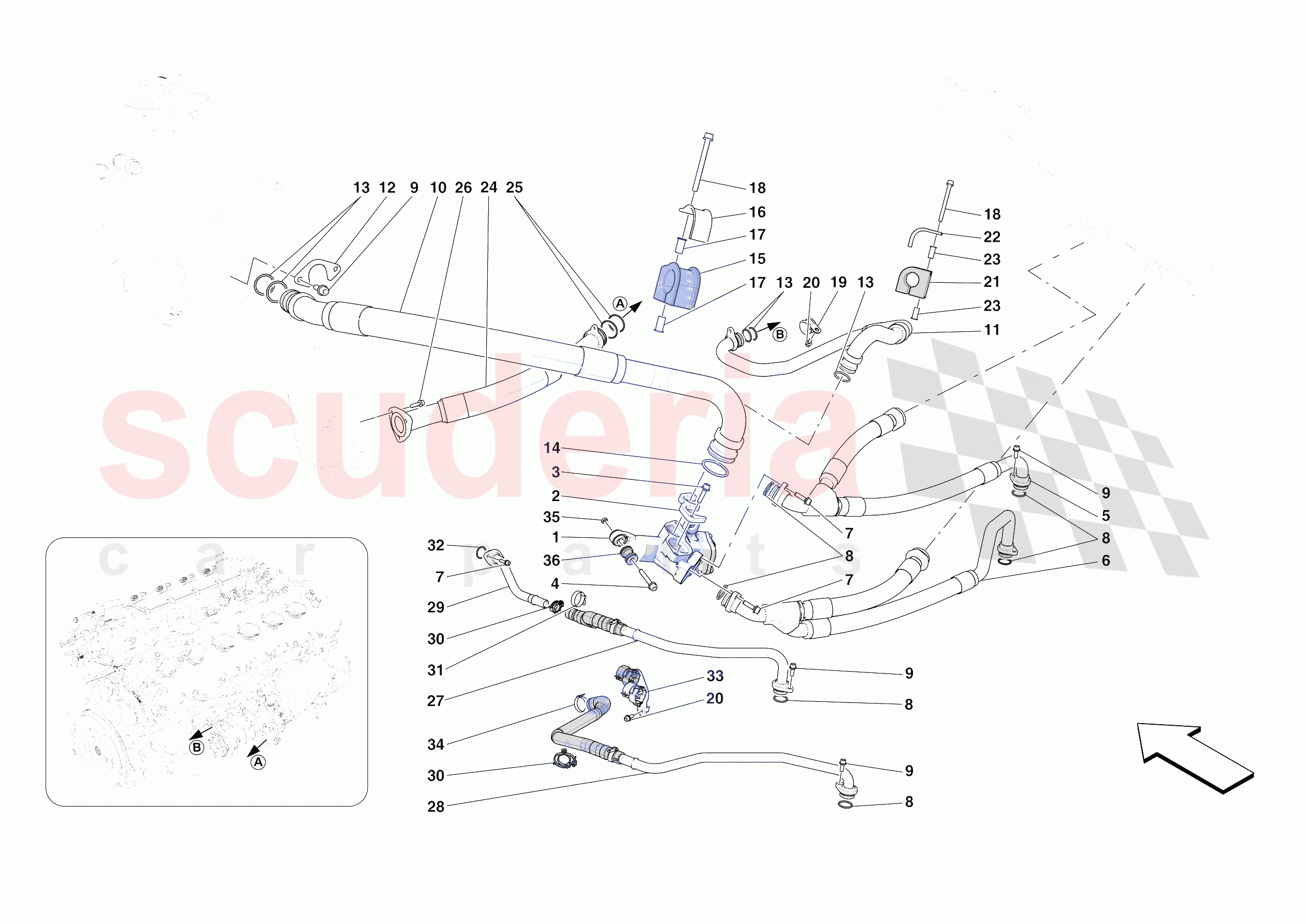

OIL PIPES AND ENGINE OIL LEVEL SENSOR of Ferrari Ferrari Daytona SP3 USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 316675
COMPL. OIL THERMOSTAT 		$946.37 1
0002 311723
ENGINE OIL PIPE RETAINER FORK 		$95.88 1
0003 231620
SCREW
M6 X 25
IN STOCK 		$0.30 (14.3% off) 2
0004 231625
SCREW
L. 40 mm
IN STOCK 		$0.56 3
0005 858498
OIL DELIVERY Y-PIPE 		$1,366.56 1
0006 858497
OIL RETURN Y-PIPE 		$1,429.66 1
0007 231619
SCREW
M6 X 22
IN STOCK 		$0.29 7
0008 122791
O-RING
IN STOCK 		$2.12 (2.3% off) 6
0009 231619
SCREW
M6 X 18
IN STOCK 		$0.29 6
0010 858538
OIL PIPE FROM THERMOSTAT TO TANK 		$757.09 1
0011 858534
OIL PIPE FROM PUMP TO THERMOSTAT 		$820.18 1
0012 283147
RETAINER FORK 		$52.99 1
0013 121903
O-RING
IN STOCK 		$0.70 (64.1% off) 5
0014 104212
O-RING
IN STOCK 		$0.65 (35% off) 1
0015 315530
RETAINER BLOCK 		$45.41 1
0016 315540
RETAINER BLOCK FASTENER PLATE 		$26.48 1
0017 304075
BUSH 		$5.46 2
0018 255495
SCREW
M6 X 65 		$0.81 2
0019 291225
P clip Bracket With Sheath
IN STOCK 		$4.81 1
0020 248334
SCREW
M6 X 16
IN STOCK 		$0.58 2
0021 315529
RETAINER BLOCK 		$45.41 1
0022 315539
RETAINER BLOCK FASTENER PLATE 		$25.22 1
0023 315649
FLANGED BUSHING 		$3.87 2
0024 858479
OIL PIPE FROM RANK TO PUMP 		$1,022.07 1
0025 101044
O-RING
IN STOCK 		$1.51 (59.2% off) 2
0026 231619
SCREW
M6 X 20
IN STOCK 		$0.29 3
0027 763987
COMPL. HEAT EXCHANGER WATER DELIVERY PIPE 		$365.92 1
0028 903856
COMPL. HEAT EXCHANGER WATER RETURN PIPE 		$391.16 1
0029 772665
COMPL. RIGID PIPE 		$252.35 1
0030 306692
CLIP SET 		$0.50 1
0031 262111
SCREW CLAMP 		$1.38 3
0032 250888
GASKET 		$0.64 1
0033 826348
COMPL. HEAT EXCHANGER WATER PIPE BRACKET 		$30.27 1
0034 262111
SCREW CLAMP 		$1.38 1
0035 341672
SPACER 		$4.79 3
0036 267300
DAMPED MOUNT
IN STOCK 		$11.09 3
