Ferrari California (2012-2014) - HEAT SHIELDS IN VEHICLE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
83951500 RH CATALYTIC CONVERTER HEAT SHIELD $189.62 To Order
69760500 R.H. HEAT SHIELD $227.56 To Order
Photo Part No Description Price (each) Stock
83951600 LH CATALYTIC CONVERTER HEAT SHIELD $189.62 To Order
69760600 L.H. HEAT SHIELD $227.56 To Order
Photo Part No Description Price (each) Stock
80874100 SCREW $1.04 IN STOCK
Photo Part No Description Price (each) Stock
67315400 WASHER $0.38 IN STOCK
Photo Part No Description Price (each) Stock
81175800 TUNNEL HEAT SHIELD Enquire To Order
83951700 TUNNEL HEAT SHIELD $530.99 To Order
69761000 TUNNEL HEAT SHIELD $390.97 To Order
Photo Part No Description Price (each) Stock
80874100 SCREW $1.04 IN STOCK
Photo Part No Description Price (each) Stock
67315400 WASHER $0.38 IN STOCK
Photo Part No Description Price (each) Stock
263737 TANK HEAT SHIELD $558.48 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.41 IN STOCK
Photo Part No Description Price (each) Stock
67315400 WASHER $0.38 IN STOCK
Photo Part No Description Price (each) Stock
83951800 RH HEAT SHIELD $273.18 To Order
Photo Part No Description Price (each) Stock
80874100 SCREW $1.04 IN STOCK
Photo Part No Description Price (each) Stock
67315400 WASHER $0.38 IN STOCK
Photo Part No Description Price (each) Stock
69761200 R.H. HEAT SHIELD TRUNK $152.44 To Order
Photo Part No Description Price (each) Stock
69761300 L.H. HEAT SHIELD TRUNK $158.60 To Order
Photo Part No Description Price (each) Stock
82118300 SCREW -No longer supplied- -Replaced by 11625714- $0.49 To Order
Photo Part No Description Price (each) Stock
67315400 WASHER $0.38 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
254704 RH GEARBOX HEAT SHIELD $986.13 To Order
282637 RH GEARBOX HEAT SHIELD $164.35 To Order
261947 RH GEARBOX HEAT SHIELD $164.35 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
254703 LH GEARBOX HEAT SHIELD $986.13 To Order
282922 LH GEARBOX HEAT SHIELD $164.35 To Order
261946 LH GEARBOX HEAT SHIELD $114.84 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.41 IN STOCK
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
246880 R.H. OIL PIPES HEAT SHIELD $75.84 To Order
Photo Part No Description Price (each) Stock
246879 L.H. OIL PIPES HEAT SHIELD $75.84 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
16286124 SCREW $0.35 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
83951900 LH HEAT SHIELD $88.48 To Order
83628300 LH HEAT SHIELD $108.71 To Order
Photo Part No Description Price (each) Stock
13046112 NUT $0.20 To Order
Photo Part No Description Price (each) Stock
82159500 CAP FOR SLOT $2.77 To Order
Photo Part No Description Price (each) Stock
82299600 PLUG FOR FRONT MASTER POINT $2.20 To Order
Photo Part No Description Price (each) Stock
82299500 PLUG FOR REAR MASTER POINT $2.36 To Order
Photo Part No Description Price (each) Stock
263963 CABLE SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
84290300 LOWER FASTENER BRACKET FOR LH HEAT SHIELD $31.59 To Order
84209700 LOWER FASTENER BRACKET FOR RH HEAT SHIELD $31.59 To Order
Photo Part No Description Price (each) Stock
84451000 UPPER FASTENER BRACKET FOR LH HEAT SHIELD $18.95 To Order
View All

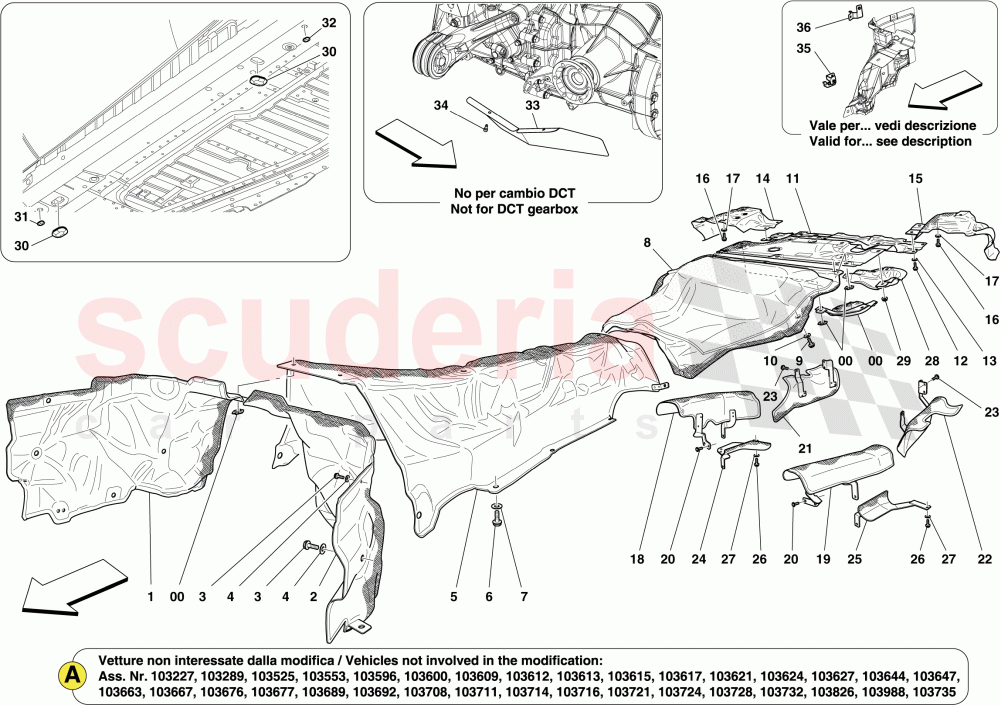

HEAT SHIELDS IN VEHICLE of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 83951500
RH CATALYTIC CONVERTER HEAT SHIELD
not affected by modification; Applicable from Ass. No. 103179 		$189.62 1
1 69760500
R.H. HEAT SHIELD
Applicable up to Ass. No. 103178 		$227.56 1
2 83951600
LH CATALYTIC CONVERTER HEAT SHIELD
not affected by modification; Applicable from Ass. No. 103179 		$189.62 1
2 69760600
L.H. HEAT SHIELD
Applicable up to Ass. No. 103178 		$227.56 1
3 80874100
SCREW
IN STOCK 		$1.04 (16.8% off) 12
4 67315400
WASHER
IN STOCK 		$0.38 12
5 81175800
TUNNEL HEAT SHIELD
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		- 1 Enquire
5 83951700
TUNNEL HEAT SHIELD
not affected by modification; Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable from Ass. No. 103179 		$530.99 1
5 69761000
TUNNEL HEAT SHIELD
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable up to Ass. No. 103178 		$390.97 1
6 80874100
SCREW
IN STOCK 		$1.04 (16.8% off) 6
7 67315400
WASHER
IN STOCK 		$0.38 6
8 263737
TANK HEAT SHIELD
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		$558.48 1
9 16296934
SCREW 6 X 14MM
IN STOCK 		$0.41 2
10 67315400
WASHER
IN STOCK 		$0.38 2
11 83951800
RH HEAT SHIELD
not affected by modification; Applicable from Ass. No. 103179 		$273.18 1
12 80874100
SCREW
IN STOCK 		$1.04 (16.8% off) 6
13 67315400
WASHER
IN STOCK 		$0.38 6
14 69761200
R.H. HEAT SHIELD TRUNK
Applicable up to Ass. No. 103178 		$152.44 1
15 69761300
L.H. HEAT SHIELD TRUNK
Applicable up to Ass. No. 103178 		$158.60 1
16 82118300
SCREW -No longer supplied- -Replaced by 11625714- 		$0.49 6
17 67315400
WASHER
IN STOCK 		$0.38 6
20 231619
SCREW
M6 X 22; Applicable from Ass. No. 103179
IN STOCK 		$0.29 8
20 86574700
SCREW
M6 X 16; Applicable up to Ass. No. 103178 		$0.61 8
21 254704
RH GEARBOX HEAT SHIELD
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		$986.13 1
21 282637
RH GEARBOX HEAT SHIELD
not affected by modification; Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable from Ass. No. 103179 		$164.35 1
21 261947
RH GEARBOX HEAT SHIELD
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable from Ass. No. 91553 up to Ass. No. 103178 		$164.35 1
21 261947
RH GEARBOX HEAT SHIELD
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable from Ass. No. 90609 up to Ass. No. 103178 		$164.35 1
21 261947
RH GEARBOX HEAT SHIELD
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable from Ass. No. 89389 up to Ass. No. 103178 		$164.35 1
21 242697
RH GEARBOX HEAT SHIELD
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable up to Ass. No. 91552 		$404.56 1
21 242697
RH GEARBOX HEAT SHIELD
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable up to Ass. No. 90608 		$404.56 1
21 242697
RH GEARBOX HEAT SHIELD
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable up to Ass. No. 89388 		$404.56 1
22 254703
LH GEARBOX HEAT SHIELD
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		$986.13 1
22 282922
LH GEARBOX HEAT SHIELD
not affected by modification; Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable from Ass. No. 103179 		$164.35 1
22 261946
LH GEARBOX HEAT SHIELD
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable from Ass. No. 91553 up to Ass. No. 103178 		$114.84 1
22 261946
LH GEARBOX HEAT SHIELD
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable from Ass. No. 90609 up to Ass. No. 103178 		$114.84 1
22 261946
LH GEARBOX HEAT SHIELD
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable from Ass. No. 89389 up to Ass. No. 103178 		$114.84 1
22 248741
LH GEARBOX HEAT SHIELD
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable up to Ass. No. 91552 		$109.98 1
22 248741
LH GEARBOX HEAT SHIELD
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable up to Ass. No. 90608 		$109.98 1
22 248741
LH GEARBOX HEAT SHIELD
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable up to Ass. No. 89388 		$109.98 1
23 16296934
SCREW 6 X 14MM
IN STOCK 		$0.41 6
23 86574700
SCREW
M6 X 16; No longer supplied; Replaced by 16296924 		$0.61 6
24 246880
R.H. OIL PIPES HEAT SHIELD 		$75.84 1
25 246879
L.H. OIL PIPES HEAT SHIELD 		$75.84 1
26 86574700
SCREW
M6 X 16 		$0.61 2
26 16286124
SCREW 		$0.35 2
27 12643724
WASHER
IN STOCK 		$0.06 (88% off) 4
28 83951900
LH HEAT SHIELD
not affected by modification; Applicable from Ass. No. 103179 		$88.48 1
28 83628300
LH HEAT SHIELD
Applicable up to Ass. No. 103178 		$108.71 1
29 13046112
NUT 		$0.20 6
30 82159500
CAP FOR SLOT 		$2.77 4
31 82299600
PLUG FOR FRONT MASTER POINT 		$2.20 2
32 82299500
PLUG FOR REAR MASTER POINT 		$2.36 2
33 263963
CABLE SHIELD
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		- 1 Enquire
34 11566224
SCREW
Not for DCT-F1 gearbox (Applicable for mechanical gearbox)
IN STOCK 		$0.34 2
35 84290300
LOWER FASTENER BRACKET FOR LH HEAT SHIELD
not affected by modification; Applicable from Ass. No. 103179 		$31.59 1
35 84209700
LOWER FASTENER BRACKET FOR RH HEAT SHIELD
not affected by modification; Applicable from Ass. No. 103179 		$31.59 1
36 84451000
UPPER FASTENER BRACKET FOR LH HEAT SHIELD
not affected by modification; Applicable from Ass. No. 103179 		$18.95 1
