Electric Roof: Structure

Ferrari California (2012-2014)

Find Your Part

Ferrari California (2012-2014) - ELECTRIC ROOF: STRUCTURE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
82956700 ROOF ASSEMBLY Enquire To Order
80413600 CAPOTE SET $24,411.06 To Order
Photo Part No Description Price (each) Stock
80413300 TONNEAU COVER ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
85599800 REAR LH CRASH BRACKET $241.31 To Order
80729200 L.H. REAR CRASH BRACKET $228.61 To Order
85599700 REAR RH CRASH BRACKET $241.31 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
263394 SCREW $0.84 To Order
84908700 ROOF ADJUSTMENT SCREW $19.47 To Order
80520600 REGISTRATION SCREW $15.24 To Order
Photo Part No Description Price (each) Stock
80520700 COUNTER NUT $19.47 To Order
Photo Part No Description Price (each) Stock
80954900 REGISTRATION SCREW $16.94 To Order
Photo Part No Description Price (each) Stock
86142100 LH BRACKET $16.50 To Order
80553100 LH BRACKET $13.95 To Order
86358900 RH BRACKET $16.50 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
11625824 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
13550224 WASHER $1.35 To Order
Photo Part No Description Price (each) Stock
70001635 LEVER ALIGNMENT KIT $92.70 To Order
Photo Part No Description Price (each) Stock
81727700 GASKET $163.57 To Order
Photo Part No Description Price (each) Stock
86091100 ROOF SPACER $2.28 To Order
86091000 ROOF SPACER $2.28 To Order
86090900 ROOF SPACER $2.28 To Order
Photo Part No Description Price (each) Stock
12644364 WASHER $0.80 IN STOCK
View All

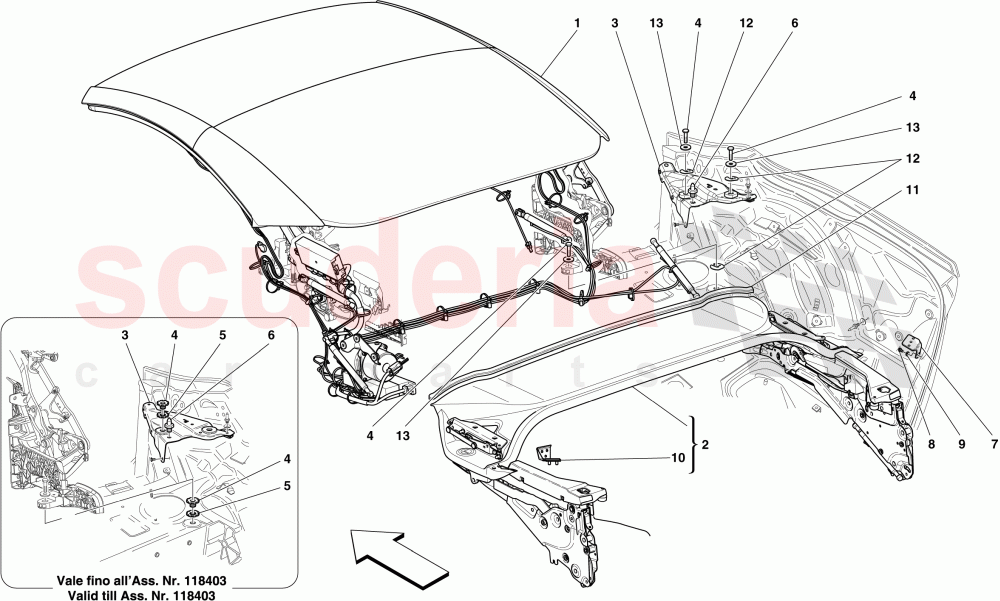

ELECTRIC ROOF: STRUCTURE of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 82956700
ROOF ASSEMBLY
Painted; With leather headliner 		- 1 Enquire
1 80413600
CAPOTE SET
Painted 		$24,411.06 1
2 80413300
TONNEAU COVER ASSEMBLY
Painted 		- 1 Enquire
3 85599800
REAR LH CRASH BRACKET
Applicable from Ass. No. 118404 		$241.31 1
3 80729200
L.H. REAR CRASH BRACKET
Applicable up to Ass. No. 118403 		$228.61 1
3 85599700
REAR RH CRASH BRACKET
Applicable from Ass. No. 118404 		$241.31 1
3 80729100
R.H. REAR CRASH BRACKET
Applicable up to Ass. No. 118403 		$228.61 1
4 263394
SCREW
Applicable from Ass. No. 118404 		$0.84 6
4 84908700
ROOF ADJUSTMENT SCREW
Applicable up to Ass. No. 118403 		$19.47 2
4 80520600
REGISTRATION SCREW
Applicable up to Ass. No. 118403 		$15.24 2
5 80520700
COUNTER NUT
Applicable up to Ass. No. 118403 		$19.47 4
6 80954900
REGISTRATION SCREW 		$16.94 2
7 86142100
LH BRACKET
Applicable from Ass. No. 121194 		$16.50 1
7 80553100
LH BRACKET
Applicable up to Ass. No. 121193 		$13.95 1
7 86358900
RH BRACKET
Applicable from Ass. No. 121194 		$16.50 1
7 80553200
RH BRACKET
Applicable up to Ass. No. 121193 		$16.50 1
8 10902424
SCREW
No longer supplied; Replaced by 11625824
IN STOCK 		$0.14 (80% off) 4
8 11625824
SCREW
IN STOCK 		$0.34 (66% off) 4
9 13550224
WASHER
No longer supplied 		$1.35 4
10 70001635
LEVER ALIGNMENT KIT 		$92.70 1
11 81727700
GASKET 		$163.57 (20.5% off) 1
12 86091100
ROOF SPACER
Th. 2 mm; Applicable from Ass. No. 118404 		$2.28 6
12 86091000
ROOF SPACER
Th. 1 mm; Applicable from Ass. No. 118404 		$2.28 6
12 86090900
ROOF SPACER
Th. 0.5 mm; Applicable from Ass. No. 118404 		$2.28 6
13 12644364
WASHER
Applicable from Ass. No. 118404
IN STOCK 		$0.80 6
