Ferrari 612 Sessanta - REAR SUSPENSION - ARMS AND STABILISER BAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
200945 UPPER SUSPENSION ARM $724.18 IN STOCK
Photo Part No Description Price (each) Stock
179555 COMPENSATOR RING BUSHING $5.27 IN STOCK
Photo Part No Description Price (each) Stock
171848 Rubber Boot and Clip $125.35 ARRIVING SOON
Photo Part No Description Price (each) Stock
190274 SHIM $12.63 IN STOCK
Photo Part No Description Price (each) Stock
188581 SCREW $19.37 To Order
Photo Part No Description Price (each) Stock
209167 FLANBLOC $274.21 IN STOCK
Photo Part No Description Price (each) Stock
170155 THREADED ROD $15.16 IN STOCK
Photo Part No Description Price (each) Stock
104030 NUT $0.24 IN STOCK
Photo Part No Description Price (each) Stock
14496524 WASHER D.8.4 X 17 X 1.6 $0.11 IN STOCK
Photo Part No Description Price (each) Stock
219344 WASHER $0.29 To Order
Photo Part No Description Price (each) Stock
13582271 INSERT $6.90 IN STOCK
Photo Part No Description Price (each) Stock
190272 SCREW $26.96 To Order
Photo Part No Description Price (each) Stock
190750 RH REAR STUB AXLE $1,267.33 To Order
267229 RH REAR STUB AXLE $1,175.24 To Order
190751 LH REAR STUB AXLE $1,493.64 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
207581 COMPLETE LOWER ARM $1,161.72 To Order
Photo Part No Description Price (each) Stock
171847 Rubber Boot And Clip $118.81 IN STOCK
Photo Part No Description Price (each) Stock
190273 SHIM $33.70 To Order
Photo Part No Description Price (each) Stock
179554 COMPENSATOR RING $5.56 IN STOCK
Photo Part No Description Price (each) Stock
196789 Silentbloc Bush $303.27 To Order
Photo Part No Description Price (each) Stock
182215 SCREW $5.47 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.66 IN STOCK
Photo Part No Description Price (each) Stock
200938 SHIM $2.27 IN STOCK
203312 SHIM $6.74 To Order
203313 SHIM $54.76 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
252479 Tie Rod $724.18 IN STOCK
Photo Part No Description Price (each) Stock
194794 ROD END FOR TIE-ROD $422.43 IN STOCK
Photo Part No Description Price (each) Stock
204248 NUT $33.70 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.24 IN STOCK
Photo Part No Description Price (each) Stock
113113 WASHER $0.93 To Order
Photo Part No Description Price (each) Stock
179556 BOLT FOR TRACK ROD JOINT $48.75 IN STOCK
Photo Part No Description Price (each) Stock
168993 Roll Bar Link $90.51 IN STOCK
Photo Part No Description Price (each) Stock
10791014 NUT $0.26 To Order
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 IN STOCK
Photo Part No Description Price (each) Stock
235230 STABILISER BAR $910.89 To Order
Photo Part No Description Price (each) Stock
196385 Stabiliser Bar Bush $46.76 IN STOCK
200656 STABILISER BAR BUSH $22.72 To Order
Photo Part No Description Price (each) Stock
239775 PLATE $32.84 To Order
Photo Part No Description Price (each) Stock
113113 WASHER $0.93 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.24 IN STOCK
Photo Part No Description Price (each) Stock
205005 RH SHOCK ABSORBER MOUNT $202.17 To Order
205006 LH SHOCK ABSORBER MOUNT $202.17 To Order
Photo Part No Description Price (each) Stock
212601 SCREW $17.69 To Order
Photo Part No Description Price (each) Stock
11194174 WASHER $5.15 To Order
Photo Part No Description Price (each) Stock
203633 Upper Ball Joint $230.34 To Order
Photo Part No Description Price (each) Stock
203632 Lower Ball Joint $296.14 IN STOCK
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.66 IN STOCK
Photo Part No Description Price (each) Stock
14058621 NUT $0.41 IN STOCK
View All

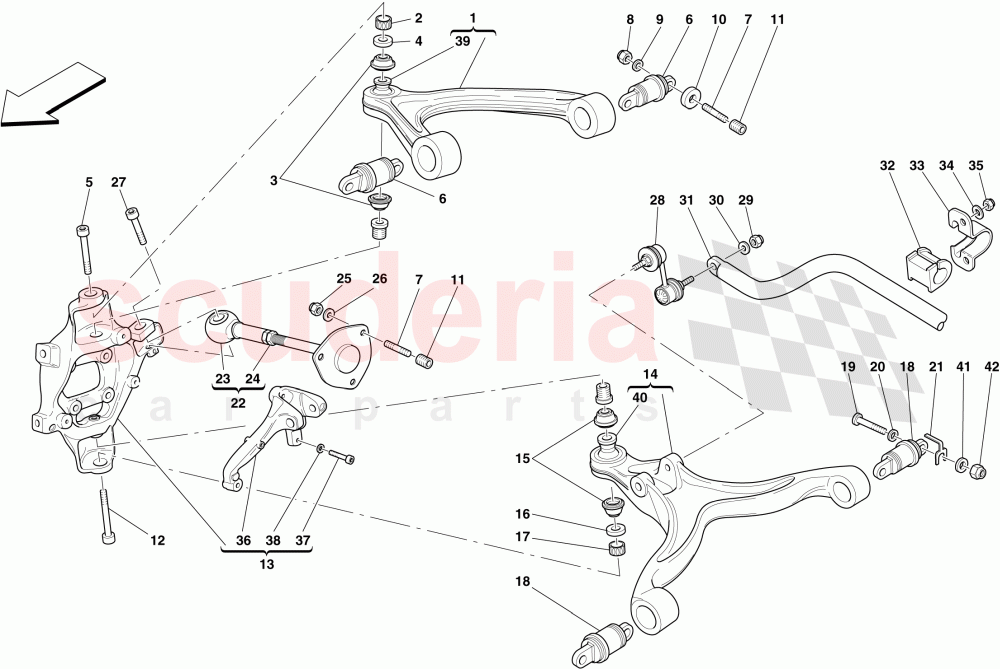

REAR SUSPENSION - ARMS AND STABILISER BAR of Ferrari Ferrari 612 Sessanta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 200945
UPPER SUSPENSION ARM
IN STOCK 		$724.18 (43% off) 2
2 179555
COMPENSATOR RING BUSHING
IN STOCK 		$5.27 (17.3% off) 2
3 171848
Rubber Boot and Clip
ARRIVING SOON 		$125.35 (28% off) 4
4 190274
SHIM
IN STOCK 		$12.63 2
5 188581
SCREW 		$19.37 2
6 209167
FLANBLOC
Replace as a pair
IN STOCK 		$274.21 (27.9% off) 4
7 170155
THREADED ROD
IN STOCK 		$15.16 14
8 104030
NUT
IN STOCK 		$0.24 (76% off) 8
9 14496524
WASHER D.8.4 X 17 X 1.6
IN STOCK 		$0.11 (92.7% off) 8
10 219344
WASHER 		$0.29 8
11 13582271
INSERT
IN STOCK 		$6.90 (32% off) 14
12 190272
SCREW 		$26.96 2
13 190750
RH REAR STUB AXLE 		$1,267.33 1
13 267229
RH REAR STUB AXLE
Version with CCM brakes; Optional 		$1,175.24 1
13 190751
LH REAR STUB AXLE 		$1,493.64 1
13 267228
LH REAR STUB AXLE
Version with CCM brakes; Optional 		$1,175.24 1
14 207581
COMPLETE LOWER ARM 		$1,161.72 2
15 171847
Rubber Boot And Clip
IN STOCK 		$118.81 (31.7% off) 4
16 190273
SHIM 		$33.70 2
17 179554
COMPENSATOR RING
IN STOCK 		$5.56 (16.8% off) 2
18 196789
Silentbloc Bush 		$303.27 (29.4% off) 4
19 182215
SCREW 		$5.47 8
20 126648
WASHER D.10.5-21 X 2
IN STOCK 		$1.66 (5.1% off) 8
21 200938
SHIM
Installed if necessary
IN STOCK 		$2.27 8
21 203312
SHIM
Th. 1 mm; Installed if necessary 		$6.74 8
21 203313
SHIM
Th. 1.5 mm; Installed if necessary 		$54.76 8
21 203314
SHIM
Th. 2 mm; Installed if necessary 		$2.27 8
21 203315
SHIM
Th. 2.5 mm; Installed if necessary 		$21.06 8
21 203316
SHIM
Th. 3 mm; Installed if necessary 		$54.76 8
22 252479
Tie Rod
IN STOCK 		$724.18 (31.4% off) 2
23 194794
ROD END FOR TIE-ROD
Applicable for tie-rod Part No. 194792
IN STOCK 		$422.43 (22.7% off) 2
24 204248
NUT
Applicable for tie-rod Part No. 194792 		$33.70 2
25 104030
NUT
IN STOCK 		$0.24 (76% off) 6
26 113113
WASHER 		$0.93 (63.7% off) 6
27 179556
BOLT FOR TRACK ROD JOINT
IN STOCK 		$48.75 2
28 168993
Roll Bar Link
IN STOCK 		$90.51 2
29 10791014
NUT 		$0.26 2
30 12601474
WASHER
IN STOCK 		$0.03 2
31 235230
STABILISER BAR
Enhanced version 		$910.89 1
32 196385
Stabiliser Bar Bush
IN STOCK 		$46.76 2
32 200656
STABILISER BAR BUSH
Enhanced version 		$22.72 2
33 239775
PLATE 		$32.84 2
34 113113
WASHER 		$0.93 (63.7% off) 4
35 104030
NUT
IN STOCK 		$0.24 (76% off) 4
36 205005
RH SHOCK ABSORBER MOUNT 		$202.17 1
36 205006
LH SHOCK ABSORBER MOUNT 		$202.17 1
37 212601
SCREW 		$17.69 2
38 11194174
WASHER
No longer supplied 		$5.15 2
39 203633
Upper Ball Joint 		$230.34 (1.7% off) 2
40 203632
Lower Ball Joint
IN STOCK 		$296.14 2
41 126648
WASHER D.10.5-21 X 2
IN STOCK 		$1.66 (5.1% off) 8
42 14058621
NUT
IN STOCK 		$0.41 8
