External Gearbox Controls

Ferrari 612 Sessanta

Find Your Part

Ferrari 612 Sessanta - EXTERNAL GEARBOX CONTROLS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
156712 GEAR LEVER KNOB $182.65 IN STOCK
223131 KNOB $859.24 To Order
Photo Part No Description Price (each) Stock
108010 CHECKNUT $23.48 IN STOCK
Photo Part No Description Price (each) Stock
195325 GEAR LEVER $364.04 To Order
233397 GEAR LEVER $2,279.05 To Order
Photo Part No Description Price (each) Stock
146994 PIN $29.69 To Order
Photo Part No Description Price (each) Stock
167127 GEAR SELECTOR $1,874.03 To Order
177023 GEAR SELECTOR $2,013.59 To Order
242564 GEAR SELECTOR $2,381.12 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
209152 SCREW $8.25 To Order
209159 SCREW $117.84 To Order
Photo Part No Description Price (each) Stock
232983 GASKET $76.30 To Order
233413 GASKET $744.94 To Order
Photo Part No Description Price (each) Stock
235980 BUSHING $211.14 To Order
Photo Part No Description Price (each) Stock
14303123 SCREW $0.06 IN STOCK
Photo Part No Description Price (each) Stock
235660 TURRET -Not for F1 - -Not for GD- $4,598.18 To Order
236305 TURRET -Not for F1 - -Valid for GD- Enquire To Order
Photo Part No Description Price (each) Stock
147561 SPRING $103.79 To Order
Photo Part No Description Price (each) Stock
154745 BALL $259.80 To Order
Photo Part No Description Price (each) Stock
178692 ROD $7.60 To Order
154744 ROD $121.19 To Order
Photo Part No Description Price (each) Stock
231465 SPRING $107.20 To Order
Photo Part No Description Price (each) Stock
156101 SPRING RETAINER CAP $3.64 To Order
Photo Part No Description Price (each) Stock
103326 SEEGER RING $0.21 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.96 IN STOCK
Photo Part No Description Price (each) Stock
115980A SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
212959 GASKET $138.87 To Order
212981 GASKET $138.87 To Order
Photo Part No Description Price (each) Stock
127446 BALL SEAT FOR JOINT $27.00 IN STOCK
Photo Part No Description Price (each) Stock
155480 ROCKER IN TOWER $327.82 To Order
Photo Part No Description Price (each) Stock
156128 BELLOW $144.62 To Order
157962 BELLOW $156.35 To Order
Photo Part No Description Price (each) Stock
156129 FRAME $9.29 To Order
157961 FRAME $38.62 To Order
Photo Part No Description Price (each) Stock
10444621 SCREW $0.20 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
183982 BALL BEARING BUSH $36.45 IN STOCK
Photo Part No Description Price (each) Stock
193666 FRONT GEARBOX CONTROL BAR $1,758.84 To Order
Photo Part No Description Price (each) Stock
209442 REAR GEARBOX CONTROL BAR $1,986.12 To Order
Photo Part No Description Price (each) Stock
155473 TERMINAL $253.28 To Order
Photo Part No Description Price (each) Stock
16043634 SCREW $0.21 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
160834 SHEATH $12.81 To Order
Photo Part No Description Price (each) Stock
66535800 SCREW $5.06 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
159762 SHIM $4.35 To Order
Photo Part No Description Price (each) Stock
15212724 SCREW $1.34 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
163926 FASTENER BUSHING $201.31 IN STOCK
Photo Part No Description Price (each) Stock
169976 FASTENER FOR BAR $315.29 To Order
Photo Part No Description Price (each) Stock
14058519 FLANGED NUT M8 X 8 $0.23 IN STOCK
Photo Part No Description Price (each) Stock
213341 F1 GEARBOX CONTROL PANEL $3,600.82 To Order
224129 F1 GEARBOX CONTROL PANEL $2,824.00 To Order
224130 F1 GEARBOX CONTROL PANEL $3,250.01 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
68123900 SCREW $5.62 To Order
221563 SCREW $267.73 To Order
Photo Part No Description Price (each) Stock
65200400 CENTRE CONSOLE TUNNEL COVER $46.53 To Order
221511 ACCELERATION SENSOR MOUNTING BRACKET $114.55 To Order
Photo Part No Description Price (each) Stock
65200500 INSULATION $202.00 To Order
Photo Part No Description Price (each) Stock
13839224 SCREW $2.41 To Order
66535800 SCREW $5.06 To Order
Photo Part No Description Price (each) Stock
209923 GASKET $24.68 To Order
210280 GASKET $34.66 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
10450690 BRACKET WITH SHEATH $0.65 To Order
View All

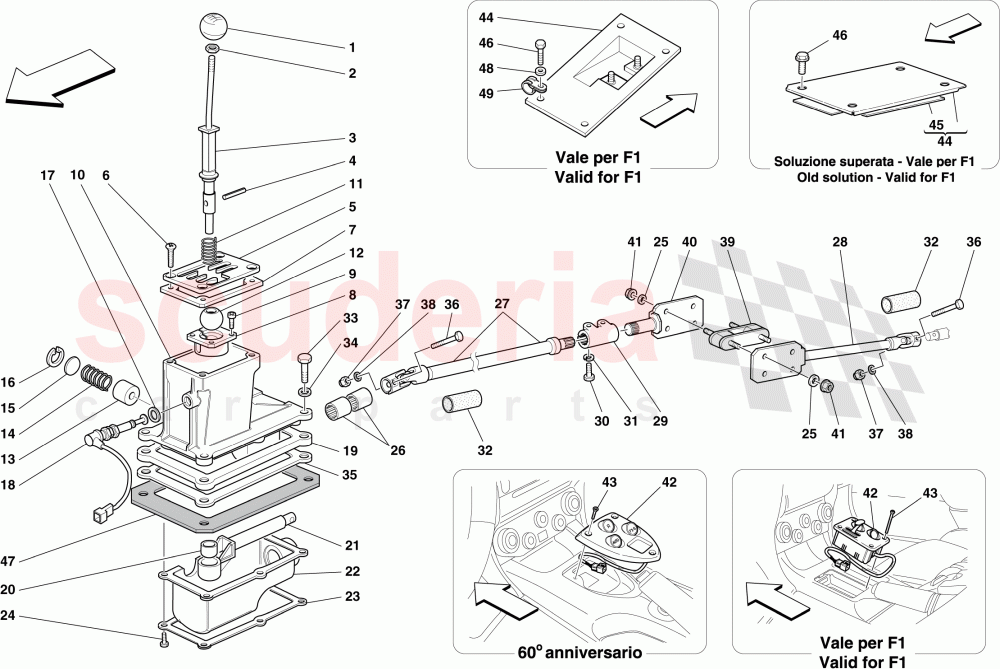

EXTERNAL GEARBOX CONTROLS of Ferrari Ferrari 612 Sessanta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 156712
GEAR LEVER KNOB
Not for F1 gearbox
IN STOCK 		$182.65 (5.2% off) 1
1 223131
KNOB
Carbon version; Optional; Not for F1 gearbox 		$859.24 (7.8% off) 1
2 108010
CHECKNUT
Not for F1 gearbox
IN STOCK 		$23.48 (19.9% off) 1
3 195325
GEAR LEVER
Not for GD; Not for F1 gearbox 		$364.04 1
3 233397
GEAR LEVER
Applicable for GD; Not for F1 gearbox 		$2,279.05 1
4 146994
PIN
Not for F1 gearbox 		$29.69 1
5 167127
GEAR SELECTOR
Not for GD; Not for F1 gearbox 		$1,874.03 1
5 177023
GEAR SELECTOR
For trim version with carbon knob; Optional; Not for GD; Not for F1 gearbox 		$2,013.59 1
5 242564
GEAR SELECTOR
Applicable for GD; Not for F1 gearbox 		$2,381.12 1
5 242565
GEAR SELECTOR
For trim version with carbon knob; Optional; Applicable for GD; Not for F1 gearbox 		$3,092.18 1
6 209152
SCREW
Not for GD; Not for F1 gearbox 		$8.25 4
6 209159
SCREW
Applicable for GD; Not for F1 gearbox 		$117.84 4
7 232983
GASKET
Not for GD; Not for F1 gearbox 		$76.30 1
7 233413
GASKET
Applicable for GD; Not for F1 gearbox 		$744.94 1
8 235980
BUSHING
Not for F1 gearbox 		$211.14 1
9 14303123
SCREW
Not for F1 gearbox
IN STOCK 		$0.06 4
10 235660
TURRET -Not for F1 - -Not for GD-
Not for GD; Not for F1 gearbox 		$4,598.18 1
10 236305
TURRET -Not for F1 - -Valid for GD-
Applicable for GD; Not for F1 gearbox 		- 1 Enquire
11 147561
SPRING
Not for F1 gearbox 		$103.79 1
12 154745
BALL
Not for F1 gearbox 		$259.80 1
13 178692
ROD
Not for GD; Not for F1 gearbox 		$7.60 1
13 154744
ROD
Applicable for GD; Not for F1 gearbox 		$121.19 1
14 231465
SPRING
Not for F1 gearbox 		$107.20 1
15 156101
SPRING RETAINER CAP
Not for F1 gearbox 		$3.64 1
16 103326
SEEGER RING
Not for F1 gearbox 		$0.21 (73.8% off) 1
17 84653800
WASHER 10 X 18 X 2.5
Not for F1 gearbox
IN STOCK 		$4.96 1
18 115980A
SWITCH
Not for F1 gearbox 		- 1 Enquire
19 212959
GASKET
Not for GD; Not for F1 gearbox 		$138.87 1
19 212981
GASKET
Applicable for GD; Not for F1 gearbox 		$138.87 1
20 127446
BALL SEAT FOR JOINT
Not for F1 gearbox
IN STOCK 		$27.00 (28.3% off) 1
21 155480
ROCKER IN TOWER
Not for F1 gearbox 		$327.82 1
22 156128
BELLOW
Not for GD; Not for F1 gearbox 		$144.62 1
22 157962
BELLOW
Applicable for GD; Not for F1 gearbox 		$156.35 1
23 156129
FRAME
Not for GD; Not for F1 gearbox 		$9.29 1
23 157961
FRAME
Applicable for GD; Not for F1 gearbox 		$38.62 1
24 10444621
SCREW
Not for F1 gearbox
IN STOCK 		$0.20 6
25 12601374
WASHER D.8.40-15 X 0.8
Not for F1 gearbox
IN STOCK 		$0.02 (92% off) 8
26 183982
BALL BEARING BUSH
Not for F1 gearbox
IN STOCK 		$36.45 (2.2% off) 2
27 193666
FRONT GEARBOX CONTROL BAR
Not for F1 gearbox 		$1,758.84 1
28 209442
REAR GEARBOX CONTROL BAR
Not for F1 gearbox 		$1,986.12 1
29 155473
TERMINAL
Not for F1 gearbox 		$253.28 1
30 16043634
SCREW
Not for F1 gearbox
IN STOCK 		$0.21 2
31 127496
WASHER
Not for F1 gearbox 		$0.06 (80% off) 2
32 160834
SHEATH
Not for F1 gearbox 		$12.81 2
33 66535800
SCREW
Not for F1 gearbox 		$5.06 4
34 12601374
WASHER D.8.40-15 X 0.8
Not for F1 gearbox
IN STOCK 		$0.02 (92% off) 4
35 159762
SHIM
Installed if necessary; Not for F1 gearbox 		$4.35 1
36 15212724
SCREW
Not for F1 gearbox
IN STOCK 		$1.34 2
37 14059290
FLANGED NUT M6
Not for F1 gearbox
IN STOCK 		$1.31 2
38 10519424
WASHER D.6.4 X 11.95 X 1.6
Not for F1 gearbox
IN STOCK 		$0.02 (92% off) 2
39 163926
FASTENER BUSHING
Not for F1 gearbox
IN STOCK 		$201.31 2
40 169976
FASTENER FOR BAR
Not for F1 gearbox 		$315.29 1
41 14058519
FLANGED NUT M8 X 8
Not for F1 gearbox
IN STOCK 		$0.23 (75.8% off) 8
42 213341
F1 GEARBOX CONTROL PANEL
Not for GD; Applicable up to Ass. No. 62116; Applicable for F1 gearbox 		$3,600.82 (39.7% off) 1
42 224129
F1 GEARBOX CONTROL PANEL
Not for GD; Applicable from Ass. No. 62117; Applicable for F1 gearbox 		$2,824.00 1
42 224130
F1 GEARBOX CONTROL PANEL
Applicable for GD; Applicable from Ass. No. 62117; Applicable for F1 gearbox 		$3,250.01 1
42 236544
F1 GEARBOX CONTROL PANEL
Applicable for "60ยฐanniversario"; Applicable for F1 gearbox 		$4,602.26 1
43 68123900
SCREW
Applicable for F1 gearbox 		$5.62 (9.2% off) 4
43 221563
SCREW
Applicable for "60ยฐanniversario"; Applicable for F1 gearbox 		$267.73 3
44 65200400
CENTRE CONSOLE TUNNEL COVER
Applicable up to Ass. No. 62116; Applicable for F1 gearbox 		$46.53 1
44 221511
ACCELERATION SENSOR MOUNTING BRACKET
Applicable from Ass. No. 62117; Applicable for F1 gearbox 		$114.55 1
45 65200500
INSULATION
Applicable up to Ass. No. 62116; Applicable for F1 gearbox 		$202.00 1
46 13839224
SCREW
Applicable up to Ass. No. 62116; Applicable for F1 gearbox 		$2.41 4
46 66535800
SCREW
Applicable from Ass. No. 62117; Applicable for F1 gearbox 		$5.06 4
47 209923
GASKET
Not for GD; Not for F1 gearbox 		$24.68 1
47 210280
GASKET
Applicable for GD; Not for F1 gearbox 		$34.66 1
48 12601374
WASHER D.8.40-15 X 0.8
Applicable from Ass. No. 62117; Applicable for F1 gearbox
IN STOCK 		$0.02 (92% off) 4
49 10450690
BRACKET WITH SHEATH
Applicable from Ass. No. 62117; Applicable for F1 gearbox 		$0.65 (61.8% off) 2
