Tunnel - Substructure And Accessories

Ferrari 599 GTO

Find Your Part

Ferrari 599 GTO - TUNNEL - SUBSTRUCTURE AND ACCESSORIES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
82714300 FRONT RH TUNNEL TRIM $923.92 To Order
83210900 FRONT RH CENTRE TUNNEL TRIM Enquire To Order
83064500 FRONT RH TUNNEL TRIM $753.53 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
82714200 FRONT LH TUNNEL TRIM $923.92 To Order
83210000 FRONT LH CENTRE TUNNEL TRIM Enquire To Order
83065212 FRONT CONSOLE TRIM PANEL $753.53 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
82714400 REAR CENTRE TUNNEL TRIM $1,129.51 To Order
83212200 REAR CENTRE TUNNEL TRIM Enquire To Order
83065612 REAR CENTRE CONSOLE TRIM PANEL $1,133.75 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
82714512 CENTRE CONSOLE UNIT $1,670.52 To Order
83213500 CENTRAL UNIT $2,035.16 To Order
82959112 CENTRE CONSOLE UNIT $2,035.16 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
82714600 GRAB HANDLE $2,416.11 To Order
83074000 GRAB HANDLE $2,416.11 To Order
Photo Part No Description Price (each) Stock
83188200 CENTRE TUNNEL CONSOLE $8,315.35 To Order
83305400 CENTRE TUNNEL CONSOLE $6,773.77 To Order
82714800 CENTRE TUNNEL CONSOLE $2,622.43 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
83102000 ODDMENTS STORAGE TRAY $165.38 To Order
83214700 ODDMENTS STORAGE TRAY $447.49 To Order
Photo Part No Description Price (each) Stock
83354400 EMERGENCY RELEASE COMPARTMENT BOTTOM $177.18 To Order
Photo Part No Description Price (each) Stock
83215300 REAR CENTRE TUNNEL CONSOLE TRAY BOTTOM $215.15 To Order
Photo Part No Description Price (each) Stock
82770400 ACCELERATOR PEDAL GUARD $63.27 To Order
Photo Part No Description Price (each) Stock
82937200 GRAB HANDLE MOUNTING BRACKET $430.30 To Order
83092100 GRAB HANDLE MOUNTING BRACKET $60.73 To Order
Photo Part No Description Price (each) Stock
16043224 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.98 IN STOCK
Photo Part No Description Price (each) Stock
10977887 SCREW M5 X 16 $0.78 IN STOCK
Photo Part No Description Price (each) Stock
12638104 WASHER $0.17 To Order
67584200 WASHER $1.28 To Order
Photo Part No Description Price (each) Stock
83037100 PARKING BRAKE COVER Enquire To Order
83215600 PARKING BRAKE COVER Enquire To Order
83214800 PARKING BRAKE COVER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
82970300 BRACKET $21.51 To Order
83046400 BRACKET $21.51 To Order
View All

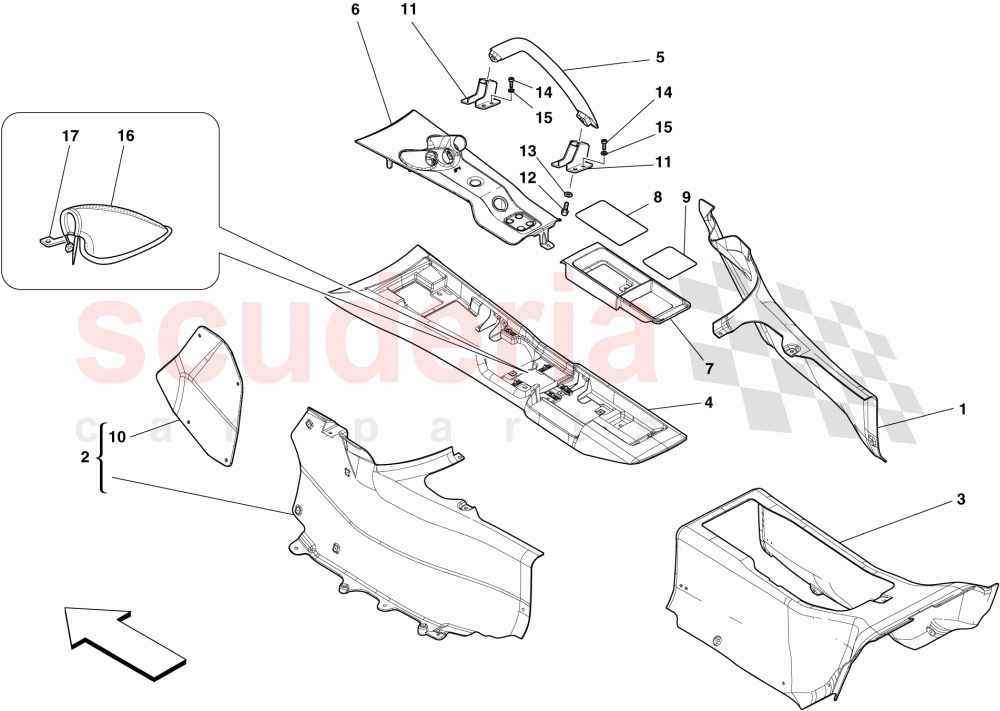

TUNNEL - SUBSTRUCTURE AND ACCESSORIES of Ferrari Ferrari 599 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 82714300
FRONT RH TUNNEL TRIM
Formula 1 technical fabric; STC1; STC2; Not for GD 		$923.92 1
1 83210900
FRONT RH CENTRE TUNNEL TRIM
Formula 1 technical fabric; STC1; STC2; Applicable for GD 		- 1 Enquire
1 83064500
FRONT RH TUNNEL TRIM
Leather; STC1; STC2; Not for GD 		$753.53 1
1 83212000
FRONT RH TUNNEL TRIM
Leather; STC1; STC2; Applicable for GD 		$911.26 1
2 82714200
FRONT LH TUNNEL TRIM
Formula 1 technical fabric; STC1; STC2; Not for GD 		$923.92 1
2 83210000
FRONT LH CENTRE TUNNEL TRIM
Formula 1 technical fabric; STC1; STC2; Applicable for GD 		- 1 Enquire
2 83065212
FRONT CONSOLE TRIM PANEL
Leather; STC1; STC2; Not for GD 		$753.53 1
2 83210700
FRONT LH TUNNEL TRIM
Leather; STC1; STC2; Applicable for GD 		- 1 Enquire
3 82714400
REAR CENTRE TUNNEL TRIM
Formula 1 technical fabric; STC1; STC2; Not for GD 		$1,129.51 1
3 83212200
REAR CENTRE TUNNEL TRIM
Formula 1 technical fabric; STC1; STC2; Applicable for GD 		- 1 Enquire
3 83065612
REAR CENTRE CONSOLE TRIM PANEL
Leather; STC1; STC2; Not for GD 		$1,133.75 1
3 83212900
REAR CENTRE TUNNEL TRIM
Leather; STC1; STC2; Applicable for GD 		- 1 Enquire
4 82714512
CENTRE CONSOLE UNIT
Formula 1 technical fabric; STC1; STC2; Not for GD 		$1,670.52 1
4 83213500
CENTRAL UNIT
Formula 1 technical fabric; STC1; STC2; Applicable for GD 		$2,035.16 1
4 82959112
CENTRE CONSOLE UNIT
Leather; STC1; STC2; Not for GD 		$2,035.16 1
4 83213700
CENTRE CONSOLE UNIT
Leather; STC1; STC2; Applicable for GD 		- 1 Enquire
4 82959012
CENTRE CONSOLE UNIT
Alcantara; STC1; STC2; Not for GD 		$2,026.30 1
4 83213100
CENTRE CONSOLE UNIT
Alcantara; STC1; STC2; Applicable for GD 		- 1 Enquire
5 82714600
GRAB HANDLE
Not for GD 		$2,416.11 1
5 83074000
GRAB HANDLE
Applicable for GD 		$2,416.11 1
6 83188200
CENTRE TUNNEL CONSOLE
Not for telemetry kit 		$8,315.35 1
6 83305400
CENTRE TUNNEL CONSOLE
Applicable for telemetry kit 		$6,773.77 1
6 82714800
CENTRE TUNNEL CONSOLE
Parking sensors; Not for telemetry kit 		$2,622.43 1
6 83305500
CENTRE TUNNEL CONSOLE
Parking sensors; Applicable for telemetry kit 		$8,867.16 1
7 83102000
ODDMENTS STORAGE TRAY
Alcantara; Not for GD 		$165.38 1
7 83214700
ODDMENTS STORAGE TRAY
Alcantara; Applicable for GD 		$447.49 1
8 83354400
EMERGENCY RELEASE COMPARTMENT BOTTOM
Alcantara; Not for GD 		$177.18 1
9 83215300
REAR CENTRE TUNNEL CONSOLE TRAY BOTTOM
Alcantara 		$215.15 1
10 82770400
ACCELERATOR PEDAL GUARD
Not for GD 		$63.27 1
11 82937200
GRAB HANDLE MOUNTING BRACKET
Not for GD 		$430.30 2
11 83092100
GRAB HANDLE MOUNTING BRACKET
Applicable for GD 		$60.73 2
12 16043224
SCREW
IN STOCK 		$0.14 (72% off) 2
13 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$4.98 2
14 10977887
SCREW M5 X 16
Version in leather
IN STOCK 		$0.78 (54.1% off) 8
15 12638104
WASHER 		$0.17 (62.2% off) 8
15 67584200
WASHER 		$1.28 8
16 83037100
PARKING BRAKE COVER
Alcantara; STC1; STC2; Not for GD 		- 1 Enquire
16 83215600
PARKING BRAKE COVER
Alcantara; STC1; STC2; Applicable for GD 		- 1 Enquire
16 83214800
PARKING BRAKE COVER
Leather; STC1; STC2; Not for GD 		- 1 Enquire
16 83215700
PARKING BRAKE COVER
Leather; STC1; STC2; Applicable for GD 		- 1 Enquire
17 82970300
BRACKET
Not for GD 		$21.51 1
17 83046400
BRACKET
Applicable for GD 		$21.51 1
