Luggage Compartment Lid And Fuel Filler Flap

Ferrari 599 GTO

Find Your Part

Ferrari 599 GTO - LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
67625100 COMPLETE RH HINGE $242.77 To Order
67625200 COMPLETE LH HINGE $242.77 To Order
Photo Part No Description Price (each) Stock
16286124 SCREW $0.35 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
68040000 WASHER $0.14 IN STOCK
Photo Part No Description Price (each) Stock
82863300 GAS STRUT $178.59 IN STOCK
Photo Part No Description Price (each) Stock
82717511 LUGGAGE COMPARTMENT LID $3,802.46 To Order
Photo Part No Description Price (each) Stock
69242700 STRIKER PLATE $90.22 To Order
Photo Part No Description Price (each) Stock
16132314 SCREW $0.23 To Order
Photo Part No Description Price (each) Stock
860172 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
69367900 Luggage Compartment Lid Lock $166.90 IN STOCK
Photo Part No Description Price (each) Stock
10902524 SCREW M10 X 1.25 X 45 $0.14 IN STOCK
Photo Part No Description Price (each) Stock
860172 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
188250 DOME LAMP UNIT $5.00 IN STOCK
Photo Part No Description Price (each) Stock
849815 VIBRATION DAMPER $31.50 IN STOCK
Photo Part No Description Price (each) Stock
82840000 RH LUGGAGE COMPARTMENT LID INSULATION $76.24 To Order
Photo Part No Description Price (each) Stock
82840200 CENTRAL LUGGAGE COMPARTMENT LID INSULATION $76.24 To Order
Photo Part No Description Price (each) Stock
82840100 LH LUGGAGE COMPARTMENT LID INSULATION $76.24 To Order
Photo Part No Description Price (each) Stock
69714600 LID SAFETY CABLE $86.48 To Order
69018900 LID SAFETY CABLE $241.46 To Order
Photo Part No Description Price (each) Stock
69714700 BRACKET $190.62 To Order
Photo Part No Description Price (each) Stock
67489500 ACTUATOR COMPLETE WITH BRACKET $241.46 To Order
Photo Part No Description Price (each) Stock
14054077 NUT $0.52 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
67131911 FUEL FILLER FLAP COVER $521.08 To Order
Photo Part No Description Price (each) Stock
67934900 FUEL FILLER FLAP HINGE $457.53 To Order
Photo Part No Description Price (each) Stock
62797600 Allen Bolt Countersunk M6 x 20 $0.97 IN STOCK
Photo Part No Description Price (each) Stock
12601174 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
11673111 NUT $0.23 To Order
Photo Part No Description Price (each) Stock
62769800 WASHER D.5-14 X 2.5 $0.21 IN STOCK
Photo Part No Description Price (each) Stock
66057300 FUEL FILLER FLAP ROD $19.71 To Order
Photo Part No Description Price (each) Stock
11673111 NUT $0.23 To Order
Photo Part No Description Price (each) Stock
62769800 WASHER D.5-14 X 2.5 $0.21 IN STOCK
Photo Part No Description Price (each) Stock
382500554 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
153069 SWITCH $6.68 To Order
Photo Part No Description Price (each) Stock
15916977 SCREW $0.93 IN STOCK
Photo Part No Description Price (each) Stock
69242600 SHIM $11.02 To Order
Photo Part No Description Price (each) Stock
68579500 LID SEAL $631.38 To Order
Photo Part No Description Price (each) Stock
186180 REAR LICENSE PLATE LIGHT $69.48 IN STOCK
Photo Part No Description Price (each) Stock
168133 Screw M5 x 20 $0.87 IN STOCK
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
69856100 GASKET $105.22 To Order
Photo Part No Description Price (each) Stock
66403900 EMERGENCY HANDLE FOR CHILDREN $43.99 To Order
Photo Part No Description Price (each) Stock
69955800 SAFETY CABLE BRACKET $30.19 To Order
Photo Part No Description Price (each) Stock
64385900 RIVET $0.38 To Order
Photo Part No Description Price (each) Stock
63879900 RUBBER VIBRATION DAMPER $14.88 IN STOCK
Photo Part No Description Price (each) Stock
67625300 RUBBER PAD $3.08 To Order
View All

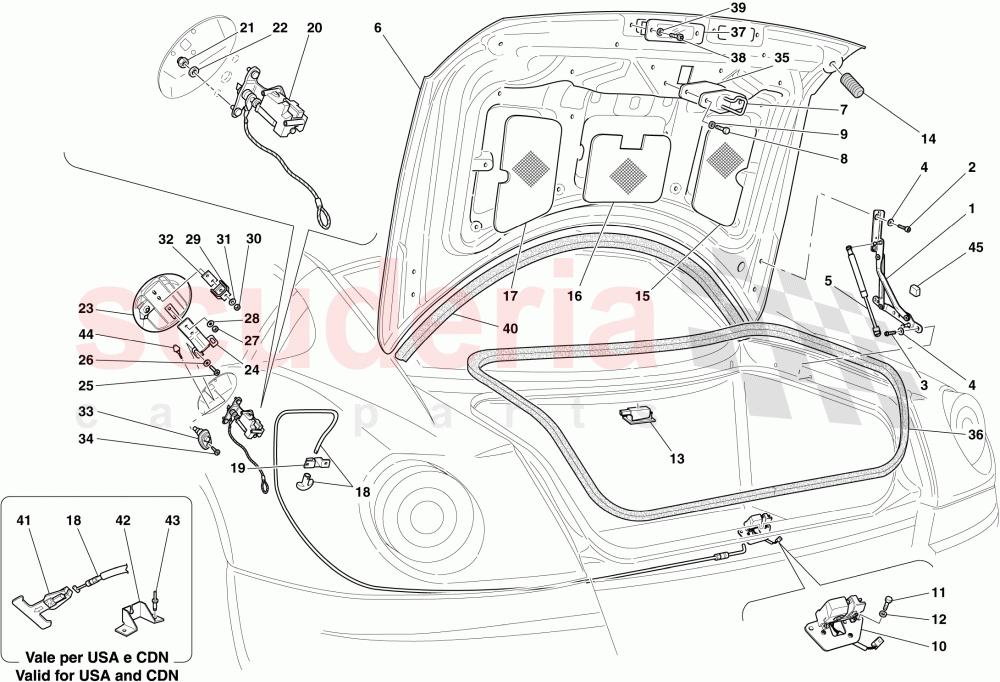

LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP of Ferrari Ferrari 599 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 67625100
COMPLETE RH HINGE 		$242.77 1
1 67625200
COMPLETE LH HINGE 		$242.77 1
2 16286124
SCREW 		$0.35 4
3 14059290
FLANGED NUT M6
IN STOCK 		$1.32 6
4 68040000
WASHER
IN STOCK 		$0.14 10
5 82863300
GAS STRUT
IN STOCK 		$178.59 2
6 82717511
LUGGAGE COMPARTMENT LID 		$3,802.46 1
7 69242700
STRIKER PLATE 		$90.22 1
8 16132314
SCREW 		$0.23 2
9 860172
WASHER 		- 2 Enquire
10 69367900
Luggage Compartment Lid Lock
IN STOCK 		$166.90 (7% off) 1
11 10902524
SCREW M10 X 1.25 X 45
IN STOCK 		$0.14 2
12 860172
WASHER 		- 2 Enquire
13 188250
DOME LAMP UNIT
IN STOCK 		$5.00 (33.3% off) 1
14 849815
VIBRATION DAMPER
IN STOCK 		$31.50 2
15 82840000
RH LUGGAGE COMPARTMENT LID INSULATION 		$76.24 1
16 82840200
CENTRAL LUGGAGE COMPARTMENT LID INSULATION 		$76.24 1
17 82840100
LH LUGGAGE COMPARTMENT LID INSULATION 		$76.24 1
18 69714600
LID SAFETY CABLE
Not for USA, CDN 		$86.48 1
18 69018900
LID SAFETY CABLE
Applicable for USA, CDN 		$241.46 (6.1% off) 1
19 69714700
BRACKET 		$190.62 1
20 67489500
ACTUATOR COMPLETE WITH BRACKET 		$241.46 1
21 14054077
NUT 		$0.52 2
22 12637824
WASHER
IN STOCK 		$0.06 (88% off) 2
23 67131911
FUEL FILLER FLAP COVER 		$521.08 1
24 67934900
FUEL FILLER FLAP HINGE 		$457.53 1
25 62797600
Allen Bolt Countersunk M6 x 20
IN STOCK 		$0.97 (33.1% off) 2
26 12601174
WASHER 		$0.06 (82.9% off) 2
27 11673111
NUT 		$0.23 2
28 62769800
WASHER D.5-14 X 2.5
IN STOCK 		$0.21 (30% off) 2
29 66057300
FUEL FILLER FLAP ROD 		$19.71 1
30 11673111
NUT 		$0.23 2
31 62769800
WASHER D.5-14 X 2.5
IN STOCK 		$0.21 (30% off) 2
32 382500554
SHIM 		- 2 Enquire
33 153069
SWITCH 		$6.68 (16.5% off) 1
34 15916977
SCREW
IN STOCK 		$0.93 1
35 69242600
SHIM 		$11.02 5
36 68579500
LID SEAL 		$631.38 1
37 186180
REAR LICENSE PLATE LIGHT
IN STOCK 		$69.48 (19.8% off) 2
38 168133
Screw M5 x 20
IN STOCK 		$0.87 (30.4% off) 4
39 12638124
WASHER
IN STOCK 		$0.05 (92.9% off) 4
40 69856100
GASKET 		$105.22 1
41 66403900
EMERGENCY HANDLE FOR CHILDREN
Applicable for USA, CDN 		$43.99 (15.6% off) 1
42 69955800
SAFETY CABLE BRACKET
Applicable for USA, CDN 		$30.19 (31.8% off) 1
43 64385900
RIVET
Applicable for USA, CDN 		$0.38 (36.7% off) 2
44 63879900
RUBBER VIBRATION DAMPER
IN STOCK 		$14.88 (5.2% off) 2
45 67625300
RUBBER PAD 		$3.08 2
