Name: LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP
Rating: 5.0 (1 reviews)

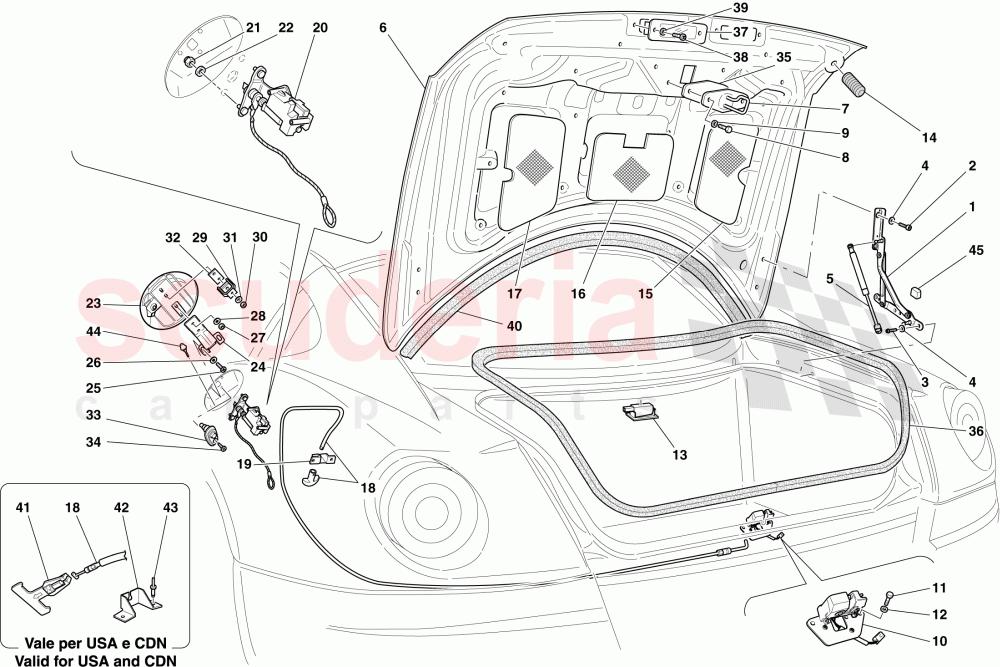

LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP of Ferrari Ferrari 599 GTB Fiorano

View All

Ferrari 599 GTB Fiorano - LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	67625100	COMPLETE RH HINGE	$242.81	To Order
	67625200	COMPLETE LH HINGE	$242.81	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	68040000	WASHER	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	68578700	Gas Strut Boot Lid	$35.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	68057510	TRUNK HOOD BONNET	$3,425.33	To Order

Photo	Part No	Description	Price (each)	Stock
	69242700	STRIKER PLATE	$90.23	To Order

Photo	Part No	Description	Price (each)	Stock
	16132314	SCREW	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69367900	Luggage Compartment Lid Lock	$166.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10902524	SCREW M10 X 1.25 X 45	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188250	DOME LAMP UNIT	$5.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	81805000	VIBRATION DAMPER BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69714600	LID SAFETY CABLE	$86.49	To Order
	69018900	LID SAFETY CABLE	$241.50	To Order

Photo	Part No	Description	Price (each)	Stock
	69714700	BRACKET	$190.65	To Order

Photo	Part No	Description	Price (each)	Stock
	67489500	ACTUATOR COMPLETE WITH BRACKET	$241.50	To Order

Photo	Part No	Description	Price (each)	Stock
	14054077	NUT	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	67131911	FUEL FILLER FLAP COVER	$521.16	To Order
	84835700	FUEL FILLER FLAP COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67934900	FUEL FILLER FLAP HINGE	$457.60	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	$0.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601174	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11673111	NUT	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER D.5-14 X 2.5	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	66057300	FUEL FILLER FLAP ROD	$19.71	To Order

Photo	Part No	Description	Price (each)	Stock
	11673111	NUT	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER D.5-14 X 2.5	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	382500554	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153069	SWITCH	$6.68	To Order

Photo	Part No	Description	Price (each)	Stock
	15916977	SCREW	$0.94	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	69242600	SHIM	$11.02	To Order

Photo	Part No	Description	Price (each)	Stock
	68579500	LID SEAL	$631.49	To Order

Photo	Part No	Description	Price (each)	Stock
	186180	REAR LICENSE PLATE LIGHT	$69.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	168133	Screw M5 x 20	$0.87	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	$0.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	69856100	GASKET	$105.24	To Order

Photo	Part No	Description	Price (each)	Stock
	66403900	EMERGENCY HANDLE FOR CHILDREN	$44.00	To Order

Photo	Part No	Description	Price (each)	Stock
	69955800	SAFETY CABLE BRACKET	$30.20	To Order

Photo	Part No	Description	Price (each)	Stock
	64385900	RIVET	$0.38	To Order

Photo	Part No	Description	Price (each)	Stock
	63879900	RUBBER VIBRATION DAMPER	$14.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	67625300	RUBBER PAD	$3.08	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	67625100	COMPLETE RH HINGE	67625100 COMPLETE RH HINGE	$242.81	1
1	67625200	COMPLETE LH HINGE	67625200 COMPLETE LH HINGE	$242.81	1
2	16286124	SCREW	16286124 SCREW	$0.35	4
3	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	6
4	68040000	WASHER IN STOCK	68040000 WASHER IN STOCK	$0.14	10
5	68578700	Gas Strut Boot Lid IN STOCK	68578700 Gas Strut Boot Lid IN STOCK	$35.72	2
6	68057510	TRUNK HOOD BONNET	68057510 TRUNK HOOD BONNET	$3,425.33	1
7	69242700	STRIKER PLATE	69242700 STRIKER PLATE	$90.23	1
8	16132314	SCREW	16132314 SCREW	$0.23	2
9	860172	WASHER	860172 WASHER	-	2	Enquire
10	69367900	Luggage Compartment Lid Lock IN STOCK	69367900 Luggage Compartment Lid Lock IN STOCK	$166.92 MSRP: ~~179.52~~ (7% off)	1
11	10902524	SCREW M10 X 1.25 X 45 IN STOCK	10902524 SCREW M10 X 1.25 X 45 IN STOCK	$0.14	2
12	860172	WASHER	860172 WASHER	-	2	Enquire
13	188250	DOME LAMP UNIT IN STOCK	188250 DOME LAMP UNIT IN STOCK	$5.00 MSRP: ~~7.50~~ (33.3% off)	1
14	81805000	VIBRATION DAMPER BLOCK	81805000 VIBRATION DAMPER BLOCK	-	2	Enquire
18	69714600	LID SAFETY CABLE	69714600 LID SAFETY CABLE Not for USA, CDN	$86.49	1
18	69018900	LID SAFETY CABLE	69018900 LID SAFETY CABLE Applicable for USA, CDN	$241.50 MSRP: ~~257.21~~ (6.1% off)	1
19	69714700	BRACKET	69714700 BRACKET	$190.65	1
20	67489500	ACTUATOR COMPLETE WITH BRACKET	67489500 ACTUATOR COMPLETE WITH BRACKET	$241.50	1
21	14054077	NUT	14054077 NUT	$0.52	2
22	12637824	WASHER IN STOCK	12637824 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	2
23	67131911	FUEL FILLER FLAP COVER	67131911 FUEL FILLER FLAP COVER	$521.16	1
23	84835700	FUEL FILLER FLAP COVER	84835700 FUEL FILLER FLAP COVER HGTE 60 F1 version	-	1	Enquire
24	67934900	FUEL FILLER FLAP HINGE	67934900 FUEL FILLER FLAP HINGE	$457.60	1
25	62797600	Allen Bolt Countersunk M6 x 20 IN STOCK	62797600 Allen Bolt Countersunk M6 x 20 IN STOCK	$0.97 MSRP: ~~1.45~~ (33.1% off)	2
26	12601174	WASHER	12601174 WASHER	$0.06 MSRP: ~~0.35~~ (82.9% off)	2
27	11673111	NUT	11673111 NUT	$0.23	2
28	62769800	WASHER D.5-14 X 2.5 IN STOCK	62769800 WASHER D.5-14 X 2.5 IN STOCK	$0.21 MSRP: ~~0.30~~ (30% off)	2
29	66057300	FUEL FILLER FLAP ROD	66057300 FUEL FILLER FLAP ROD	$19.71	1
30	11673111	NUT	11673111 NUT	$0.23	2
31	62769800	WASHER D.5-14 X 2.5 IN STOCK	62769800 WASHER D.5-14 X 2.5 IN STOCK	$0.21 MSRP: ~~0.30~~ (30% off)	2
32	382500554	SHIM	382500554 SHIM	-	2	Enquire
33	153069	SWITCH	153069 SWITCH	$6.68 MSRP: ~~8.00~~ (16.5% off)	1
34	15916977	SCREW IN STOCK	15916977 SCREW IN STOCK	$0.94	1
35	69242600	SHIM	69242600 SHIM	$11.02	5
36	68579500	LID SEAL	68579500 LID SEAL	$631.49	1
37	186180	REAR LICENSE PLATE LIGHT IN STOCK	186180 REAR LICENSE PLATE LIGHT IN STOCK	$69.49 MSRP: ~~86.62~~ (19.8% off)	2
38	168133	Screw M5 x 20 IN STOCK	168133 Screw M5 x 20 IN STOCK	$0.87 MSRP: ~~1.25~~ (30.4% off)	4
39	12638124	WASHER IN STOCK	12638124 WASHER IN STOCK	$0.05 MSRP: ~~0.70~~ (92.9% off)	4
40	69856100	GASKET	69856100 GASKET	$105.24	1
41	66403900	EMERGENCY HANDLE FOR CHILDREN	66403900 EMERGENCY HANDLE FOR CHILDREN Applicable for USA, CDN	$44.00 MSRP: ~~52.14~~ (15.6% off)	1
42	69955800	SAFETY CABLE BRACKET	69955800 SAFETY CABLE BRACKET Applicable for USA, CDN	$30.20 MSRP: ~~44.29~~ (31.8% off)	1
43	64385900	RIVET	64385900 RIVET Applicable for USA, CDN	$0.38 MSRP: ~~0.60~~ (36.7% off)	2
44	63879900	RUBBER VIBRATION DAMPER IN STOCK	63879900 RUBBER VIBRATION DAMPER IN STOCK	$14.89 MSRP: ~~15.69~~ (5.1% off)	2
45	67625300	RUBBER PAD	67625300 RUBBER PAD	$3.08	2

Luggage Compartment Lid And Fuel Filler Flap

Ferrari 599 GTB Fiorano

Ferrari 599 GTB Fiorano - LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP
