Ferrari 599 GTB Fiorano - DASHBOARD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
69156400 UPPER DASHBOARD SUBSTRUCTURE $2,871.44 To Order
69130600 UPPER DASHBOARD SUBSTRUCTURE $4,320.00 To Order
69137112 UPPER DASHBOARD FRAMEWORK -Optional- -Hi $4,953.45 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
69161400 BINNACLE $1,631.35 To Order
82776912 BINNACLE $2,169.27 To Order
Photo Part No Description Price (each) Stock
66851600 RH DASHBOARD END PANEL $282.71 To Order
67445500 RH DASHBOARD END PANEL $750.63 To Order
67455900 RH DASHBOARD END PANEL $282.71 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
66851700 LH DASHBOARD END PANEL $282.71 To Order
67456000 LH DASHBOARD END PANEL $261.47 To Order
67841600 LH DASHBOARD END PANEL $562.07 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
80464800 RH UNDER WINDSCREEN TRAY $302.20 IN STOCK
80464900 LH UNDER WINDSCREEN TRAY $302.20 IN STOCK
Photo Part No Description Price (each) Stock
15526501 SCREW $4.66 To Order
Photo Part No Description Price (each) Stock
12642821 WASHER $0.43 IN STOCK
Photo Part No Description Price (each) Stock
69157800 PASSENGER SIDE MOULDING $2,906.78 To Order
81157200 PASSENGER SIDE MOULDING $2,900.42 To Order
69374800 PASSENGER SIDE MOULDING $3,490.43 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
69157700 DRIVER SIDE MOULDING $1,246.11 To Order
81157300 DRIVER SIDE MOULDING $2,084.08 To Order
69374900 DRIVER SIDE MOULDING $2,301.51 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
69366000 LOWER BINNACLE MOULDING $877.36 To Order
69131100 LOWER BINNACLE MOULDING $1,233.40 To Order
69257900 LOWER BINNACLE MOULDING $468.96 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
69163300 UPPER DASHBOARD CROSS-MEMBER $483.18 To Order
80203300 UPPER DASHBOARD CROSS-MEMBER $483.18 To Order
69131200 UPPER DASHBOARD CROSS-MEMBER $648.48 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14307224 SCREW $0.63 IN STOCK
Photo Part No Description Price (each) Stock
12647021 WASHER $0.31 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
67439400 LATERAL SPACER $6.20 To Order
Photo Part No Description Price (each) Stock
69717900 AIR VENT $190.72 To Order
81602500 AIR VENT $147.24 To Order
84671700 AIR VENT $288.43 To Order
Photo Part No Description Price (each) Stock
69870000 CENTRE INSERT $457.75 To Order
81205900 CENTRE INSERT $2,205.96 To Order
84670000 CENTRE INSERT $584.90 To Order
Photo Part No Description Price (each) Stock
69157900 LH LOWER LATERAL SUBSTRUCTURE $1,169.82 To Order
69134900 RH LATERAL LOWER SUBSTRUCTURE $1,869.19 To Order
82774712 LH LOWER LATERAL SUBSTRUCTURE $968.15 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
68561400 COMPL. BODY COMPUTER COVER $547.18 To Order
69136012 COMPL. BODY COMPUTER COVER $521.13 To Order
69131000 COMPL. BODY COMPUTER COVER $499.86 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
69162200 DASH CENTRE CONSOLE SURROUND $1,213.28 To Order
69130900 DASH CENTRE CONSOLE SURROUND $1,303.47 To Order
82774512 HANG-DOWN SECTION FLANKS $4,436.48 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
69163400 RADIO SURROUND $1,628.30 To Order
69717700 RADIO SURROUND Enquire To Order
84729800 RADIO SURROUND $1,592.94 To Order
Photo Part No Description Price (each) Stock
13273977 SCREW $0.25 IN STOCK
10977887 SCREW M5 X 16 $0.78 IN STOCK
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
68126800 AIR VENT SURROUND $34.90 To Order
Photo Part No Description Price (each) Stock
69707100 CENTRE TWIDDLER SURROUND Enquire To Order
Photo Part No Description Price (each) Stock
67439000 CROSS-MEMBER FASTENER BRACKET $165.29 To Order
67452600 CROSS-MEMBER FASTENER BRACKET $66.11 To Order
Photo Part No Description Price (each) Stock
67003000 RH BRACKET $28.83 To Order
Photo Part No Description Price (each) Stock
68576600 COVER $1,271.55 To Order
Photo Part No Description Price (each) Stock
69717000 LOWER CENTRAL MOULDING $661.19 To Order
69249300 LOWER CENTRAL MOULDING Enquire To Order
84731900 LOWER CENTRAL MOULDING $724.77 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
80462510 60 YEARS LABEL $168.31 To Order
80917510 60 YEARS LABEL $176.73 To Order
81190910 CAMPIONI DEL MONDO "2007" LABEL $216.16 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
243895 DUMPER $25.52 To Order
261198 DUMPER KIT $21.45 To Order
Photo Part No Description Price (each) Stock
69711100 SURROUND FOR RH TWIDDLER $254.29 To Order
69711200 SURROUND FOR LH TWIDDLER $254.29 To Order
Photo Part No Description Price (each) Stock
69156900 AIR DUCT TO RH LATERAL VENT Enquire To Order
81155900 AIR DUCT TO RH LATERAL VENT $136.62 To Order
69134700 AIR DUCT TO RH LATERAL VENT $142.69 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
69157100 AIR DUCT TO LH LATERAL VENT Enquire To Order
81156200 AIR DUCT TO LH LATERAL VENT $136.62 To Order
69134800 AIR DUCT TO LH LATERAL VENT $142.69 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
69159600 CENTRAL AIR DUCT Enquire To Order
81156500 CENTRAL AIR DUCT $142.69 To Order
Photo Part No Description Price (each) Stock
81152300 LATERAL AIR DUCT SEAL $5.23 To Order
Photo Part No Description Price (each) Stock
66853100 AIR DUCT TO RH DASH END PANEL $114.43 To Order
66853200 AIR DUCT TO LH DASH END PANEL $114.43 To Order
Photo Part No Description Price (each) Stock
67184300 FRONT SECTION OF DEFROSTER DUCT $171.27 IN STOCK
Photo Part No Description Price (each) Stock
67184400 REAR SECTION OF DEFROSTER DUCT $180.59 IN STOCK
Photo Part No Description Price (each) Stock
85199200 FIXING BUTTON $5.61 ARRIVING SOON
Photo Part No Description Price (each) Stock
64460400 FERRARI-PININFARINA FLAGS $94.11 ARRIVING SOON
Photo Part No Description Price (each) Stock
84742000 DEDICATION PLAQUE $381.45 To Order
View All

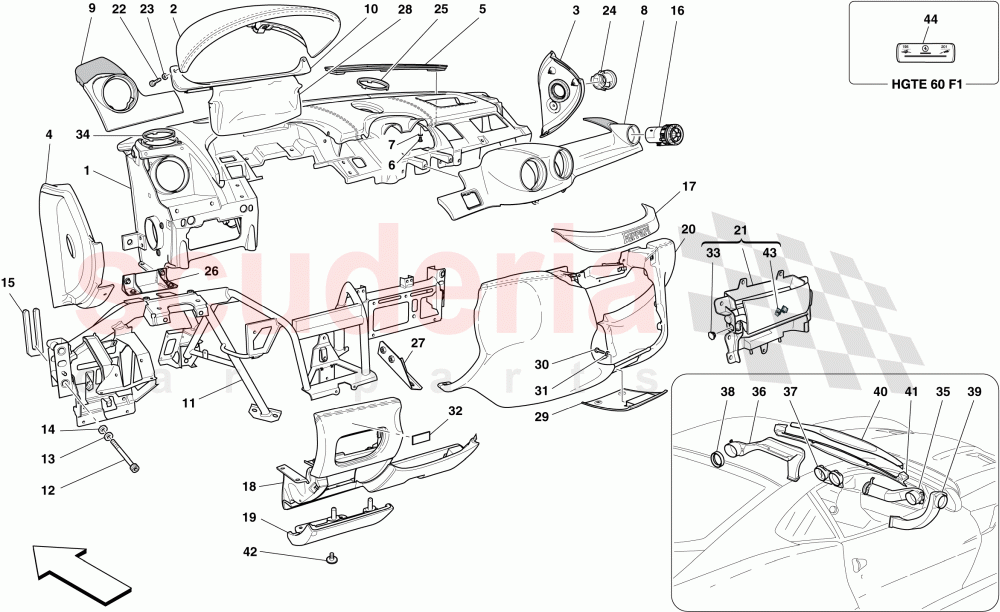

DASHBOARD of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 69156400
UPPER DASHBOARD SUBSTRUCTURE
Standard; Not for GD 		$2,871.44 1
1 69130600
UPPER DASHBOARD SUBSTRUCTURE
Standard; Applicable for GD 		$4,320.00 1
1 69137112
UPPER DASHBOARD FRAMEWORK -Optional- -Hi
Hi-Fi version; Not for GD 		$4,953.45 1
1 69137600
UPPER DASHBOARD SUBSTRUCTURE
Hi-Fi version; Applicable for GD 		$4,575.96 1
1 83161700
UPPER DASHBOARD SUBSTRUCTURE
Formula 1 technical fabric; Applicable for HGTE 60 F1 version; Standard; STC1; STC2; Not for GD 		$4,150.17 1
1 83223900
UPPER DASHBOARD SUBSTRUCTURE
Formula 1 technical fabric; Applicable for HGTE 60 F1 version; Standard; STC1; STC2; Applicable for GD 		- 1 Enquire
1 82707300
UPPER DASHBOARD SUBSTRUCTURE
Formula 1 technical fabric; Applicable for HGTE 60 F1 version; Hi-Fi version; STC1; STC2; Not for GD 		$4,150.17 1
1 83225300
UPPER DASHBOARD SUBSTRUCTURE
Formula 1 technical fabric; Applicable for HGTE 60 F1 version; Hi-Fi version; STC1; STC2; Applicable for GD 		- 1 Enquire
2 69161400
BINNACLE 		$1,631.35 1
2 82776912
BINNACLE
Formula 1 technical fabric; Applicable for HGTE 60 F1 version; STC1; STC2 		$2,169.27 1
3 66851600
RH DASHBOARD END PANEL
Not for GD 		$282.71 1
3 67445500
RH DASHBOARD END PANEL
Applicable for vehicles with passenger side airbag deactivation; Not for GD 		$750.63 1
3 67455900
RH DASHBOARD END PANEL
Applicable for GD 		$282.71 1
3 82774612
RH DASH END PANEL
Formula 1 technical fabric; Applicable for HGTE 60 F1 version; Not for GD 		$523.44 1
3 83160012
RH DASH END PANEL
Formula 1 technical fabric; Applicable for HGTE 60 F1 version; Applicable for vehicles with passenger side airbag deactivation; Not for USA, CDN, J, GD 		$661.19 1
3 83207000
RH DASHBOARD END PANEL
Formula 1 technical fabric; Applicable for HGTE 60 F1 version; Applicable for GD 		- 1 Enquire
4 66851700
LH DASHBOARD END PANEL
Not for GD 		$282.71 1
4 67456000
LH DASHBOARD END PANEL
Applicable for GD 		$261.47 1
4 67841600
LH DASHBOARD END PANEL
Applicable for vehicles with passenger side airbag deactivation; Applicable for GD 		$562.07 1
4 82774812
LH DASH END PANEL
Formula 1 technical fabric; Applicable for HGTE 60 F1 version; Not for GD 		$523.64 1
4 83207200
LH DASHBOARD END PANEL
Formula 1 technical fabric; Applicable for HGTE 60 F1 version; Applicable for vehicles with passenger side airbag deactivation; Applicable for UK 		- 1 Enquire
4 83207100
LH DASHBOARD END PANEL
Formula 1 technical fabric; Applicable for HGTE 60 F1 version; Applicable for GD 		- 1 Enquire
5 80464800
RH UNDER WINDSCREEN TRAY
Version in colour matching vehicle interior
IN STOCK 		$302.20 1
5 80464900
LH UNDER WINDSCREEN TRAY
Version in colour matching vehicle interior
IN STOCK 		$302.20 1
6 15526501
SCREW 		$4.66 6
7 12642821
WASHER
IN STOCK 		$0.43 6
8 69157800
PASSENGER SIDE MOULDING
Carbon version; Not for GD; Applicable up to Ass. No. 88544 		$2,906.78 1
8 81157200
PASSENGER SIDE MOULDING
Carbon version; Not for GD; Applicable from Ass. No. 88545 		$2,900.42 1
8 69374800
PASSENGER SIDE MOULDING
Carbon version; Applicable for GD; Applicable up to Ass. No. 88544 		$3,490.43 1
8 81602400
PASSENGER SIDE MOULDING
Carbon version; Applicable for GD; Applicable from Ass. No. 88545 		$3,490.43 1
8 69250200
PASSENGER SIDE MOULDING
Version in leather; Not for GD; Applicable up to Ass. No. 88544 		$1,712.07 1
8 81155000
PASSENGER SIDE MOULDING
Version in leather; Not for GD; Applicable from Ass. No. 88545 		- 1 Enquire
8 69374400
PASSENGER SIDE MOULDING
Version in leather; Applicable for GD; Applicable up to Ass. No. 88544 		$1,598.58 1
8 81600900
PASSENGER SIDE MOULDING
Version in leather; Applicable for GD; Applicable from Ass. No. 88545 		- 1 Enquire
8 84741300
PASSENGER SIDE MOULDING
HGTE 60 F1 version; Not for GD 		$4,357.64 1
9 69157700
DRIVER SIDE MOULDING
Carbon version; Not for GD; Applicable up to Ass. No. 88544 		$1,246.11 1
9 81157300
DRIVER SIDE MOULDING
Carbon version; Not for GD; Applicable from Ass. No. 88545 		$2,084.08 1
9 69374900
DRIVER SIDE MOULDING
Carbon version; Applicable for GD; Applicable up to Ass. No. 88544 		$2,301.51 1
9 81602300
DRIVER SIDE MOULDING
Carbon version; Applicable for GD; Applicable from Ass. No. 88545 		$1,926.40 1
9 69249700
DRIVER SIDE MOULDING
Version in leather; Not for GD; Applicable up to Ass. No. 88544 		- 1 Enquire
9 81155500
DRIVER SIDE MOULDING
Version in leather; Not for GD; Applicable from Ass. No. 88545 		- 1 Enquire
9 69374000
DRIVER SIDE MOULDING
Version in leather; Applicable for GD; Applicable up to Ass. No. 88544 		$838.80 1
9 81600500
DRIVER SIDE MOULDING
Version in leather; Applicable for GD; Applicable from Ass. No. 88545 		- 1 Enquire
9 84741400
DRIVER SIDE MOULDING
HGTE 60 F1 version; Not for GD 		$2,240.48 1
10 69366000
LOWER BINNACLE MOULDING
Carbon version; Not for GD 		$877.36 1
10 69131100
LOWER BINNACLE MOULDING
Carbon version; Applicable for GD 		$1,233.40 1
10 69257900
LOWER BINNACLE MOULDING
Version in leather; Not for GD 		$468.96 1
10 69707300
LOWER BINNACLE MOULDING
Version in leather; Applicable for GD 		- 1 Enquire
10 84669700
LOWER BINNACLE MOULDING
HGTE 60 F1 version; Not for GD 		- 1 Enquire
10 84669900
LOWER BINNACLE MOULDING
HGTE 60 F1 version; Applicable for GD 		$1,224.40 1
11 69163300
UPPER DASHBOARD CROSS-MEMBER
Not for GD; Applicable up to Ass. No. 71506; Applicable until depletion 		$483.18 1
11 80203300
UPPER DASHBOARD CROSS-MEMBER
Not for GD; Applicable from Ass. No. 71507; Applicable after depletion of 69163300 		$483.18 1
11 69131200
UPPER DASHBOARD CROSS-MEMBER
Applicable for GD; Applicable up to Ass. No. 71506; Applicable until depletion 		$648.48 1
11 80203400
UPPER DASHBOARD CROSS-MEMBER
Applicable for GD; Applicable from Ass. No. 71507; Applicable after depletion of 69131200 		$648.48 1
12 14307224
SCREW
IN STOCK 		$0.63 4
13 12647021
WASHER
IN STOCK 		$0.31 4
14 127496
WASHER 		$0.06 (80% off) 4
15 67439400
LATERAL SPACER
Applicable for cross-member 69131200 and 69163300, ref. 11; Applicable up to Ass. No. 71506 		$6.20 4
16 69717900
AIR VENT
Standard; Applicable up to Ass. No. 88544 		$190.72 (24.3% off) 4
16 81602500
AIR VENT
Applicable from Ass. No. 88545 		$147.24 4
16 84671700
AIR VENT
HGTE 60 F1 version 		$288.43 4
17 69870000
CENTRE INSERT
Standard 		$457.75 1
17 81205900
CENTRE INSERT
Applicable for HGTE version 		$2,205.96 1
17 84670000
CENTRE INSERT
HGTE 60 F1 version 		$584.90 1
18 69157900
LH LOWER LATERAL SUBSTRUCTURE
Not for GD 		$1,169.82 1
18 69134900
RH LATERAL LOWER SUBSTRUCTURE
Applicable for GD 		$1,869.19 1
18 82774712
LH LOWER LATERAL SUBSTRUCTURE
Formula 1 technical fabric; Applicable for HGTE 60 F1 version; STC1; STC2; Not for GD 		$968.15 1
18 83223700
RH LATERAL LOWER SUBSTRUCTURE
Formula 1 technical fabric; Applicable for HGTE 60 F1 version; STC1; STC2; Applicable for GD 		$968.15 1
19 68561400
COMPL. BODY COMPUTER COVER
Not for USA, CDN, GD 		$547.18 1
19 69136012
COMPL. BODY COMPUTER COVER
Applicable for USA, CDN 		$521.13 1
19 69131000
COMPL. BODY COMPUTER COVER
Applicable for GD 		$499.86 1
19 82774912
COMPL. BODY COMPUTER COVER PANEL
Formula 1 technical fabric; Applicable for HGTE 60 F1 version; Not for USA, CDN, GD 		$673.91 1
19 83254000
COMPL. BODY COMPUTER COVER
Formula 1 technical fabric; Applicable for HGTE 60 F1 version; Applicable for USA, CDN 		- 1 Enquire
19 83207300
COMPL. BODY COMPUTER COVER
Formula 1 technical fabric; Applicable for HGTE 60 F1 version; Applicable for GD 		$499.86 1
20 69162200
DASH CENTRE CONSOLE SURROUND
STC1; STC2; Not for GD 		$1,213.28 1
20 69130900
DASH CENTRE CONSOLE SURROUND
STC1; STC2; Applicable for GD 		$1,303.47 1
20 82774512
HANG-DOWN SECTION FLANKS
Formula 1 technical fabric; Applicable for HGTE 60 F1 version; STC1; STC2; Not for GD 		$4,436.48 1
20 83058512
HANG-DOWN SECTION FLANKS
Formula 1 technical fabric; Applicable for HGTE 60 F1 version; STC1; STC2; Applicable for GD 		$1,213.28 1
21 69163400
RADIO SURROUND 		$1,628.30 1
21 69717700
RADIO SURROUND
Version in leather; No longer supplied 		- 1 Enquire
21 84729800
RADIO SURROUND
Matte black; HGTE 60 F1 version 		$1,592.94 1
22 13273977
SCREW
Carbon version
IN STOCK 		$0.25 2
22 10977887
SCREW M5 X 16
Version in leather
IN STOCK 		$0.78 (54.1% off) 2
23 12637824
WASHER
IN STOCK 		$0.06 (88% off) 2
24 68126800
AIR VENT SURROUND 		$34.90 2
25 69707100
CENTRE TWIDDLER SURROUND
Version in colour matching vehicle interior; Hi-Fi version 		- 1 Enquire
26 67439000
CROSS-MEMBER FASTENER BRACKET
Not for GD 		$165.29 1
26 67452600
CROSS-MEMBER FASTENER BRACKET
Applicable for GD 		$66.11 1
27 67003000
RH BRACKET 		$28.83 1
28 68576600
COVER 		$1,271.55 1
29 69717000
LOWER CENTRAL MOULDING 		$661.19 1
29 69249300
LOWER CENTRAL MOULDING
Version in leather; No longer supplied 		- 1 Enquire
29 84731900
LOWER CENTRAL MOULDING
HGTE 60 F1 version 		$724.77 1
30 11566224
SCREW
IN STOCK 		$0.34 2
31 12637824
WASHER
IN STOCK 		$0.06 (88% off) 2
32 80462510
60 YEARS LABEL
Red 		$168.31 1
32 80917510
60 YEARS LABEL
Silver 		$176.73 1
32 81190910
CAMPIONI DEL MONDO "2007" LABEL 		$216.16 1
32 82262900
CAMPIONI DEL MONDO "2008" LABEL 		$165.29 1
33 243895
DUMPER
Applicable up to Ass. No. 79962 		$25.52 (48.5% off) 1
33 261198
DUMPER KIT
Applicable from Ass. No. 79963 		$21.45 (47.8% off) 1
34 69711100
SURROUND FOR RH TWIDDLER
Version in colour matching vehicle interior 		$254.29 1
34 69711200
SURROUND FOR LH TWIDDLER
Version in colour matching vehicle interior 		$254.29 1
35 69156900
AIR DUCT TO RH LATERAL VENT
Not for GD; Applicable up to Ass. No. 88544 		- 1 Enquire
35 81155900
AIR DUCT TO RH LATERAL VENT
Not for GD; Applicable from Ass. No. 88545 		$136.62 1
35 69134700
AIR DUCT TO RH LATERAL VENT
Applicable for GD; Applicable up to Ass. No. 88544 		$142.69 1
35 81601300
AIR DUCT TO RH LATERAL VENT
Applicable for GD; Applicable from Ass. No. 88545 		$136.62 1
36 69157100
AIR DUCT TO LH LATERAL VENT
Not for GD; Applicable up to Ass. No. 88544 		- 1 Enquire
36 81156200
AIR DUCT TO LH LATERAL VENT
Applicable for GD; Applicable from Ass. No. 88545 		$136.62 1
36 69134800
AIR DUCT TO LH LATERAL VENT
Applicable for GD; Applicable up to Ass. No. 88544 		$142.69 1
36 81601500
AIR DUCT TO LH LATERAL VENT
Applicable for GD; Applicable from Ass. No. 88545 		$254.29 1
37 69159600
CENTRAL AIR DUCT
Applicable up to Ass. No. 88544 		- 1 Enquire
37 81156500
CENTRAL AIR DUCT
Applicable from Ass. No. 88545 		$142.69 1
38 81152300
LATERAL AIR DUCT SEAL 		$5.23 4
39 66853100
AIR DUCT TO RH DASH END PANEL 		$114.43 1
39 66853200
AIR DUCT TO LH DASH END PANEL 		$114.43 1
40 67184300
FRONT SECTION OF DEFROSTER DUCT
IN STOCK 		$171.27 1
41 67184400
REAR SECTION OF DEFROSTER DUCT
IN STOCK 		$180.59 1
42 85199200
FIXING BUTTON
ARRIVING SOON 		$5.61 2
43 64460400
FERRARI-PININFARINA FLAGS
ARRIVING SOON 		$94.11 (28.6% off) 1
44 84742000
DEDICATION PLAQUE
HGTE 60 F1 version 		$381.45 1

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
