Ferrari 599 GTB Fiorano - STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985195256 TUNNEL $4,447.03 To Order
985226378 TUNNEL $737.13 To Order
Photo Part No Description Price (each) Stock
985206261 TANK CROSS MEMBER $610.03 To Order
Photo Part No Description Price (each) Stock
216839 UNDER EXHAUSTS PLATE $317.72 To Order
Photo Part No Description Price (each) Stock
985187276 STRUCTURE CONNECTOR PLATE $699.01 To Order
Photo Part No Description Price (each) Stock
985195252 RH CENTRAL LATERAL WALL $11,545.89 To Order
985260477 RH CENTRAL LATERAL WALL $19,593.95 To Order
985212492 RH CENTRAL LATERAL WALL $20,833.65 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
985195251 LH CENTRAL LATERAL WALL $19,648.57 To Order
985260476 LH CENTRAL LATERAL WALL $19,648.57 To Order
Photo Part No Description Price (each) Stock
985196327 COMPLETE RH REAR PILLAR $1,207.39 To Order
Photo Part No Description Price (each) Stock
985196269 COMPLETE LH REAR PILLAR $1,293.81 To Order
Photo Part No Description Price (each) Stock
985214614 RH UPPER BRACKET $203.33 To Order
Photo Part No Description Price (each) Stock
985214612 LH UPPER BRACKET $203.33 To Order
Photo Part No Description Price (each) Stock
67103211 RH END-PIECE $915.07 To Order
Photo Part No Description Price (each) Stock
67103311 LH END-PIECE $915.07 To Order
Photo Part No Description Price (each) Stock
68555100 RH STRIKER REINFORCEMENT $330.44 To Order
Photo Part No Description Price (each) Stock
68555200 LH STRIKER REINFORCEMENT $330.44 To Order
Photo Part No Description Price (each) Stock
68044711 RH REAR CORNER PIECE $368.56 To Order
Photo Part No Description Price (each) Stock
68044811 LH REAR CORNER PIECE $368.56 To Order
Photo Part No Description Price (each) Stock
68771611 RH OUTER REAR BRACKET $241.46 To Order
Photo Part No Description Price (each) Stock
68771711 LH OUTER REAR BRACKET $254.17 To Order
Photo Part No Description Price (each) Stock
985214142 RH REAR BRACKET $303.46 To Order
Photo Part No Description Price (each) Stock
985213940 LH REAR BRACKET $364.16 To Order
Photo Part No Description Price (each) Stock
985211909 RH SILL $1,830.15 To Order
985260480 RH SILL $1,425.99 To Order
260480 RH SILL Enquire To Order
Photo Part No Description Price (each) Stock
985211908 LH SILL $1,830.15 To Order
985260479 LH SILL $1,425.99 To Order
260479 LH SILL Enquire To Order
Photo Part No Description Price (each) Stock
67133411 RH END-PIECE $584.62 To Order
Photo Part No Description Price (each) Stock
67133511 LH END-PIECE $584.62 To Order
Photo Part No Description Price (each) Stock
985222147 FRONT RH FIREWALL FOOTREST $330.44 To Order
985222146 FRONT RH FIREWALL FOOTREST $305.01 To Order
Photo Part No Description Price (each) Stock
985218156 FRONT LH FIREWALL FOOTREST $317.72 To Order
Photo Part No Description Price (each) Stock
187287 FRONT COUPLING $63.52 To Order
Photo Part No Description Price (each) Stock
192814 LOWER PIN $123.26 To Order
Photo Part No Description Price (each) Stock
985192815 BENT INSERT $190.62 To Order
Photo Part No Description Price (each) Stock
985187338 RH ROOF BEAM JOINT $182.07 To Order
Photo Part No Description Price (each) Stock
985187337 LH ROOF BEAM JOINT $182.07 To Order
Photo Part No Description Price (each) Stock
985223100 COMPLETE RH FRONT DOOR PILLAR $4,492.79 To Order
985278942 COMPLETE RH FRONT DOOR PILLAR $4,492.79 To Order
278942 COMPLETE RH FRONT DOOR PILLAR Enquire To Order
Photo Part No Description Price (each) Stock
985223101 COMPLETE LH FRONT DOOR PILLAR $4,492.79 To Order
985278943 COMPLETE LH FRONT DOOR PILLAR $4,492.79 To Order
278943 COMPLETE LH FRONT DOOR PILLAR Enquire To Order
Photo Part No Description Price (each) Stock
67925900 BRACKET $203.33 To Order
Photo Part No Description Price (each) Stock
67133611 RH REAR PILLAR REINFORCEMENT $105.47 To Order
Photo Part No Description Price (each) Stock
67133711 LH REAR PILLAR REINFORCEMENT $105.47 To Order
Photo Part No Description Price (each) Stock
217870 TUNNEL CORNER PIECE $6.51 To Order
Photo Part No Description Price (each) Stock
233307 INTERNAL SEAT FASTENER BRACKET $245.79 To Order
Photo Part No Description Price (each) Stock
233308 INTERNAL SEAT FASTENER BRACKET $183.08 To Order
Photo Part No Description Price (each) Stock
233306 EXTERNAL SEAT FASTENER BRACKET $237.82 To Order
Photo Part No Description Price (each) Stock
233305 FRONT SEAT CROSS-MEMBER $440.04 To Order
Photo Part No Description Price (each) Stock
69120500 FIRE EXTINGUISHER FASTENER BRACKET FRAME $317.72 To Order
69860400 FIRE EXTINGUISHER FASTENER BRACKET FRAME $953.19 To Order
View All

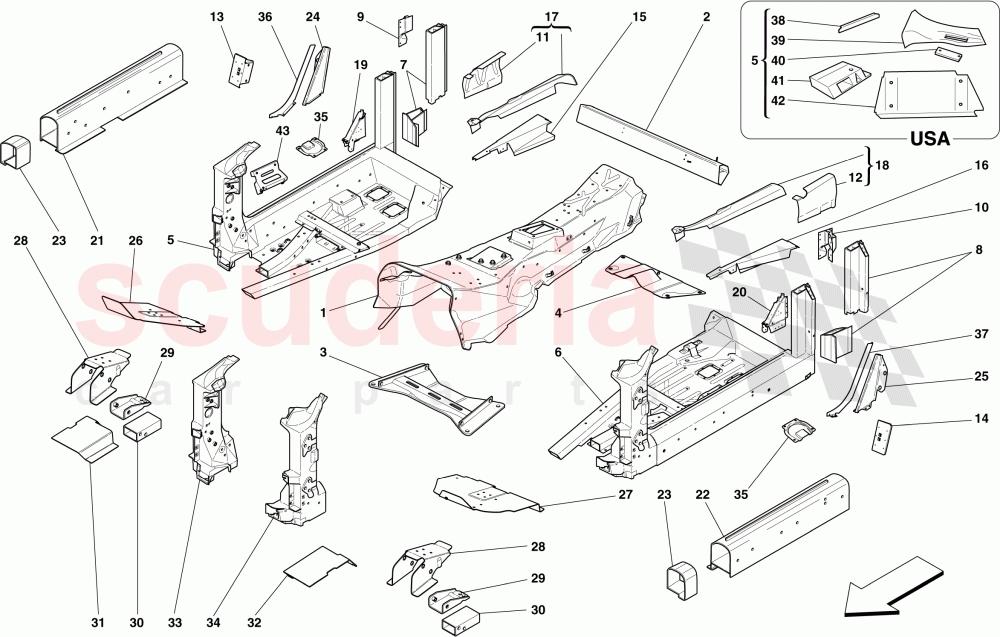

STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 985195256
TUNNEL
; Not for GD 		$4,447.03 1
1 985226378
TUNNEL
; Applicable for GD 		$737.13 1
2 985206261
TANK CROSS MEMBER 		$610.03 1
3 216839
UNDER EXHAUSTS PLATE 		$317.72 1
4 985187276
STRUCTURE CONNECTOR PLATE 		$699.01 1
5 985195252
RH CENTRAL LATERAL WALL
; Not for USA; Applicable up to Ass. No. 87312 		$11,545.89 1
5 985260477
RH CENTRAL LATERAL WALL
; Not for USA; Applicable from Ass. No. 87313 		$19,593.95 1
5 985212492
RH CENTRAL LATERAL WALL
; Applicable for USA; Applicable up to Ass. No. 87312 		$20,833.65 1
5 985260478
RH CENTRAL LATERAL WALL
; Applicable for USA; Applicable from Ass. No. 87313 		- 1 Enquire
6 985195251
LH CENTRAL LATERAL WALL
; Applicable up to Ass. No. 87312 		$19,648.57 1
6 985260476
LH CENTRAL LATERAL WALL
; Applicable from Ass. No. 87313 		$19,648.57 1
7 985196327
COMPLETE RH REAR PILLAR 		$1,207.39 1
8 985196269
COMPLETE LH REAR PILLAR 		$1,293.81 1
9 985214614
RH UPPER BRACKET 		$203.33 1
10 985214612
LH UPPER BRACKET 		$203.33 1
11 67103211
RH END-PIECE 		$915.07 1
12 67103311
LH END-PIECE 		$915.07 1
13 68555100
RH STRIKER REINFORCEMENT 		$330.44 1
14 68555200
LH STRIKER REINFORCEMENT 		$330.44 1
15 68044711
RH REAR CORNER PIECE 		$368.56 1
16 68044811
LH REAR CORNER PIECE 		$368.56 1
17 68771611
RH OUTER REAR BRACKET 		$241.46 1
18 68771711
LH OUTER REAR BRACKET 		$254.17 1
19 985214142
RH REAR BRACKET 		$303.46 1
20 985213940
LH REAR BRACKET 		$364.16 1
21 985211909
RH SILL
; Applicable up to Ass. No. 87312 		$1,830.15 1
21 985260480
RH SILL
; Applicable from Ass. No. 87313; Applicable until depletion 		$1,425.99 1
21 260480
RH SILL
; Applicable from Ass. No. 87313; Applicable after depletion of 985260480 		- 1 Enquire
22 985211908
LH SILL
; Applicable up to Ass. No. 87312 		$1,830.15 1
22 985260479
LH SILL
; Applicable from Ass. No. 87313; Applicable until depletion 		$1,425.99 1
22 260479
LH SILL
; Applicable from Ass. No. 87313; Applicable after depletion of 985260479 		- 1 Enquire
24 67133411
RH END-PIECE 		$584.62 1
25 67133511
LH END-PIECE 		$584.62 1
26 985222147
FRONT RH FIREWALL FOOTREST
; Not for GD 		$330.44 1
26 985222146
FRONT RH FIREWALL FOOTREST
; Applicable for GD 		$305.01 1
27 985218156
FRONT LH FIREWALL FOOTREST 		$317.72 1
28 187287
FRONT COUPLING 		$63.52 2
29 192814
LOWER PIN 		$123.26 2
30 985192815
BENT INSERT 		$190.62 2
31 985187338
RH ROOF BEAM JOINT 		$182.07 1
32 985187337
LH ROOF BEAM JOINT 		$182.07 1
33 985223100
COMPLETE RH FRONT DOOR PILLAR
; Applicable up to Ass. No. 87312 		$4,492.79 1
33 985278942
COMPLETE RH FRONT DOOR PILLAR
; Applicable from Ass. No. 87313; Applicable until depletion 		$4,492.79 1
33 278942
COMPLETE RH FRONT DOOR PILLAR
; Applicable from Ass. No. 87313; Applicable after depletion of 985278942 		- 1 Enquire
34 985223101
COMPLETE LH FRONT DOOR PILLAR
; Applicable up to Ass. No. 87312 		$4,492.79 1
34 985278943
COMPLETE LH FRONT DOOR PILLAR
; Applicable from Ass. No. 87313; Applicable until depletion 		$4,492.79 1
34 278943
COMPLETE LH FRONT DOOR PILLAR
; Applicable from Ass. No. 87313; Applicable after depletion of 985278943 		- 1 Enquire
35 67925900
BRACKET 		$203.33 2
36 67133611
RH REAR PILLAR REINFORCEMENT 		$105.47 1
37 67133711
LH REAR PILLAR REINFORCEMENT 		$105.47 1
38 217870
TUNNEL CORNER PIECE
Applicable for USA 		$6.51 1
39 233307
INTERNAL SEAT FASTENER BRACKET
Applicable for USA 		$245.79 1
40 233308
INTERNAL SEAT FASTENER BRACKET
Applicable for USA 		$183.08 1
41 233306
EXTERNAL SEAT FASTENER BRACKET
Applicable for USA 		$237.82 1
42 233305
FRONT SEAT CROSS-MEMBER
Applicable for USA 		$440.04 1
43 69120500
FIRE EXTINGUISHER FASTENER BRACKET FRAME
Not for GD 		$317.72 1
43 69860400
FIRE EXTINGUISHER FASTENER BRACKET FRAME
Applicable for GD 		$953.19 1
